(10 PCS) DM74ALS08MX FSC AND Gate 4-Element 2-IN Bipolar 14-Pin SOIC N T/R
Tax included.

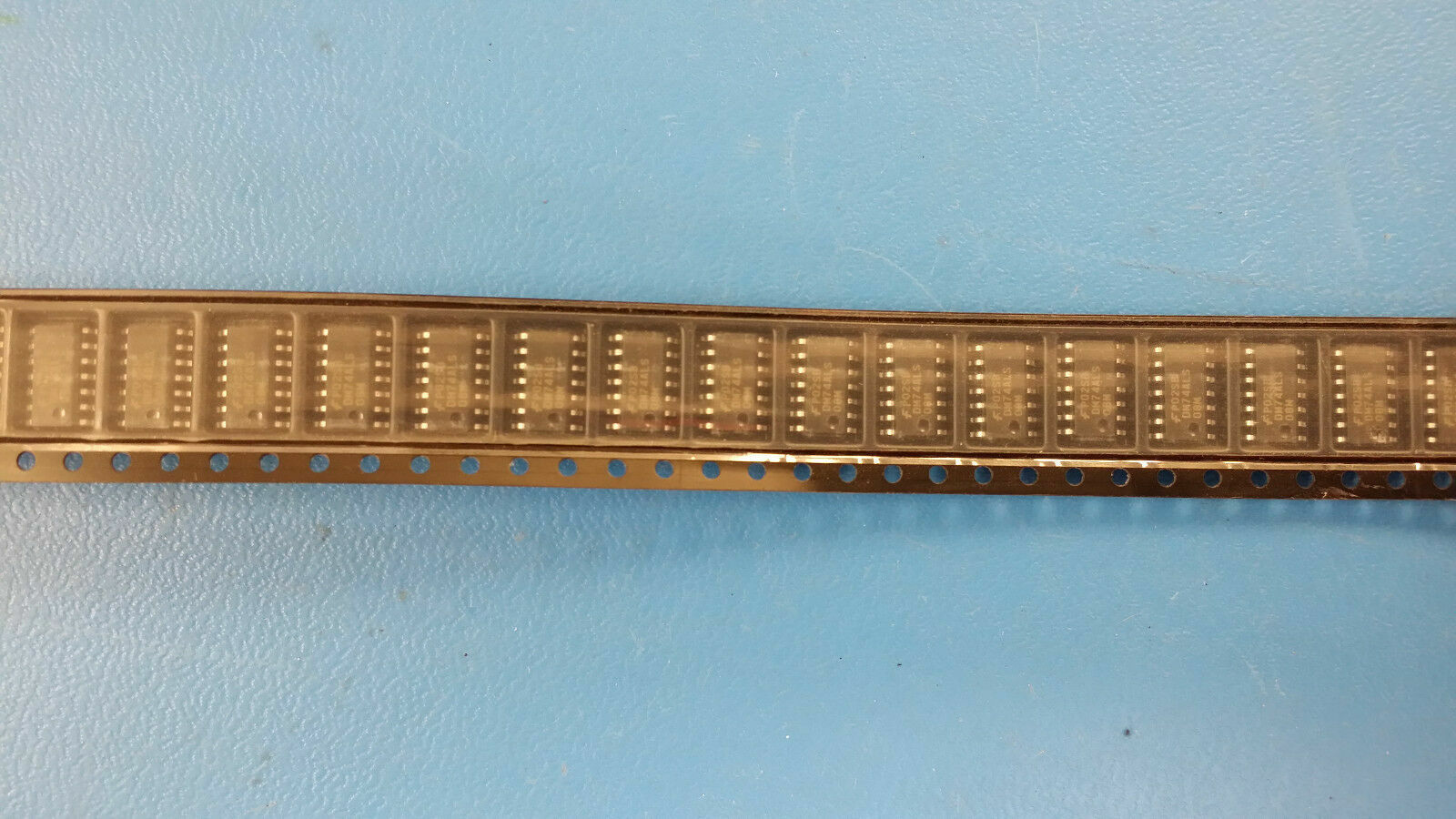

THIS LISTING IS FOR (10 PCS) OF DM74ALS08MX BY FSC
AND Gate 4-Element 2-IN Bipolar 14-Pin SOIC N T/R
AND Gate 4-Element 2-IN Bipolar 14-Pin SOIC N T/R
DM74ALS08MX Part Details & Parametric
| Logic Family | ALS |
| Logic Function | AND |
| Number of Element Inputs | 2-IN |
| Number of Element Outputs | 1 |
| Number of Elements per Chip | 4 |
| Fabrication Technology | Bipolar |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum High Level Output Current (mA) | -0.4 |
| Maximum Low Level Output Current (mA) | 8 |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Operating Temperature (°C) | 70 |
| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height (mm) | 1.5(Max) |
| Package Length (mm) | 8.75(Max) |
| Package Width (mm) | 4(Max) |
| PCB | 14 |
| Standard Package Name | SOIC |
| Supplier Package | SOIC N |
| Pin Count | 14 |
| Lead Shape | Gull-wing |
