(10 PCS) DM7426N NSC Logic Gates Qd 2-Input NAND Buff 14PIN DIP
Tax included.

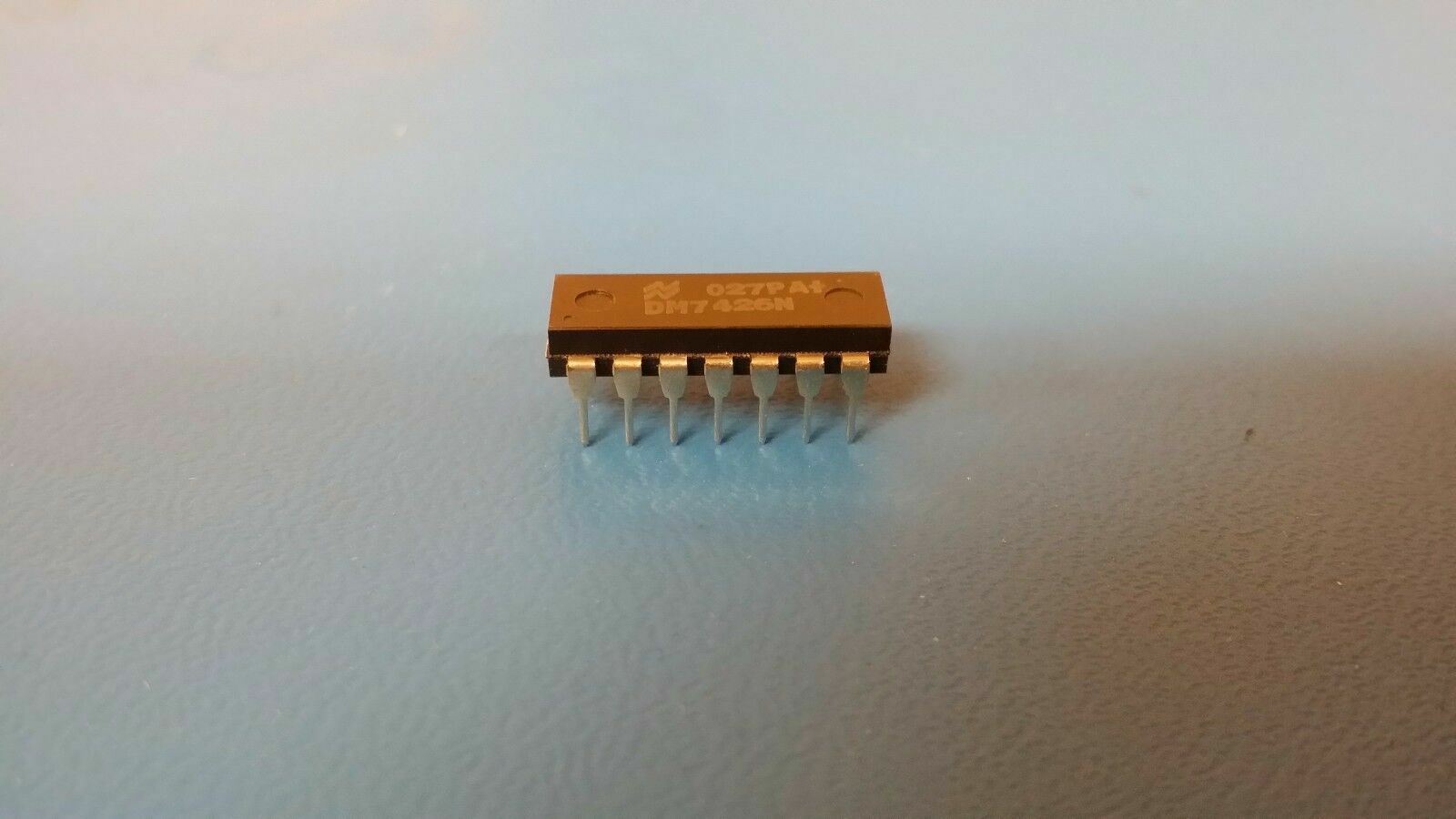

THIS LISTING IS FOR (10 PCS) OF DM7426N BY NSC
Logic Gates Qd 2-Input NAND Buff 14PIN DIP
| Product Category: | Logic Gates | |
| Manufacturer: | National Semiconductor | |
| RoHS: | No | |
| Logic Family: | TTL | |
| Number of Gates: | 4 Gate | |
| Number of Input Lines: | 2 Input | |
| Number of Output Lines: | 1 Output | |
| High Level Output Current: | - 1 mA | |
| Low Level Output Current: | 16 mA | |
| Propagation Delay Time: | 24 ns | |
| Supply Voltage - Max: | 5.25 V | |
| Supply Voltage - Min: | 4.75 V | |
| Maximum Operating Temperature: | + 70 C | |
| Mounting Style: | Through Hole | |
| Package / Case: | PDIP-14 | |
| Brand: | National Semiconductor | |
| Function: | Gate | |
| Height: | 3.56 mm | |
| Length: | 19.56 mm | |
| Logic Type: | Bipolar | |
| Minimum Operating Temperature: | 0 C | |
| Operating Supply Voltage: | 5 V | |
| Output Type: | Open Collector |
