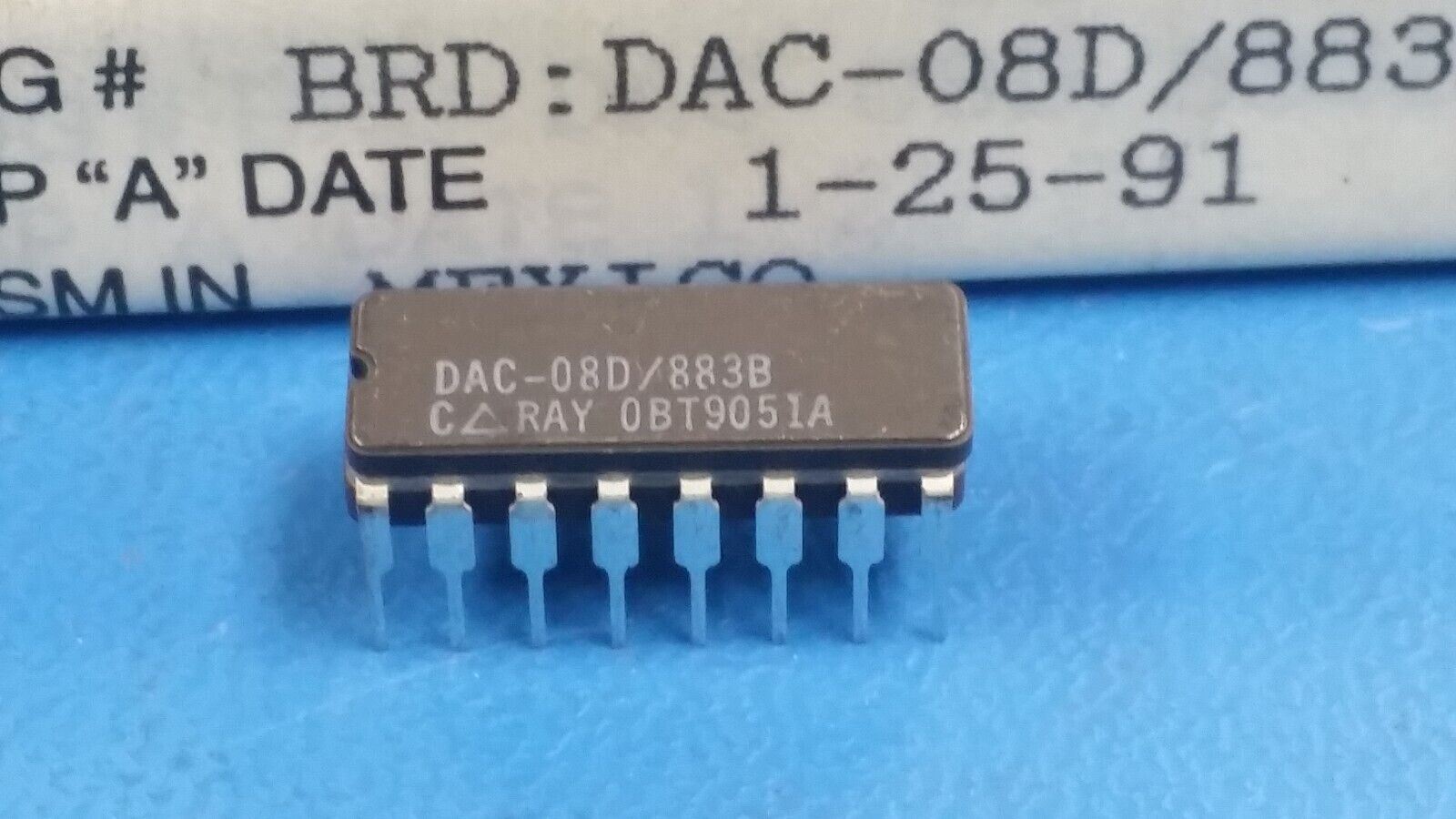

(25 PCS) DAC-08D 8 Bit Digital to Analog Converter CDIP16
Tax included.
THIS IS FOR (10 PCS) OF DAC-08D/883B BY FSC
8 Bit Digital to Analog Converter CDIP16
Part #: DAC-08D/883B
Part Category: Converters
Manufacturer: Fairchild Semiconductor
Description: D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 0.085us Settling Time, CDIP16
Status Discontinued
Converter Type D/A CONVERTER
Analog Output Voltage-Min -10.0 V
Analog Output Voltage-Max 10.0 V
Input Bit Code OFFSET BINARY, COMPLEMENTARY OFFSET BINARY
Input Format PARALLEL, 8 BITS
JESD-30 Code R-GDIP-T16
JESD-609 Code e0
Linearity Error-Max (EL) 0.19 %
Negative Supply Voltage-Nom -15.0 V
Number of Bits 8
Number of Functions 1
Number of Terminals 16
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Screening Level 38535Q/M;38534H;883B
Settling Time-Max 0.0 µs
Settling Time-Nom (tstl) 0.085 µs
Sub Category Other Converters
Supply Current-Max 7.8 mA
Supply Voltage-Nom 15.0 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade MILITARY
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
