(10 PCS) CNY17-3X009T Optocoupler DC-IN 1-CH Transistor With Base DC-OUT
Tax included.

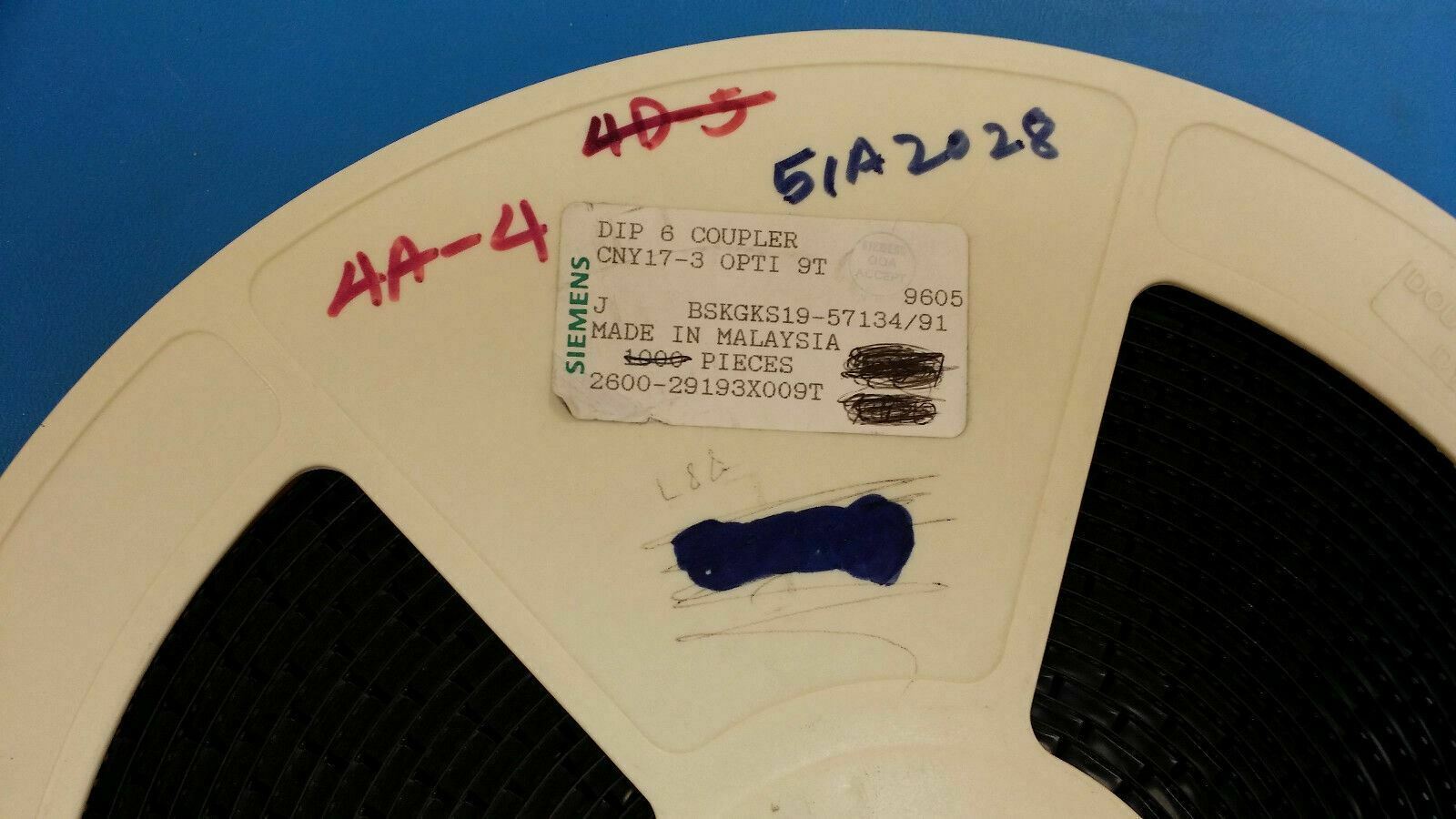

THIS LISTING IS FOR (10 PCS) OF CNY17-3X009T BY SIEMENS

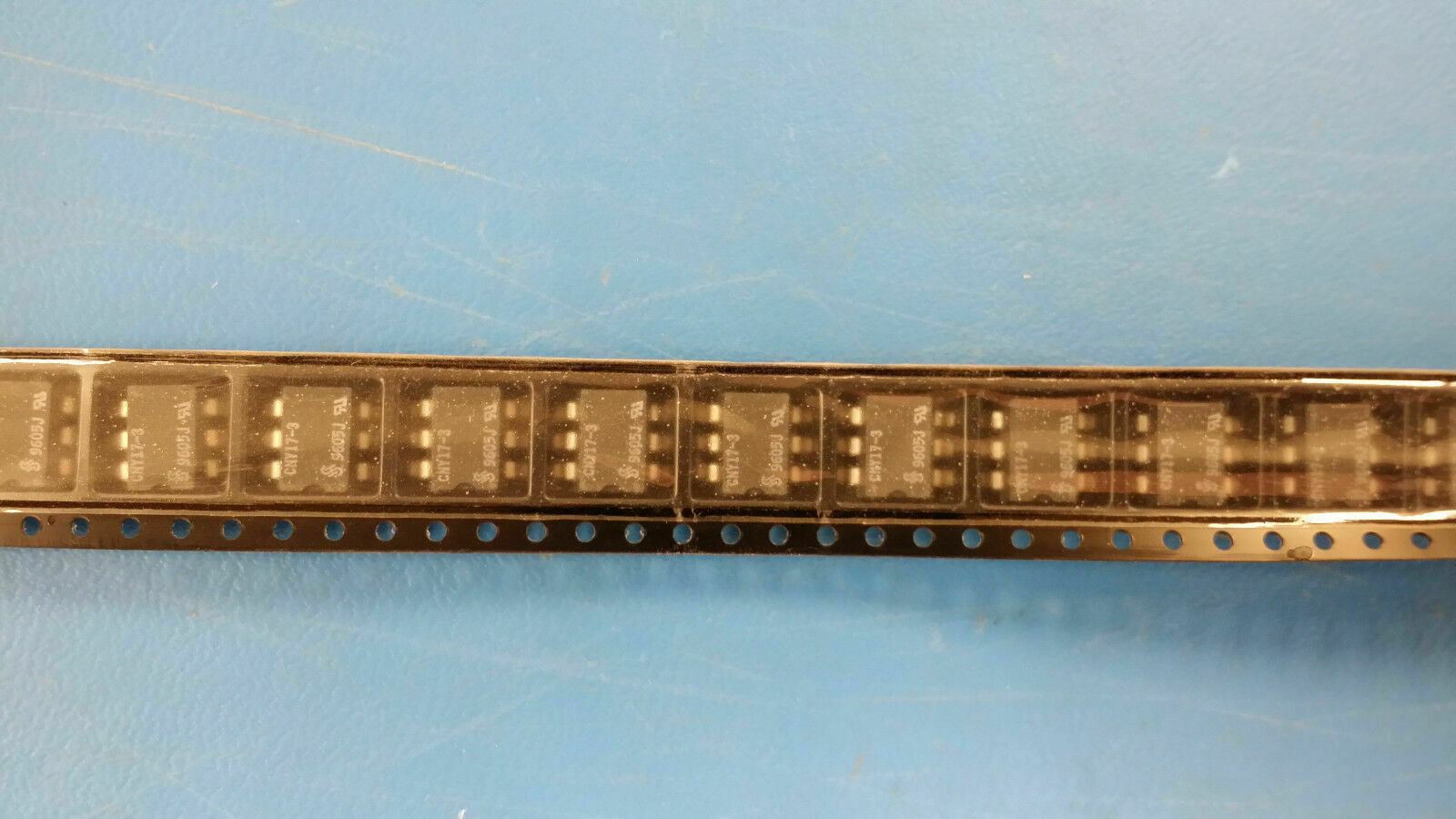

Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP MADE INTO A SURFACE MOUNT. IT IS OPTION 9 FROM THE FACTORY.
Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP MADE INTO A SURFACE MOUNT. IT IS OPTION 9 FROM THE FACTORY.
| Manufacturer: | Siemens | |
| Product Category: | Transistor Output Optocouplers | |
| Brand: | Siemens | |
| Package / Case: | DIP-6 | |
| Output Type: | NPN Phototransistor | |
| Number of Channels: | 1 Channel | |
| If - Forward Current: | 60 mA | |
| Maximum Collector Emitter Voltage: | 70 V | |
| Maximum Collector Current: | 100 mA | |
| Isolation Voltage: | 5000 Vrms | |
| Maximum Collector Emitter Saturation Voltage: | 0.4 V | |
| Vf - Forward Voltage: | 1.65 V | |
| Vr - Reverse Voltage: | 6 V | |
| Pd - Power Dissipation: | 150 mW | |
| Maximum Operating Temperature: | + 100 C | |
| Minimum Operating Temperature: | - 55 C |
