(10 PCS) CD74HCT86M96 TI XOR Gate 4-Element 2-IN CMOS 14-Pin SOIC T/R
(10 PCS) CD74HCT86M96 TI XOR Gate 4-Element 2-IN CMOS 14-Pin SOIC T/R

(10 PCS) CD74HCT86M96 TI XOR Gate 4-Element 2-IN CMOS 14-Pin SOIC T/R

Tax included.
Only 231 left!

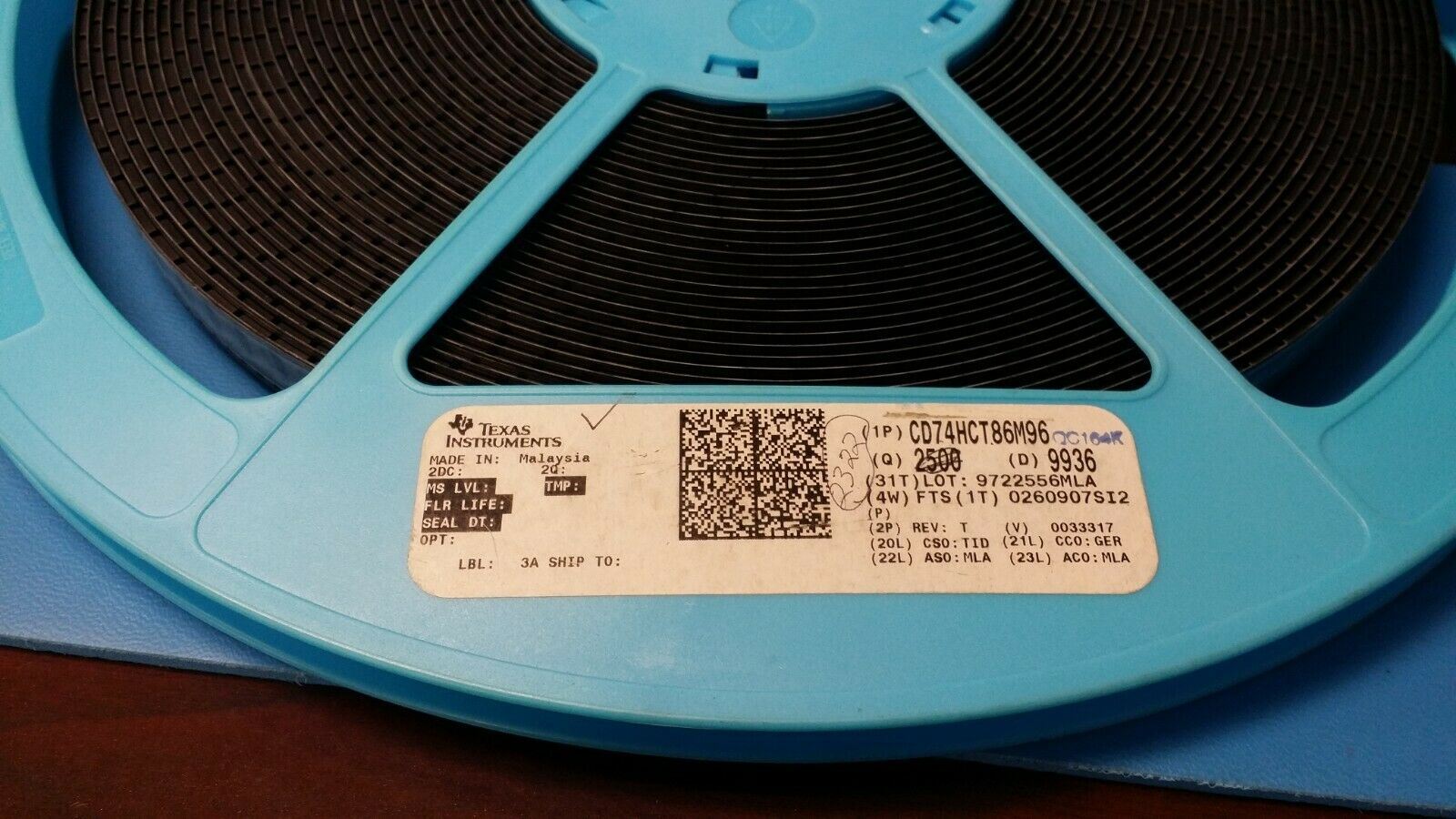

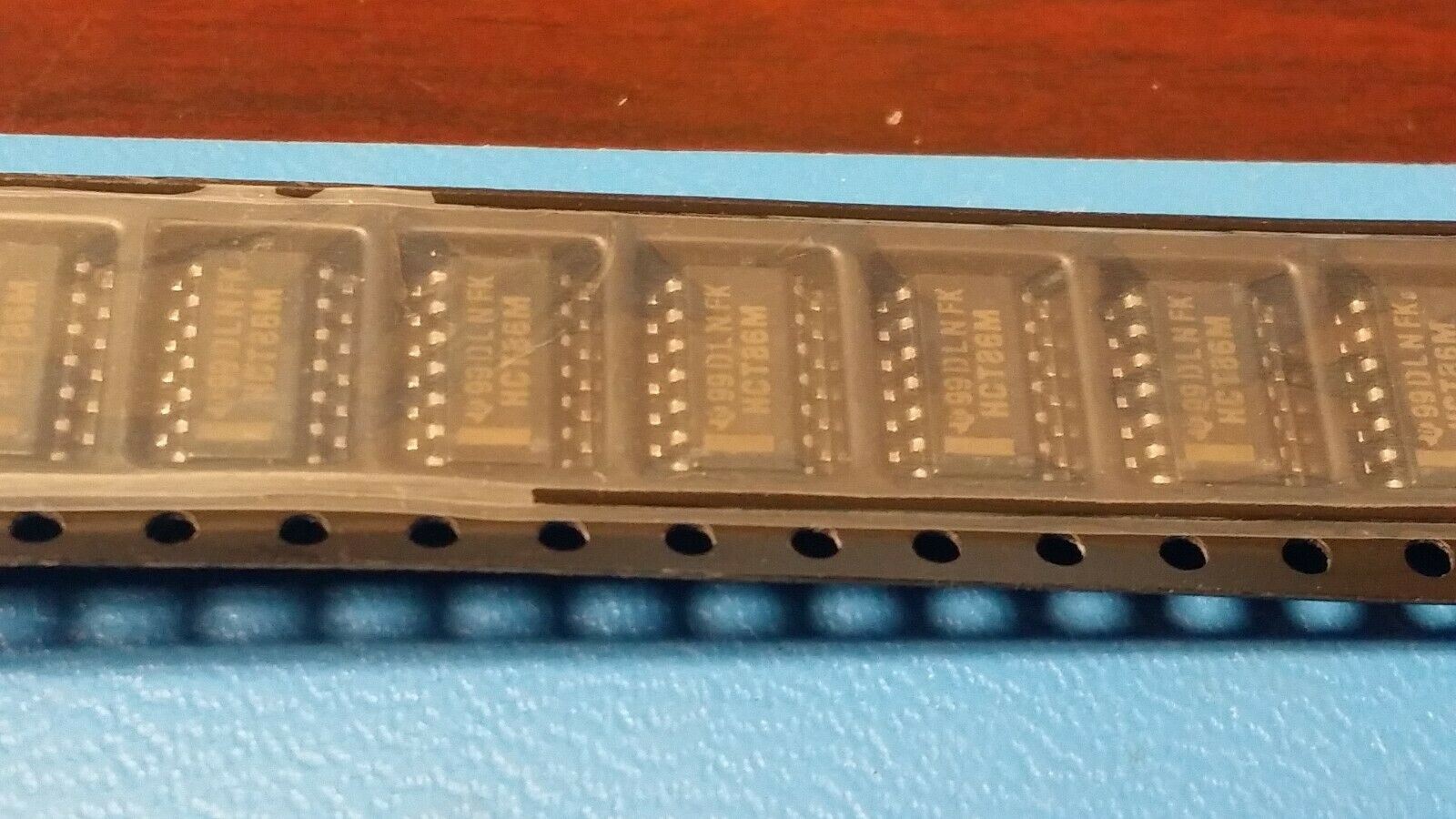

THIS LISTING IS FOR (10 PCS) OF CD74HCT86M96 BY TI
XOR Gate 4-Element 2-IN CMOS 14-Pin SOIC T/R

Manufacturer: Texas Instruments
Product Category: Logic Gates
RoHS: Details
Product: Single-Function Gate
Logic Function: XOR
Logic Family: HCT
Number of Gates: 4 Gate
Number of Input Lines: 2 Input
Number of Output Lines: 1 Output
High Level Output Current: - 5.2 mA
Low Level Output Current: 5.2 mA
Propagation Delay Time: 40 ns
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 4.5 V
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 125 C
Mounting Style: SMD/SMT
Package / Case: SOIC-14
Packaging: Cut Tape
Packaging: MouseReel
Packaging: Reel
Function: Quad Hi Spd 2 Input
Height: 1.58 mm
Input Type: TTL
Length: 8.65 mm
Operating Temperature Range: - 55 C to + 125 C
Output Type: CMOS
Series: CD74HCT86
Width: 3.91 mm
Brand: Texas Instruments
Logic Type: 2-Input Exclusive-OR
Number of Bits: 4 bit
Operating Supply Current: 20 uA
Operating Supply Voltage: 5 V
Product Type: Logic Gates
Factory Pack Quantity: 2500
Subcategory: Logic ICs
Unit Weight: 0.004564 oz
