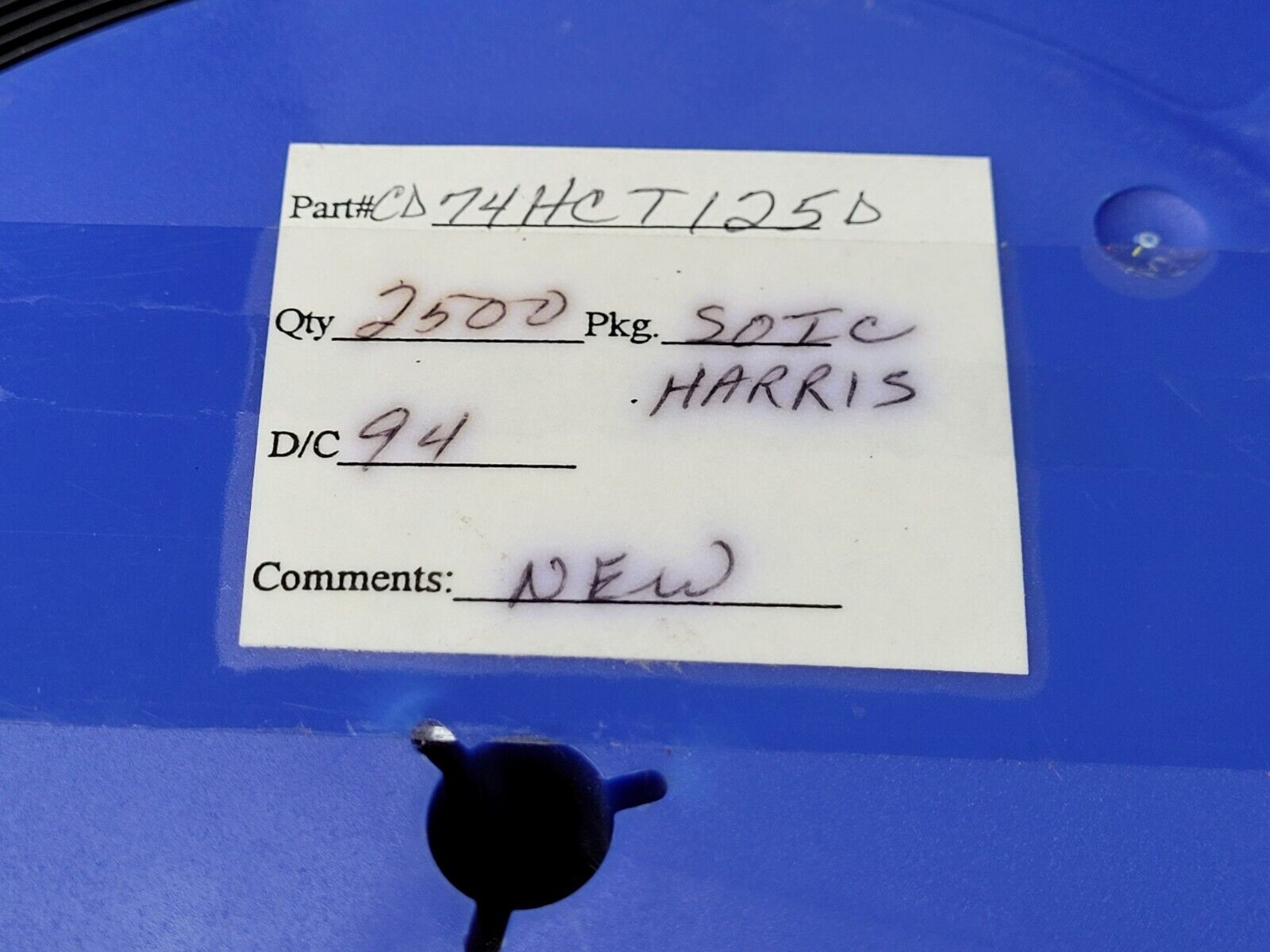

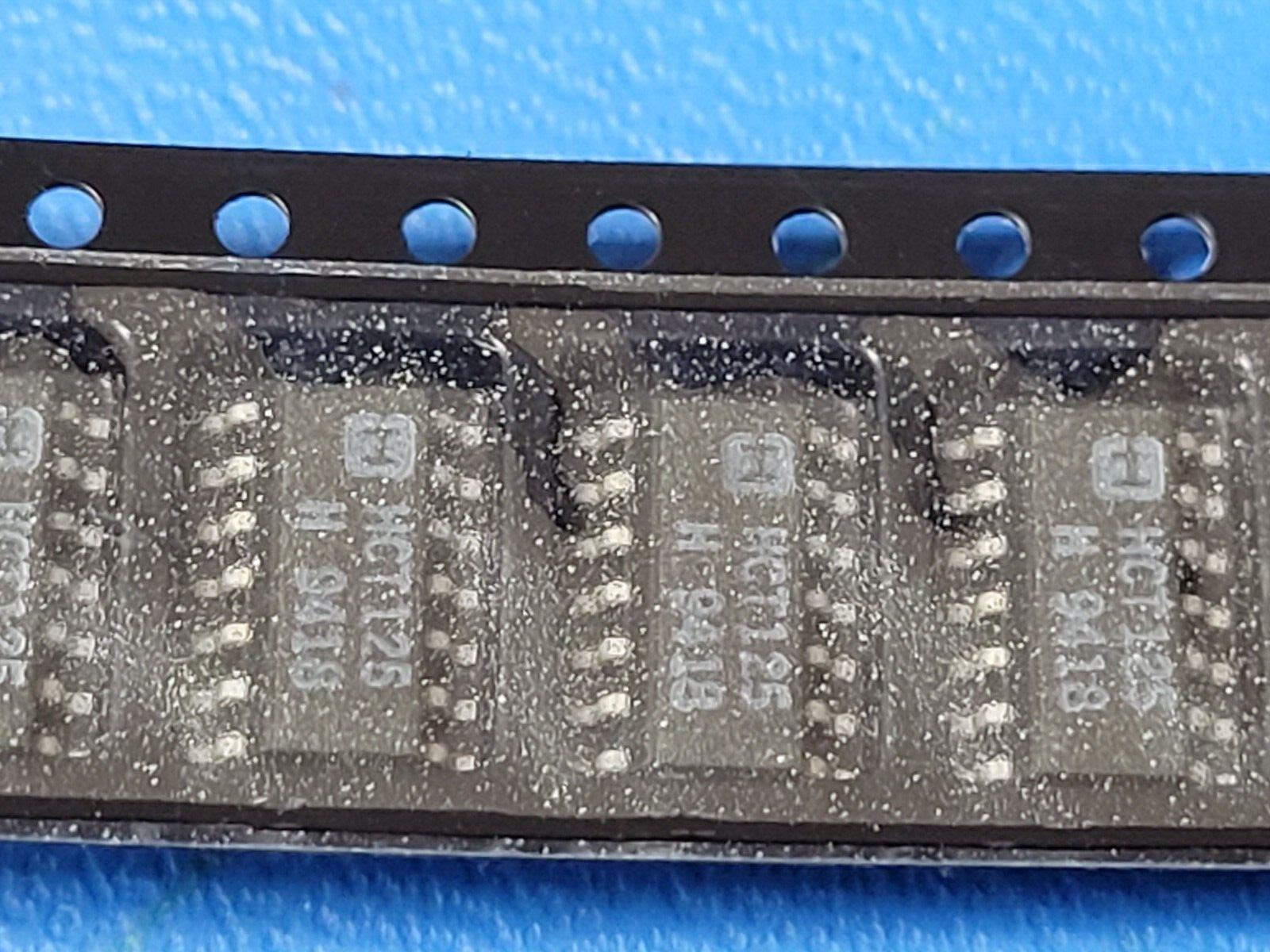

(10 pcs) CD74HCT125D HARRIS Bus Driver, 4-Func, 1-Bit, CMOS, PDIP14

$5.95
Unit price per

Tax included.

THIS IS FOR (10 pcs) OF CD74HCT125D BY HARRIS

Bus Driver, 4-Func, 1-Bit, CMOS, PDIP14

Part #: CD74HCT125E

Part Category: Logic ICs

Manufacturer: Harris Corporation

Description: Bus Driver, HCT Series, 4-Func, 1-Bit, True Output, CMOS, PDIP14

Status Transferred

Logic IC Type BUS DRIVER

Sub Category Bus Driver/Transceivers

Control Type ENABLE LOW

Family HCT

JESD-30 Code R-PDIP-T14

JESD-609 Code e0

Load Capacitance (CL) 50.0 pF

Max I(ol) 0.006 Amp

Number of Bits 1

Number of Functions 4

Number of Ports 2

Number of Terminals 14

Operating Temperature-Min -55.0 Cel

Operating Temperature-Max 125.0 Cel

Output Characteristics 3-STATE

Output Polarity TRUE

Package Body Material PLASTIC/EPOXY

Package Code DIP

Package Equivalence Code DIP14,.3

Package Shape RECTANGULAR

Package Style IN-LINE

Prop. Delay@Nom-Sup 38.0 ns

Propagation Delay (tpd) 38.0 ns

Qualification Status Not Qualified

Supply Voltage-Nom (Vsup) 5

Supply Voltage-Min (Vsup) 4.5 V

Supply Voltage-Max (Vsup) 5.5 V

Surface Mount NO

Technology CMOS

Temperature Grade MILITARY

Terminal Finish Tin/Lead (Sn/Pb)

Terminal Form THROUGH-HOLE

Terminal Pitch 2.54 mm

Terminal Position DUAL
