(10 PCS) CD74HC30M TI IC GATE NAND 1CH 8-INP 14SOIC
Tax included.

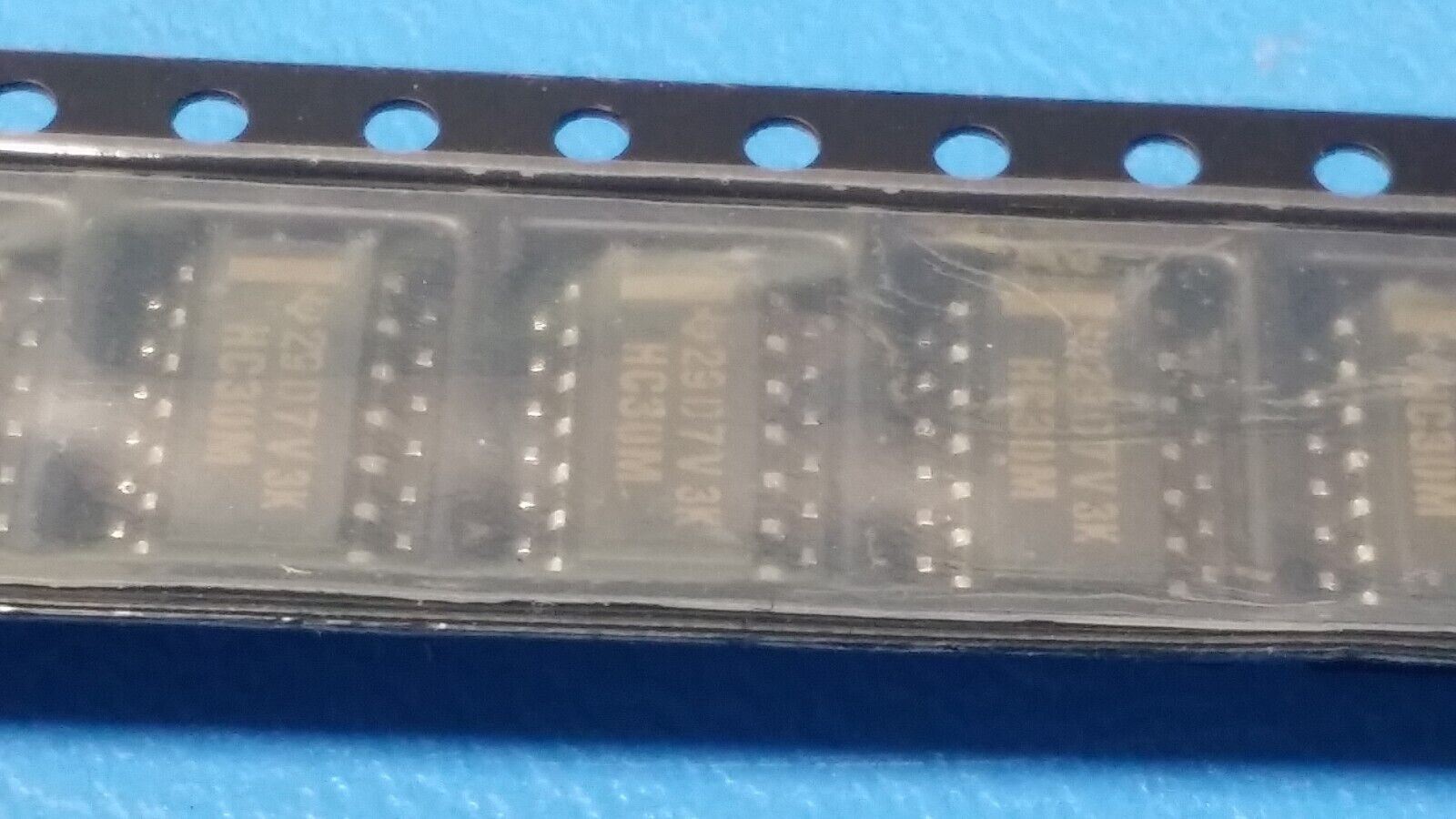

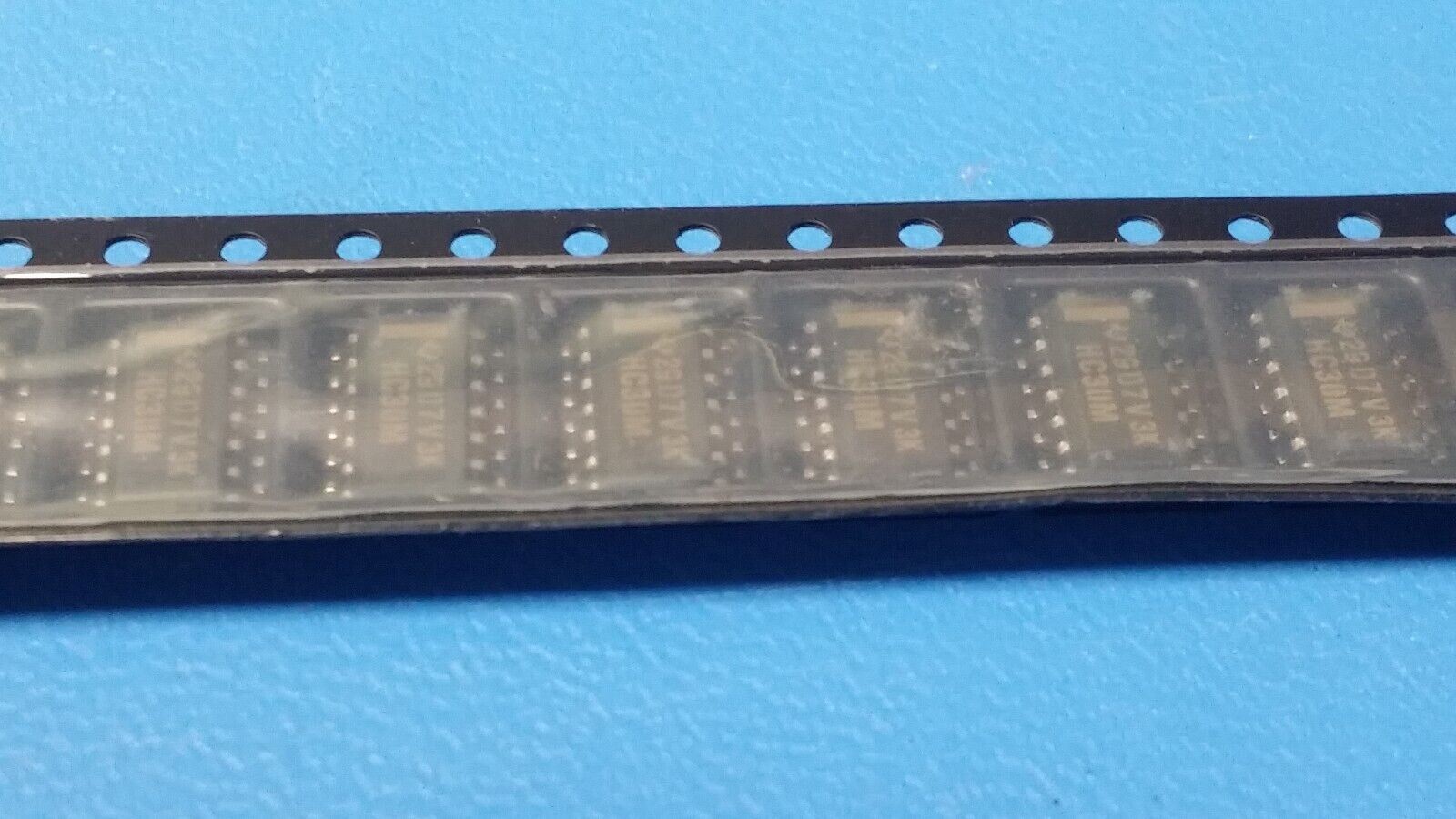

THIS IS FOR (10 PCS) OF CD74HC30M BY TI
IC GATE NAND 1CH 8-INP 14SOIC
Manufacturer: Texas Instruments
Product Category: Logic Gates
RoHS: N
Product: Single-Function Gate
Logic Function: NAND
Logic Family: HC
Number of Gates: 1 Gate
Number of Input Lines: 8 Input
Number of Output Lines: 1 Output
High Level Output Current: - 5.2 mA
Low Level Output Current: 5.2 mA
Propagation Delay Time: 8 ns
Supply Voltage - Max: 6 V
Supply Voltage - Min: 2 V
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 125 C
Mounting Style: SMD/SMT
Package / Case: SOIC-14
Packaging: Reel
Packaging: Cut Tape
Brand: Texas Instruments
Function: NAND
Height: 1.58 mm
Input Type: CMOS
Length: 8.65 mm
Logic Type: 8-Input NAND
Number of Bits: 1 bit
Operating Supply Current: 20 uA
Operating Supply Voltage: 5 V
Operating Temperature Range: - 55 C to + 125 C
Output Current: 20 mA
Output Type: CMOS
Product Type: Logic Gates
Series: CD74HC30
2500
Subcategory: Logic ICs
Width: 3.91 mm
Unit Weight: 0.009171 oz
