(10 PCS) CD4052BE Multiplexer Switch ICs 4-Ch. Analog PDIP16
Tax included.

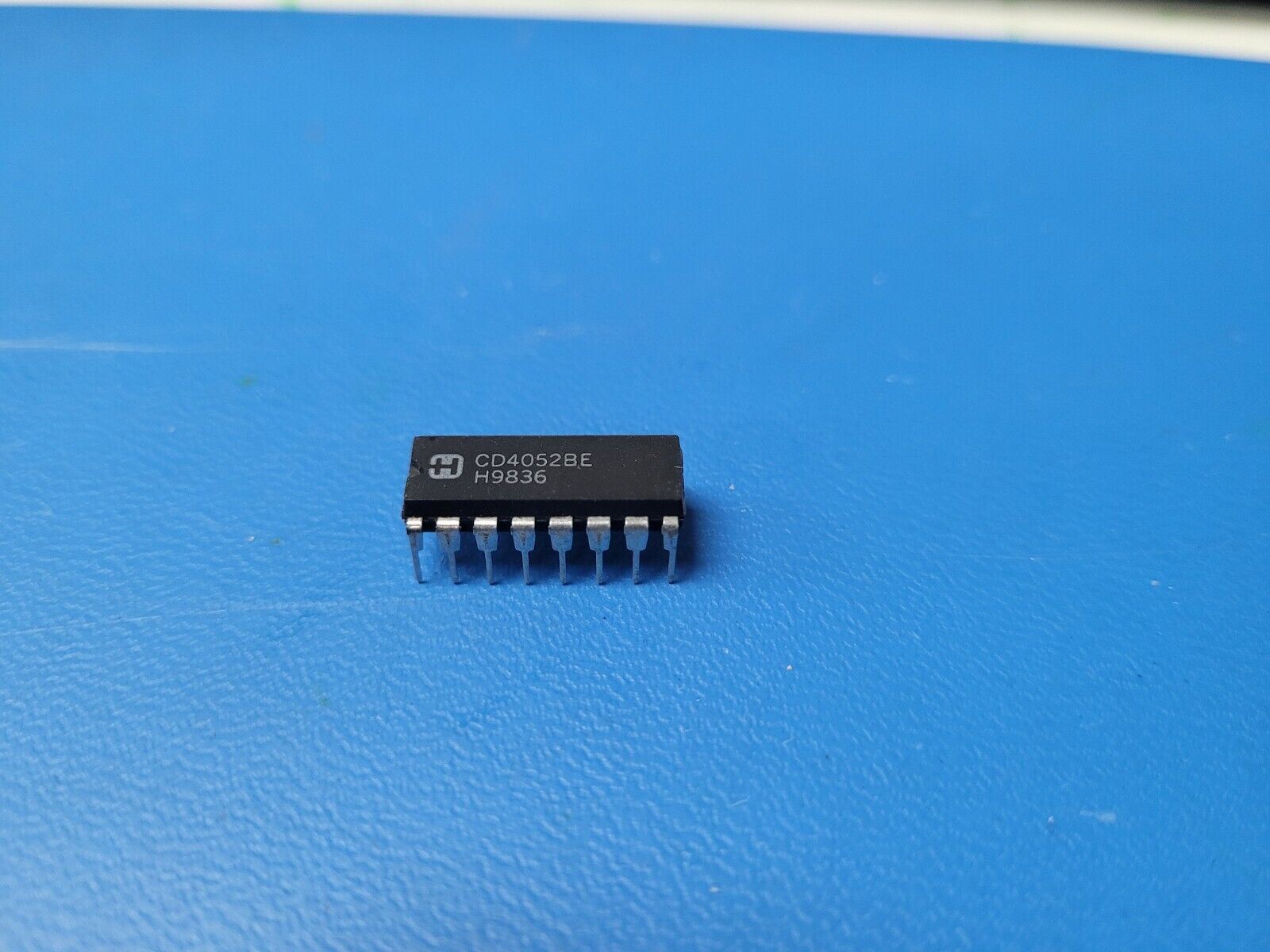

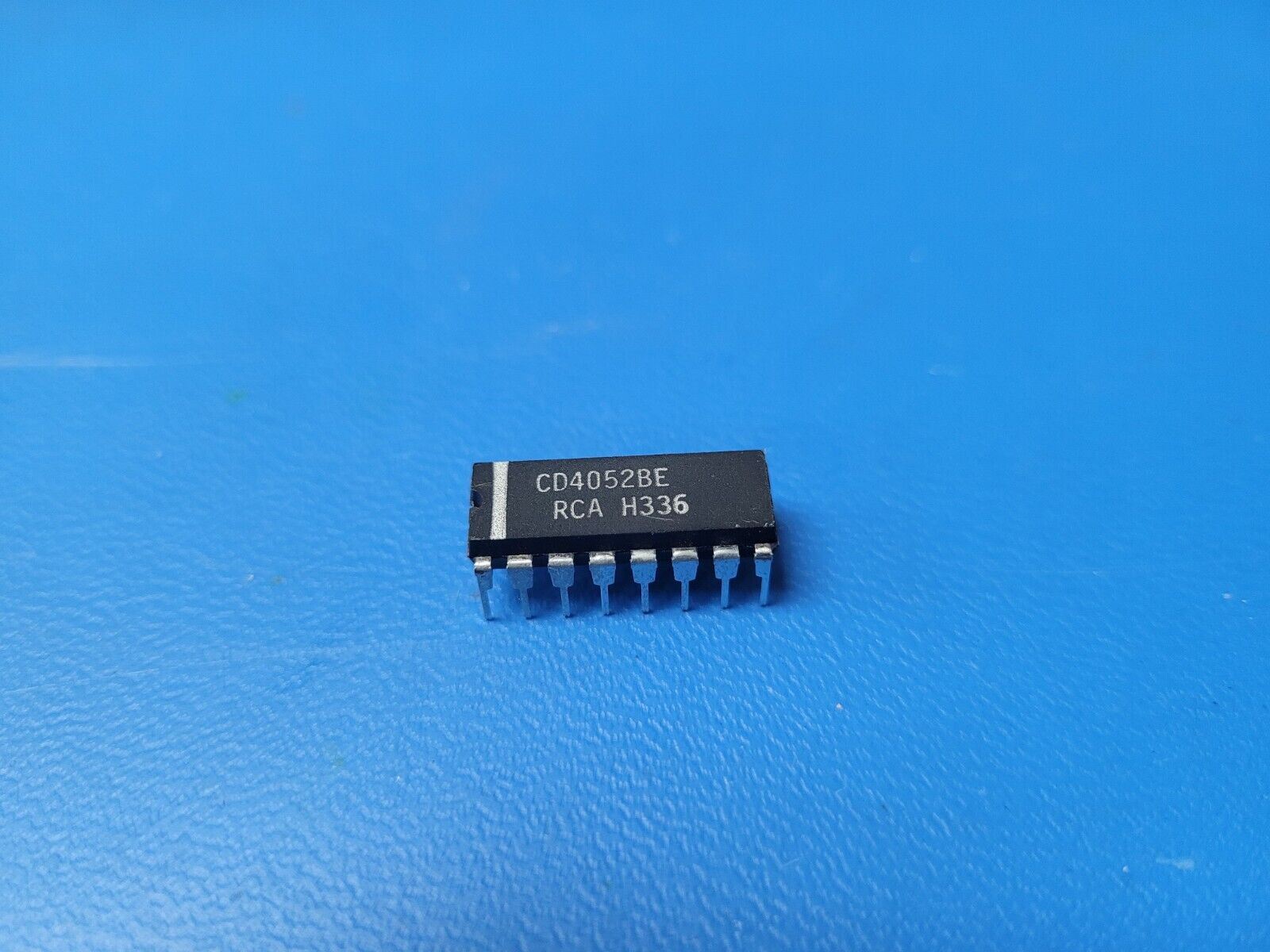

THIS IS FOR (10 PCS) OF CD4052BE BY HARRIS/ RCA
Multiplexer Switch ICs 4-Ch. Analog PDIP16
Product Category: Multiplexer Switch ICs
RoHS: NO
Series: CD4052B
Product: Multiplexers/Demultiplexers
Mounting Style: Through Hole
Package / Case: PDIP-16
Number of Channels: 4 Channel
Configuration: 2 x 4:1
Supply Voltage - Min: 5 V
Supply Voltage - Max: 18 V
Minimum Dual Supply Voltage: +/- 2.5 V
Maximum Dual Supply Voltage: +/- 10 V
On Resistance - Max: 240 Ohms
On Time - Max: 720 ns
Off Time - Max: 450 ns
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 125 C
Packaging: Tube
Bandwidth: 25 Mhz
Height: 4.57 mm
Length: 19.3 mm
Operating Supply Voltage: 5 V to 18 V
Product Type: Multiplexer Switch ICs
Propagation Delay Time: 60 ns
1450
Subcategory: Switch ICs
Supply Current - Max: 100 uA
Supply Type: Single Supply, Dual Supply
Width: 6.35 mm
Unit Weight: 0.033570 oz
