(10 PCS) CD4012BE RCA NAND Gate, 2-Func, 4-Input, CMOS, PDIP14
Tax included.

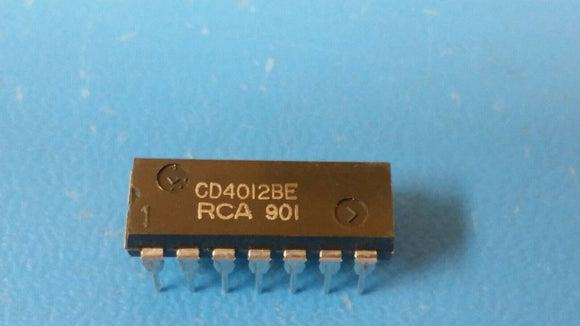

THIS LISTING IS FOR (10 PCS) OF CD4012BE BY RCA
NAND Gate, 2-Func, 4-Input, CMOS, PDIP14
Part #: CD4012BE
Part Category: Logic ICs
Manufacturer: RCA Semiconductor
Description: NAND Gate, 4000/14000/40000 Series, 2-Func, 4-Input, CMOS, PDIP14
Mfr Package Description PLASTIC, DIP-14
Status Discontinued
Logic IC Type NAND GATE
Sub Category Gates
Family 4000/14000/40000
JESD-30 Code R-PDIP-T14
JESD-609 Code e0
Load Capacitance (CL) 50.0 pF
Max I(ol) 4.2E-4 Amp
Number of Functions 2
Number of Inputs 4.0
Number of Terminals 14
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Prop. Delay@Nom-Sup 250.0 ns
Propagation Delay (tpd) 250.0 ns
Qualification Status Not Qualified
Schmitt Trigger NO
Seated Height-Max 5.33 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 3.0 V
Supply Voltage-Max (Vsup) 18.0 V
Surface Mount NO
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 19.17 mm
Width 7.62 mm
