(10 PCS) BSP317PE6327 Trans MOSFET P-CH 250V 0.43A 4-Pin(3+Tab) SOT-223
Tax included.

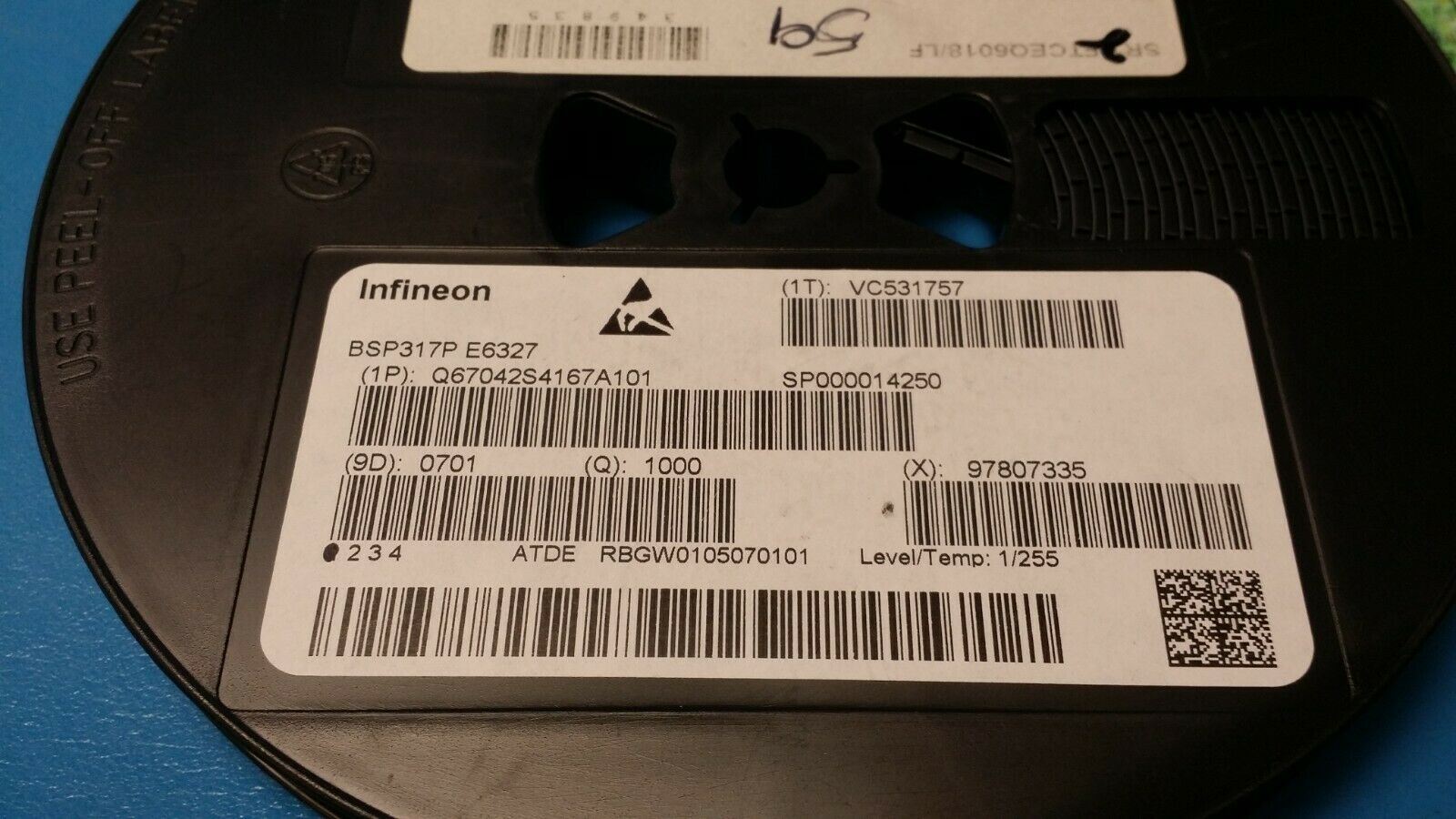

THIS LISTING IS FOR (10 PCS) OF BSP317PE6327 BY INFINEON
Trans MOSFET P-CH 250V 0.43A 4-Pin(3+Tab) SOT-223
Mfr Infineon Technologies
Series SIPMOS®
Package Tape & Reel (TR) Cut Tape (CT)
Part Status Obsolete
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C 430mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 4Ohm @ 430mA, 10V
Vgs(th) (Max) @ Id 2V @ 370µA
Vgs (Max) ±20V
FET Feature -
Power Dissipation (Max) 1.8W (Ta)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package PG-SOT223-4
Package / Case TO-261-4, TO-261AA
Drain to Source Voltage (Vdss) 250V
Gate Charge (Qg) (Max) @ Vgs 15.1nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds 262pF @ 25V
