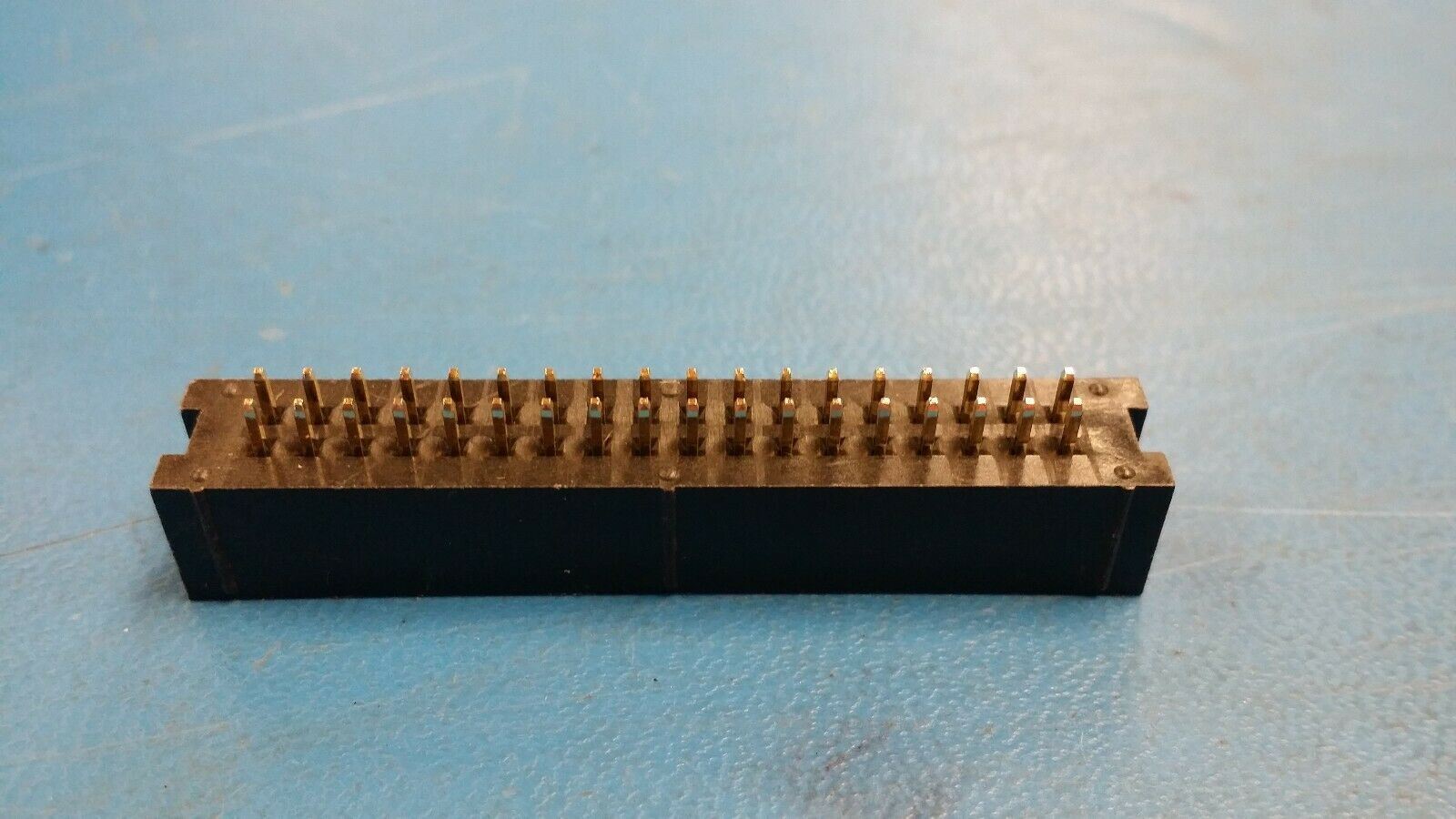

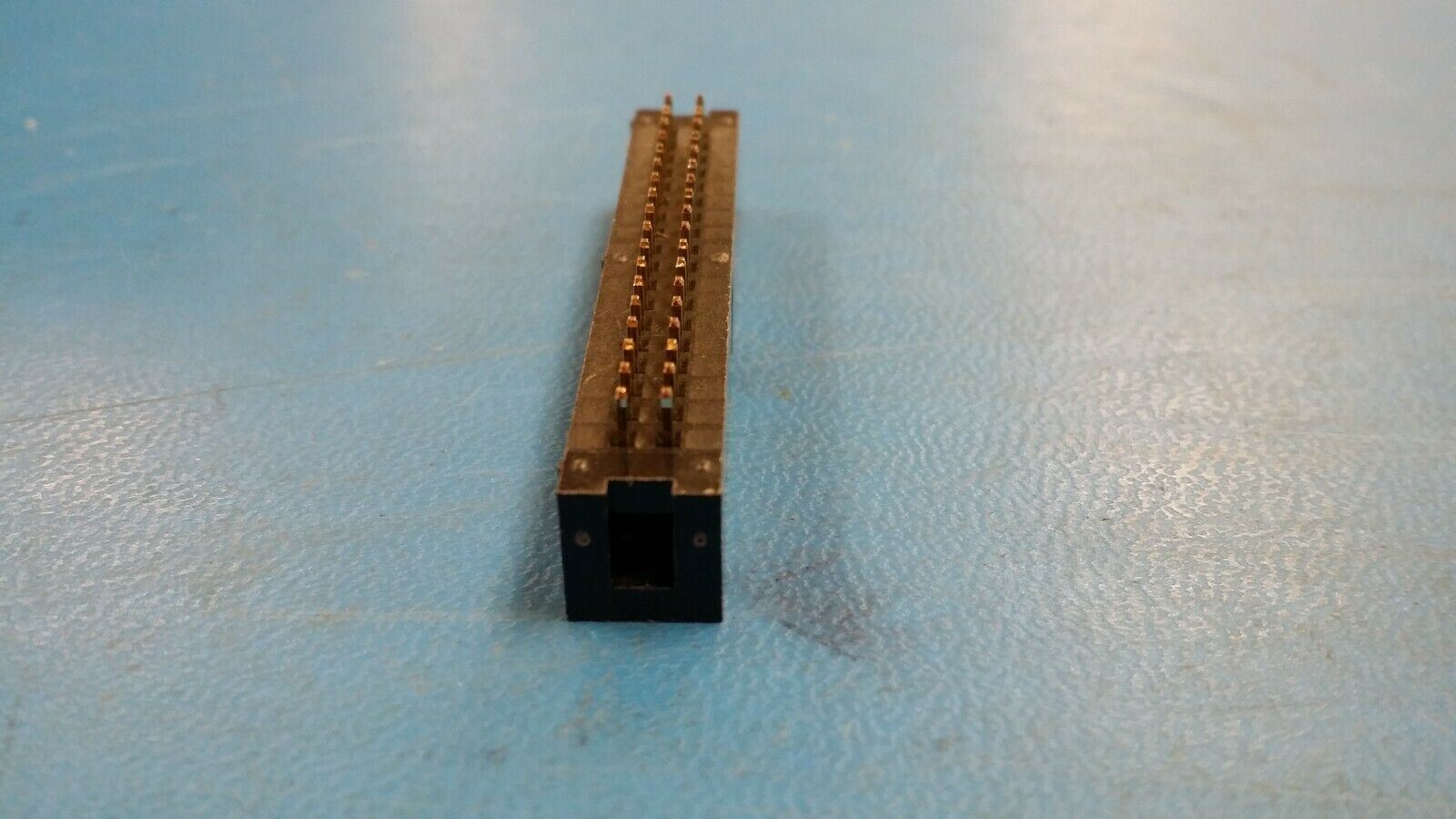

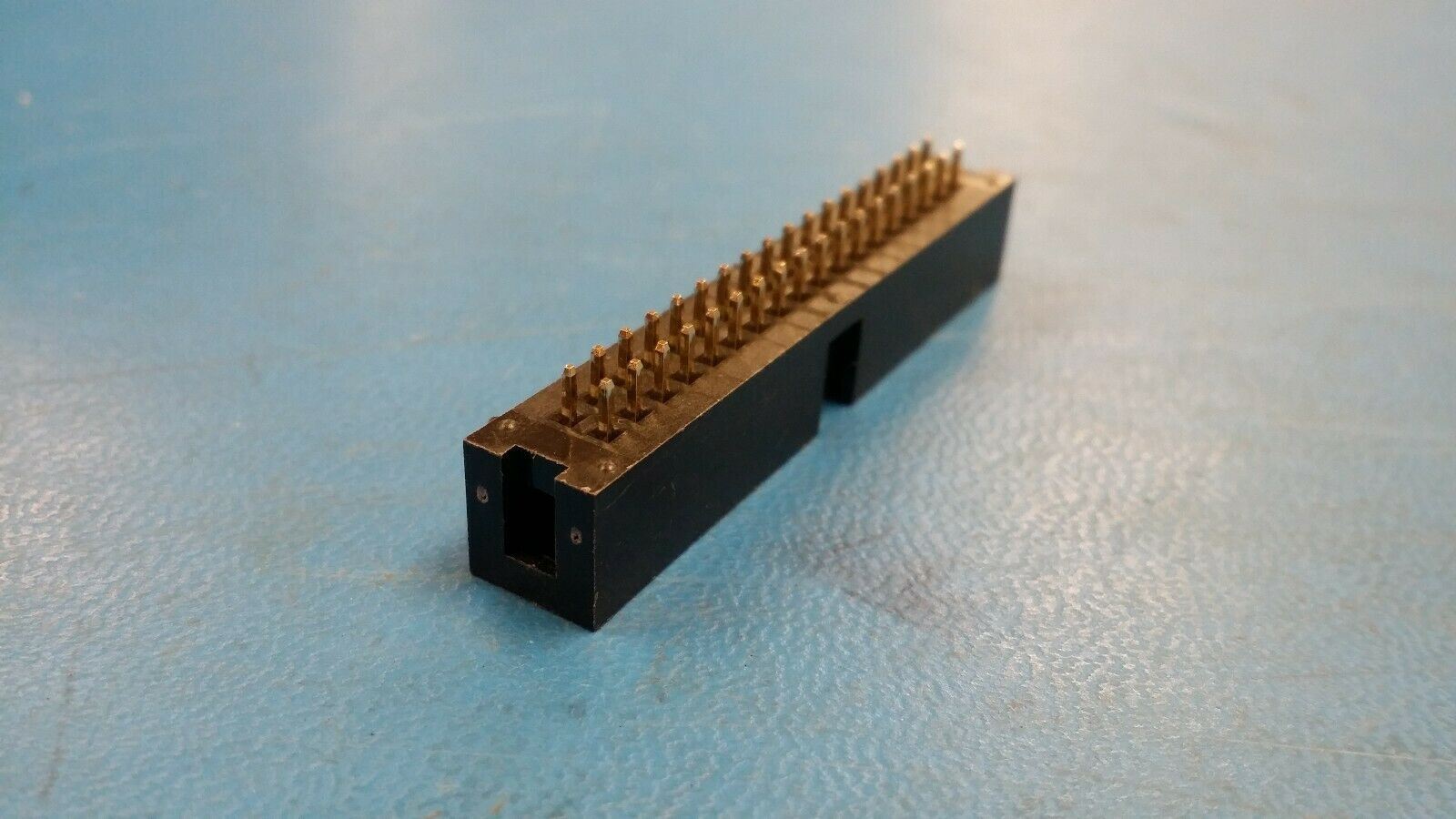

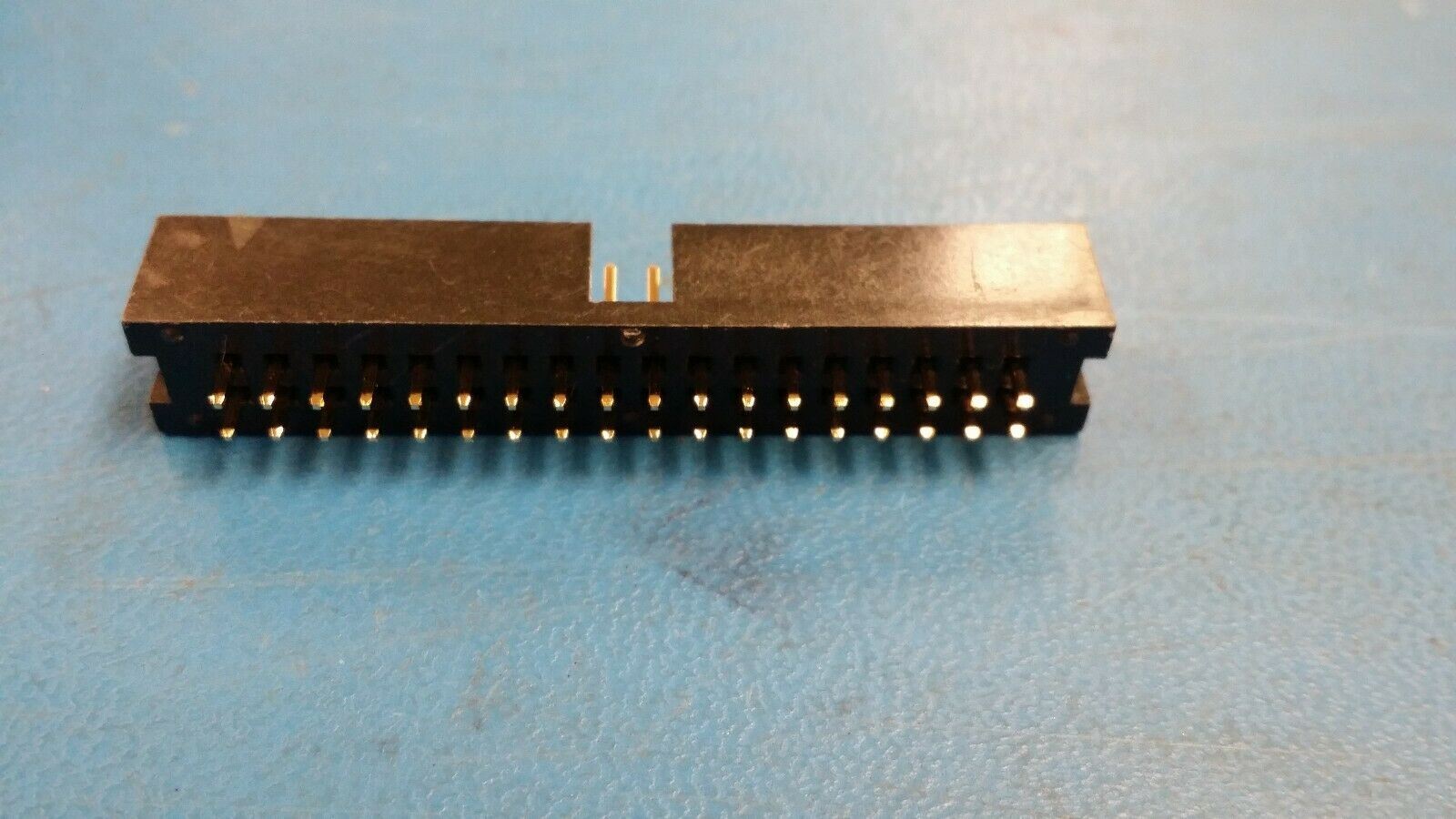

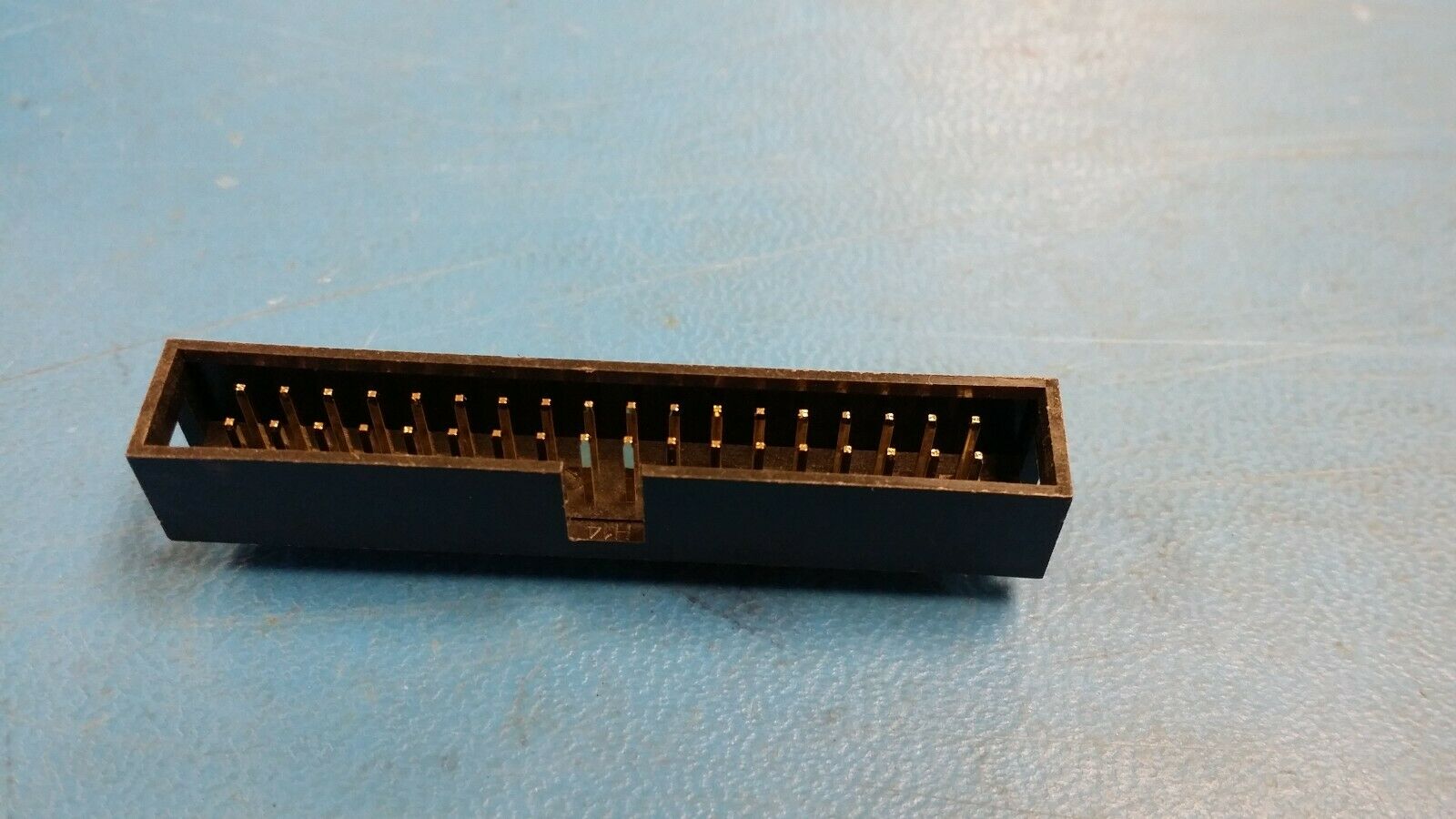

(10 PCS) BHD-36-ST-GD IDC PCB Box Header 36Pin 2 Row Male Straight 2.54mm Pitch
Tax included.
THIS LISTING IS FOR (10 PCS) OF BHD-36-ST-GD BY CCM
IDC PCB Box Header 36 Pin, 2 Row Male Straight 2.54mm Pitch Gold Plated ROHS
Part #: BHD-36-ST-GD
Part Category: Connectors
Manufacturer: Central Components Mfg.
Description: Board Connector, 36 Contact(s), 2 Row(s), Male, Straight, 2.54mm Pitch, Solder Terminal
EU RoHS Compliant Yes
Status Active
Connector Type BOARD CONNECTOR
Body Breadth 0.362 inch
Body Depth 0.404 inch
Body Length 2.1 inch
Body/Shell Style RECEPTACLE
Contact Finish - Mating AU
Contact Gender MALE
Contact Material COPPER ALLOY
Contact Pattern RECTANGULAR
Contact Resistance 10.0 mohm
Contact Style SQ PIN-SKT
Durability 1000.0 Cycles
Insulation Resistance 5.0E9 ohm
Insulator Material POLYBUTYLENE TEREPHTHALATE
Manufacturer Series BHD
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Min -40.0 Cel
PCB Contact Pattern RECTANGULAR
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 3.0 A
Reference Standard UL
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Length 0.118 inch
Terminal Pitch 2.54 mm
Total Number of Contacts 36
Additional Feature ROHS COMPLIANT
