(10 PCS) BH1R-14SBB-L AMTEK IDC Box Header 14 PIN 2.54mm SMT/Right Angle
Tax included.
THIS IS FOR (10 PCS) OF BH1R-14SBB-L BY AMTEK

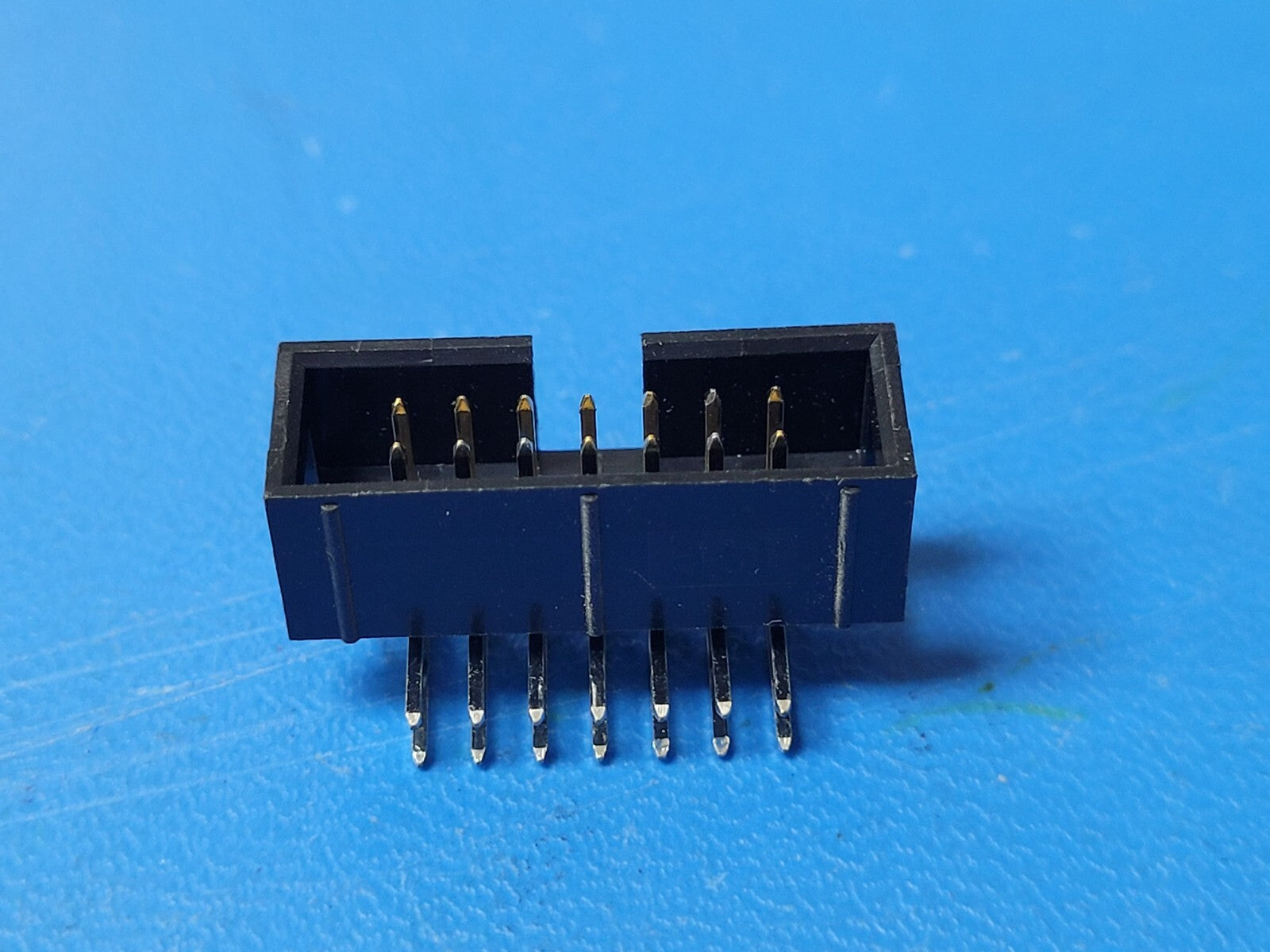

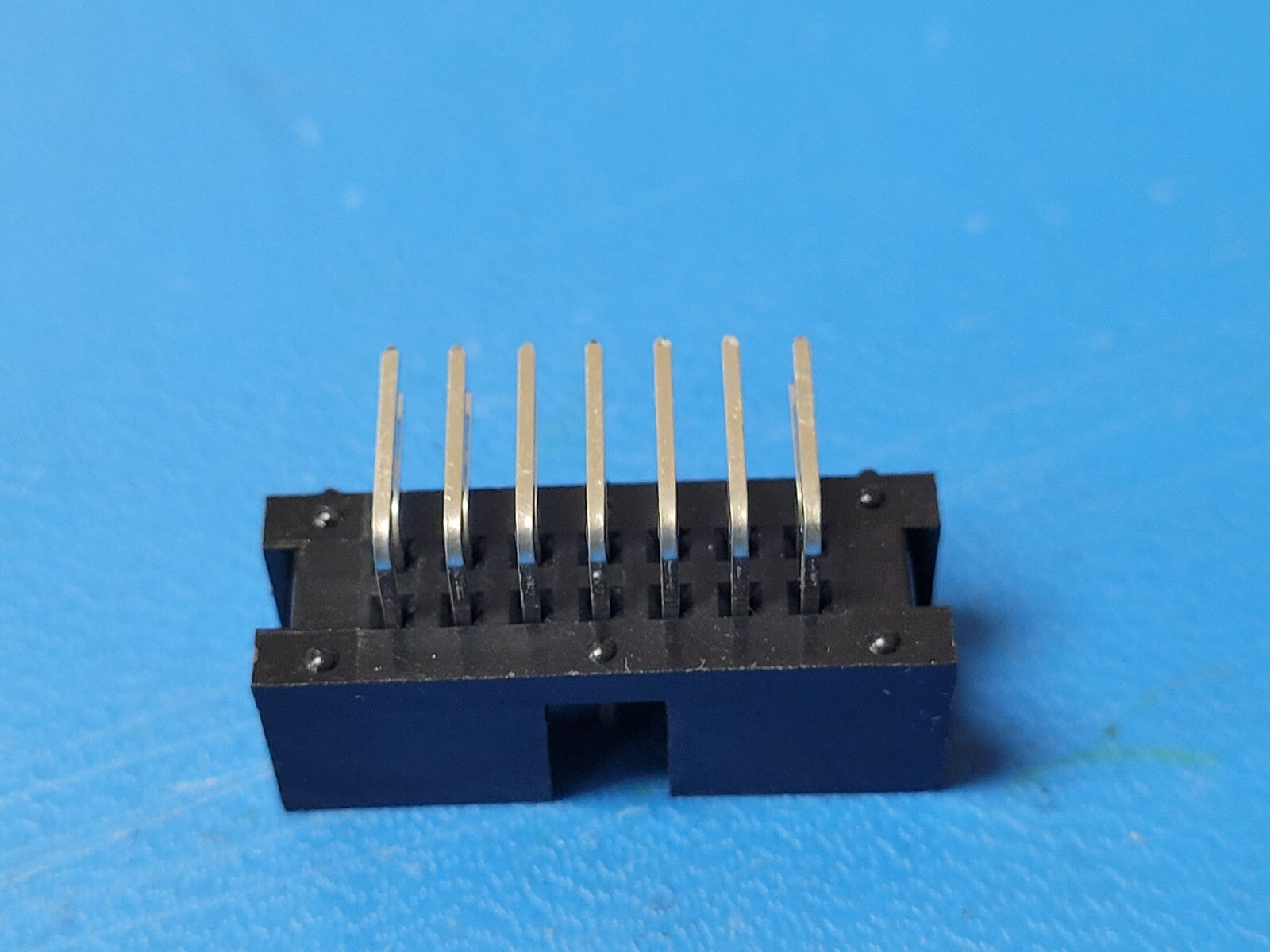

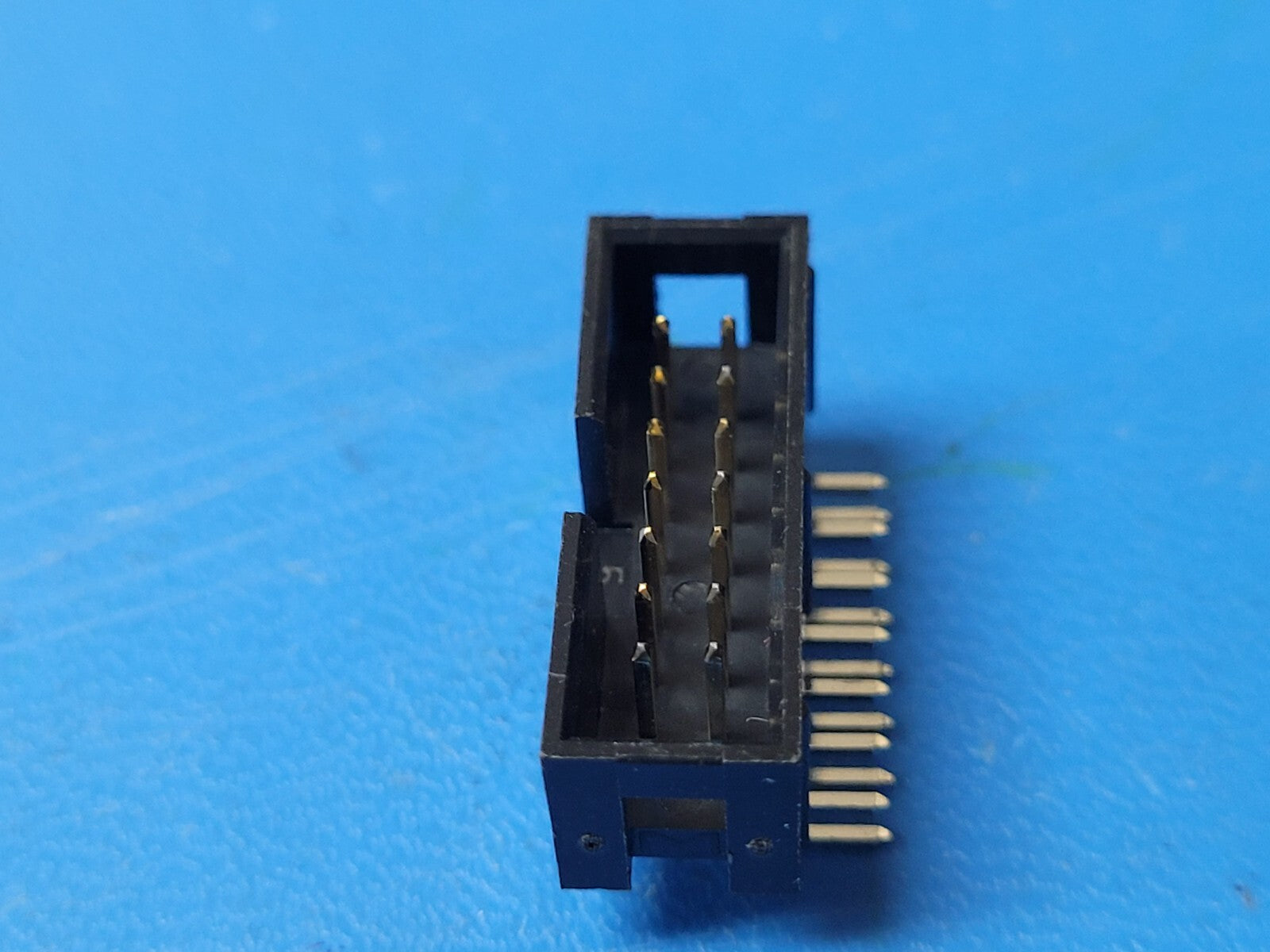

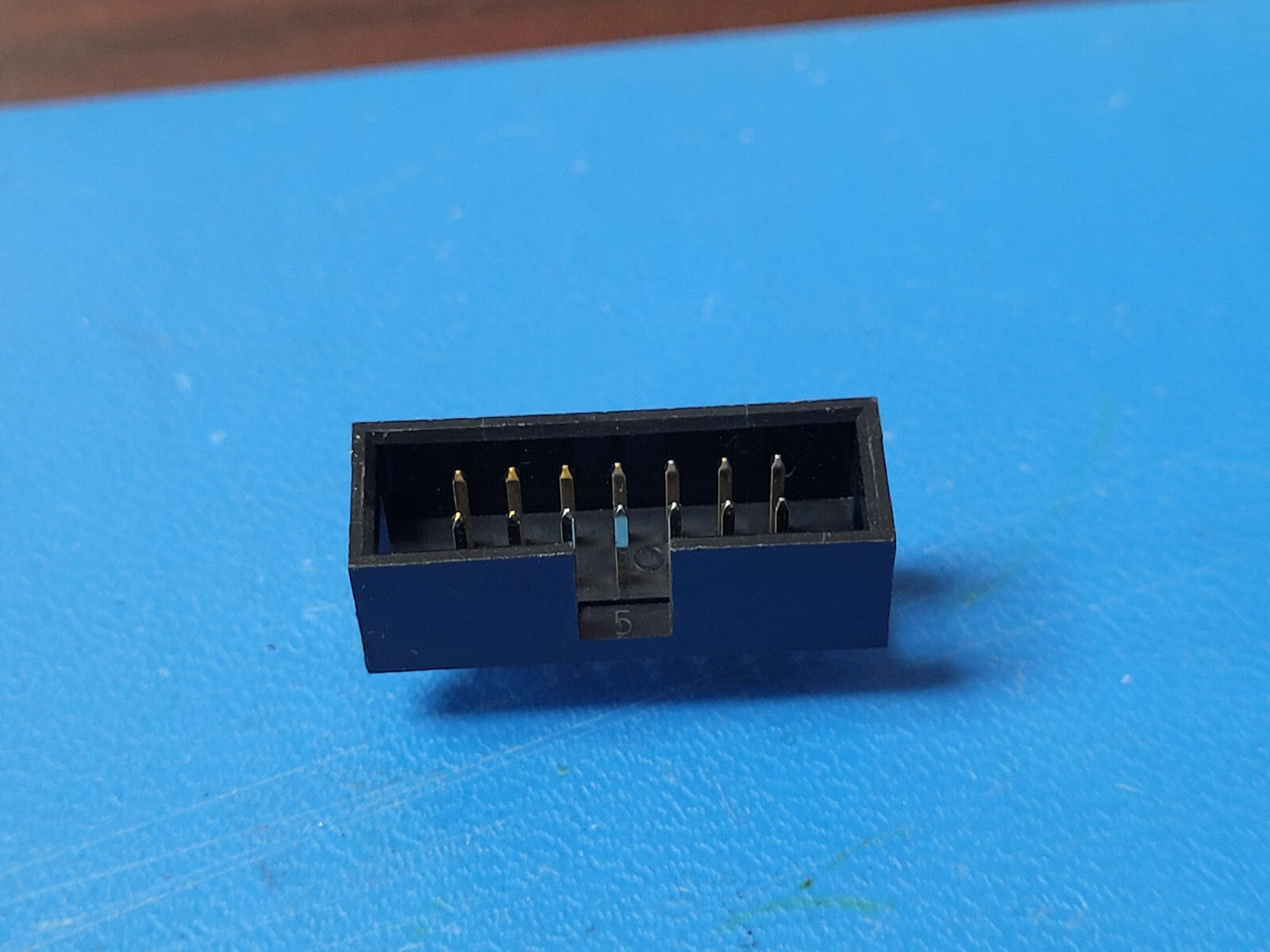

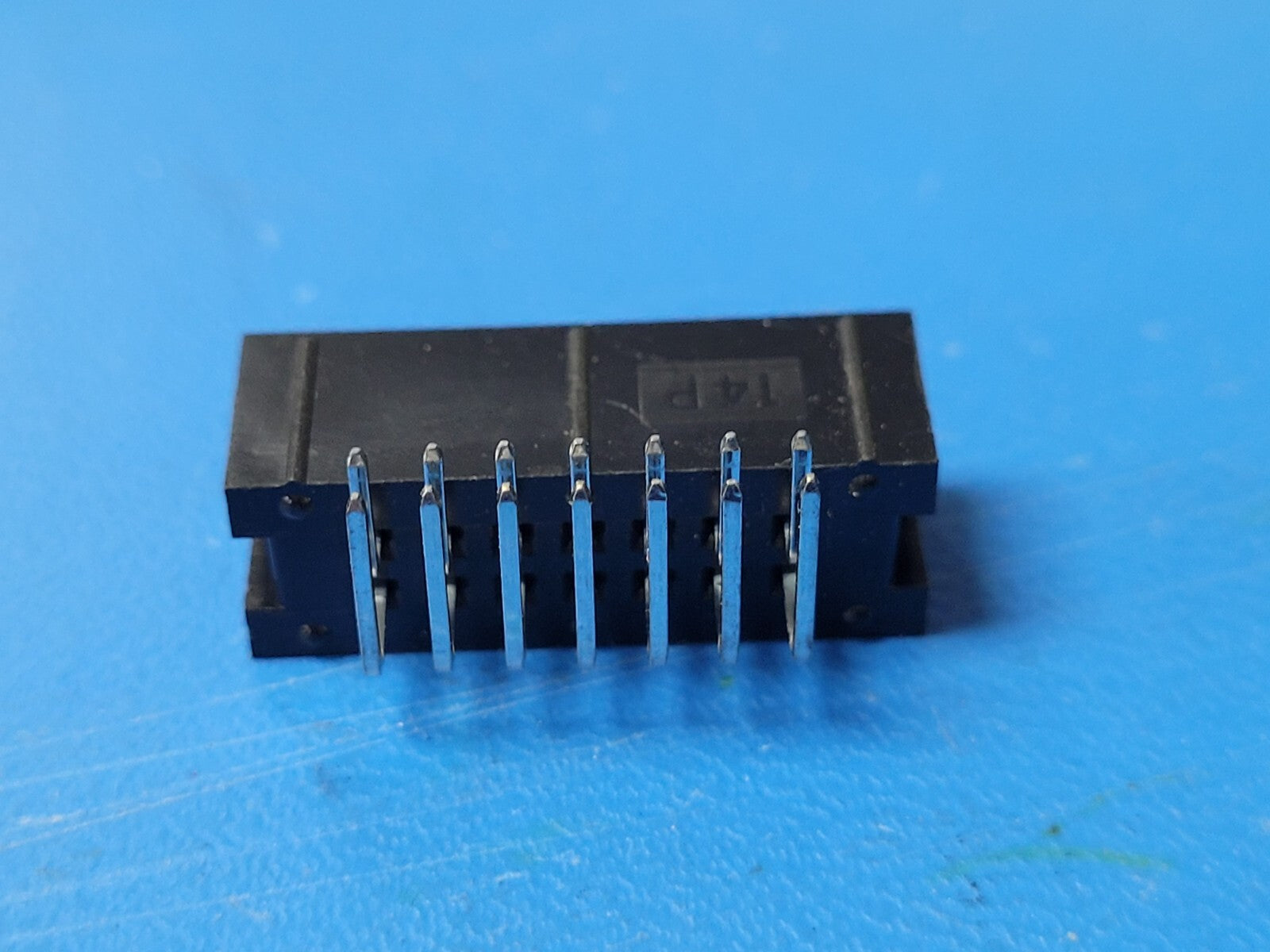

IDC Box Header 14 PIN 2.54mm SMT/Right Angle
Part #: BH1R-14SBB-L
Part Category: Connectors
Manufacturer: Amtek Technology Co., Ltd.
Description: Board Connector, 14 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle
Board Connector, 14 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle
REACH Compliant Yes
EU RoHS Compliant Yes
Status Contact Mfr
Connector Type BOARD CONNECTOR
Body Breadth 0.354 inch
Body Depth 0.522 inch
Body Length 1.0 inch
Body/Shell Style RECEPTACLE
Contact Gender MALE
Contact Material COPPER ALLOY
Contact Pattern RECTANGULAR
Contact Resistance 20.0 mohm
Contact Style SQ PIN-SKT
Insulation Resistance 1.0E9 ohm
Insulator Color BLACK
Insulator Material POLYBUTYLENE TEREPHTHALATE
Manufacturer Series BH1
Mounting Option 1 LOCKING
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Min -40.0 Cel
PCB Contact Pattern RECTANGULAR
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 3.0 A
Reference Standard UL
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Length 0.126 inch
Terminal Pitch 2.54 mm
Total Number of Contacts 14
