(10 PCS) B82498F3569K FIXED IND 5.6NH 900MA 40 MOHM
Tax included.

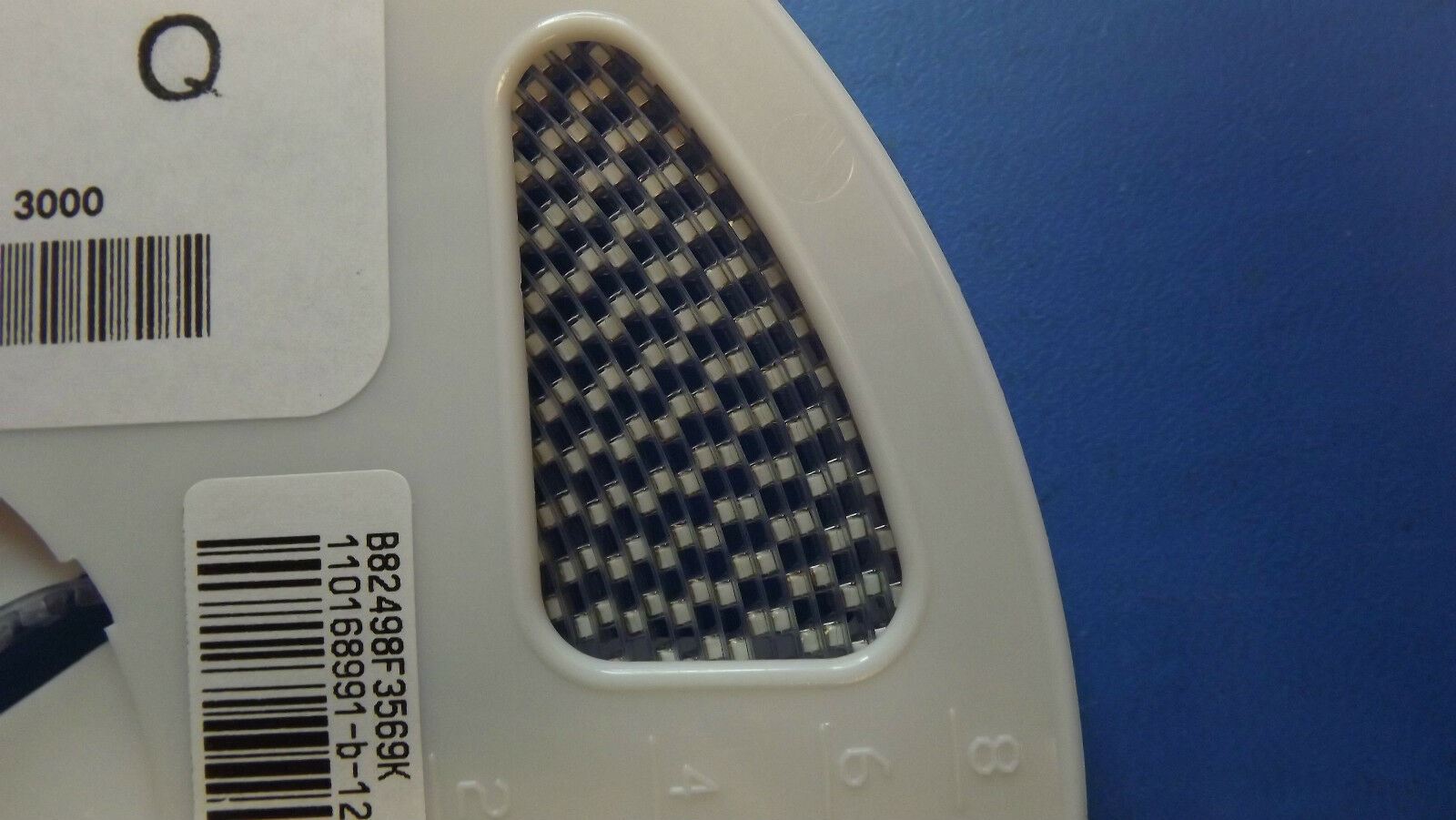

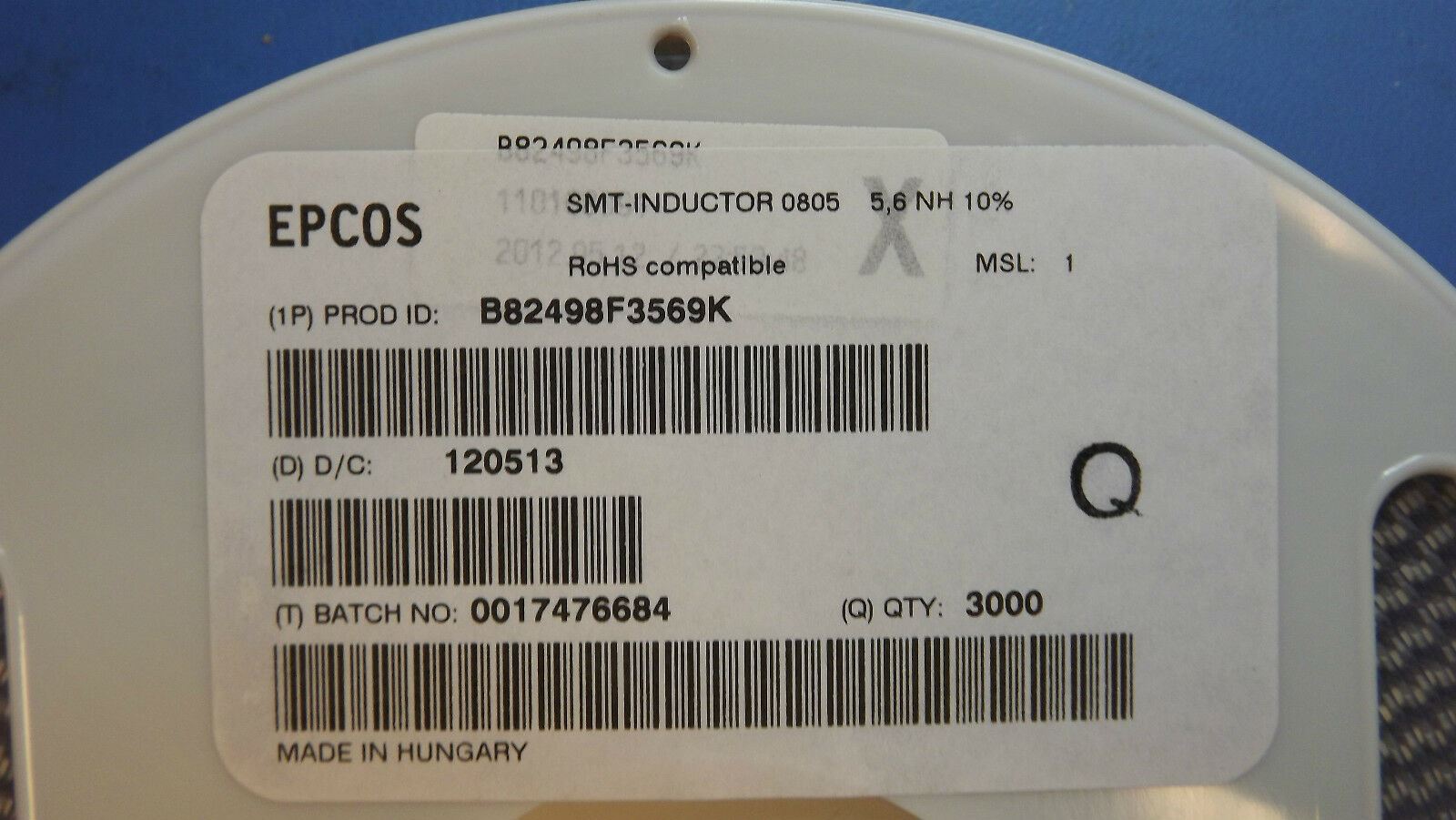

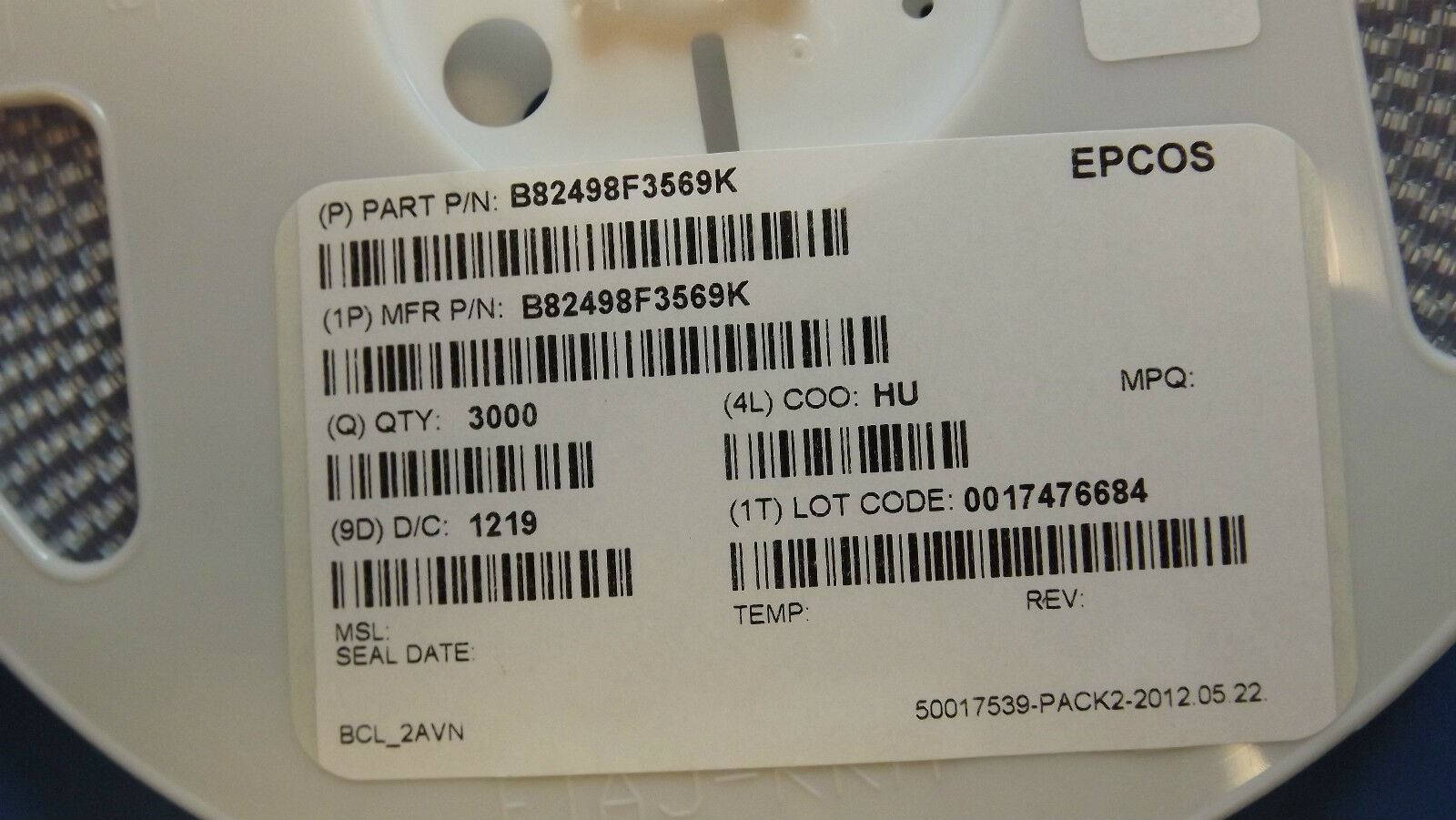

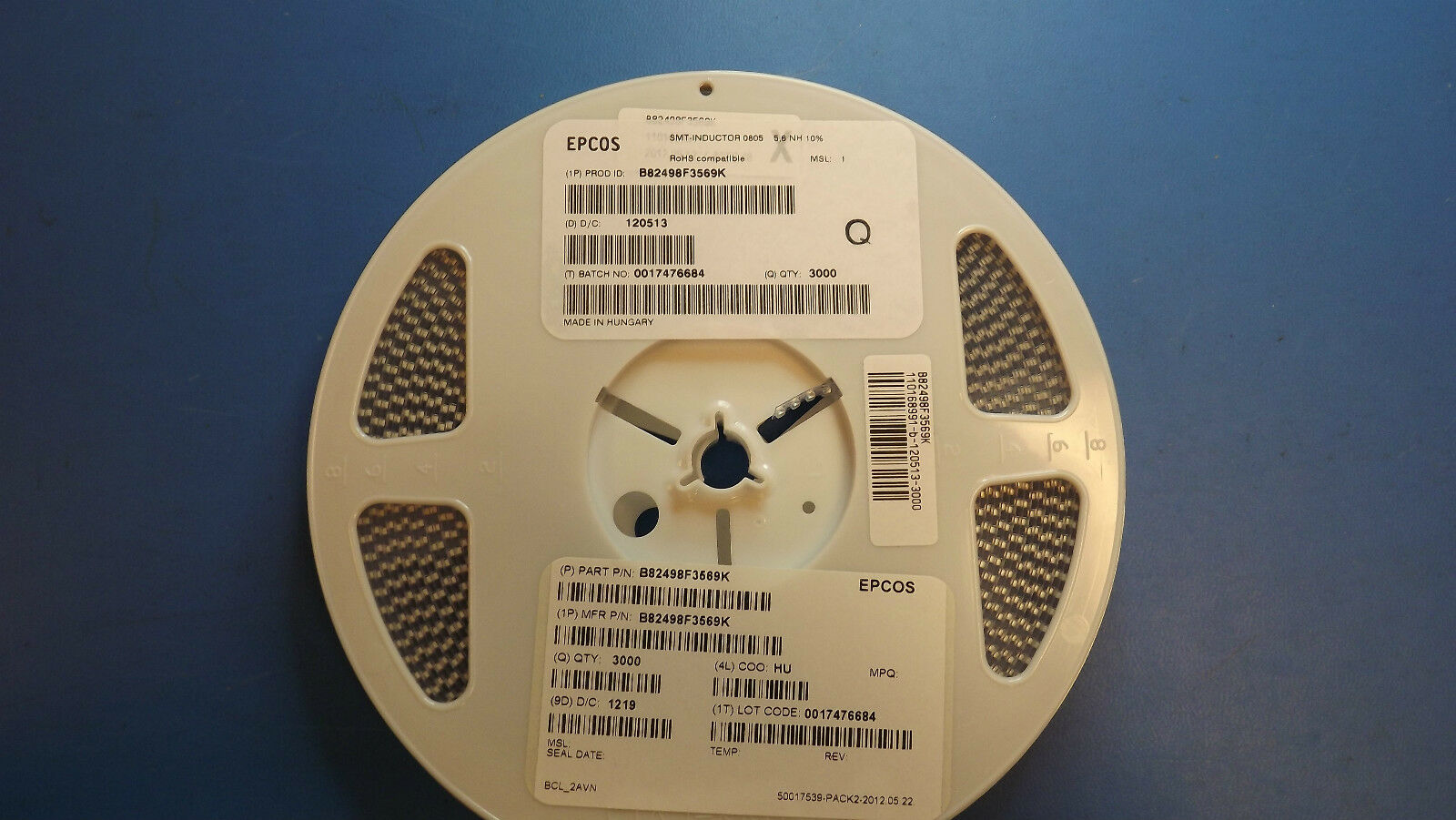

THIS LISTING IS FOR (10 PCS) OF B82498F3569K BY EPCOS
FIXED IND 5.6NH 900MA 40 MOHM
(6000 PCS IN STOCK. WE WILL MAKE DEALS ON LARGER QTY. SEND OFFERS)
B82498F3569K Part Details & Parametric
| EU RoHS |
Compliant
|
| Type | Chip |
| Technology | Wirewound |
| Protection Style | Molded |
| Core Material | Ceramic |
| Inductance (H) | 5.6n |
| Tolerance | 10% |
| Test Frequency (Hz) | 250M |
| Maximum DC Current (A) | 900m |
| Maximum DC Resistance (Ohm) | 40m |
| Minimum Quality Factor | 50@1GHz |
| Minimum Self Resonant Frequency (Hz) | 7G |
| Case Size | 0805 |
| Product Length (mm) | 2.3 |
| Product Depth (mm) | 1.7 |
| Product Height (mm) | 1.4 |
| Special Features | Tight Tolerance|High SRF |
| Packaging | Blister Tape and Reel |
