(10 PCS) B82422A1103K100 FIXED IND 10UH 180MA 1.6 OHM SMD
Tax included.

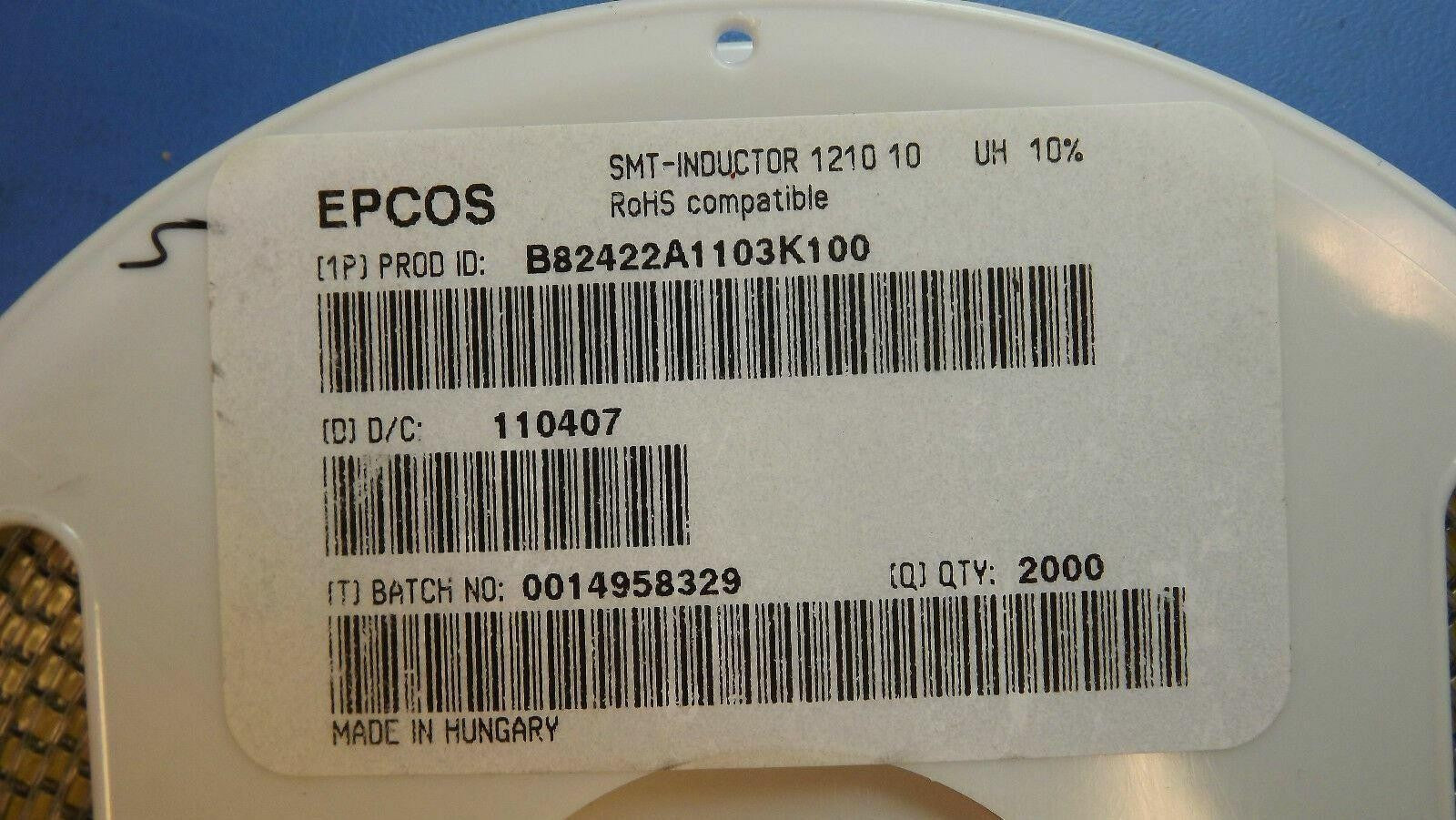

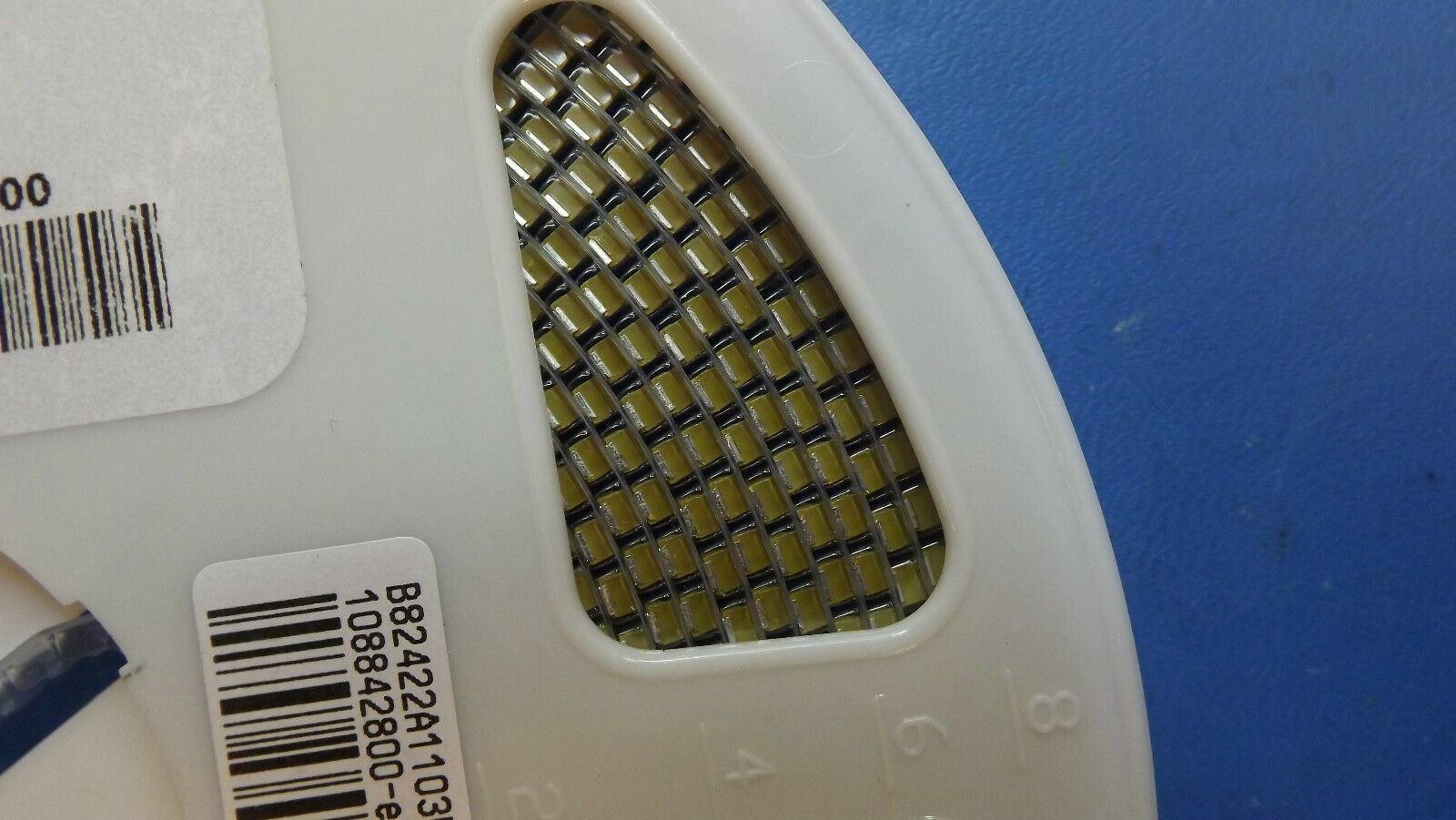

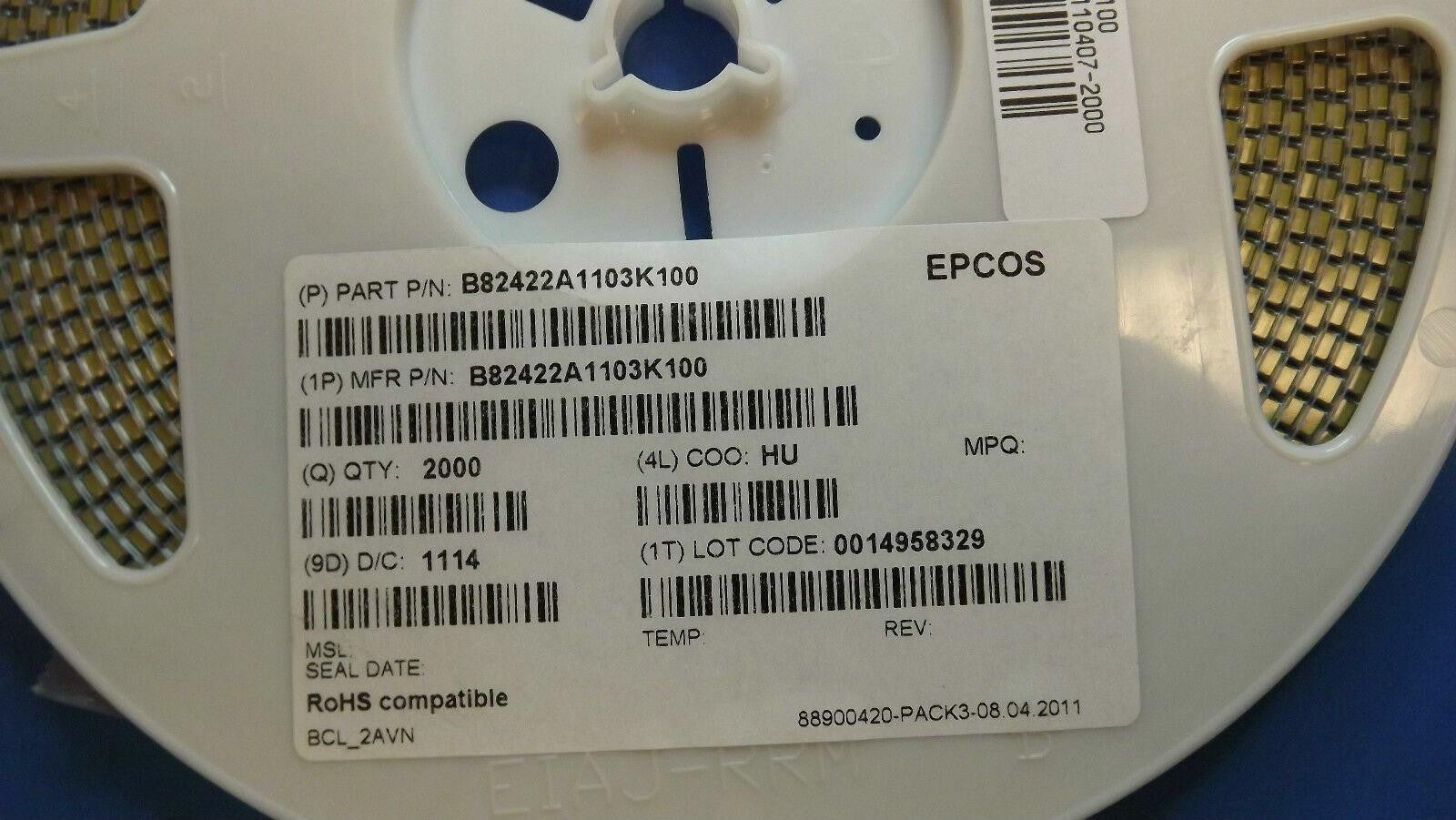

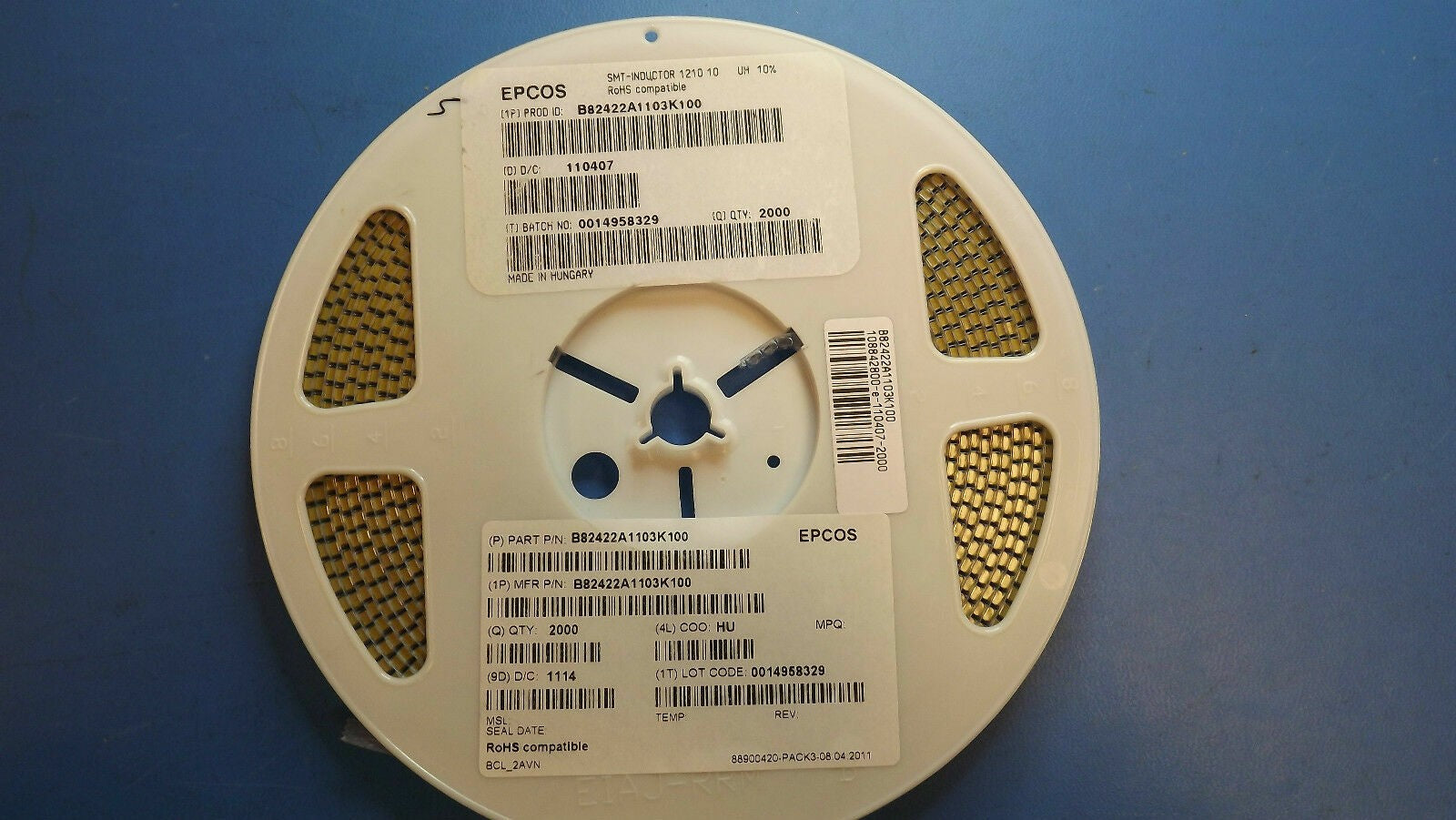

THIS LISTING IS FOR (10 PCS) OF B82422A1103K100 BY EPCOS
FIXED IND 10UH 180MA 1.6 OHM SMD
B82422-A1103-K100 Part Details & Parametric
| EU RoHS | Compliant |
| Type | Chip |
| Technology | Wirewound |
| Protection Style | Molded |
| Core Material | Ferrite |
| Inductance (H) | 10u |
| Tolerance | 10% |
| Test Frequency (Hz) | 1M |
| Maximum DC Current (A) | 180m |
| Maximum DC Resistance (Ohm) | 1.6 |
| Minimum Quality Factor | 27@2.52MHz |
| Minimum Self Resonant Frequency (Hz) | 25M |
| Case Size | 1210 |
| Product Length (mm) | 3.5 |
| Product Depth (mm) | 2.8 |
| Product Height (mm) | 2.1 |
| Maximum Operating Temperature (°C) | 145 |
| Packaging | Blister Tape and Reel |
