(10 PCS) ATF22V10BQ-15XC ATMEL Flash PLD, 15ns, PAL-Type, CMOS, TSSOP-24

$49.95
Unit price per

Tax included.

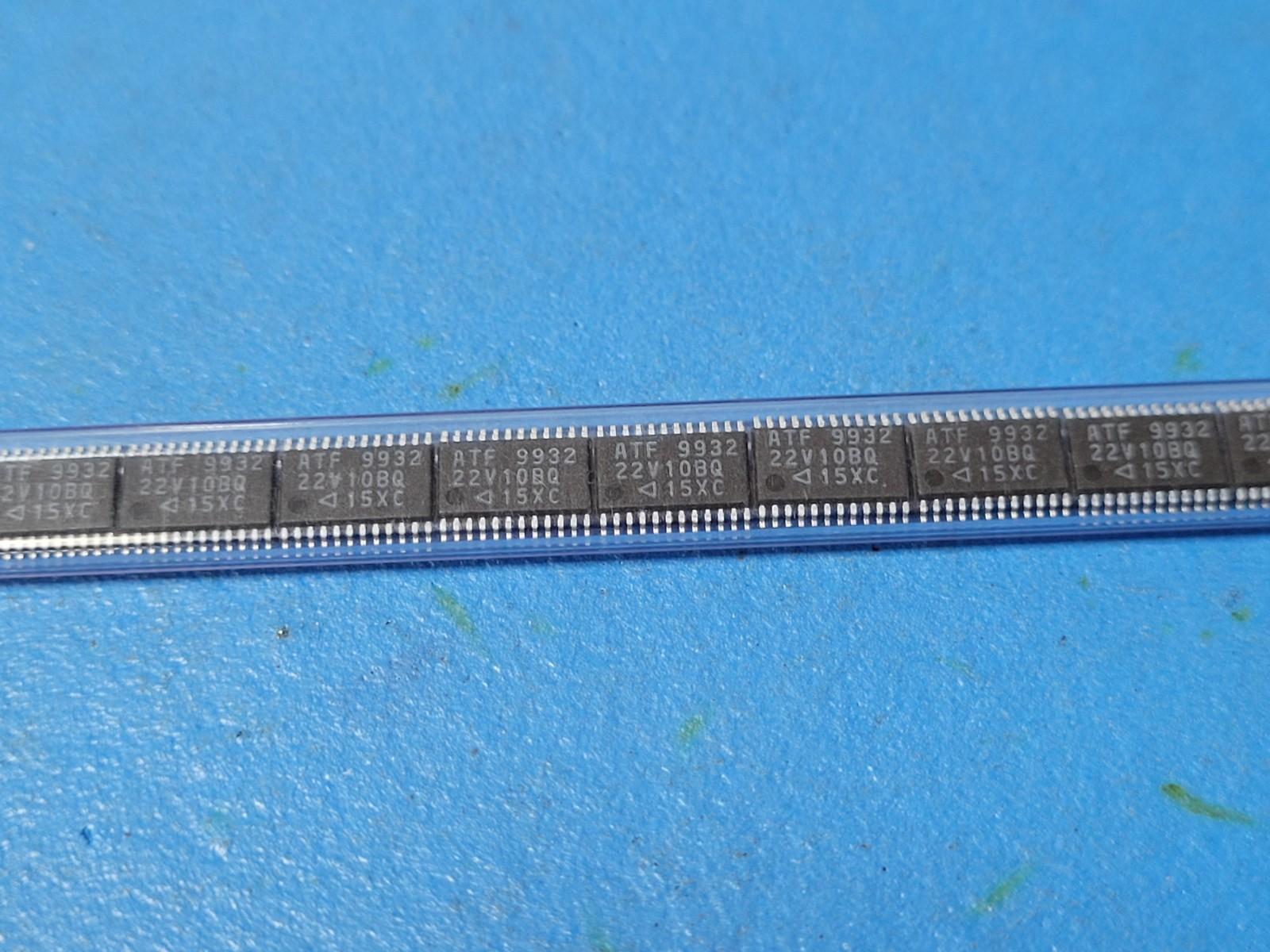

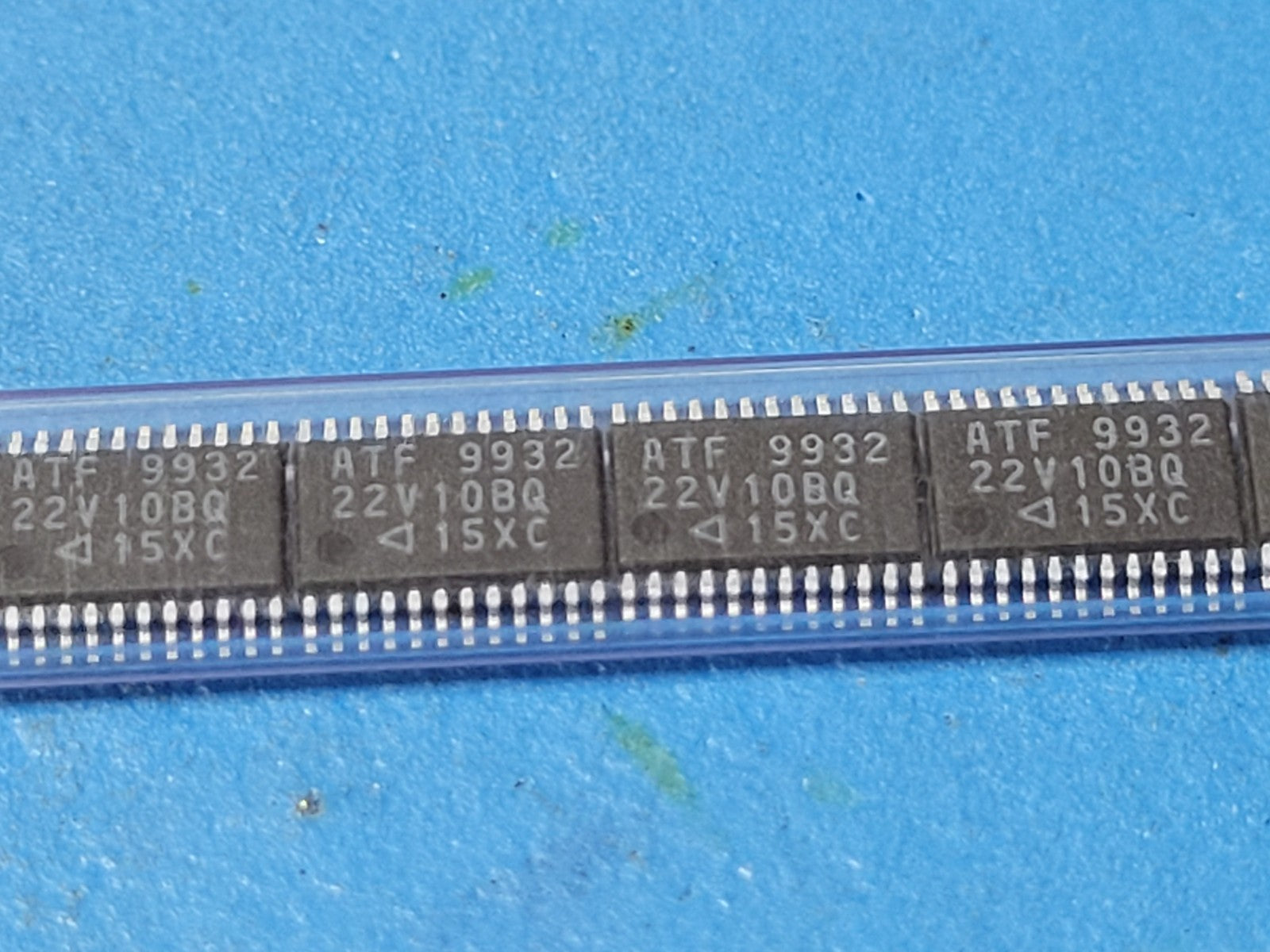

THIS IS FOR (1O PCS) OF ATF22V10BQ-15XC BY ATMEL

Flash PLD, 15ns, PAL-Type, CMOS, TSSOP-24

Part #: ATF22V10BQ-15XC

Obsolete

Part Category: Programmable Logic Devices

Manufacturer: ATMEL CORP

Description:

Flash PLD, 15ns, PAL-Type, CMOS, PDSO24

Status Discontinued

Architecture PAL-TYPE

Clock Frequency-Max (MHz) 55.50000

JESD-30 Code R-PDSO-G24

J-STD-609 Code e0

Length (mm) 7.8000

Moisture Sensitivity Level 2

Number of Dedicated Inputs 11

Number of I/O Lines 10

Number of Inputs 22

Number of Outputs 10

Number of Product Terms 132

Number of Terminals 24

Operating Temperature-Max (Cel) 70.0

Operating Temperature-Min (Cel) 0.0

Organization 11 DEDICATED INPUTS, 10 I/O

Output Function MACROCELL

Package Body Material PLASTIC/EPOXY

Package Code TSSOP

Package Equivalence Code TSSOP24,.25

Package Shape RECTANGULAR

Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

Peak Reflow Temperature (Cel) 240

Programmable Logic Type FLASH PLD

Propagation Delay (ns) 15.000

DLA Qualification Not Qualified

Seated Height-Max (mm) 1.2000

Supply Voltage-Max (V) 5.25000

Supply Voltage-Min (V) 4.75000

Supply Voltage-Nom (V) 5

Surface Mount YES

Technology CMOS

Temperature Grade COMMERCIAL

Terminal Finish TIN LEAD

Terminal Form GULL WING

Terminal Pitch (mm) 0.650

Terminal Position DUAL

Width (mm) 4.4000
