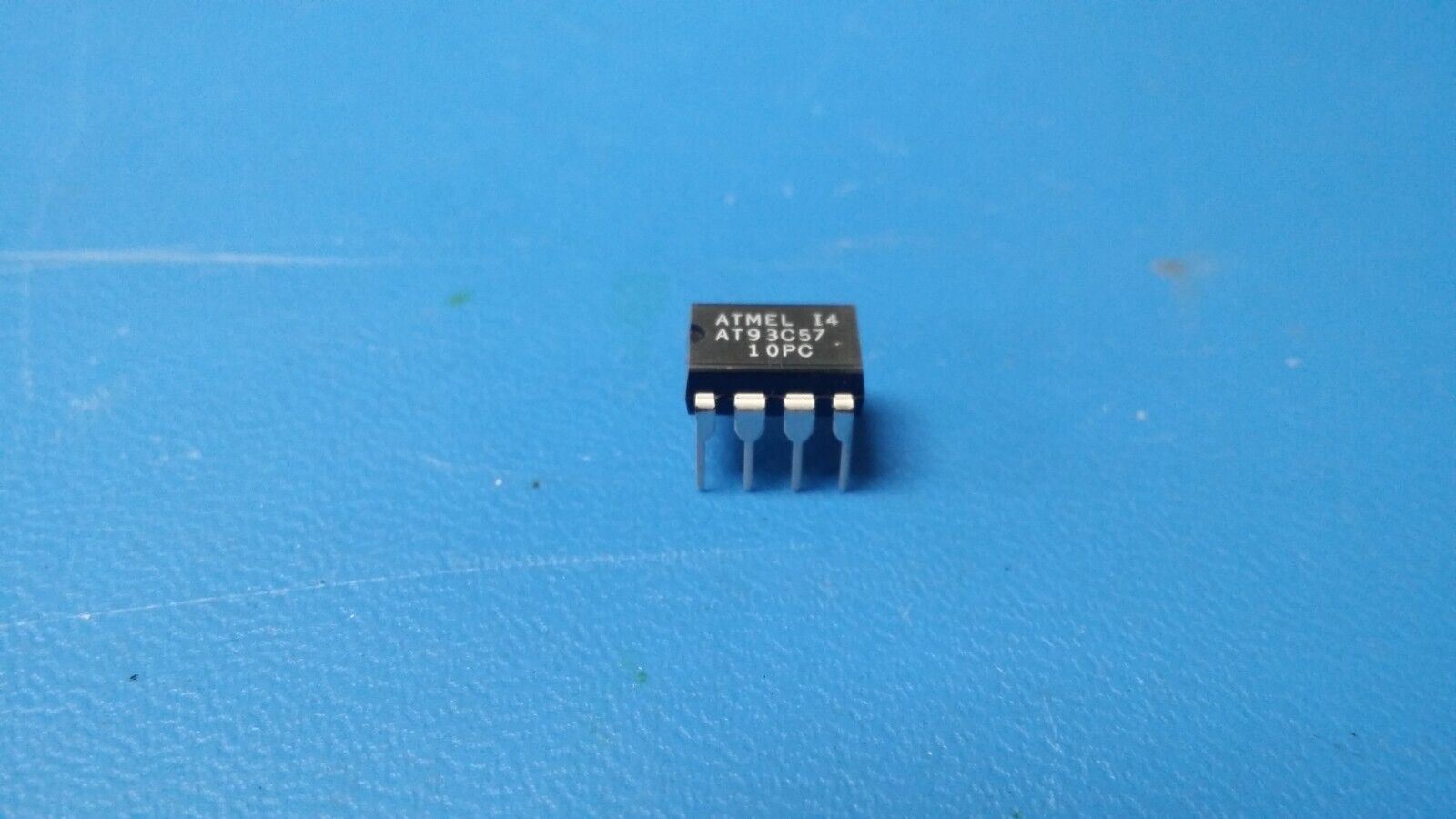

(10 PCS) AT93C57-10PC (HOUSE # 91798) ATMEL IC EEPROM 2KBIT 3-WIRE 2MHZ 8DIP
Tax included.

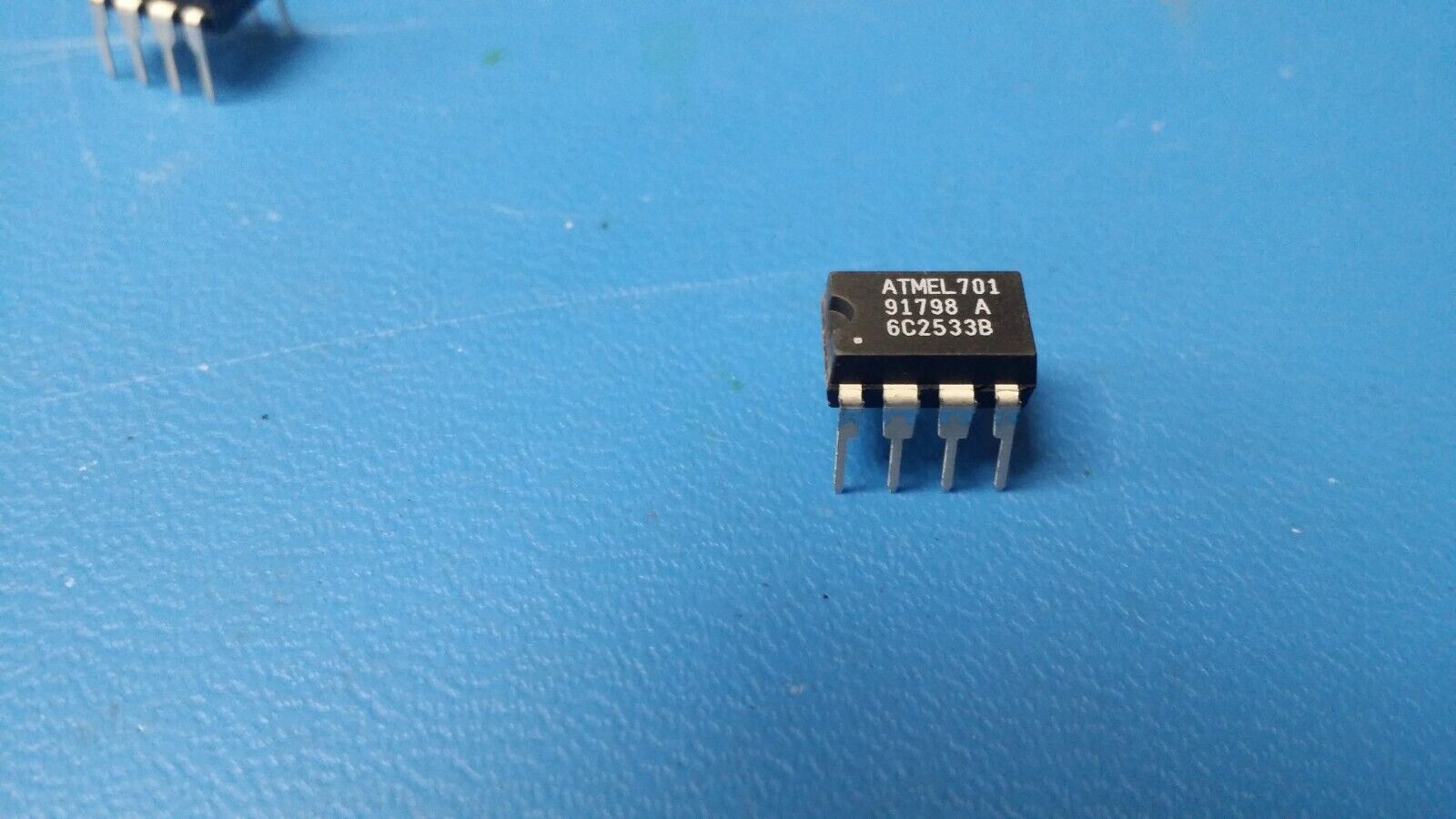

THIS IS FOR (10 PCS) OF AT93C57-10PC (HOUSE # 91798) BY ATMEL
IC EEPROM 2KBIT 3-WIRE 2MHZ 8DIP
Part #: AT93C57-10PC
Part Category: Memory ICs
Manufacturer: Atmel Corporation
Description: EEPROM, 256X8, Serial, CMOS, PDIP8
Mfr Package Description 0.300 INCH, PLASTIC, DIP-8
Status Discontinued
Sub Category EEPROMs
Clock Frequency-Max (fCLK) 2.0 MHz
Data Retention Time-Min 100
Endurance 1000000.0 Write/Erase Cycles
JESD-30 Code R-PDIP-T8
JESD-609 Code e0
Memory Density 2048.0 bit
Memory IC Type EEPROM
Memory Width 8
Alternate Memory Width 8.0
Number of Functions 1
Number of Terminals 8
Number of Words 256.0 words
Number of Words Code 256
Operating Mode SYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 256X8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Parallel/Serial SERIAL
Qualification Status Not Qualified
Seated Height-Max 5.33 mm
Serial Bus Type MICROWIRE
Standby Current-Max 3.0E-5 Amp
Supply Current-Max 0.002 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Write Cycle Time-Max (tWC) 10.0 ms
Write Protection SOFTWARE
Length 9.59 mm
Width 7.62 mm
Additional Feature 3-WIRE SERIAL INTERFACE
