(10 PCS) AT93C56-10SJ-2.7 ATMEL EEPROM 128X16 Serial CMOS SOIC8 ROHS
Tax included.

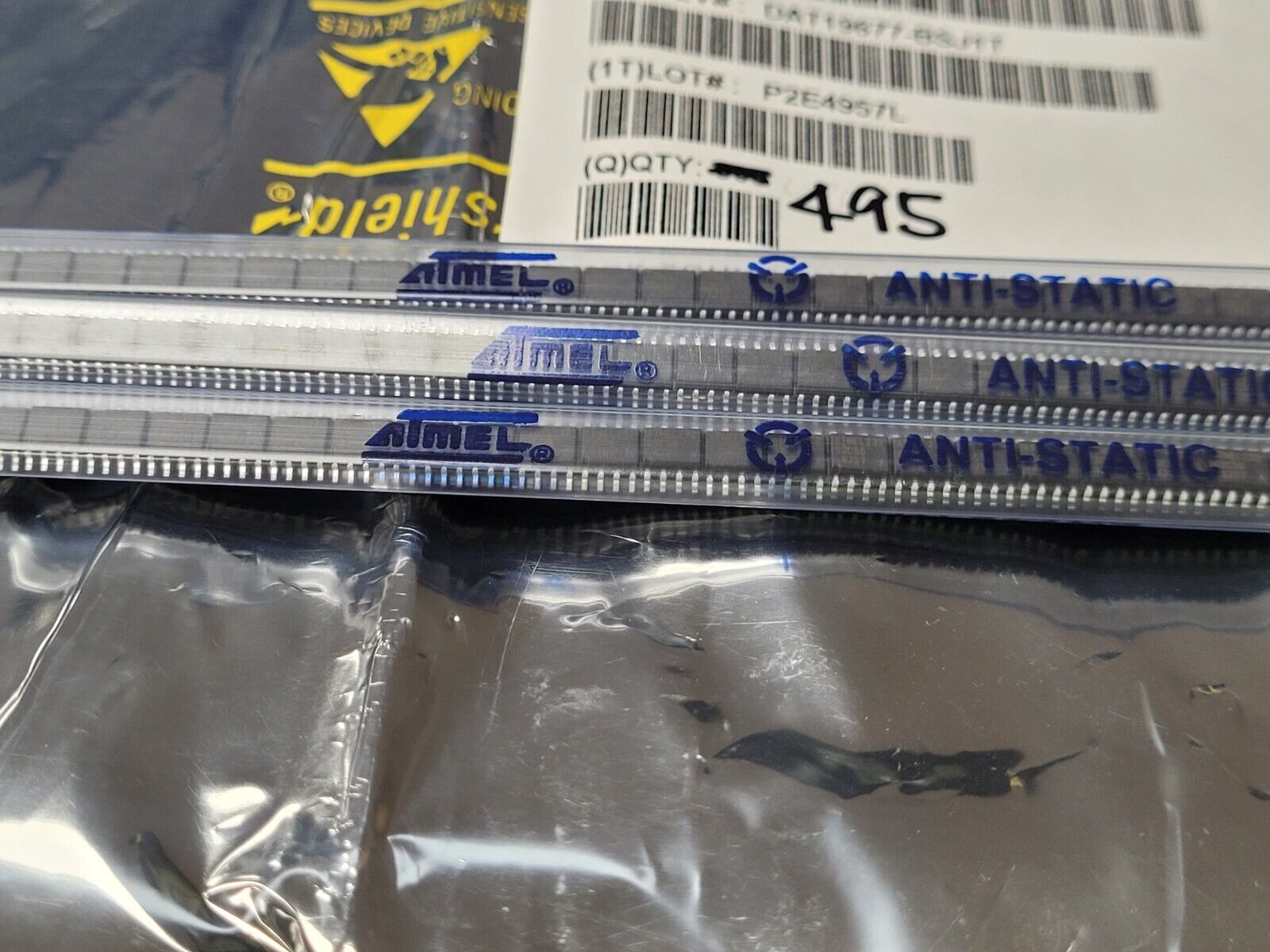

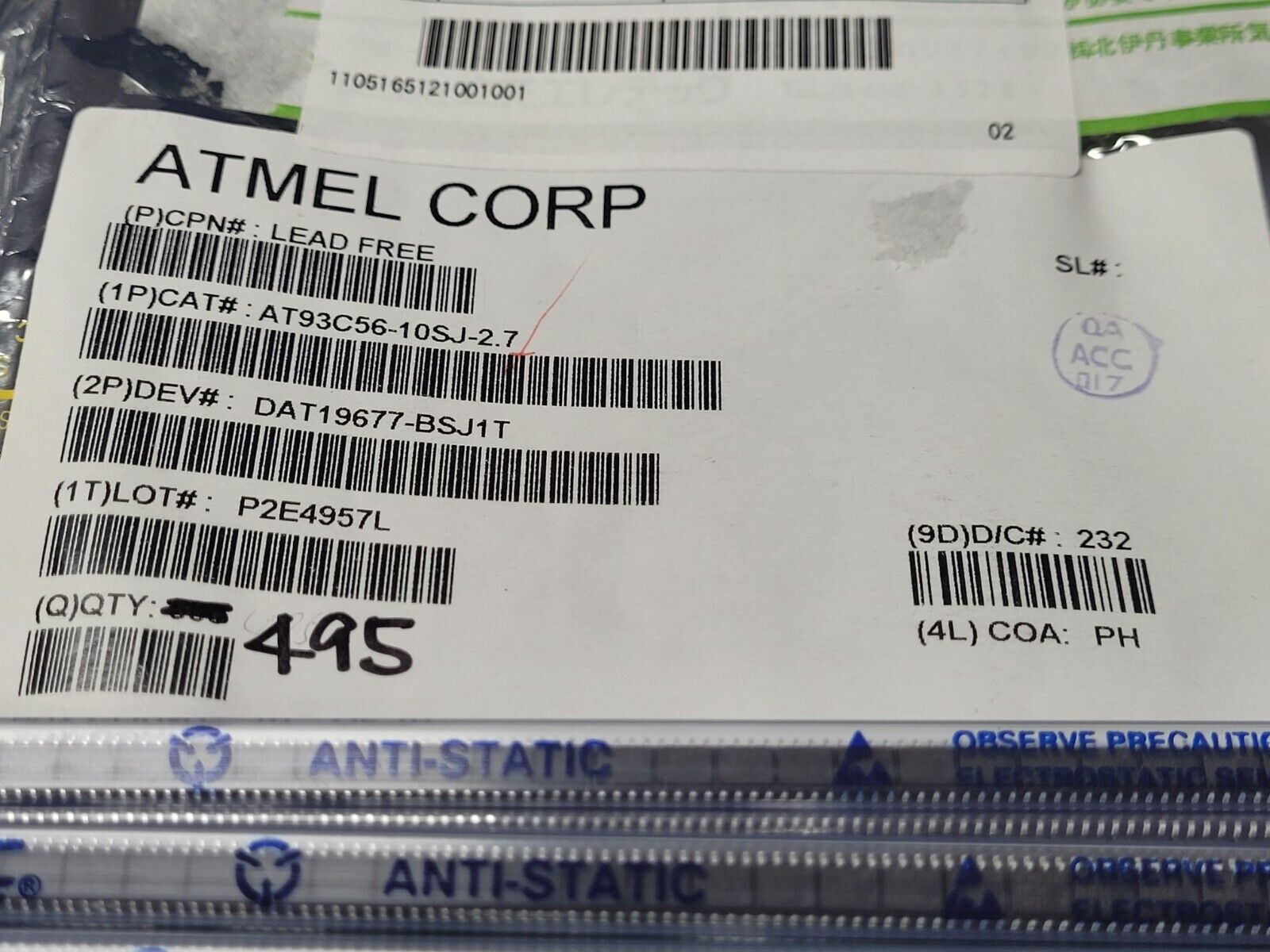

THIS IS FOR (10 PCS) OF AT93C56-10SJ-2.7 BY ATMEL
EEPROM 128X16 Serial CMOS SOIC8
Part #: AT93C56-10SJ-2.7
Part Category: Memory ICs
Manufacturer: Atmel Corporation
Description: EEPROM, 128X16, Serial, CMOS, PDSO8
Mfr Package Description 0.150 INCH, PLASTIC, MS-012, SOIC-8
Status Discontinued
Sub Category EEPROMs
Clock Frequency-Max (fCLK) 1.0 MHz
Data Retention Time-Min 100
Endurance 1000000.0 Write/Erase Cycles
JESD-30 Code R-PDSO-G8
JESD-609 Code e0
Memory Density 2048.0 bit
Memory IC Type EEPROM
Memory Width 16
Alternate Memory Width 8.0
Number of Functions 1
Number of Terminals 8
Number of Words 128.0 words
Number of Words Code 128
Operating Mode SYNCHRONOUS
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Organization 128X16
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial SERIAL
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Serial Bus Type MICROWIRE
Standby Current-Max 1.0E-5 Amp
Supply Current-Max 0.002 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 2.7 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Write Cycle Time-Max (tWC) 10.0 ms
Write Protection SOFTWARE
Length 4.9 mm
Width 3.9 mm
Additional Feature DATA RETENTION 100 YEARS
