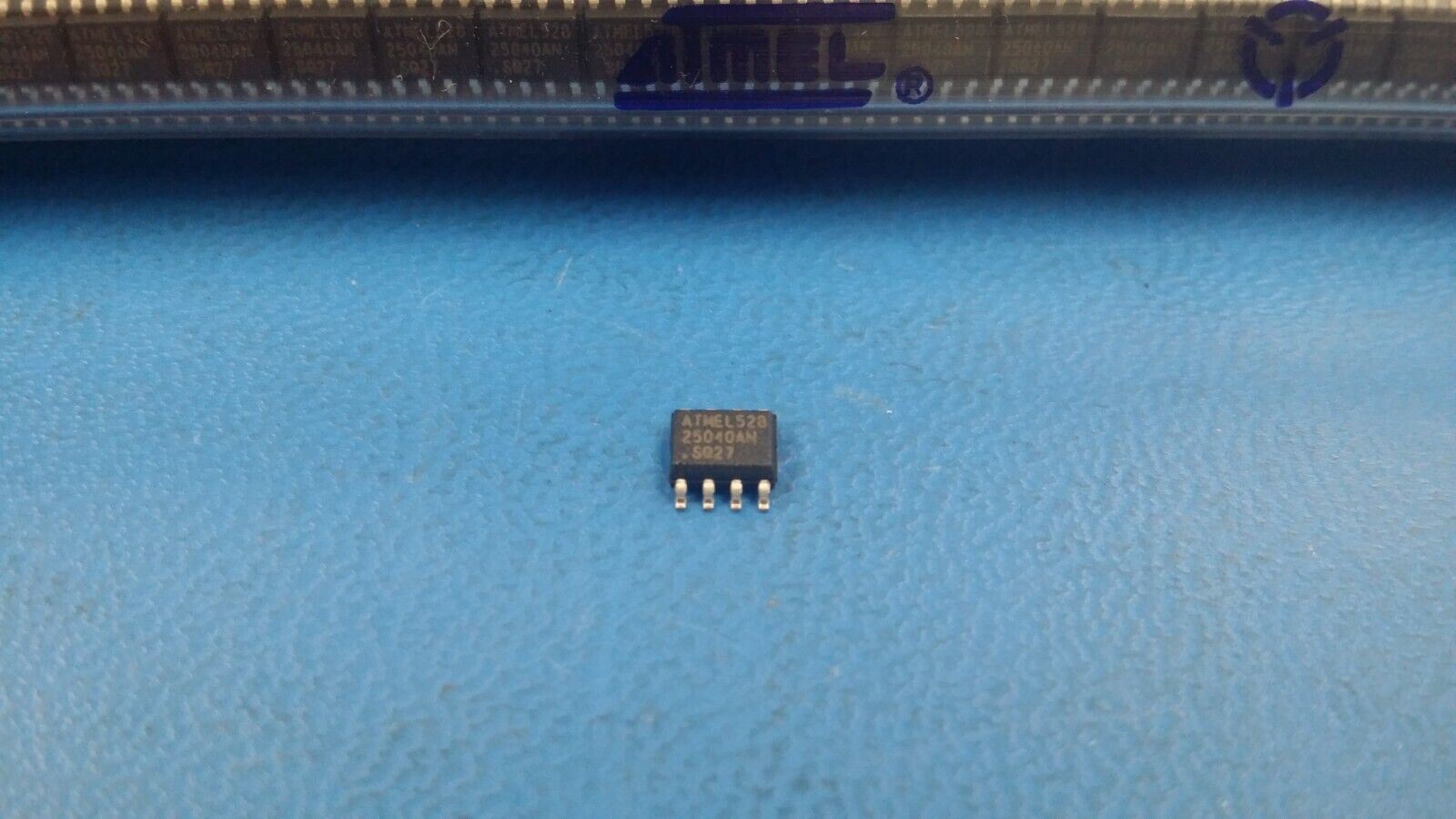

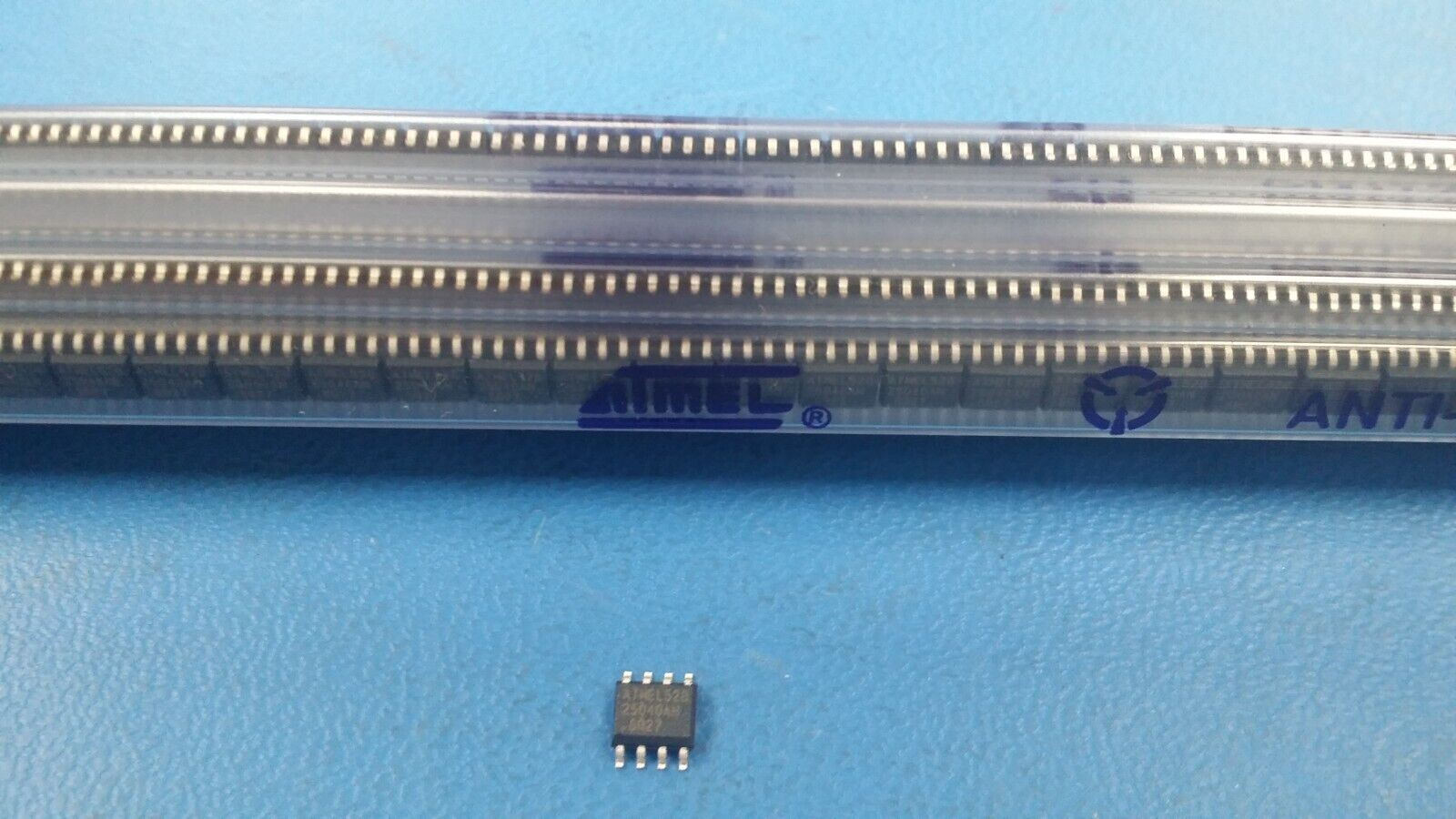

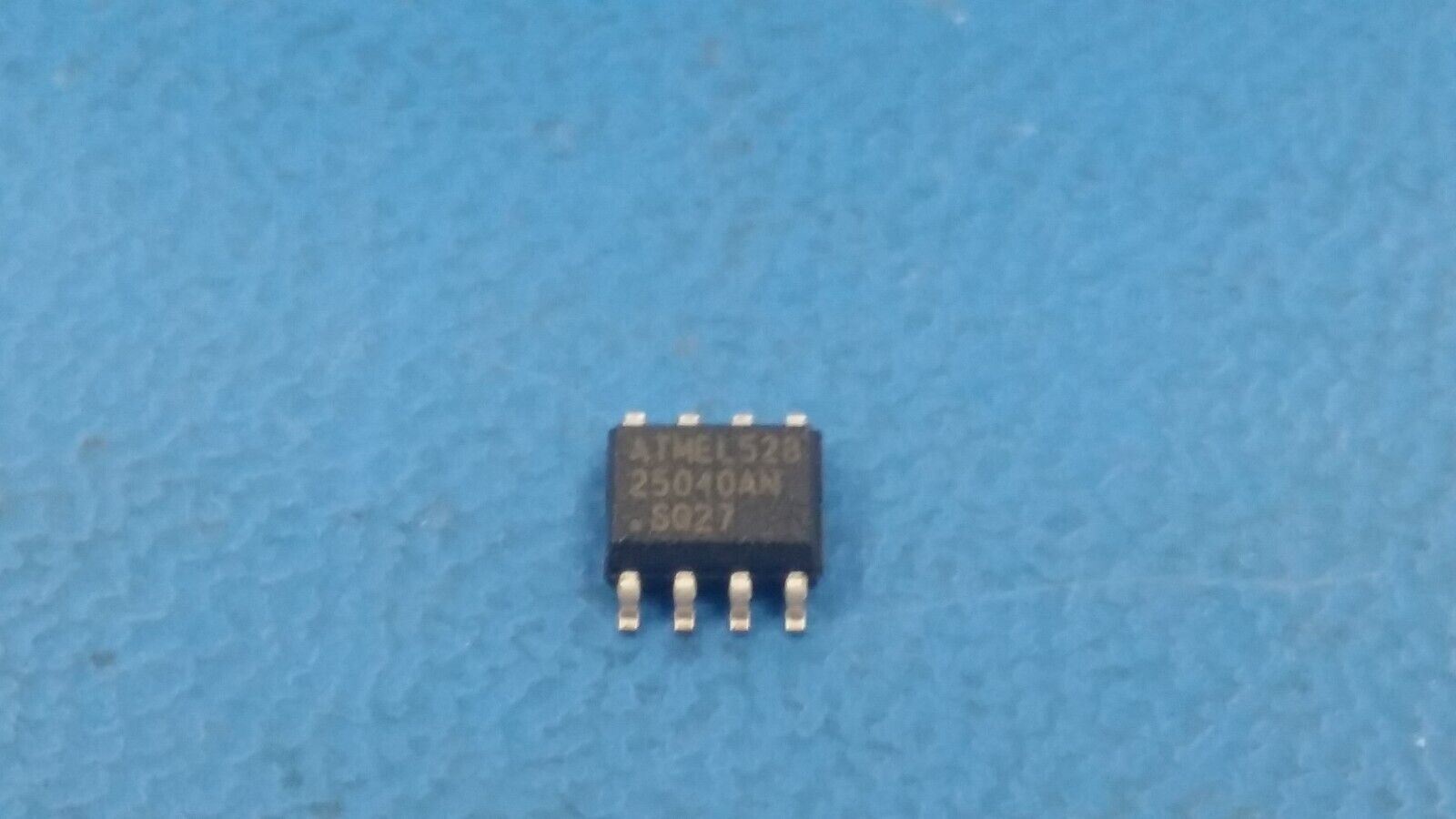

(10 PCS) AT25040AN-10SC-2.7 ATMEL EEPROM, 512X8, Serial, CMOS, SOIC-8
Tax included.
THIS IS FOR (10 PCS) OF AT25040AN-10SC-2.7 BY ATMEL
EEPROM, 512X8, Serial, CMOS, SOIC-8
Part #: AT25040N-10SC-2.7
Part Category: Memory ICs
Manufacturer: Atmel Corporation
Description: EEPROM, 512X8, Serial, CMOS, PDSO8
Mfr Package Description 0.150 INCH, PLASTIC, SOIC-8
REACH Compliant Yes
Status Discontinued
Sub Category EEPROMs
Clock Frequency-Max (fCLK) 2.1 MHz
Data Retention Time-Min 100
Endurance 1000000.0 Write/Erase Cycles
JESD-30 Code R-PDSO-G8
JESD-609 Code e0
Memory Density 4096.0 bit
Memory IC Type EEPROM
Memory Width 8
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Number of Words 512.0 words
Number of Words Code 512
Operating Mode SYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 512X8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial SERIAL
Peak Reflow Temperature (Cel) 225
Qualification Status Not Qualified
Seated Height-Max 1.73 mm
Serial Bus Type SPI
Standby Current-Max 1.0E-4 Amp
Supply Current-Max 0.006 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 2.7 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 12
Write Cycle Time-Max (tWC) 10.0 ms
Write Protection HARDWARE/SOFTWARE
Length 4.89 mm
Width 3.9 mm
Additional Feature 4-WIRE SERIAL INTERFACE
