(10 PCS) AT24C01A-10SC-2.5 ATMEL IC EEPROM 1KBIT I2C 400KHZ 8SOIC
Tax included.

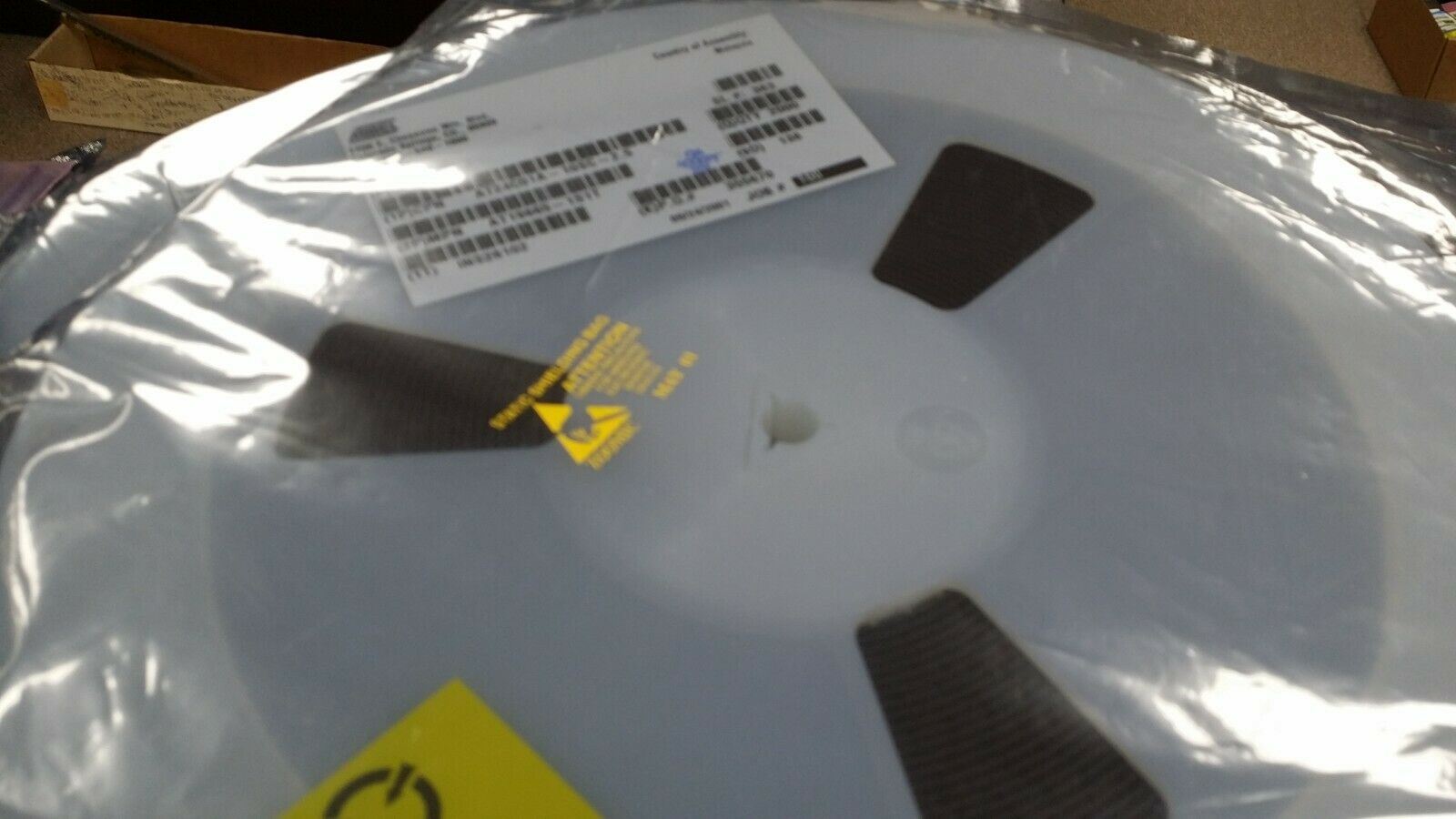

THIS IS FOR (10 PCS) OF AT24C01A-10SC-2.5 BY ATMEL
IC EEPROM 1KBIT I2C 400KHZ 8SOIC
Part #: AT24C01A-10SC-2.5
Part Category: Memory ICs
Manufacturer: Atmel Corporation
Description: EEPROM, 128X8, Serial, CMOS, PDSO8
Mfr Package Description 0.150 INCH, PLASTIC, SOIC-8
Status Discontinued
Sub Category EEPROMs
Clock Frequency-Max (fCLK) 0.1 MHz
Data Retention Time-Min 100
Endurance 1000000.0 Write/Erase Cycles
I2C Control Byte 1010DDDR
JESD-30 Code R-PDSO-G8
JESD-609 Code e0
Memory Density 1024.0 bit
Memory IC Type EEPROM
Memory Width 8
Number of Functions 1
Number of Terminals 8
Number of Words 128.0 words
Number of Words Code 128
Operating Mode SYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 128X8
Output Characteristics OPEN-DRAIN
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial SERIAL
Peak Reflow Temperature (Cel) 240
Qualification Status Not Qualified
Seated Height-Max 1.73 mm
Serial Bus Type I2C
Standby Current-Max 4.0E-6 Amp
Supply Current-Max 0.003 Amp
Supply Voltage-Nom (Vsup) 3.3 V
Supply Voltage-Min (Vsup) 2.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Write Cycle Time-Max (tWC) 10.0 ms
Write Protection HARDWARE
Length 4.89 mm
Width 3.9 mm
Additional Feature 2-WIRE SERIAL INTERFACE
