(10 PCS) AP431AVL-A Voltage References 2.495V - 36V 250mA TO-92 ROHS

$4.95
Unit price per

Tax included.

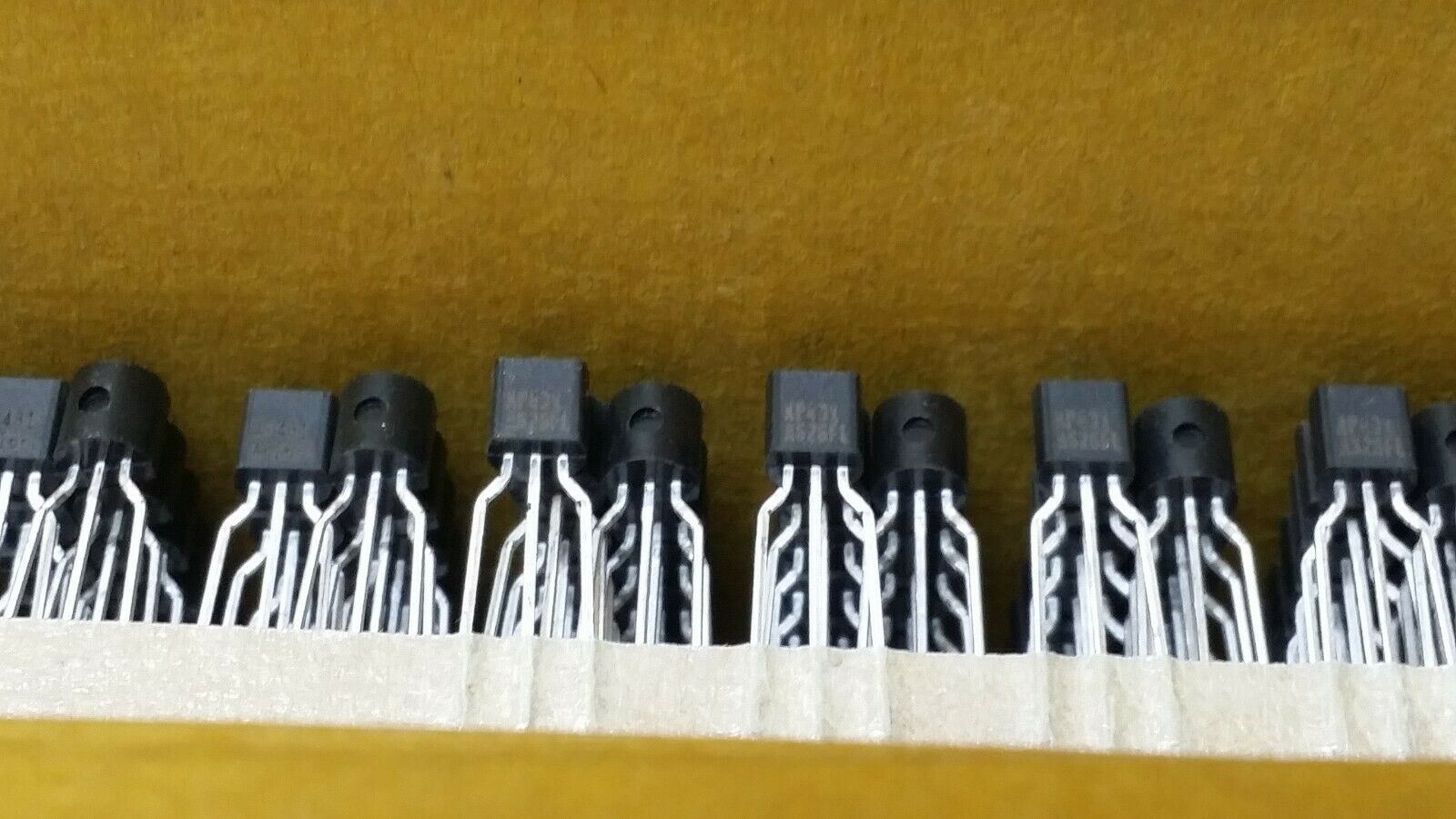

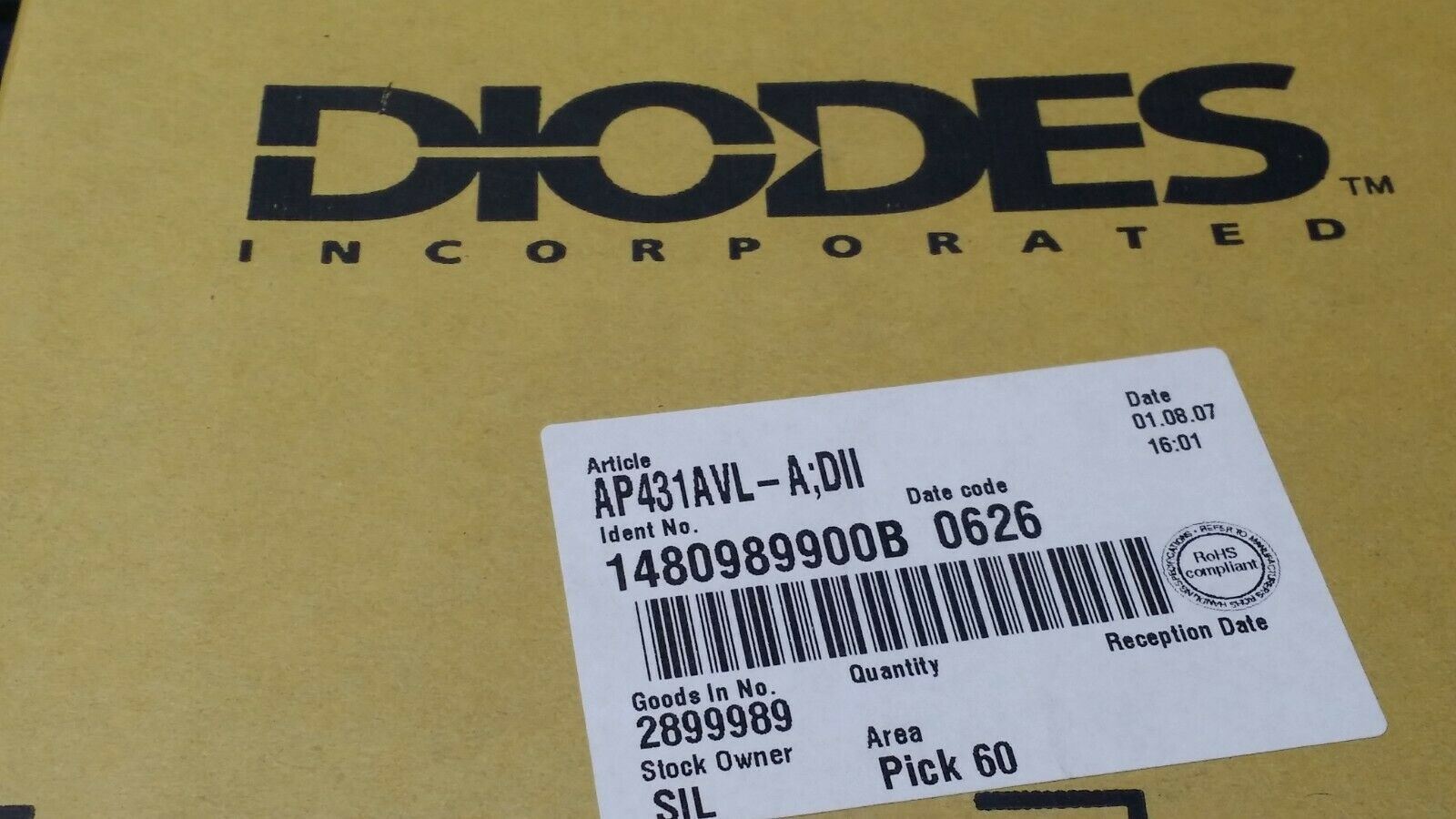

THIS IS FOR (10 PCS) OF AP431AVL-A BY DIODES INC.

Voltage References 2.495V - 36V 250mA TO-92 ROHS

Part #: AP431AVL-A

Part Category: Other Semiconductors

Manufacturer: DIODES Incorporated

Description: Three Terminal Voltage Reference, 1 Output, 2.495V, Trim/Adjustable, BIPolar, PBCY3

Mfr Package Description ROHS COMPLIANT, TO-92, 3 PIN

REACH Compliant Yes

EU RoHS Compliant Yes

China RoHS Compliant Yes

Status Discontinued

Analog IC - Other Type THREE TERMINAL VOLTAGE REFERENCE

JESD-30 Code O-PBCY-W3

JESD-609 Code e3

Number of Functions 1

Number of Outputs 1.0

Number of Terminals 3

Operating Temperature-Min -20.0 Cel

Operating Temperature-Max 85.0 Cel

Output Current-Max 0.25 A

Output Voltage-Nom 2.495 V

Output Voltage-Min 2.482 V

Output Voltage-Max 36.0 V

Package Body Material PLASTIC/EPOXY

Package Code TO-92

Package Equivalence Code SIP3,.1,50

Package Shape ROUND

Package Style CYLINDRICAL

Peak Reflow Temperature (Cel) 260

Qualification Status Not Qualified

Sub Category Voltage References

Supply Voltage-Nom (Vsup) 2.495 V

Supply Voltage-Min (Vsup) 2.48 V

Supply Voltage-Max (Vsup) 2.507 V

Surface Mount NO

Technology BIPOLAR

Temp Coef of Voltage-Max 888.0 ppm/Cel

Temperature Grade OTHER

Terminal Finish Matte Tin (Sn)

Terminal Form WIRE

Terminal Pitch 1.27 mm

Terminal Position BOTTOM

Time@Peak Reflow Temperature-Max (s) 40

Additional Feature ADJUSTABLE FROM 2.495V TO 36V
