THIS LISTING IS FOR (10 pcs) OF AK550/4DS-3.5-V-GRAU BY PTR
Terminal Block 130V 13.5A 3.5mm Pitch 4-Pole

AK 550/04 DS-3.5-V-GRAU

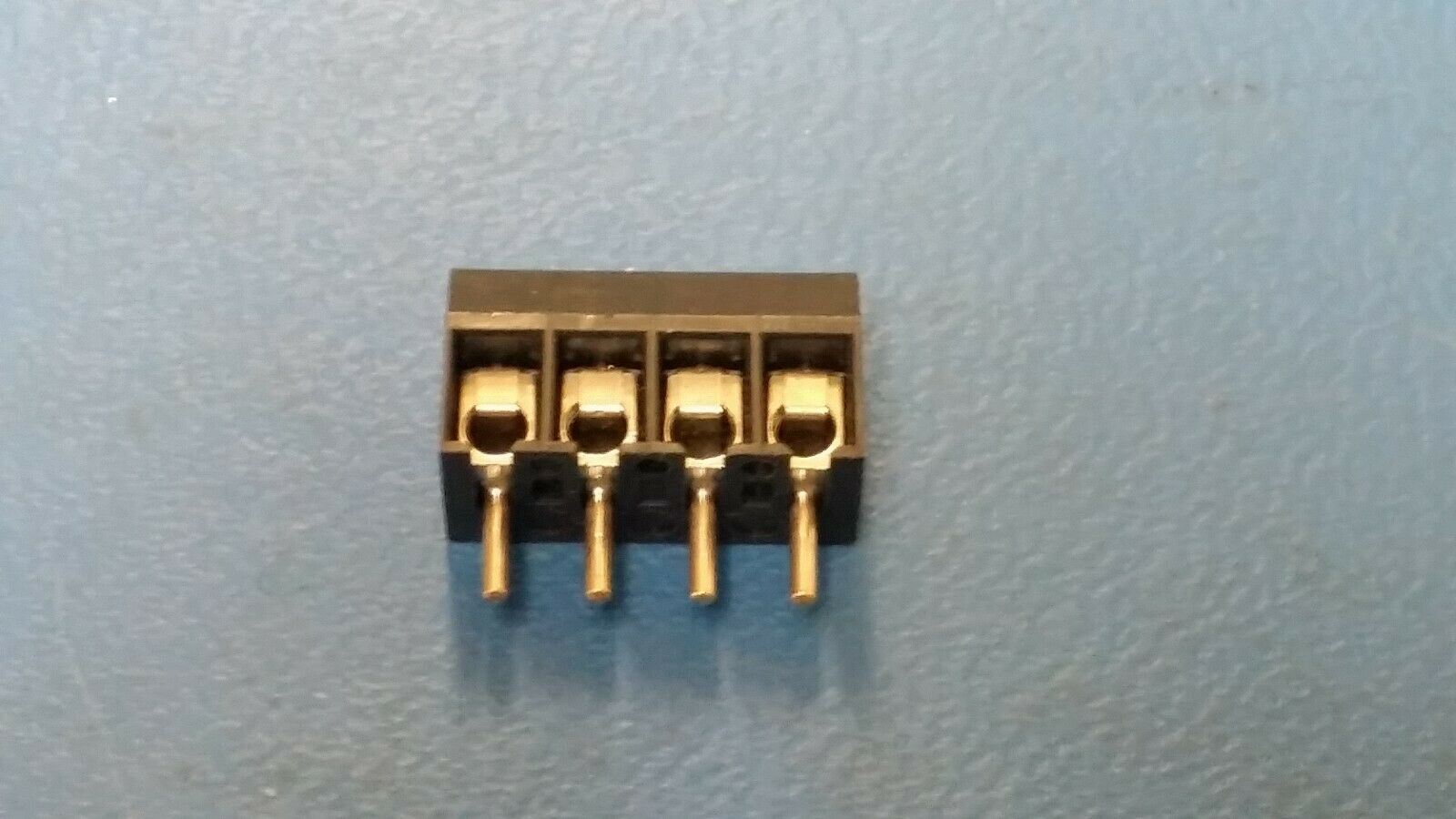

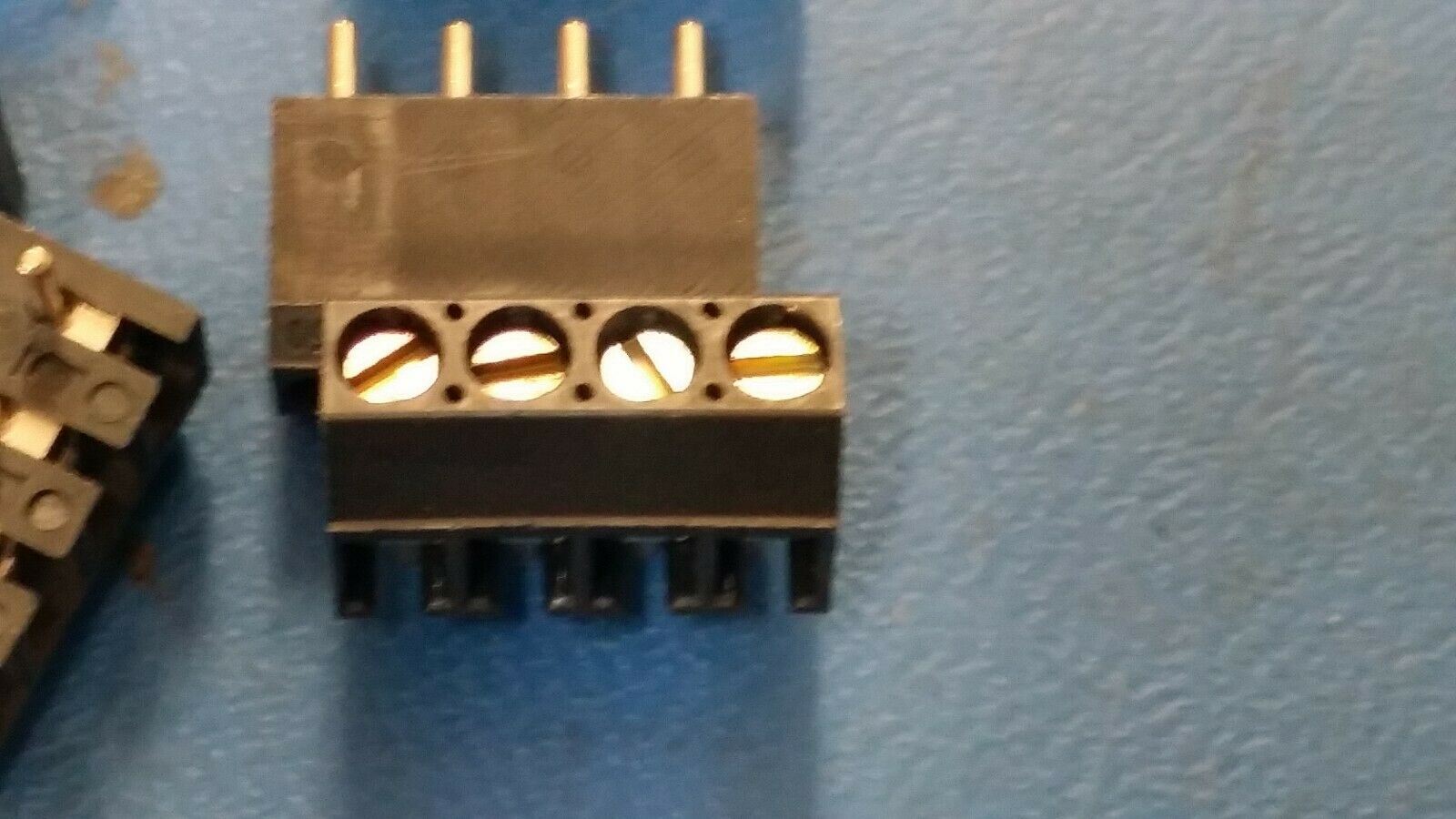

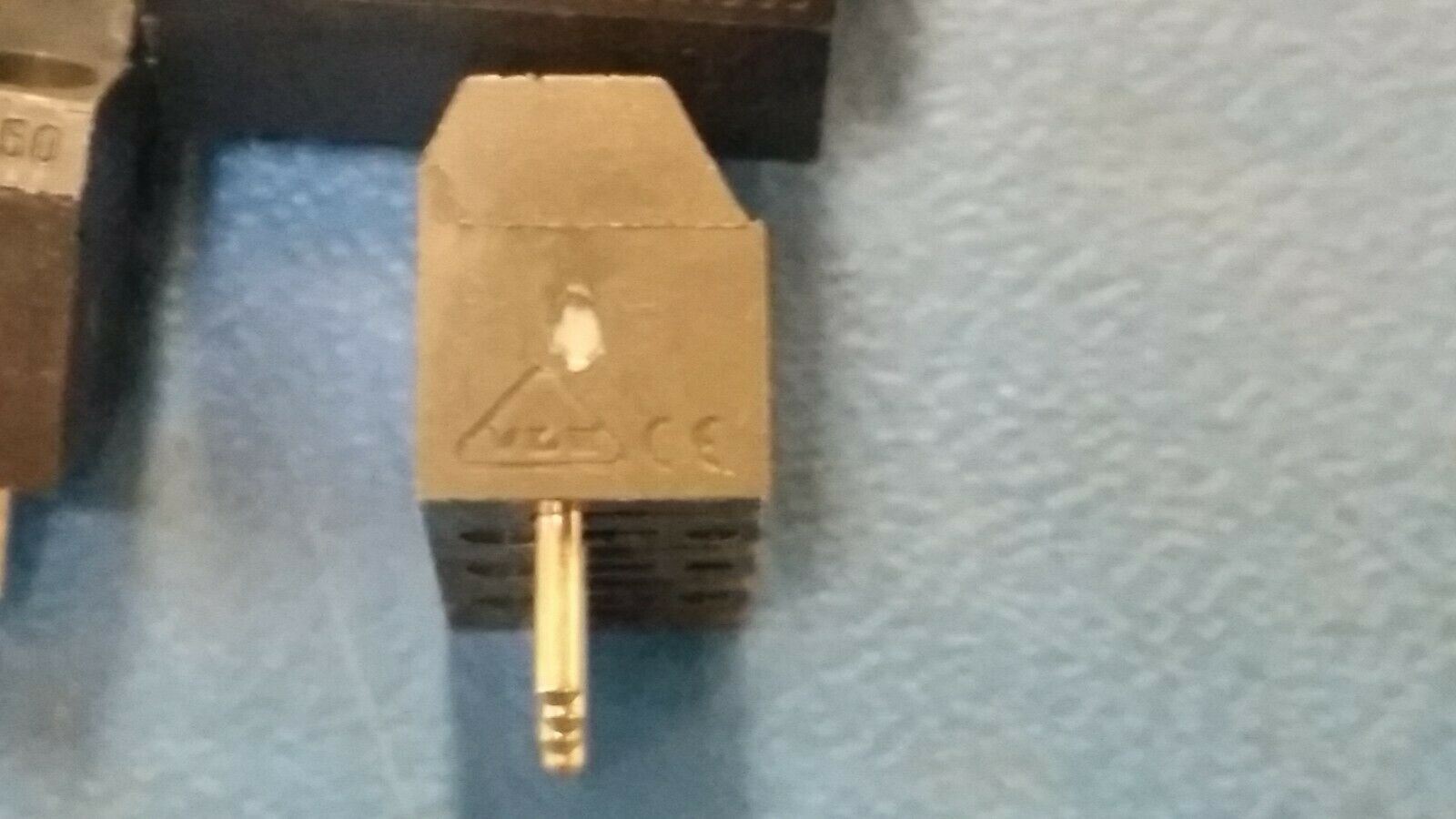

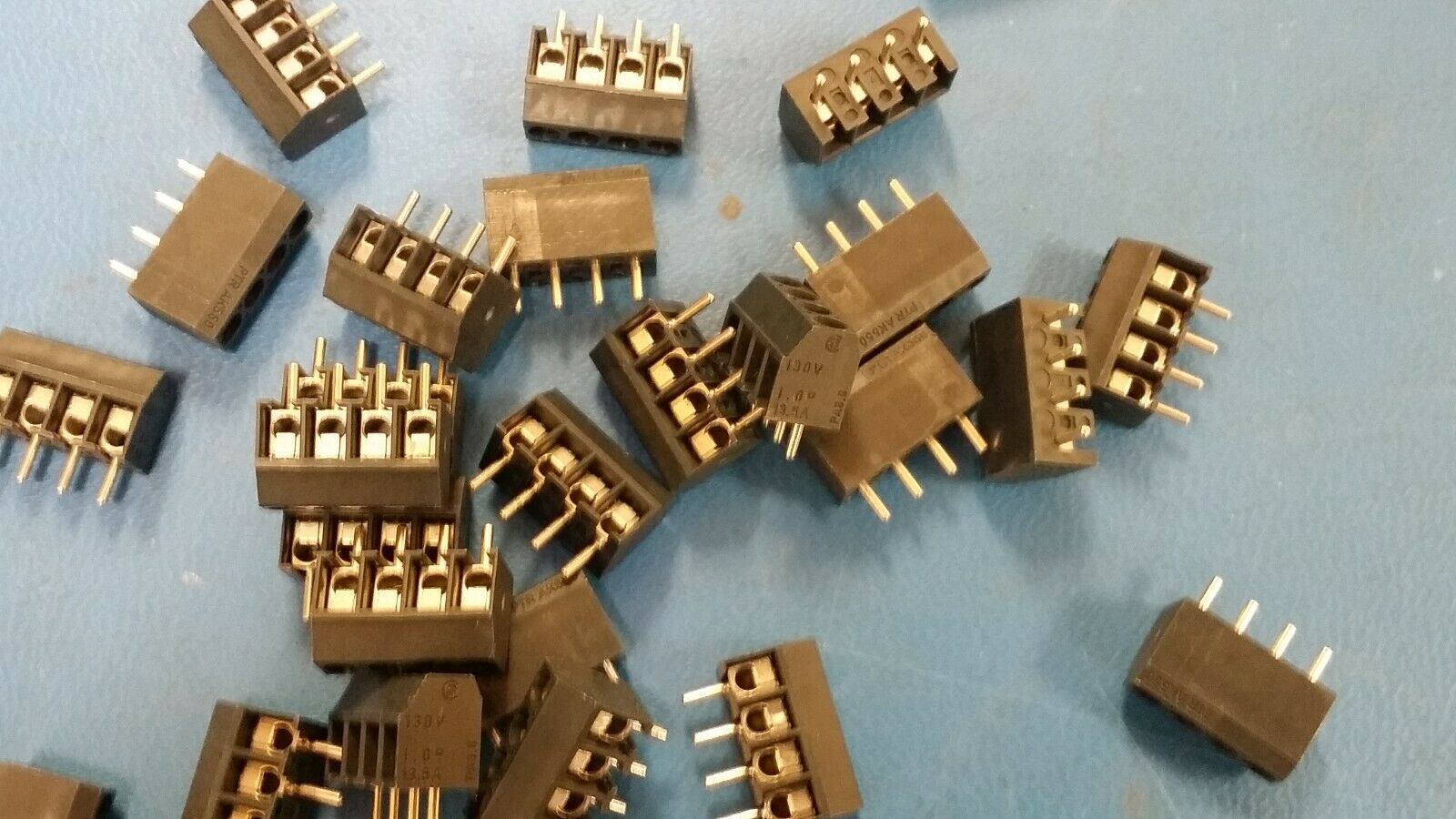

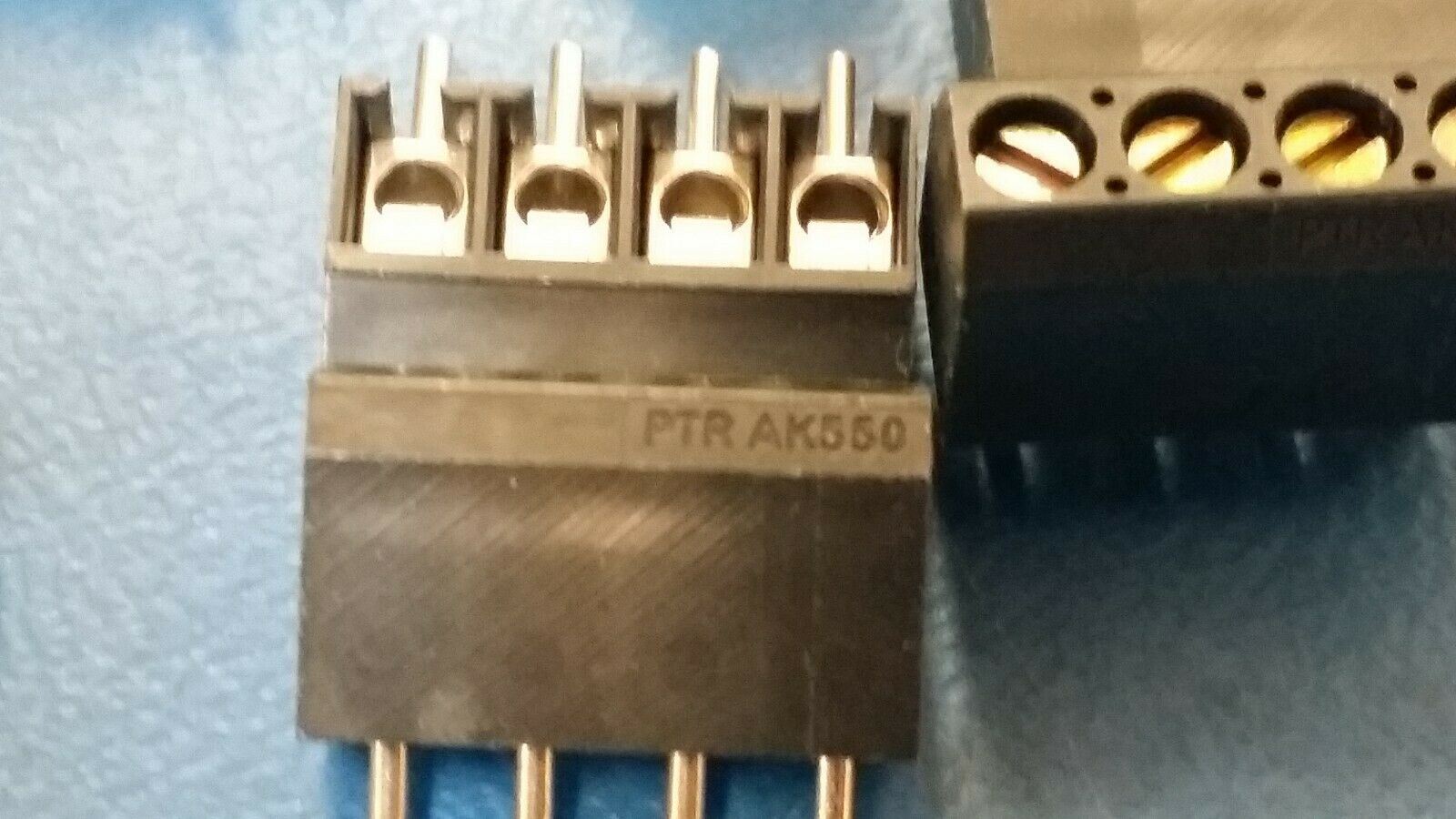

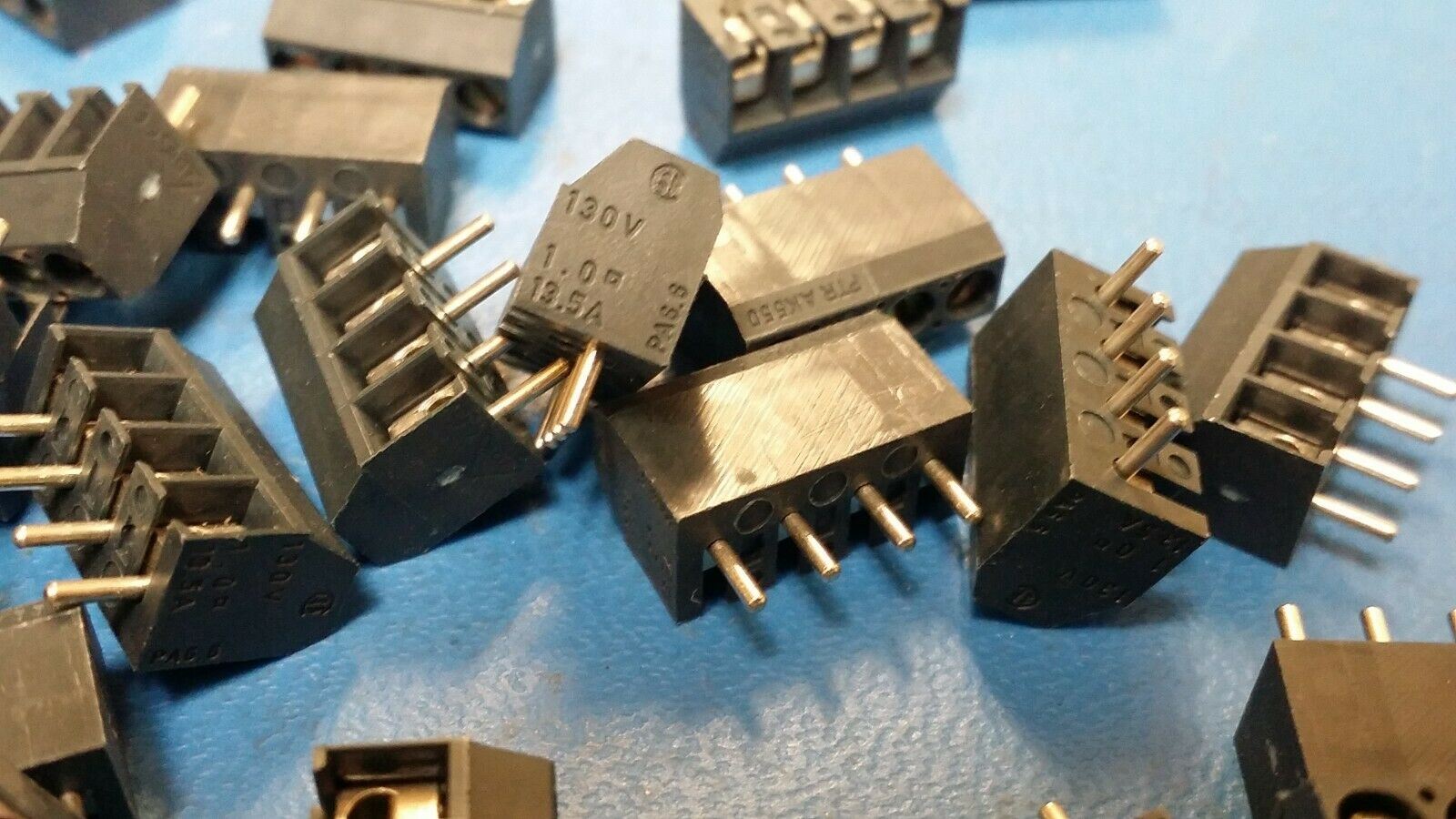

PTR terminal block series AK550
2- to 6-pole terminal blocks with a side wire entry
screw principle with wire guard
insulator is made of PA (UL94V-0)
suitable for a cross section single stranded wire of 1,5mm² and a fine stranded wire of 1,0mm²
rated voltage: 130V AC
rated current: 13,5A
pitch: 3,5mm

manufacturer PTR
AK550/4DS-3.5-V-GRAU
number of poles 4
depth [mm] 6,5
height [mm] 6,5
length [mm] 14
