(10 PCS) 932X-100/152JR1206 (PEN) POLY FILM CAP .0015uF 100V 5% 105°C 1206 CASE
Tax included.

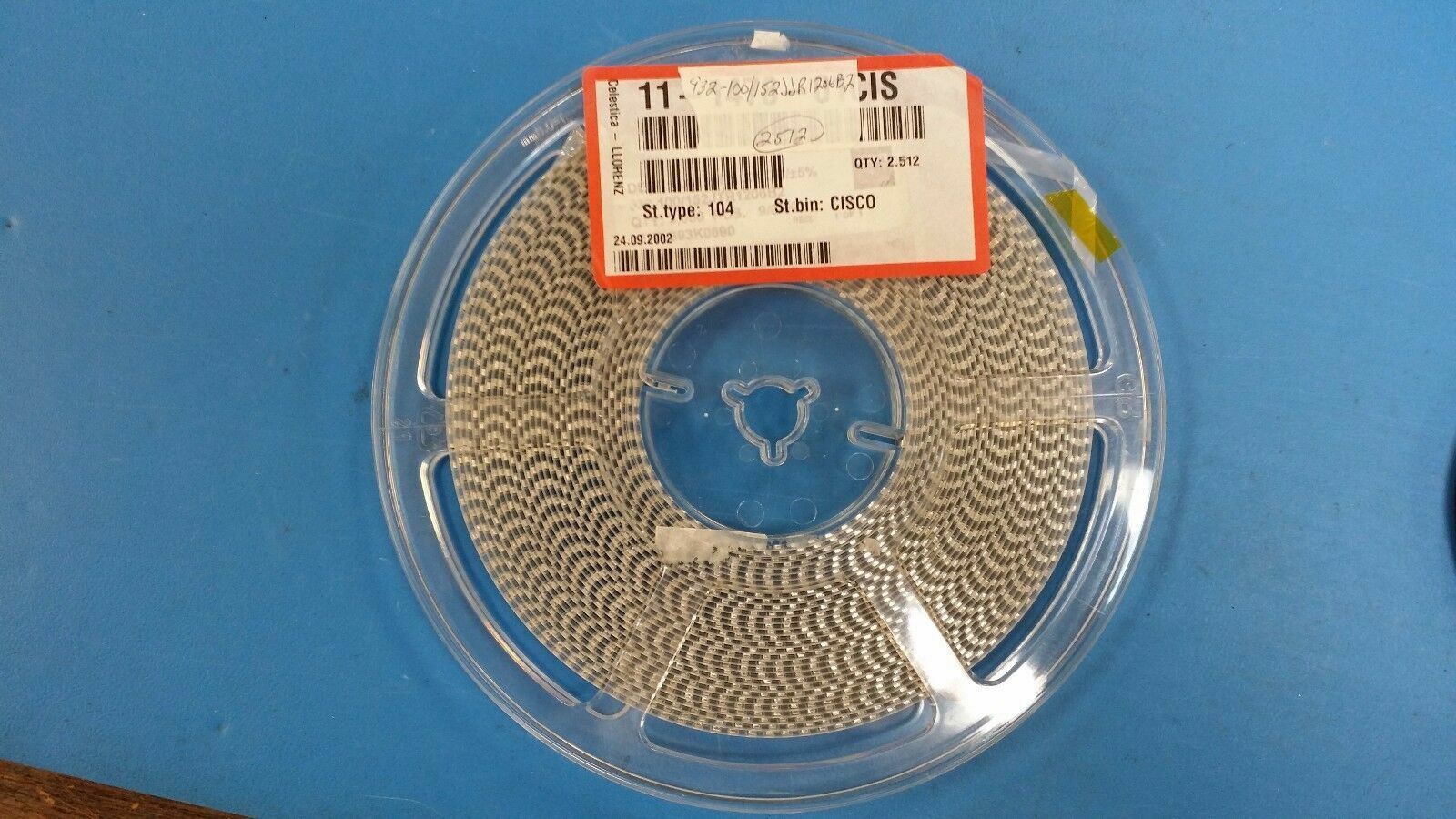

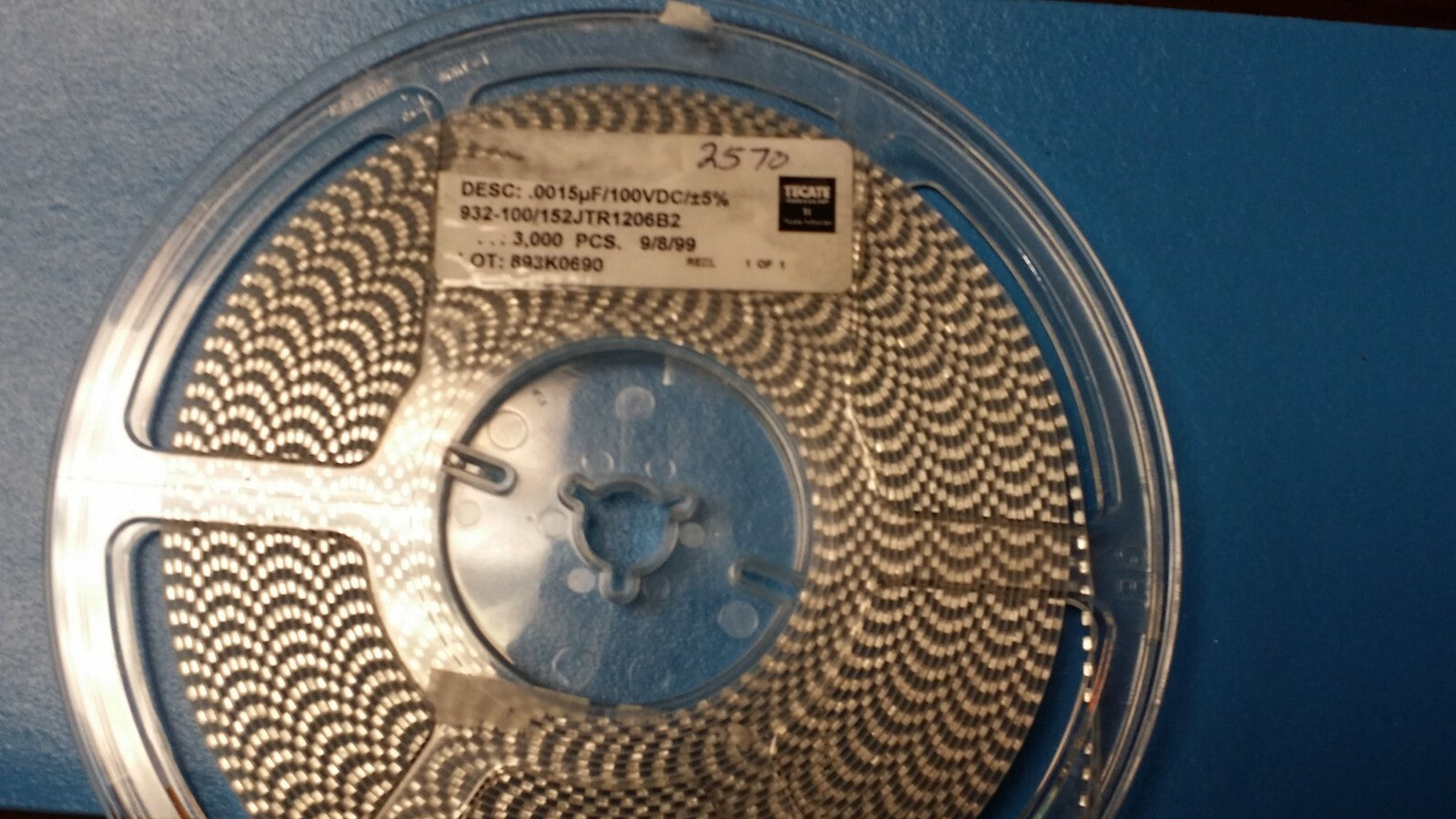

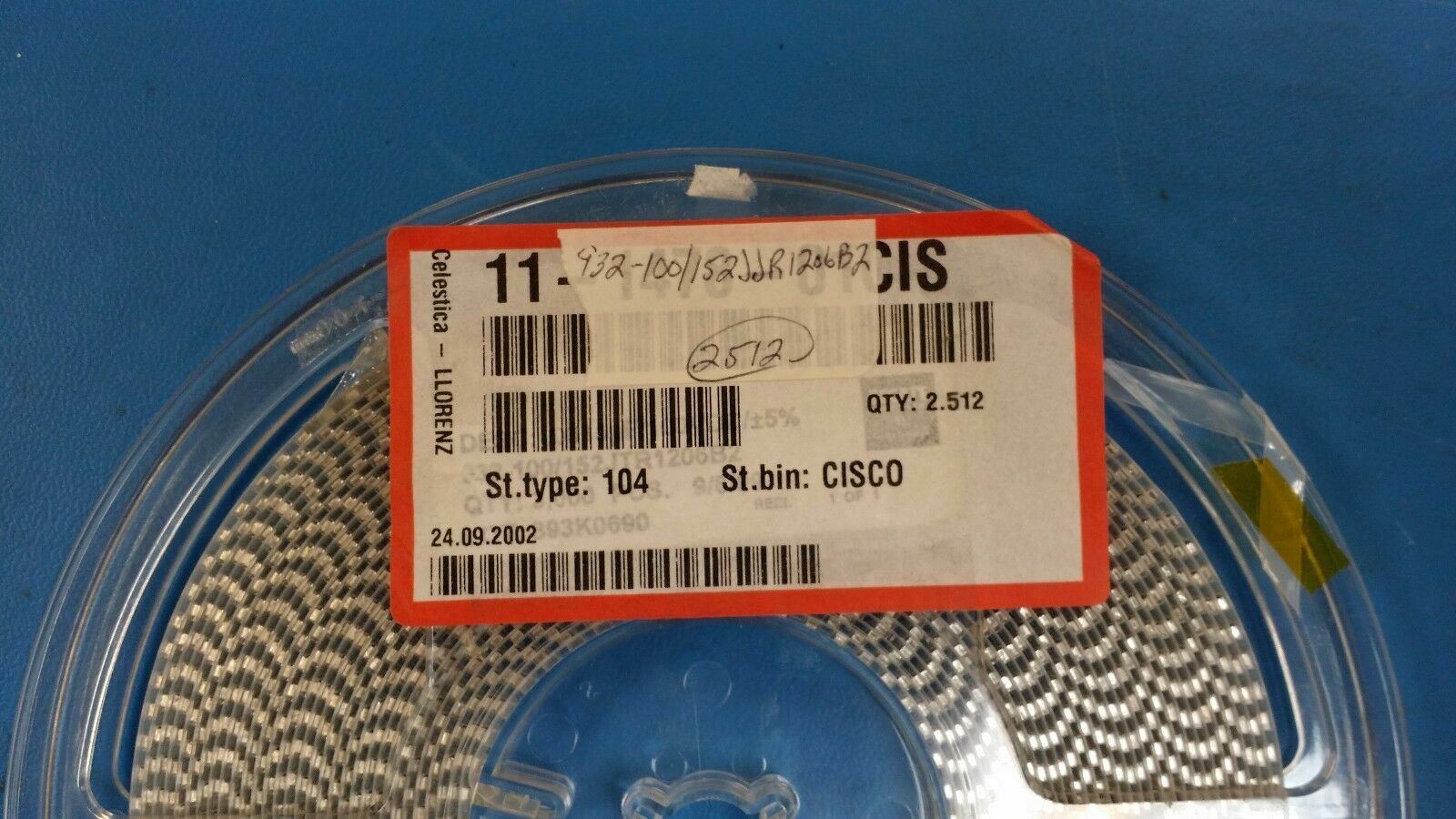

THIS LISTING IS FOR (10 PCS) OF 932X-100/152JR1206 BY TECATE
(PEN) POLY FILM CAP .0015uF 100V 5% 105°C 1206 CASE
FEATURES
• Unencapsulated, stacked, metallized polyester, polyethylene.
napthalate (PEN) film construction, non-inductive.
• Very small sizes in EIA 1206 & 1210.
• Excellent moisture resistance.
• Reflow soldering only.

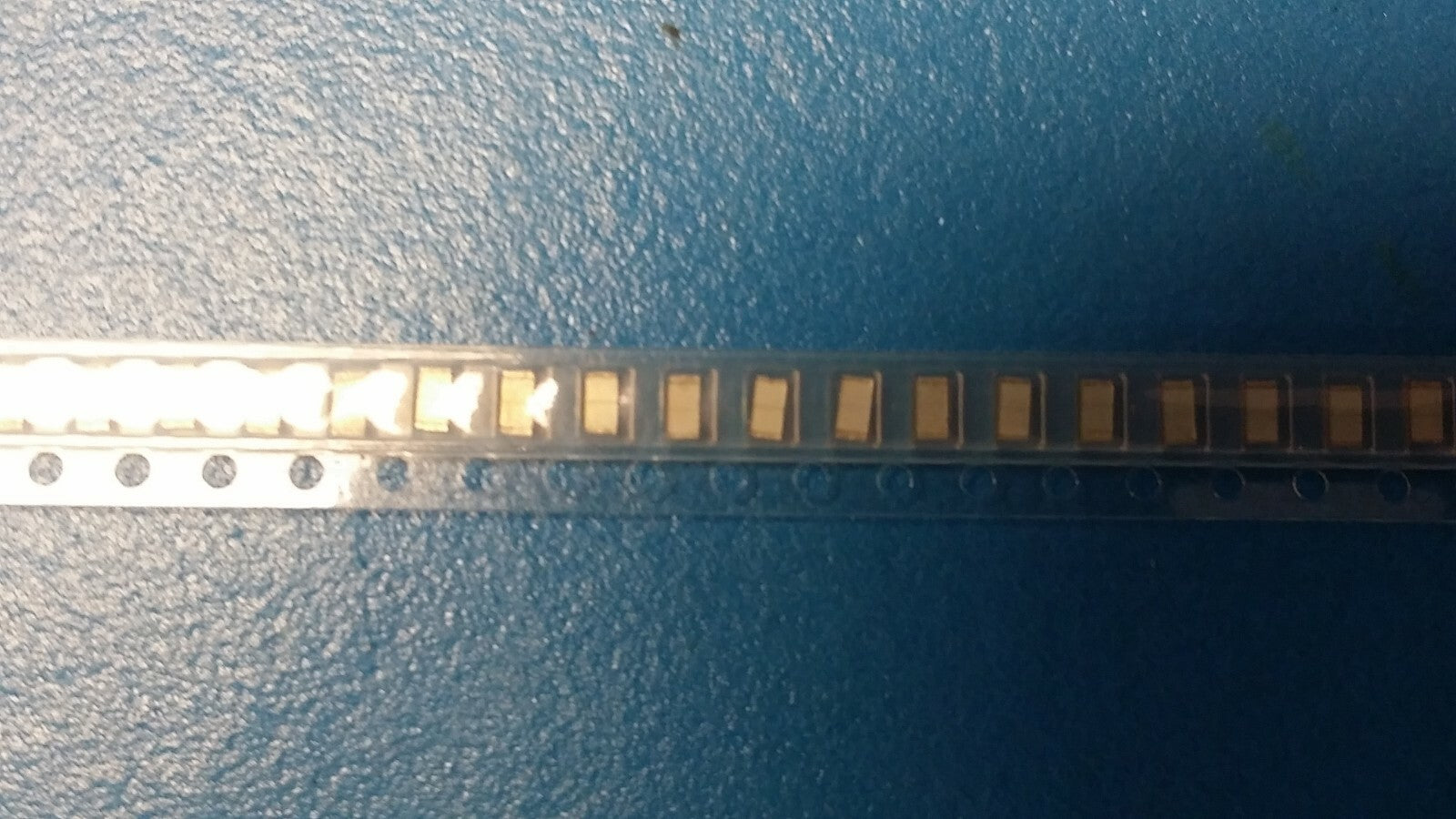

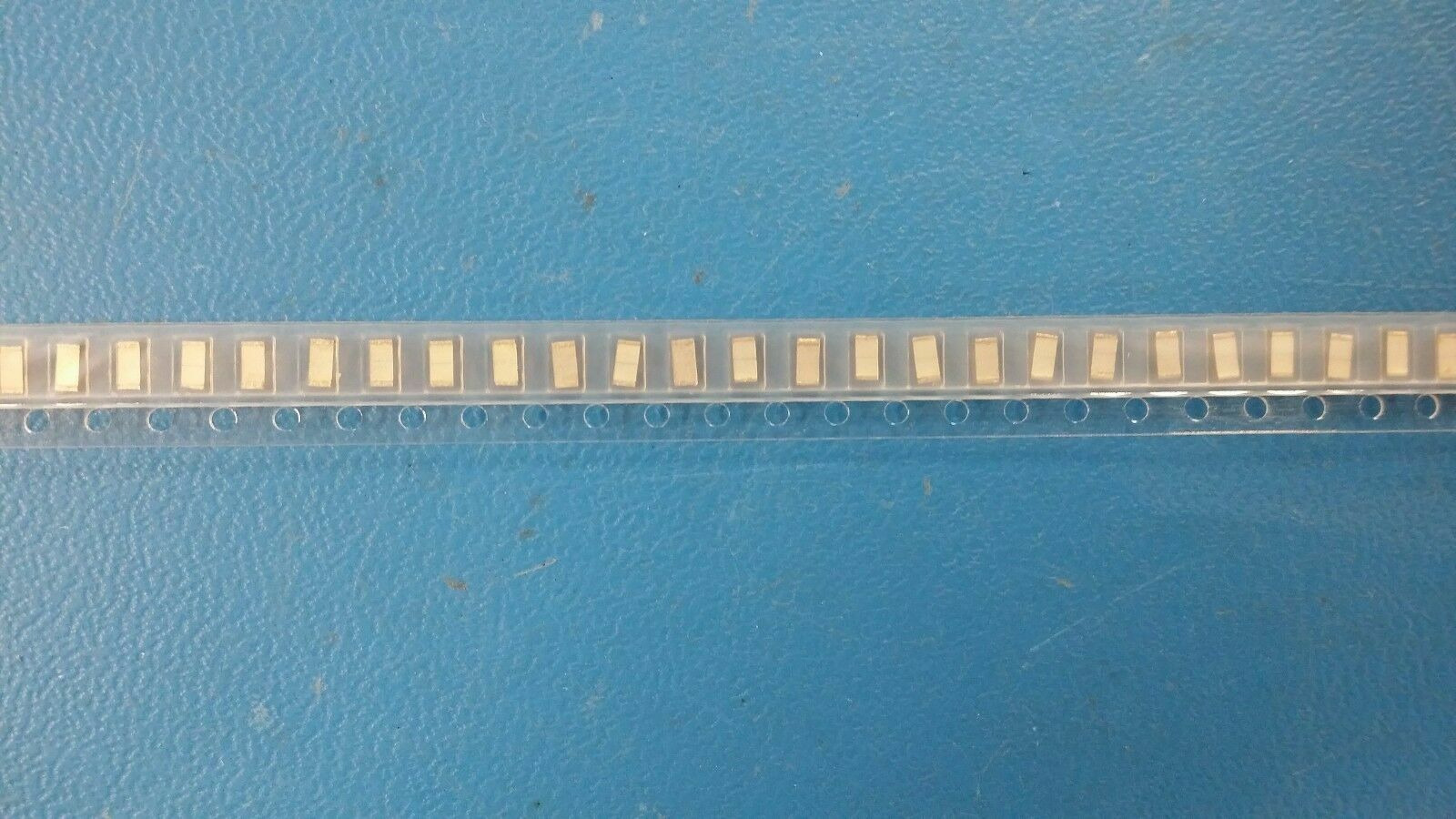

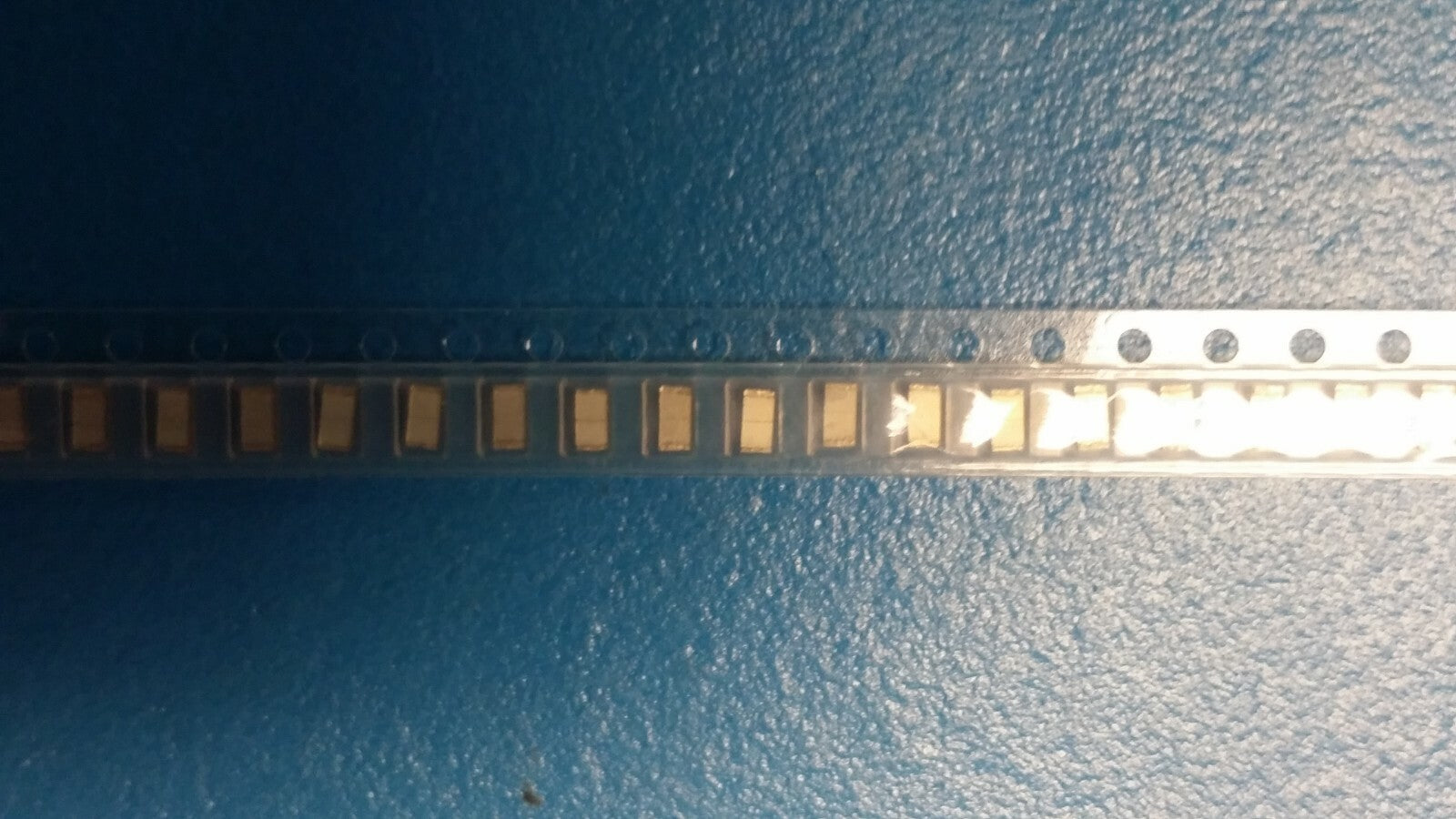

• Tape & reel package.
• Electrodes help prevent tombstoning.
• See type 932 for soldering conditions and electrical
characteristics.
• See type 933X for Taping Specifications.
Operating Temperature Range -55°C ~ +105°C.
Voltage Range 100VDC.
Capacitance Range (20°C, 1KHz) 0.001µF ~ 0.01µF.
Capacitance Tolerance ±5%.
Maximum Dissipation Factor % (20°C, 1KHz) 1.
Minimum Insulation Resistance (20°C) (after 1 minute
minimum)
3000MΩ @ 100VDC.
