(10 PCS) 78L05A NEC Standard Regulator Pos 5V 0.1A 3-Pin TO-92
Tax included.

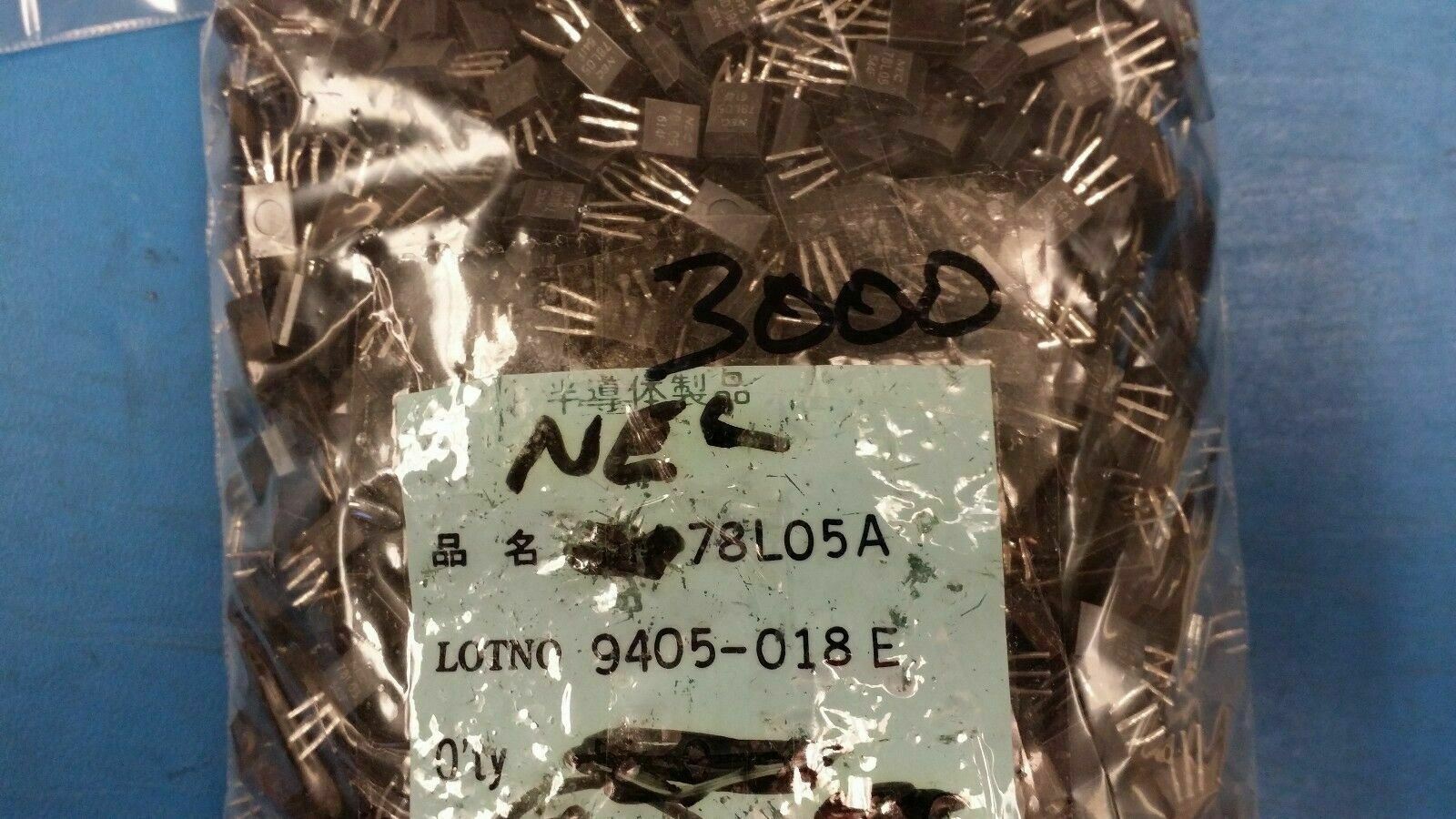

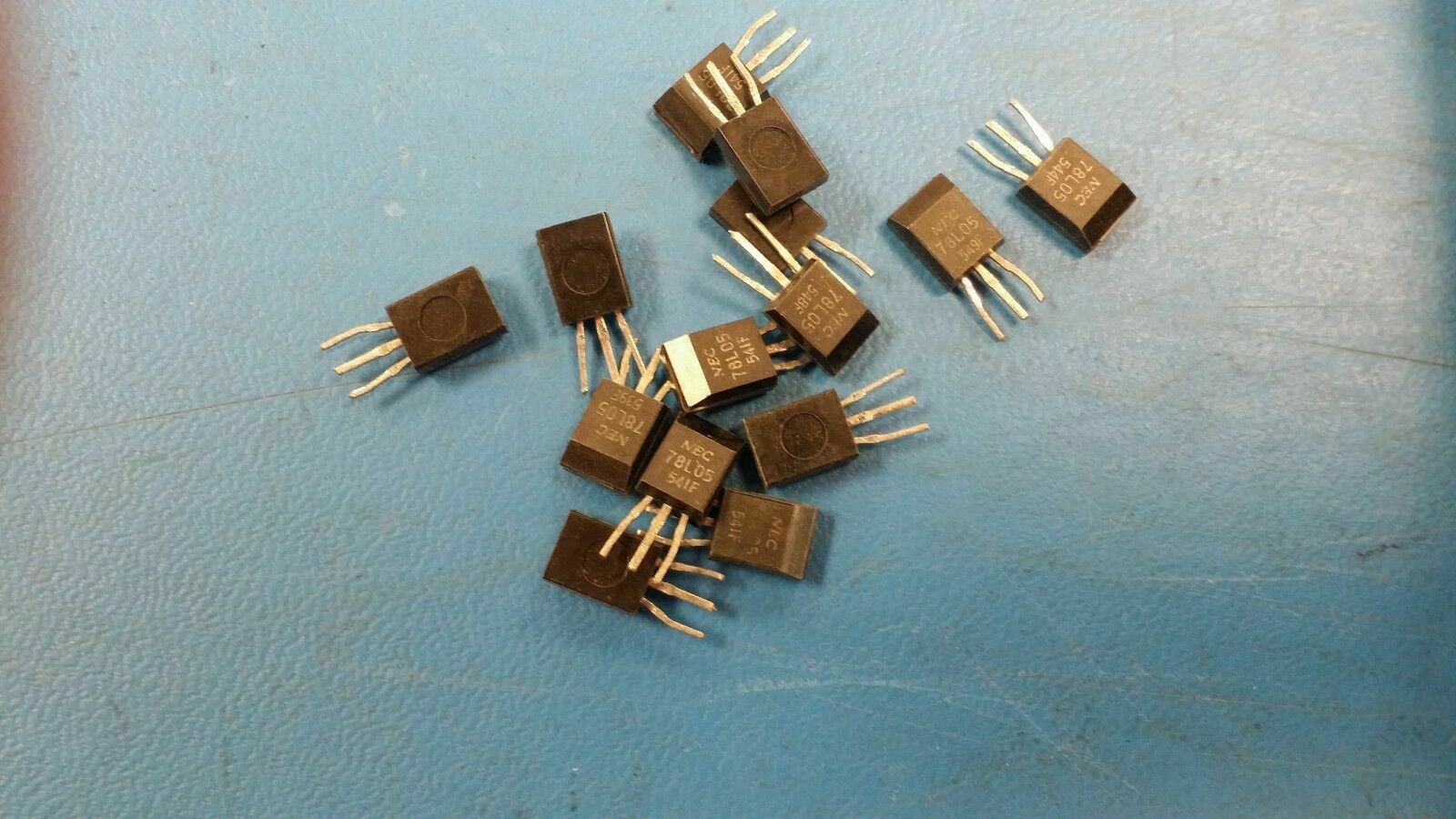

THIS LISTING IS FOR (10 PCS) OF 78L05A BY NEC
Standard Regulator Pos 5V 0.1A 3-Pin TO-92
Standard Regulator Pos 5V 0.1A 3-Pin TO-92
| Description | Value | ||
| Package | TO-92 | ||
| Polarity | Positive | ||
| Type | Linear | ||
| Number of Outputs | 1 | ||
| Maximum Input Voltage | 30 V | ||
| Maximum Output Current | 0.1 A | ||
| Output Voltage | 5 V | ||
| Maximum Power Dissipation | 750 mW | ||
| Typical Dropout Voltage @ Current | 1.7@40mA V | ||
| Accuracy | ±5 % | ||
| Line Regulation | 150 mV | ||
| Load Regulation | 60 mV | ||
| Maximum Quiescent Current | 5.5 mA | ||
| Operating Temperature | 0 to 125 °C | ||
| Mounting | Through Hole | ||
| Output Type | Fixed | ||
| Category | Linear Regulator | ||
