(10 PCS) 74S133N SIG NAND Gate IC 1 Channel 16-PDIP
Tax included.

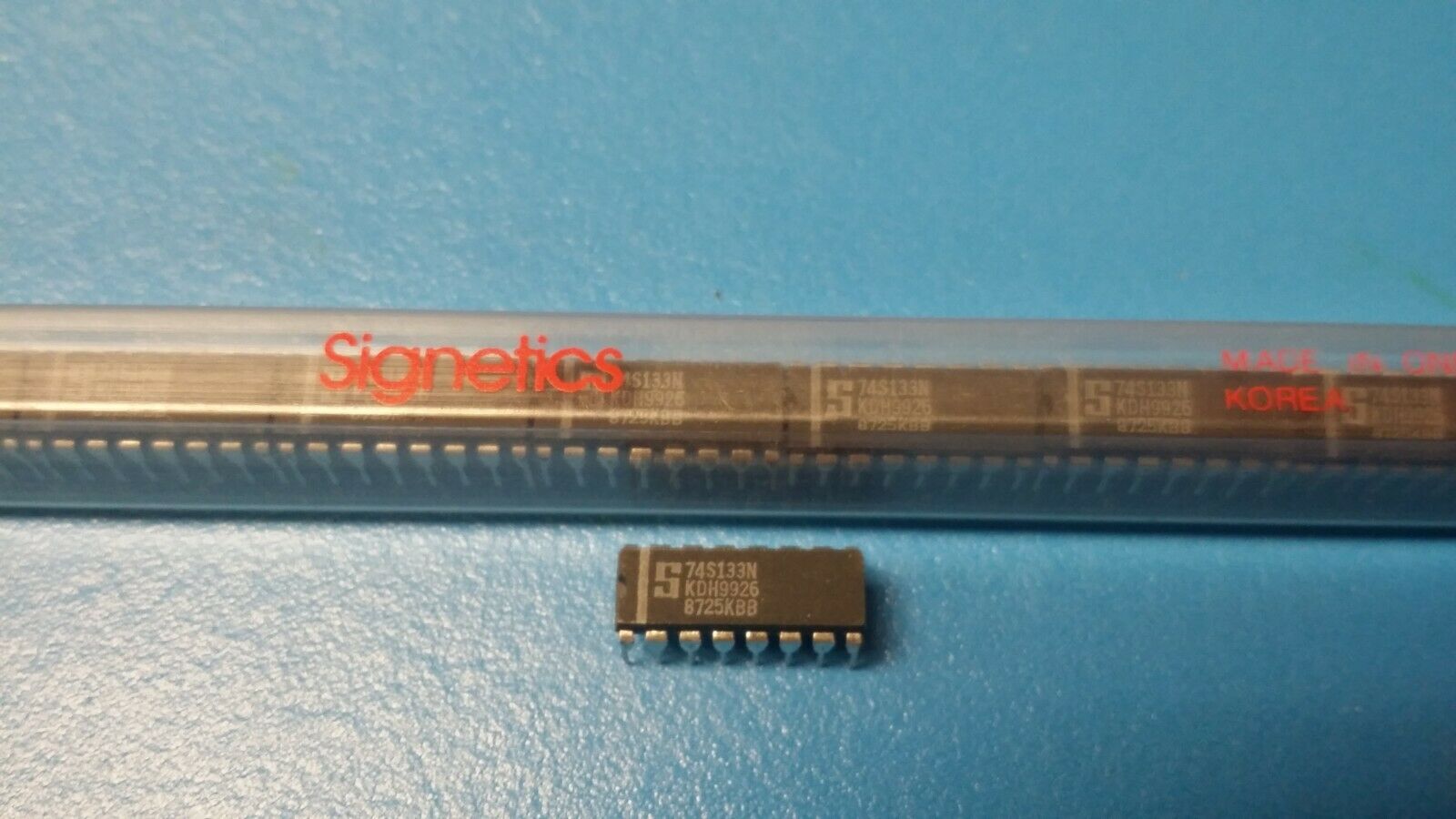

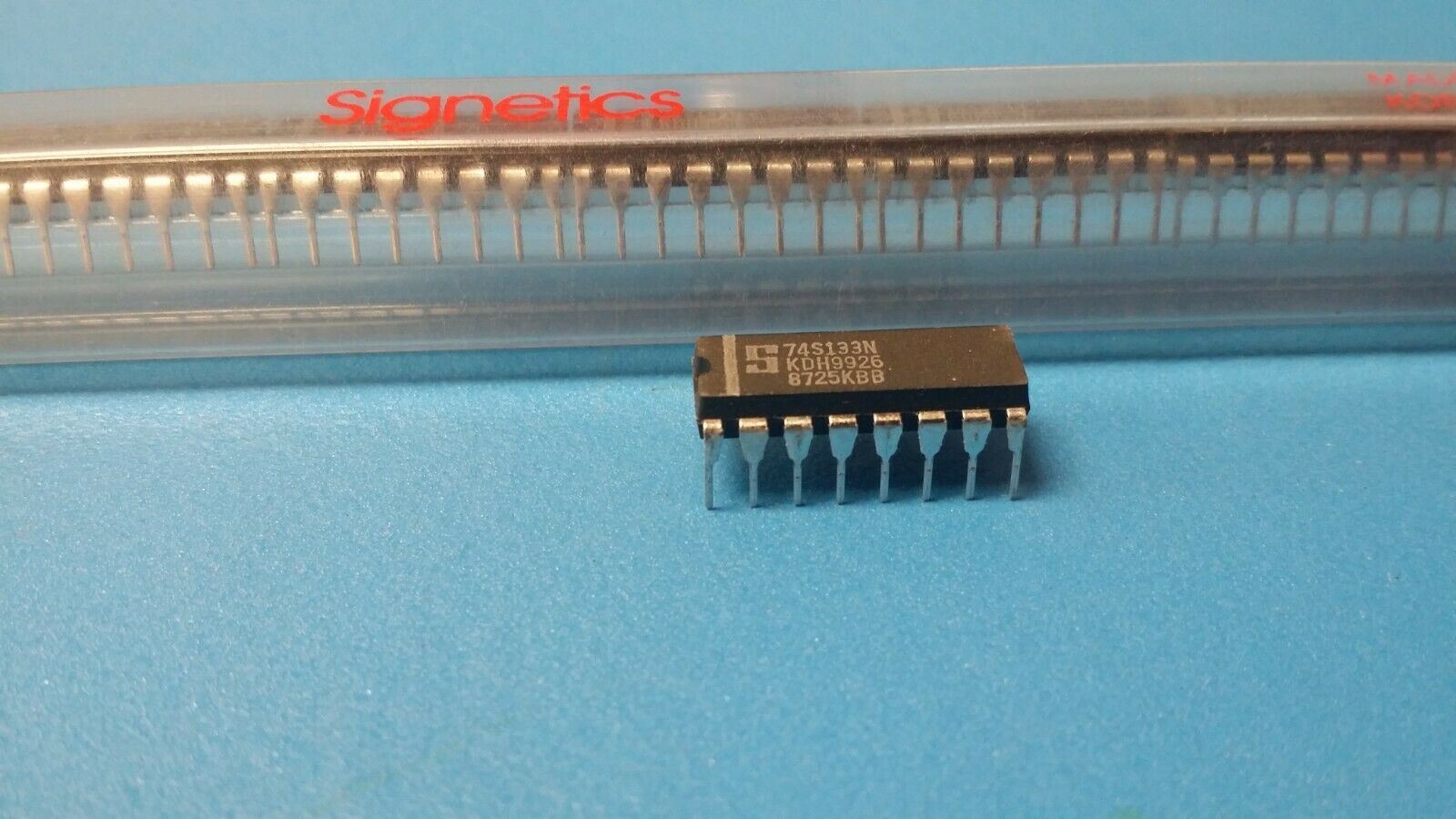

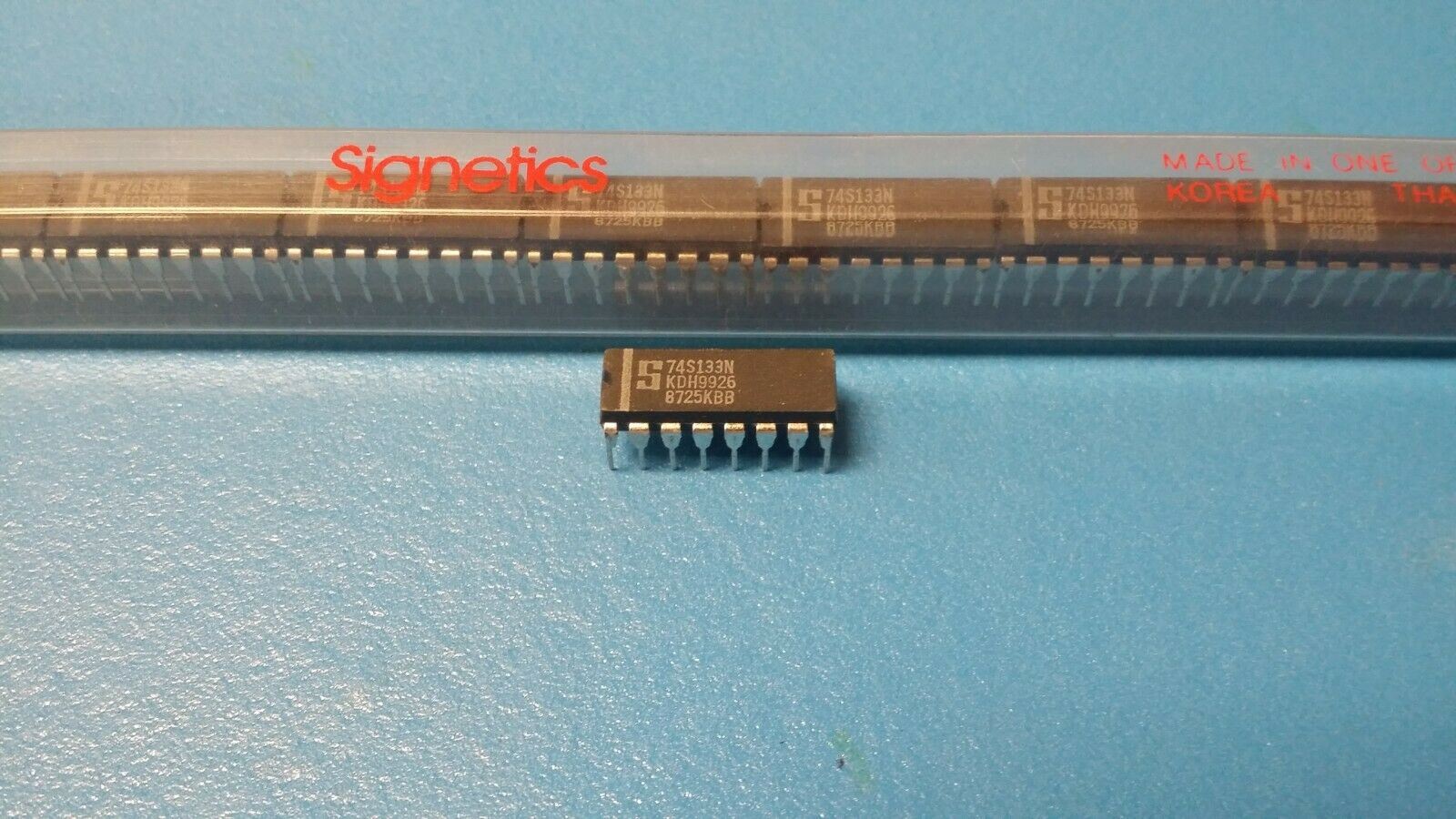

THIS LISTING IS FOR (10 PCS) OF 74S133N BY SIG
NAND Gate IC 1 Channel 16-PDIP
Manufacturer Signetics Semiconductor
Series 74S
Packaging Tube
Part Status Obsolete
Logic Type NAND Gate
Number of Circuits 1
Number of Inputs 13
Features -
Voltage - Supply 4.75V ~ 5.25V
Current - Output High, Low 1mA, 20mA
Logic Level - Low 0.8V
Logic Level - High 2V
Max Propagation Delay @ V, Max CL 10ns @ 5V, 50pF
Operating Temperature 0°C ~ 70°C
Mounting Type Through Hole
Supplier Device Package 16-PDIP
Package / Case 16-DIP (0.300", 7.62mm)
Base Part Number 74S133
