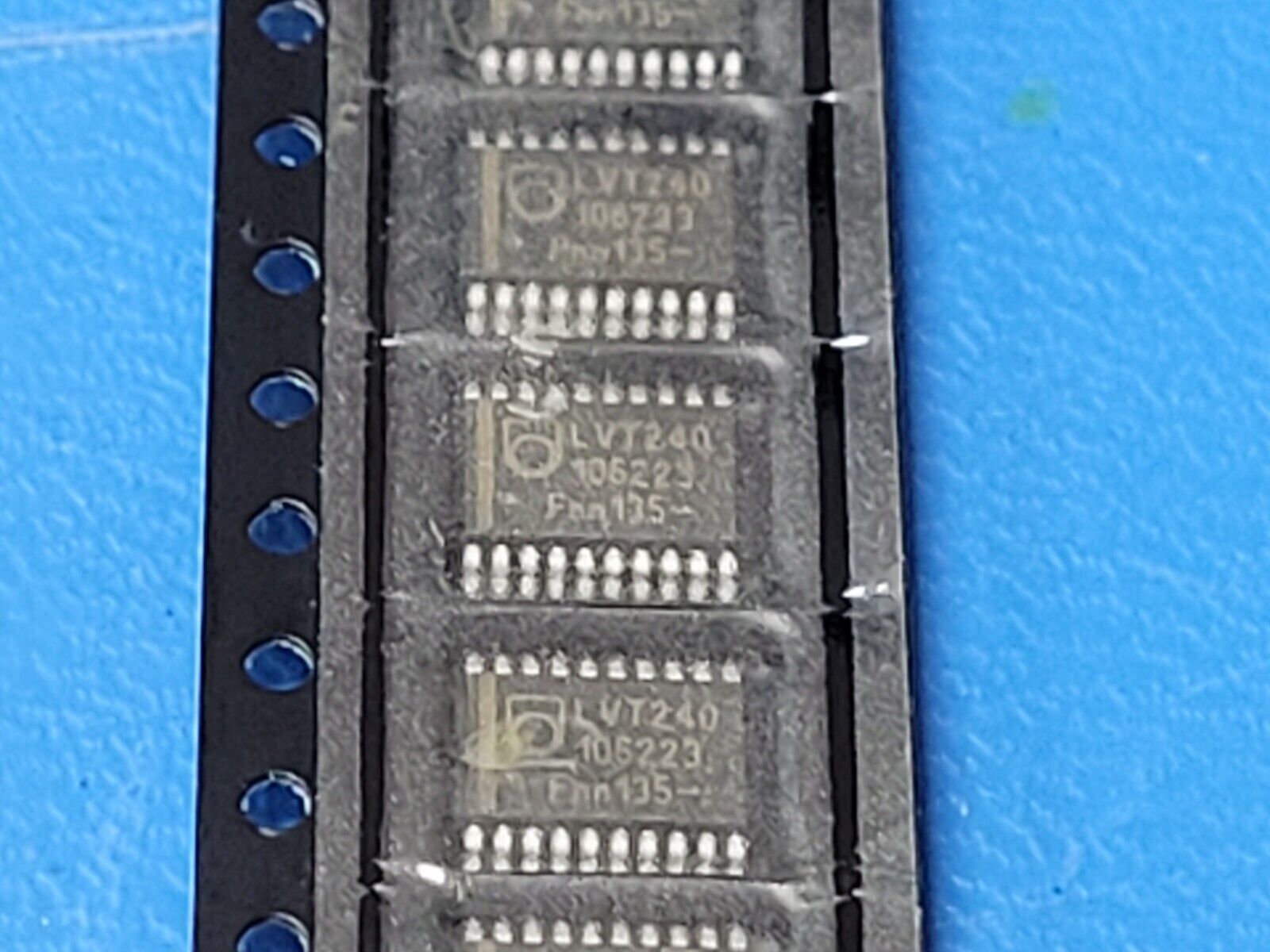

(10 PCS) 74LVT240PW-DH IC BUFFER INVERT 3.6V 20TSSOP BW 4.4mm
Tax included.

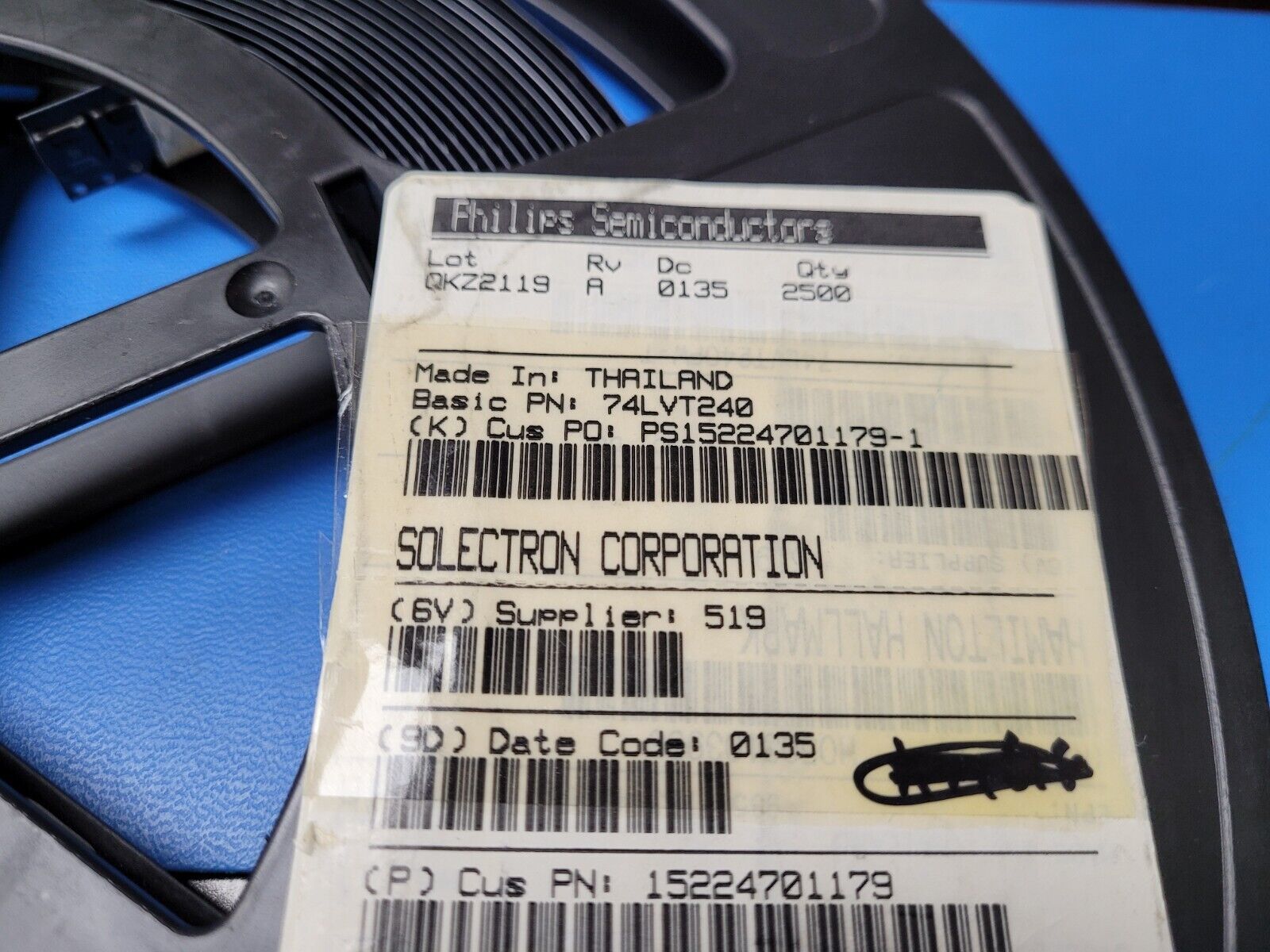

THIS IS FOR (10 PCS) OF 74LVT240PW-DH BY PHILIPS
IC BUFFER INVERT 3.6V 20TSSOP BW 4.4mm

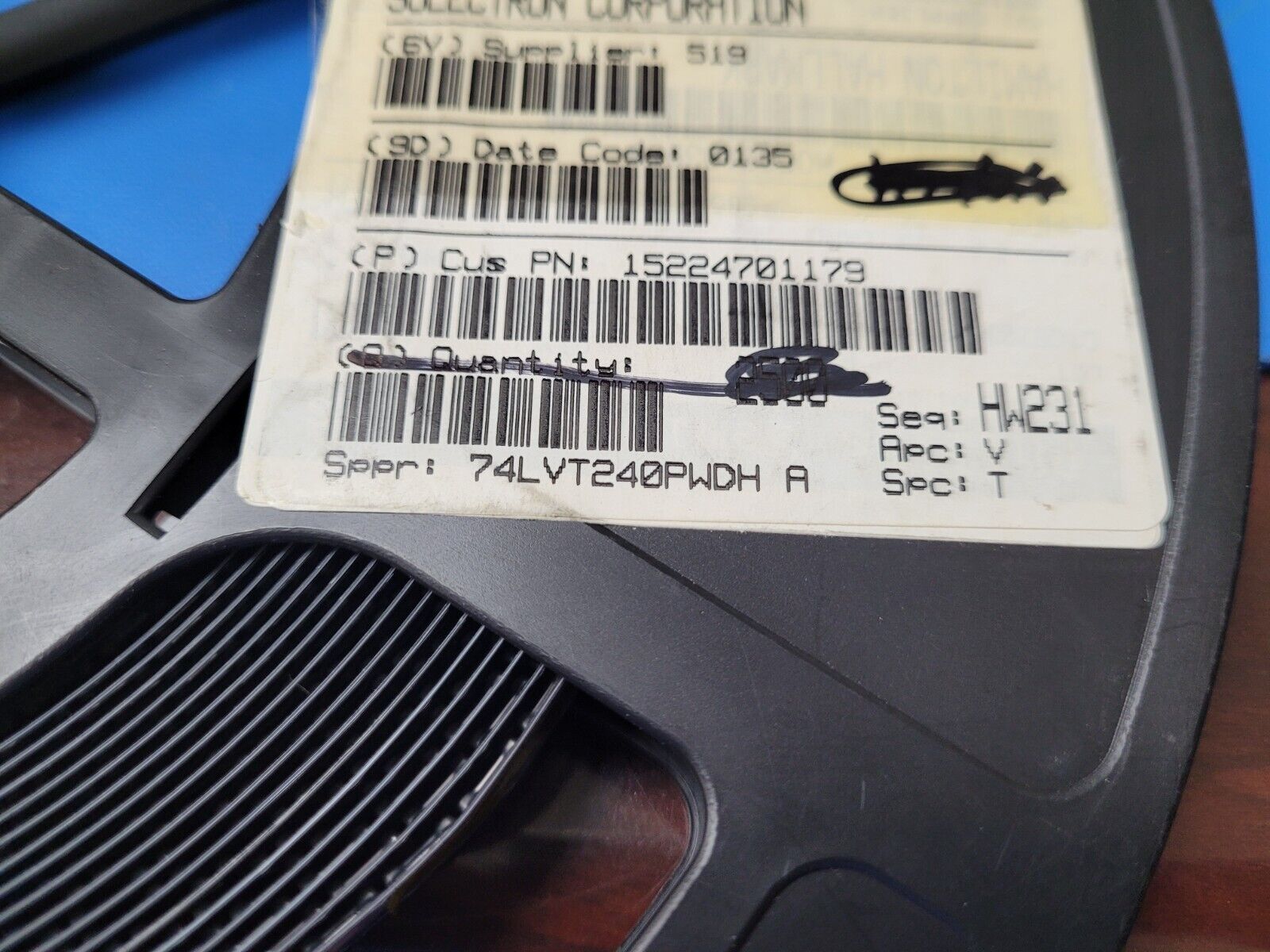

Part #: 74LVT240PWDH-T
Part Category: Logic ICs
Manufacturer: NXP

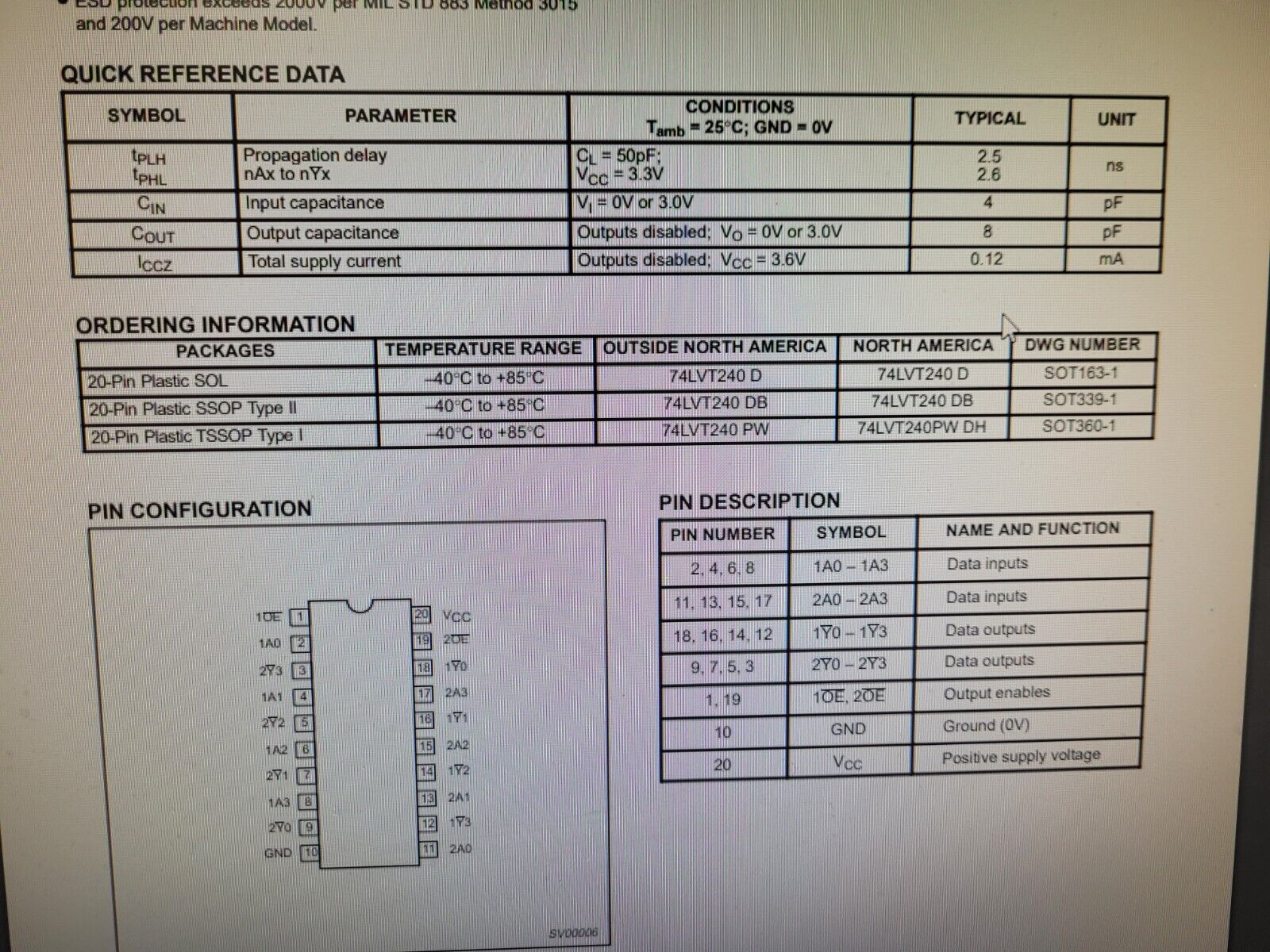

Description: Bus Driver, LVT Series, 2-Func, 4-Bit, Inverted Output, BICMOS, PDSO20
Status Active-Unconfirmed
Logic IC Type BUS DRIVER
Family LVT
JESD-30 Code R-PDSO-G20
Load Capacitance (CL) 50.0 pF
Number of Bits 4
Number of Functions 2
Number of Ports 2
Number of Terminals 20
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Output Characteristics 3-STATE
Output Polarity INVERTED
Package Body Material PLASTIC/EPOXY

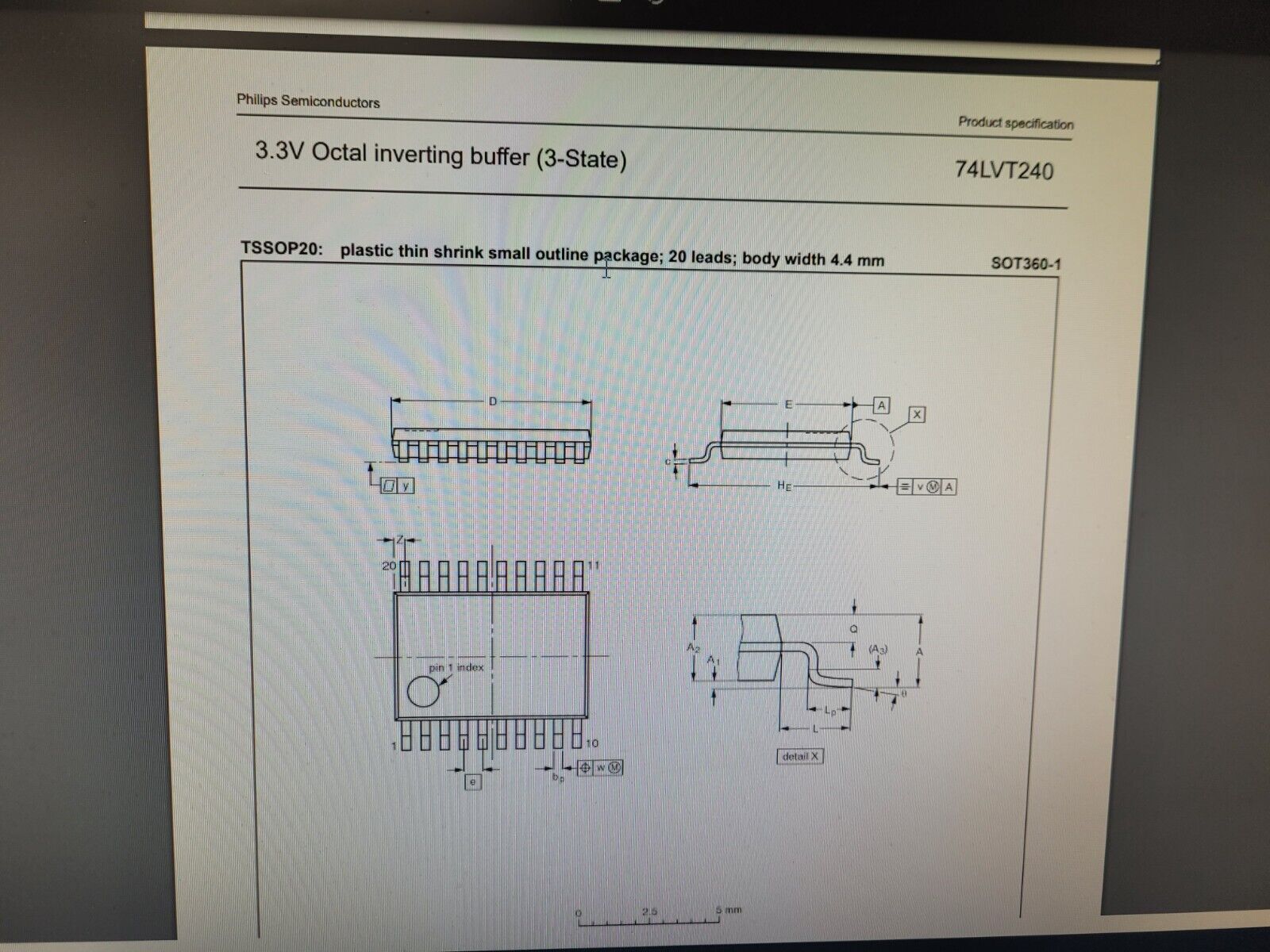

Package Code TSSOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Power Supply Current-Max (ICC) 12.0 mA
Propagation Delay (tpd) 5.0 ns
Qualification Status Not Qualified
Seated Height-Max 1.1 mm
Supply Voltage-Nom (Vsup) 3.3
Supply Voltage-Min (Vsup) 2.7 V
Supply Voltage-Max (Vsup) 3.6 V
Surface Mount YES
Technology BICMOS
Temperature Grade INDUSTRIAL
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Length 6.5 mm
Width 4.4 mm
