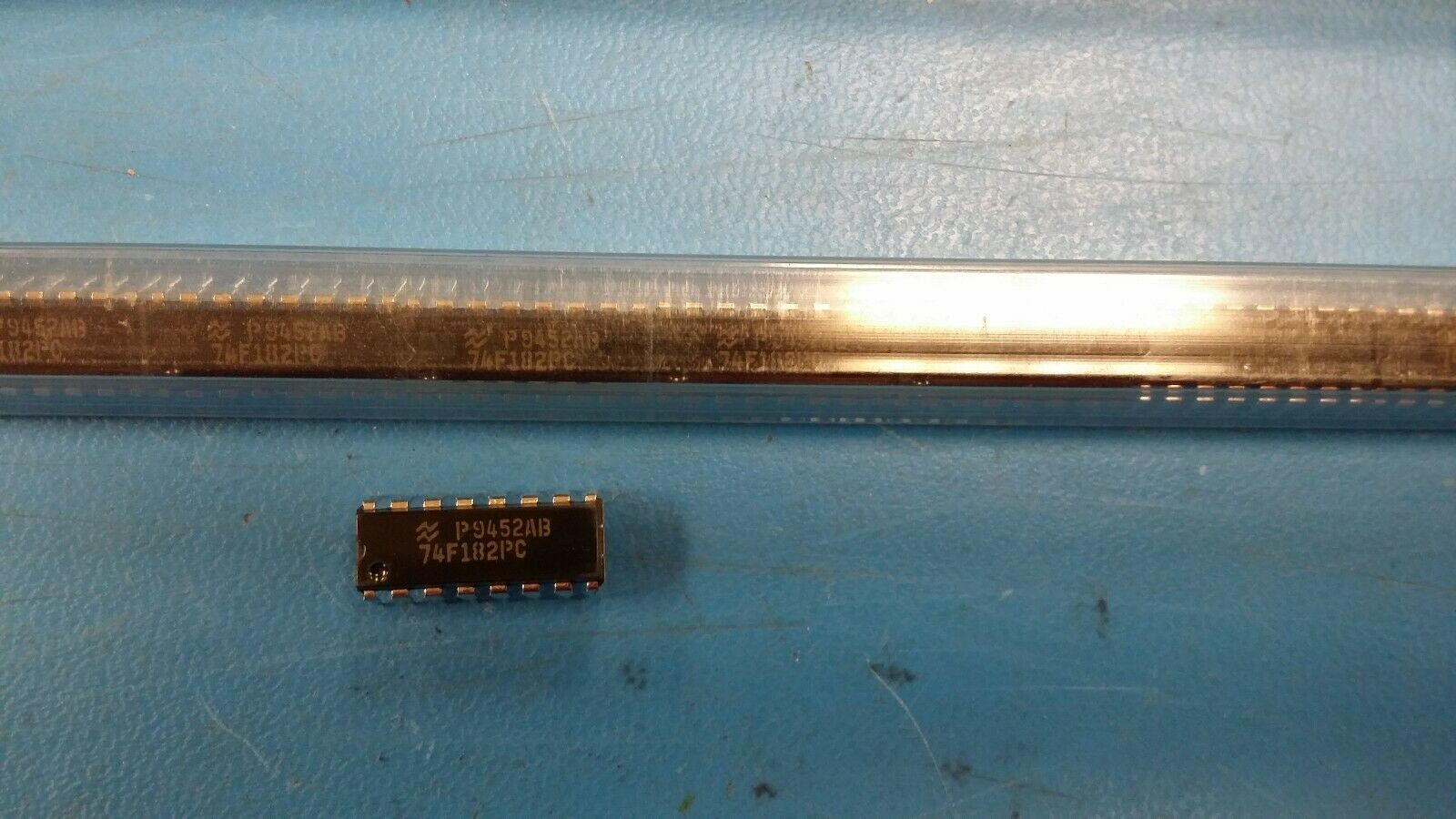

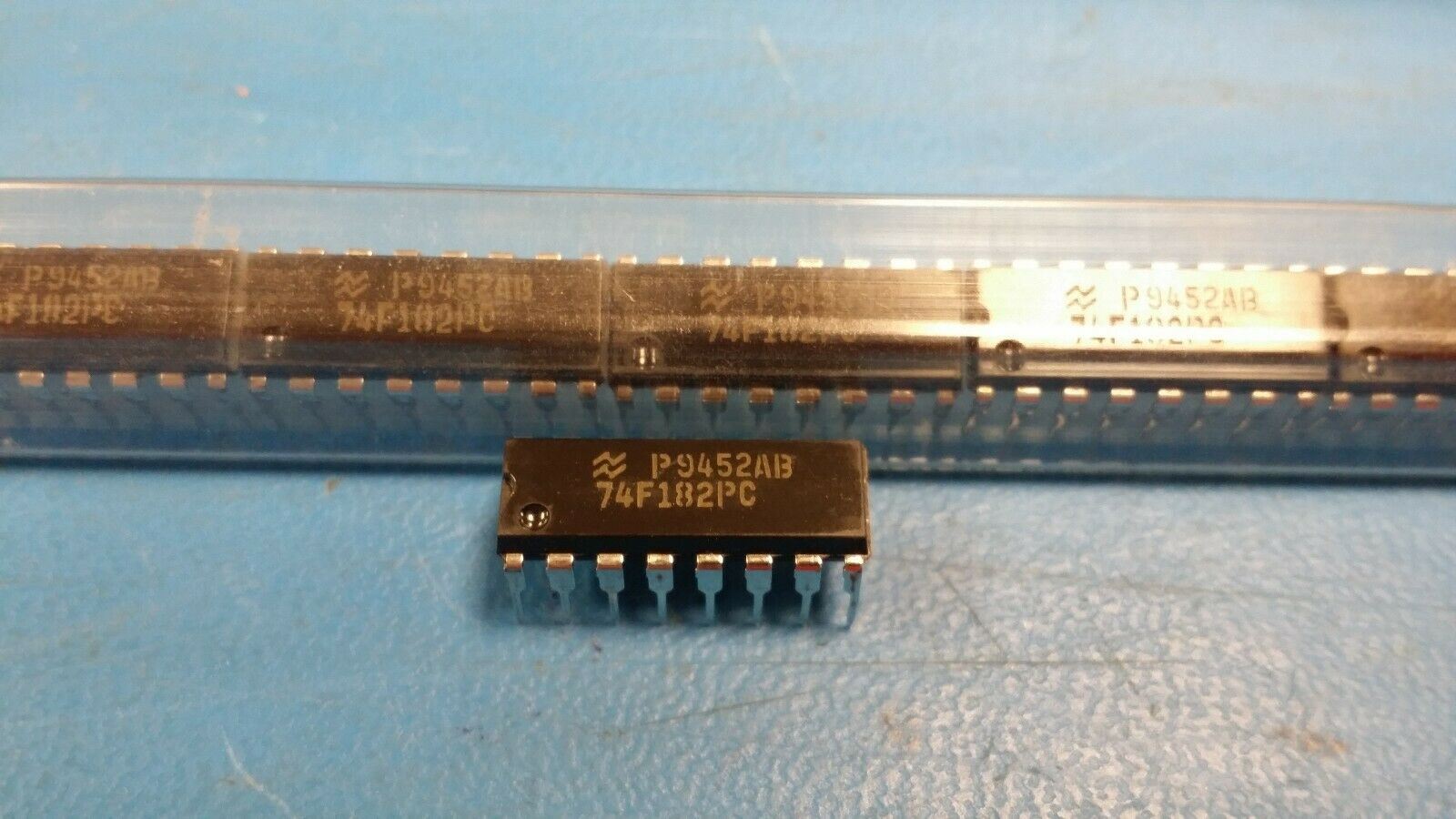

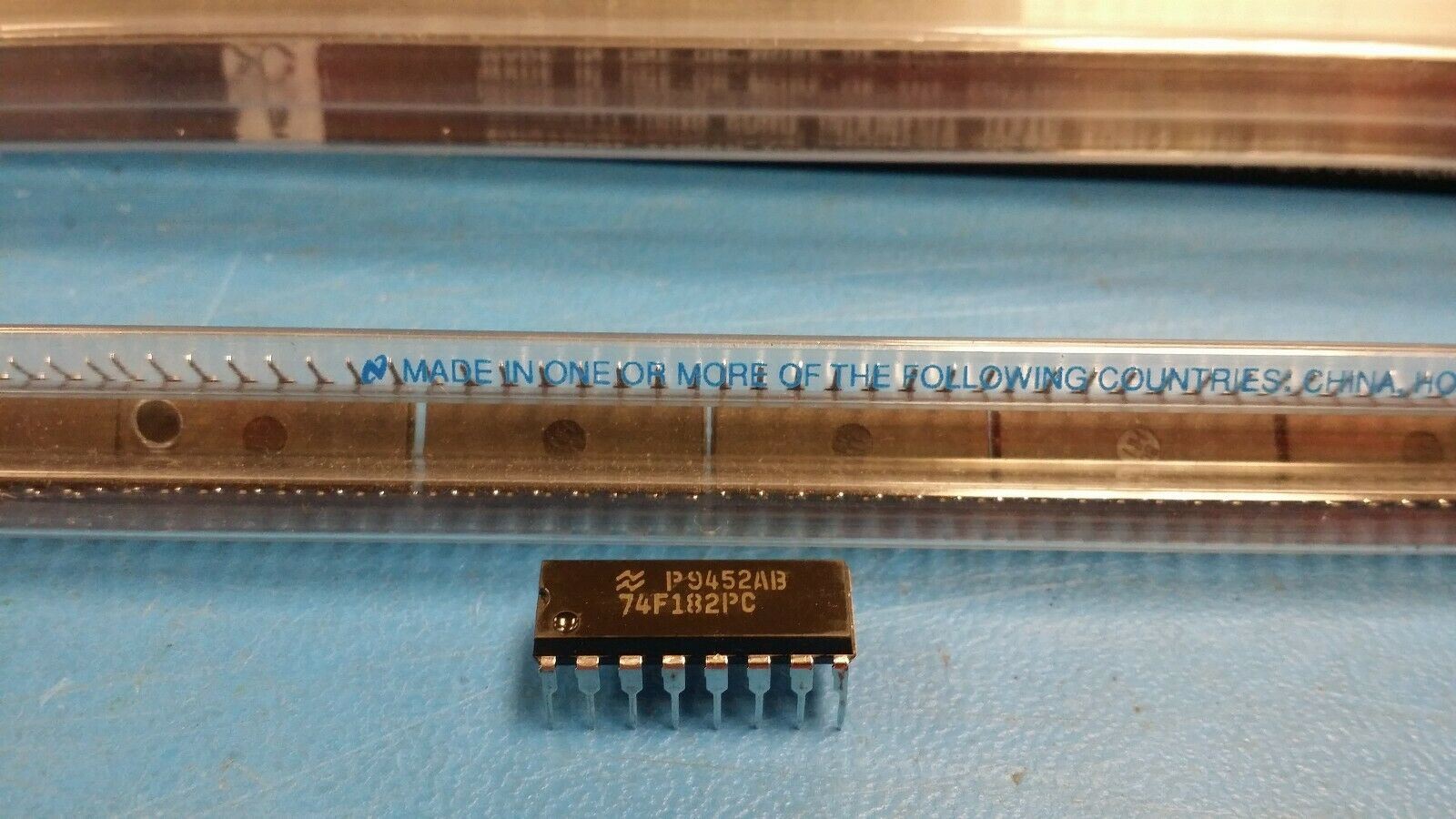

(10 PCS) 74F182PC NSC Look-ahead Carry Generator IC 16-PDIP
Tax included.
THIS LISTING IS FOR (10 PCS) OF 74F182PC BY NSC
Look-ahead Carry Generator IC 16-PDIP
Part #: 74F182PC
Part Category: Logic ICs
Manufacturer: Texas Instruments High-Performance Analog
Description: Look-Ahead Carry Generator, F/FAST Series, 4-Bit, TTL, PDIP16
Mfr Package Description 0.300 INCH, PLASTIC, DIP-16
Status Discontinued
Logic IC Type LOOK-AHEAD CARRY GENERATOR
Family F/FAST
JESD-30 Code R-PDIP-T16
Number of Bits 4
Number of Functions 1
Number of Terminals 16
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Shape RECTANGULAR
Package Style IN-LINE
Propagation Delay (tpd) 10.0 ns
Seated Height-Max 5.08 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 19.305 mm
Width 7.62 mm
