(10 PCS) 54LS174DMQB, SNJ54LS174J TI, FSC IC FF D-TYPE SNGL 6BIT 16CDIP
Tax included.

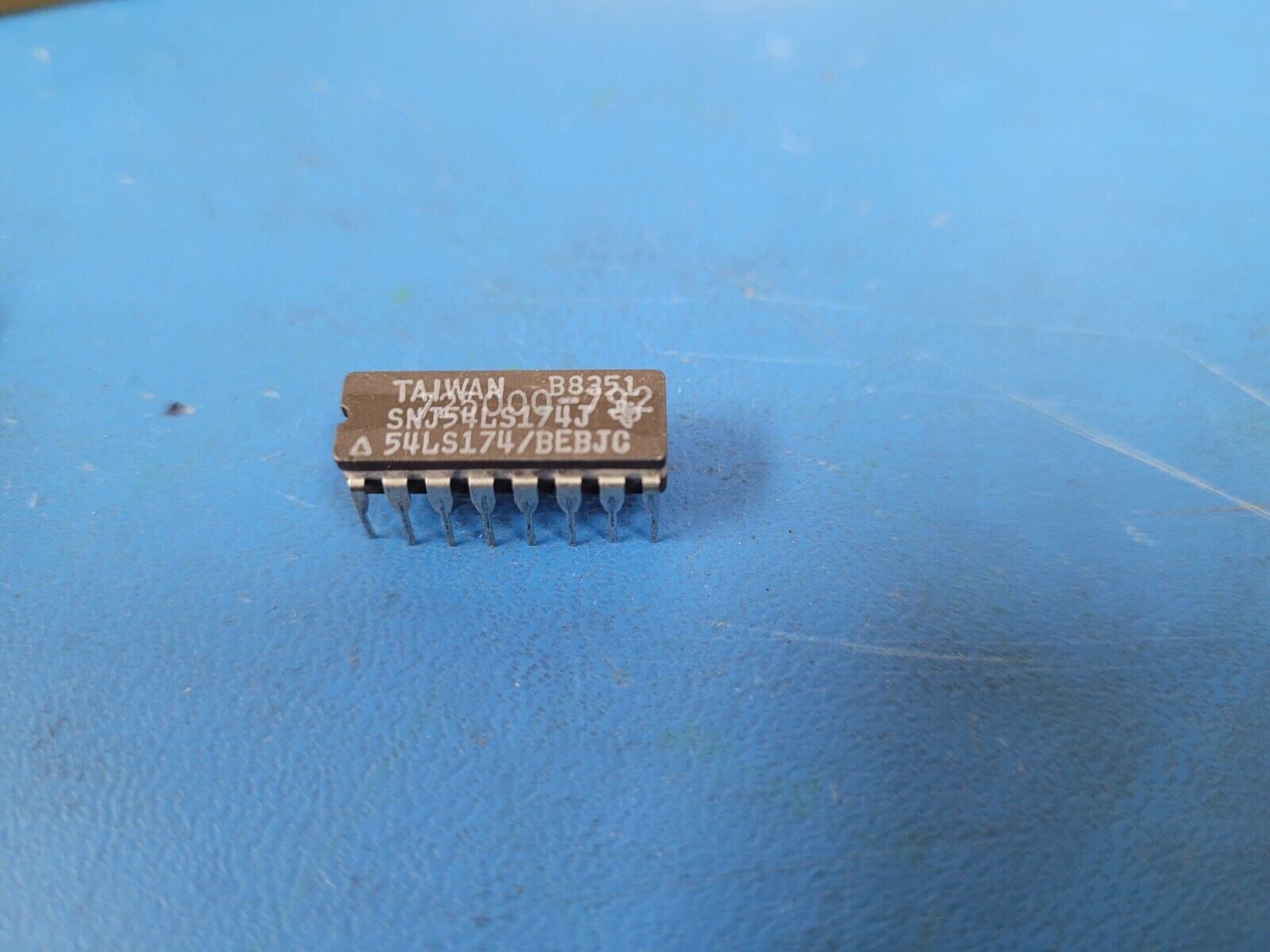

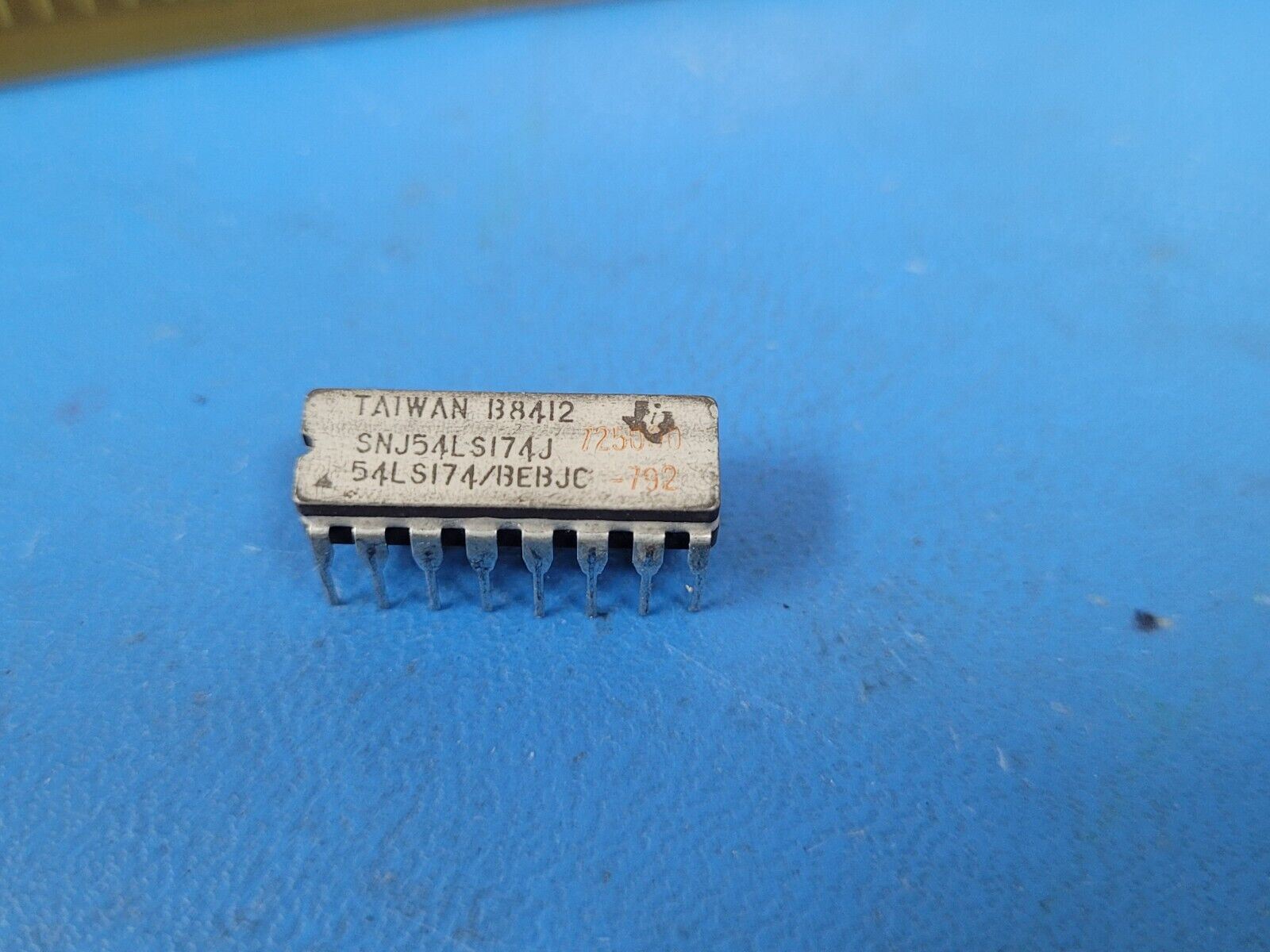

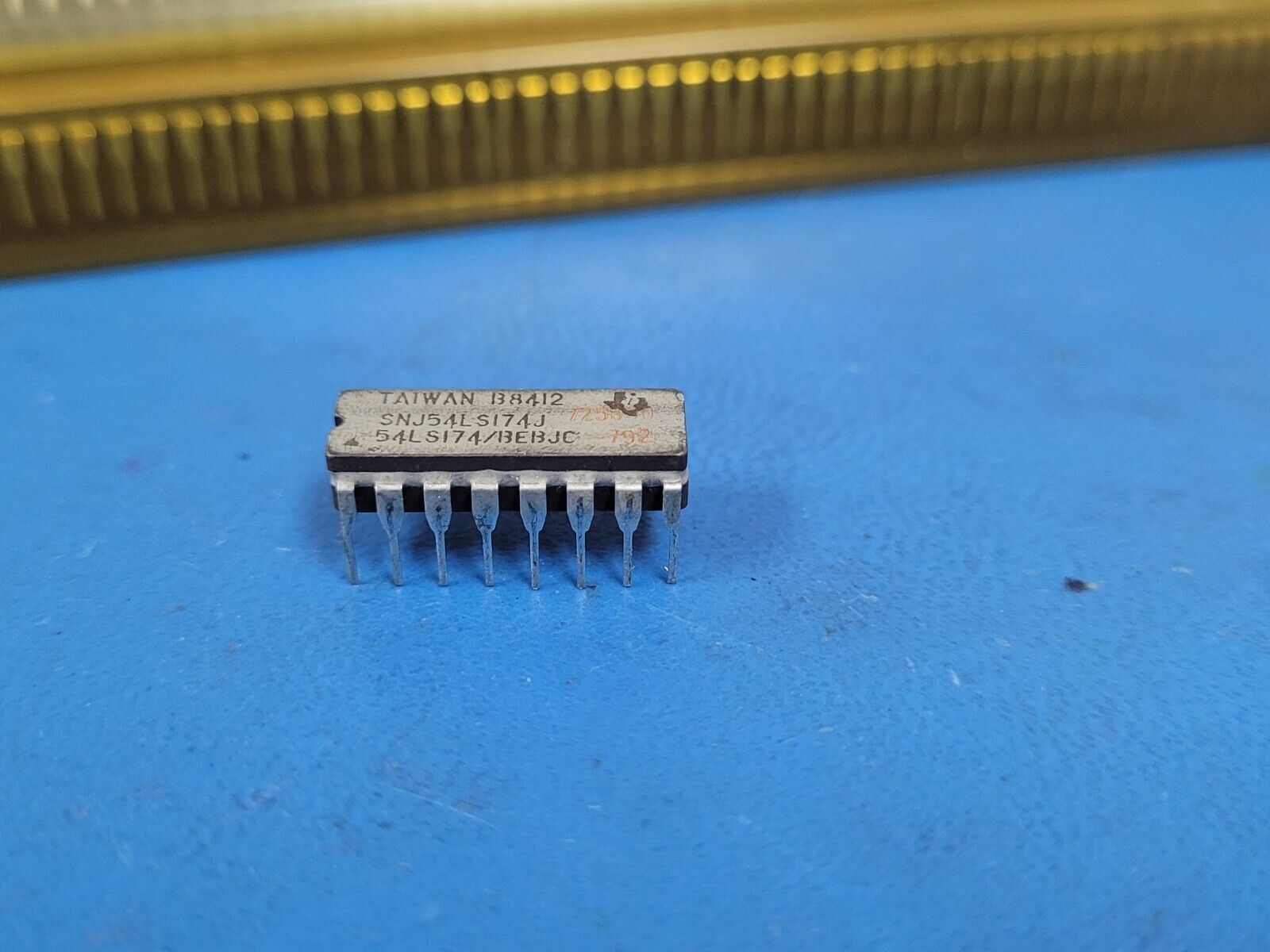

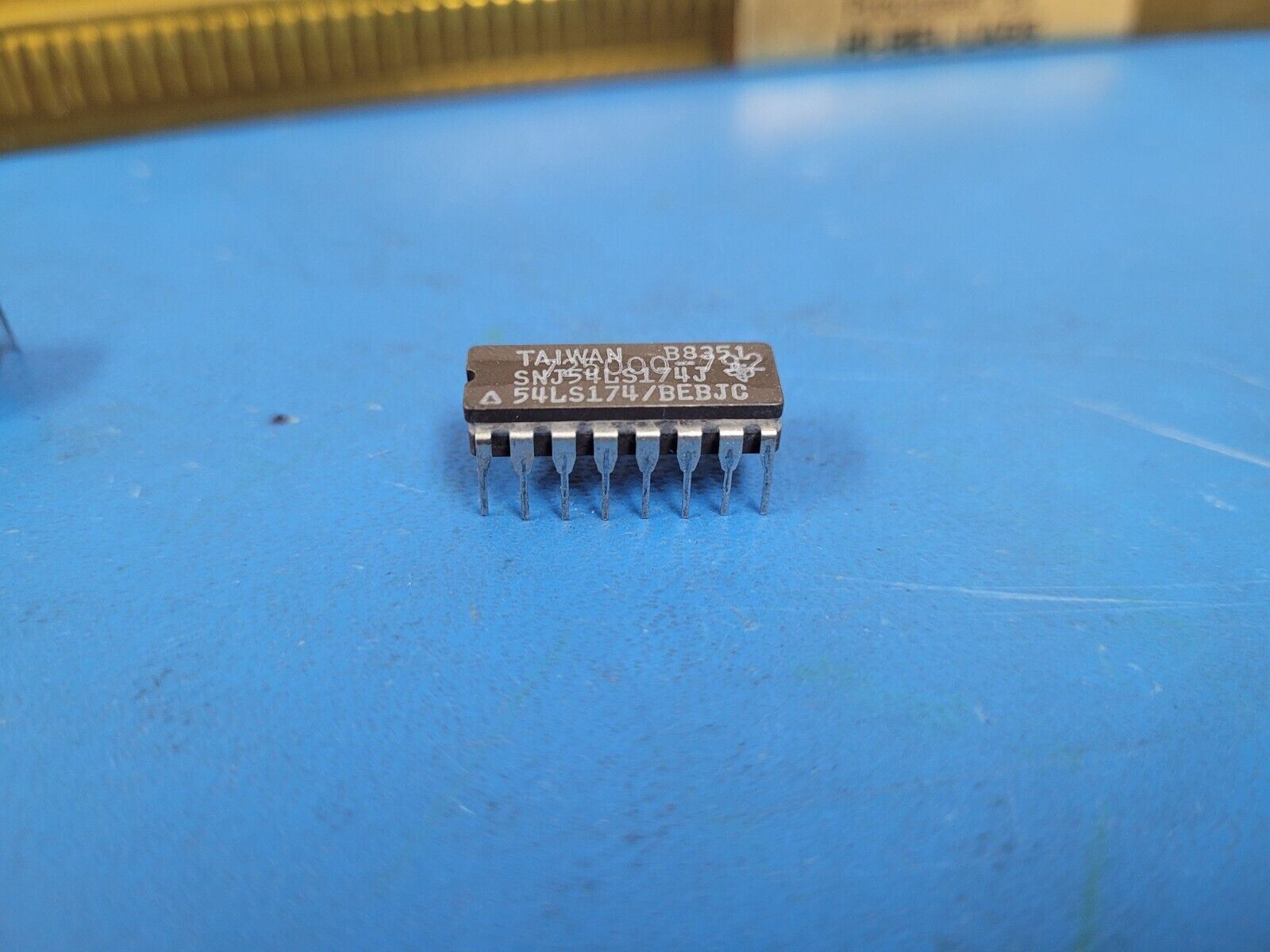

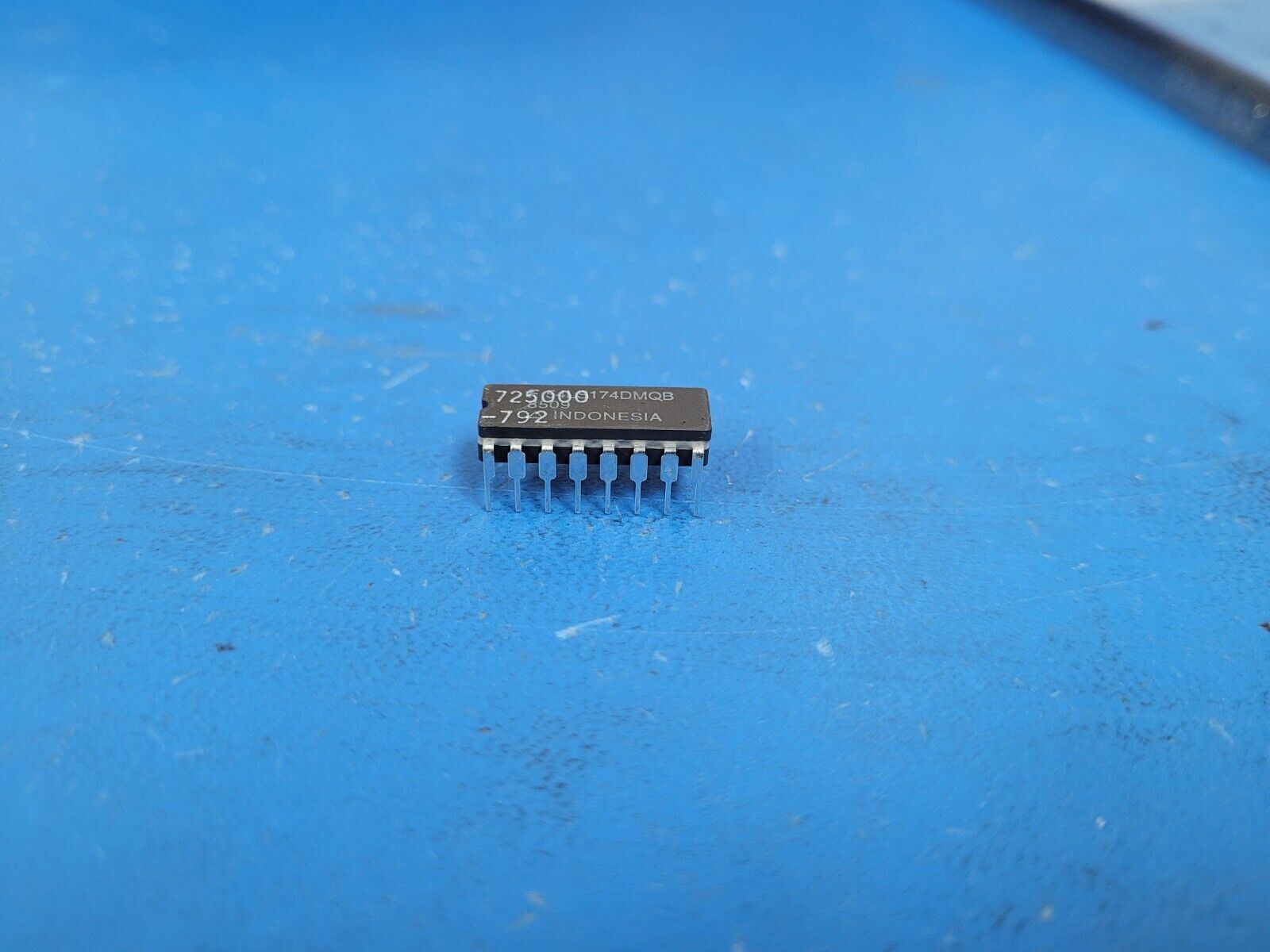

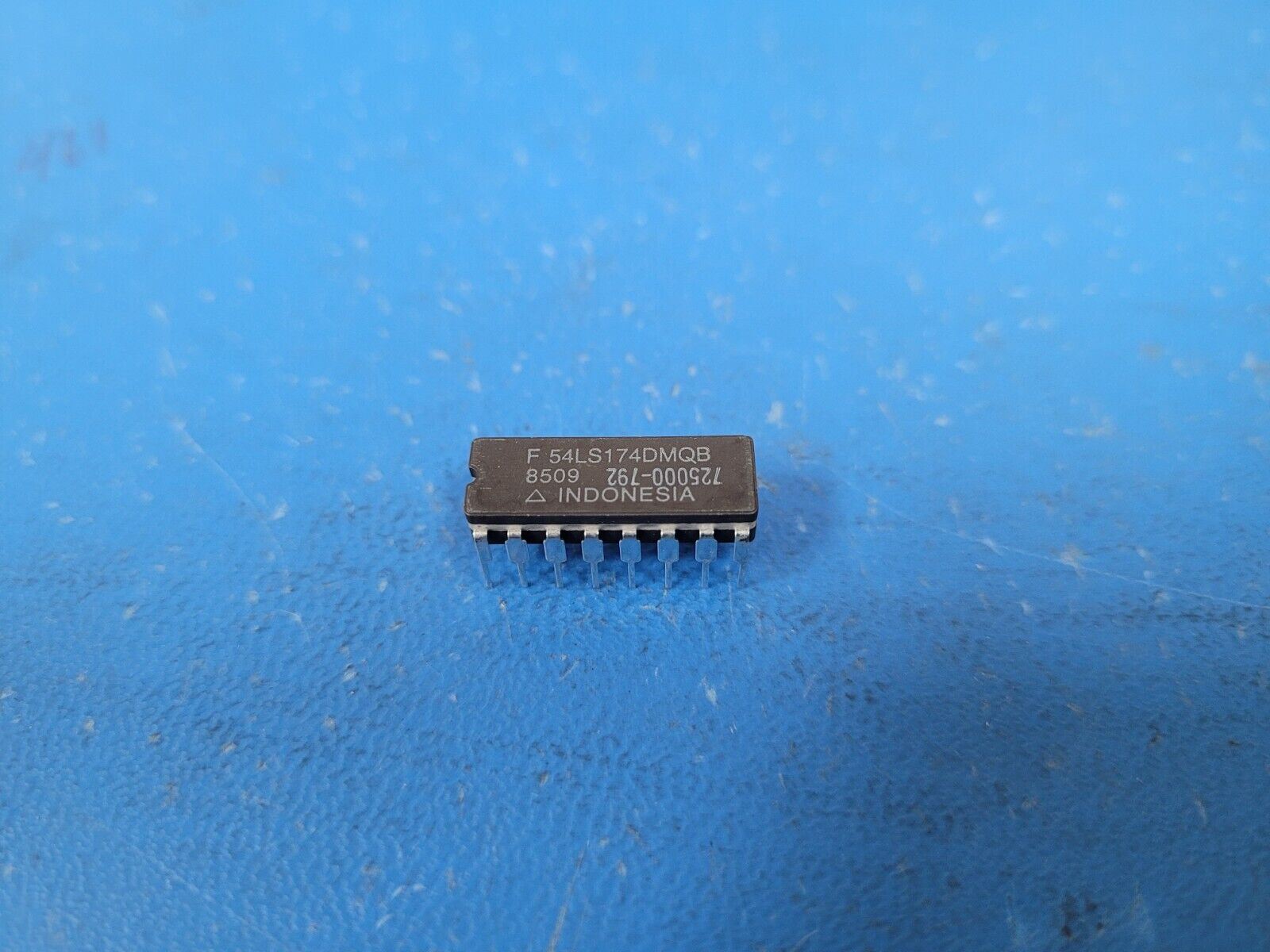

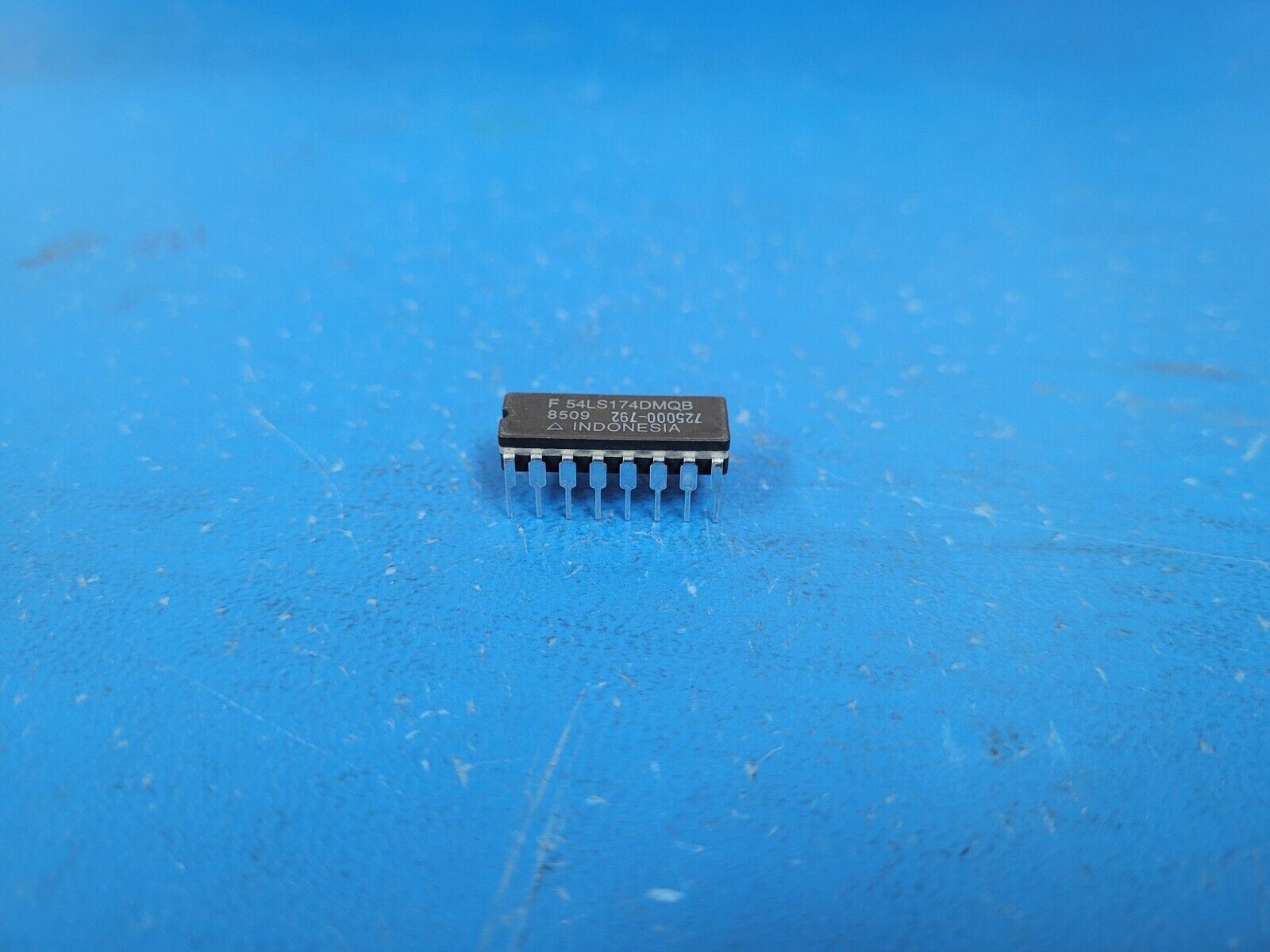

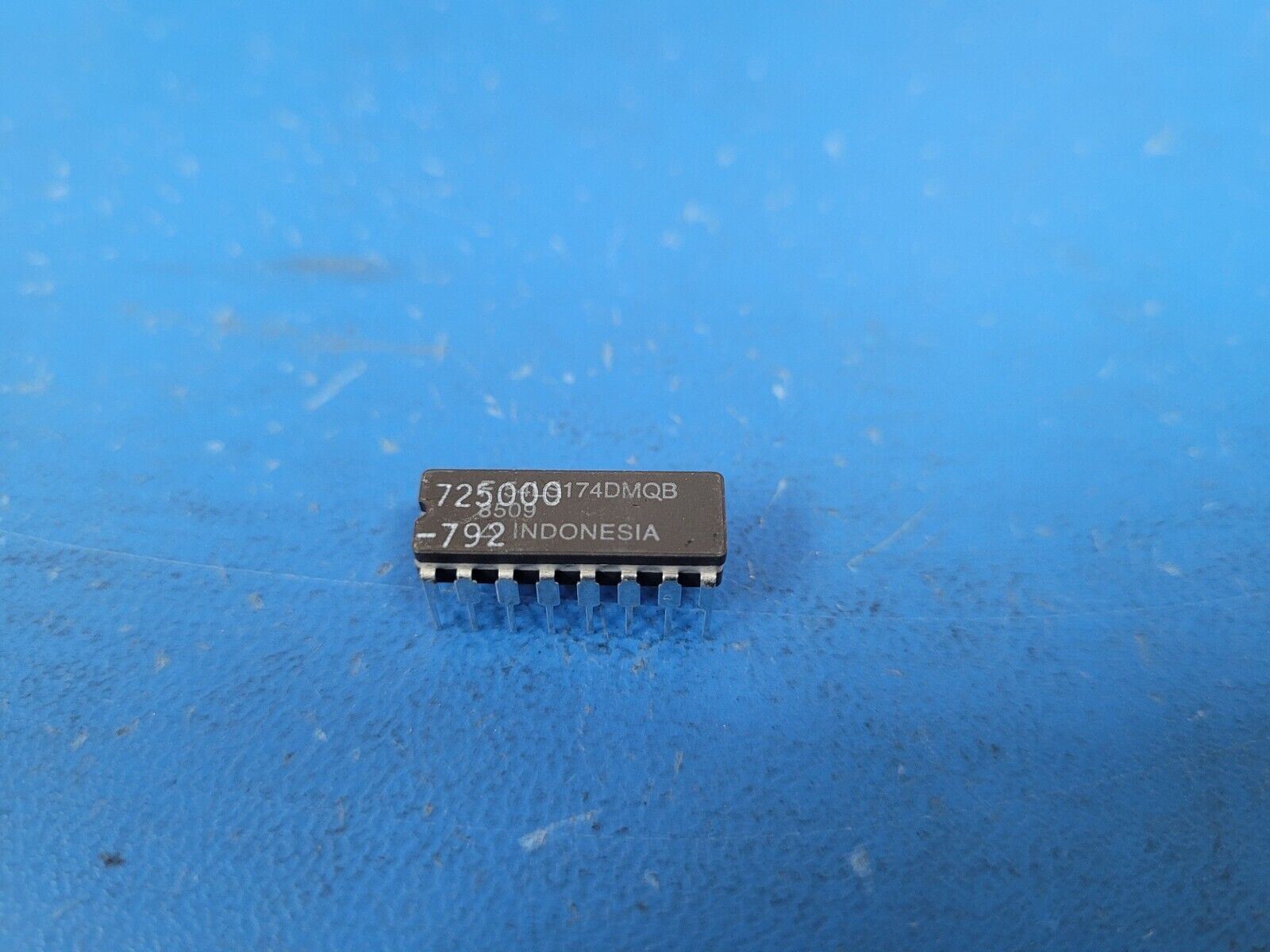

THIS LISTING IS FOR (10 PCS) OF 54LS174DMQB OR SNJ54LS174J BY TI, FSC
Flip Flop D-Type Bus Interface Pos-Edge 1-Element 16Pin CDIP
Flip Flop D-Type Bus Interface Pos-Edge 1-Element 16Pin CDIP
Part #: 54LS174DMQB (SNJ54LS174J)
Mfr Package Description CERAMIC, LCC-20
Status Discontinued
Logic IC Type J-K FLIP-FLOP
Family LS
fmax-Min 30.0 MHz
JESD-30 Code S-CQCC-N20
Number of Bits 2
Number of Functions 2
Number of Terminals 20
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Output Polarity COMPLEMENTARY
Package Body Material CERAMIC, METAL-SEALED COFIRED
Package Code QCCN
Package Shape SQUARE
Package Style CHIP CARRIER
Propagation Delay (tpd) 42.0 ns
Qualification Status Not Qualified
Seated Height-Max 1.9 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology TTL
Temperature Grade MILITARY
Terminal Form NO LEAD
Terminal Pitch 1.27 mm
Terminal Position QUAD
Trigger Type NEGATIVE EDGE
Length 8.885 mm
Width 8.885 mm
