(10 PCS) 2027-23-C Gas Discharge Tubes 230VDC 10KADC 10AAC 1pF Axial Thru-Hole
Tax included.

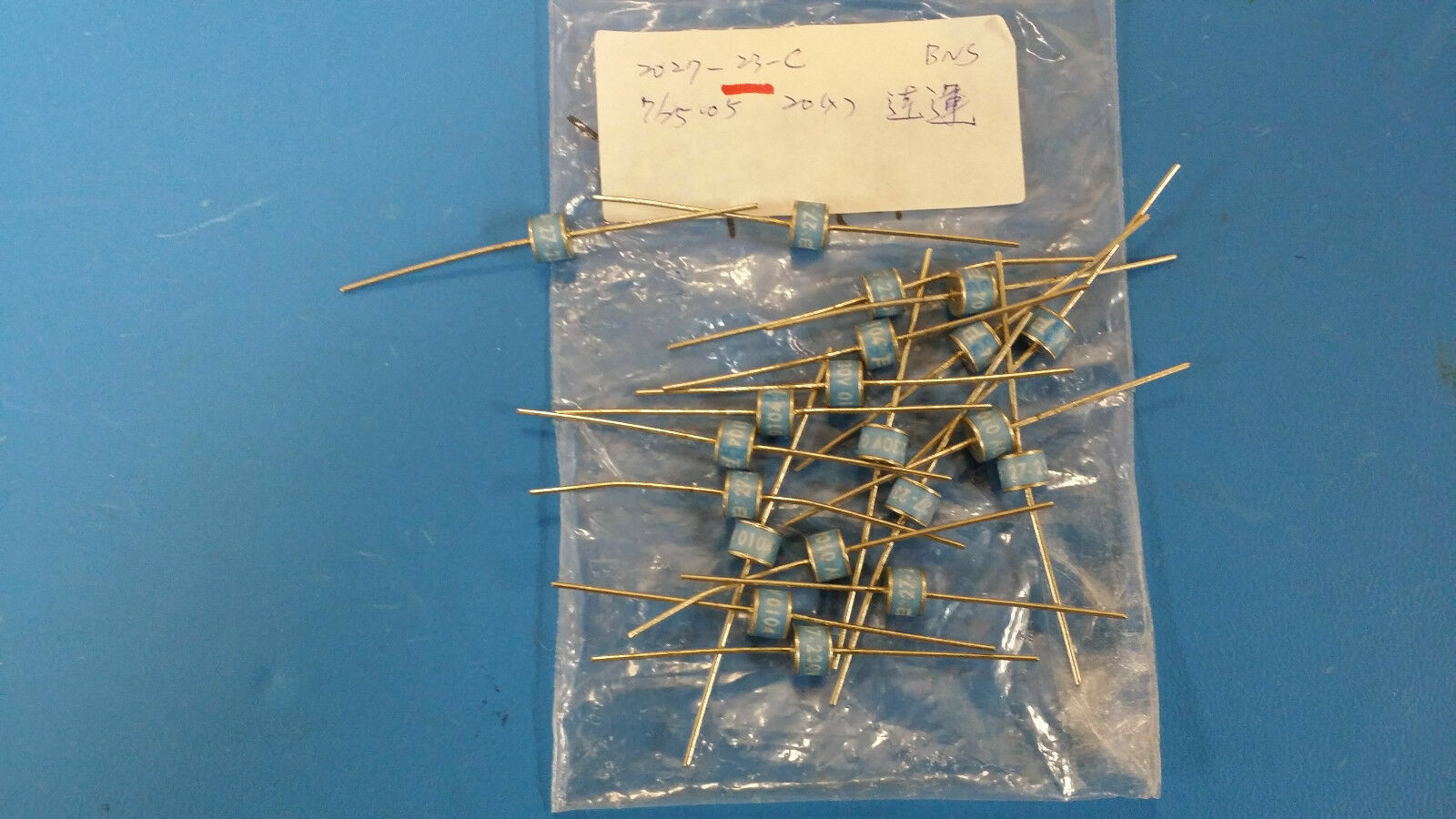

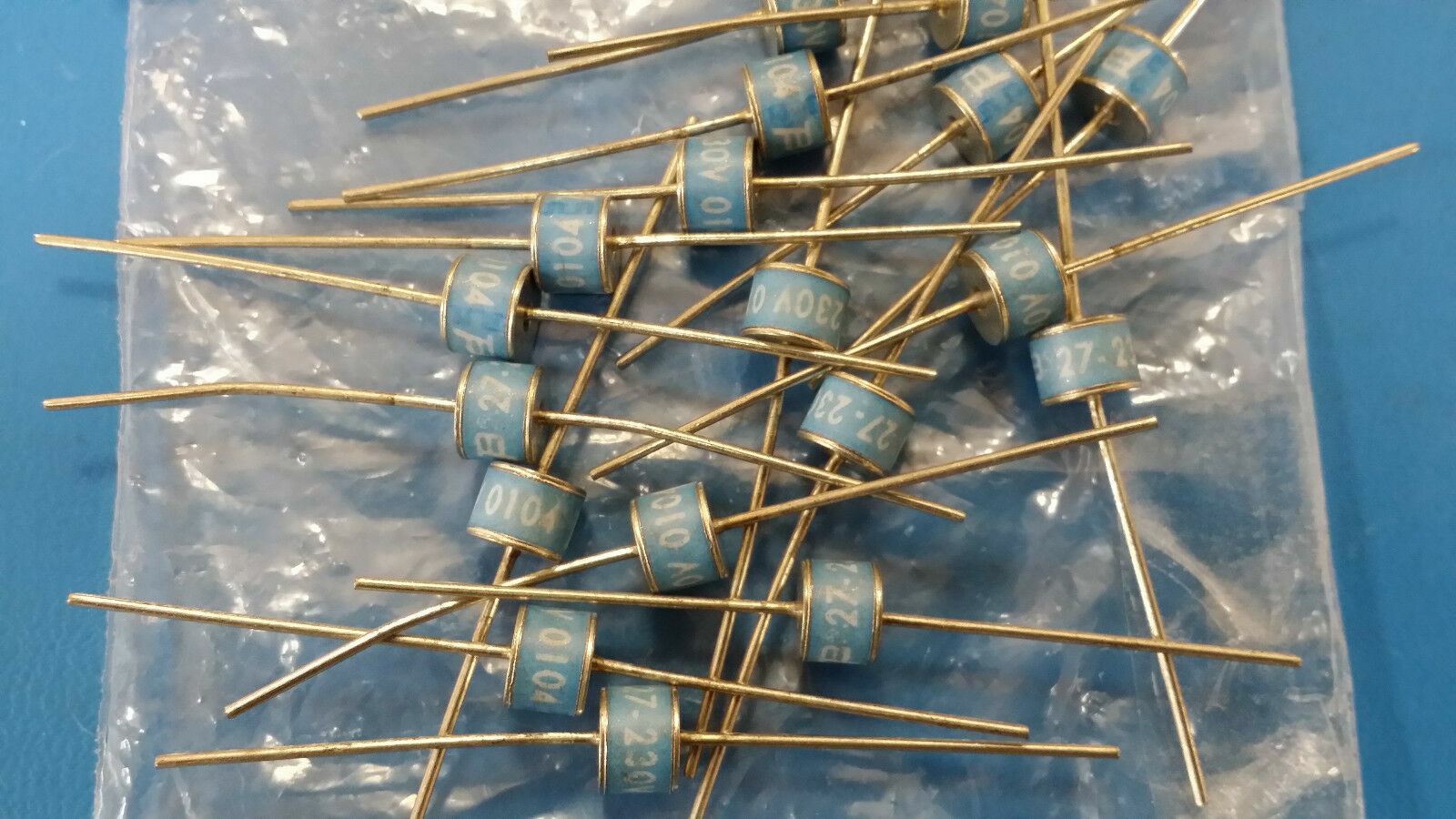

THIS LISTING IS FOR (10 PCS) OF 2027-23-C BY BOURNS
Gas Discharge Tubes 230VDC 10KADC 10AAC 1pF Axial Thru-Hole
Gas Discharge Tubes 230VDC 10KADC 10AAC 1pF Axial Thru-Hole
2027-23-C Part Details & Parametric
| EU RoHS |
Not Compliant
|
| Typical DC Sparkover Voltage@100V/s (V) | 230 |
| DC Sparkover Voltage Tolerance | ±15% |
| Maximum Impulse Sparkover Voltage@100V/s (V) | 450 |
| Maximum Impulse Sparkover Voltage@1KV/s (V) | 675 |
| Maximum DC Holdover Voltage (V) | 135@150ms |
| Mounting | Through Hole |
| Typical AC Discharge Current@1s@<=10Times (A) | 10 |
| Typical Impulse Life@10/1000us (Times) | 400 |
| Typical Impulse Discharge Current@8/20us@10Times (kA) | 10 |
| Maximum Capacitance@1MHz (pF) | 1 |
| Number of Terminals | 2 |
| Number of Electrodes | 2 |
| Minimum Insulation Resistance@100V (GOhm) | 10 |
| Termination Style | Axial |
| Product Length (mm) | 6 |
| Product Depth (mm) | 8 |
| Product Height (mm) | 8 |
| Lead Diameter (mm) | 1 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 85 |
| Packaging | Bulk |
| Failsafe Protection | No |
| Agency Approvals | UL |
