(10 PCS) 1.5SMC62A LITTELFUSE TVS DIODE 53V 85V DO214AB ROHS
Tax included.

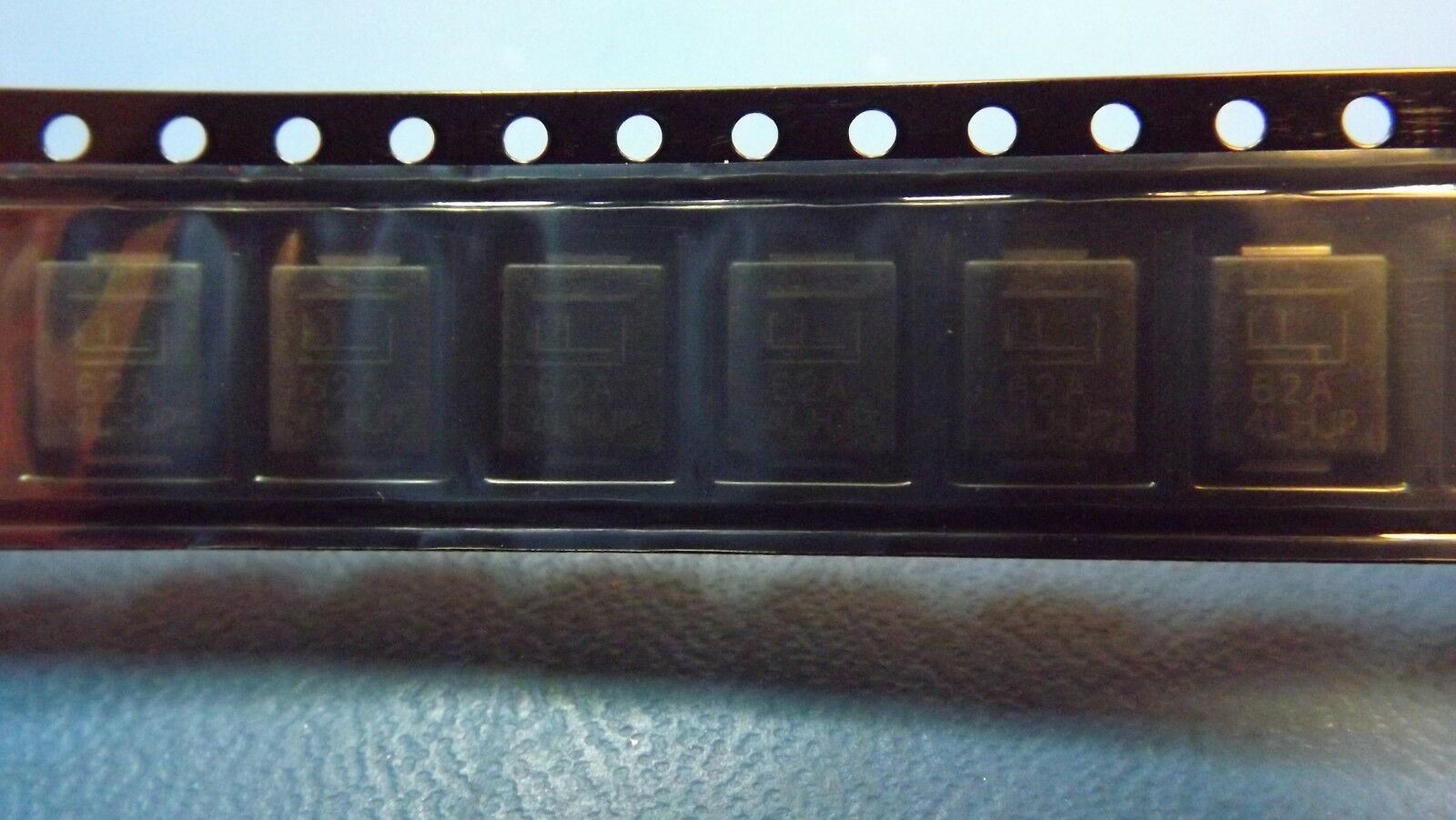

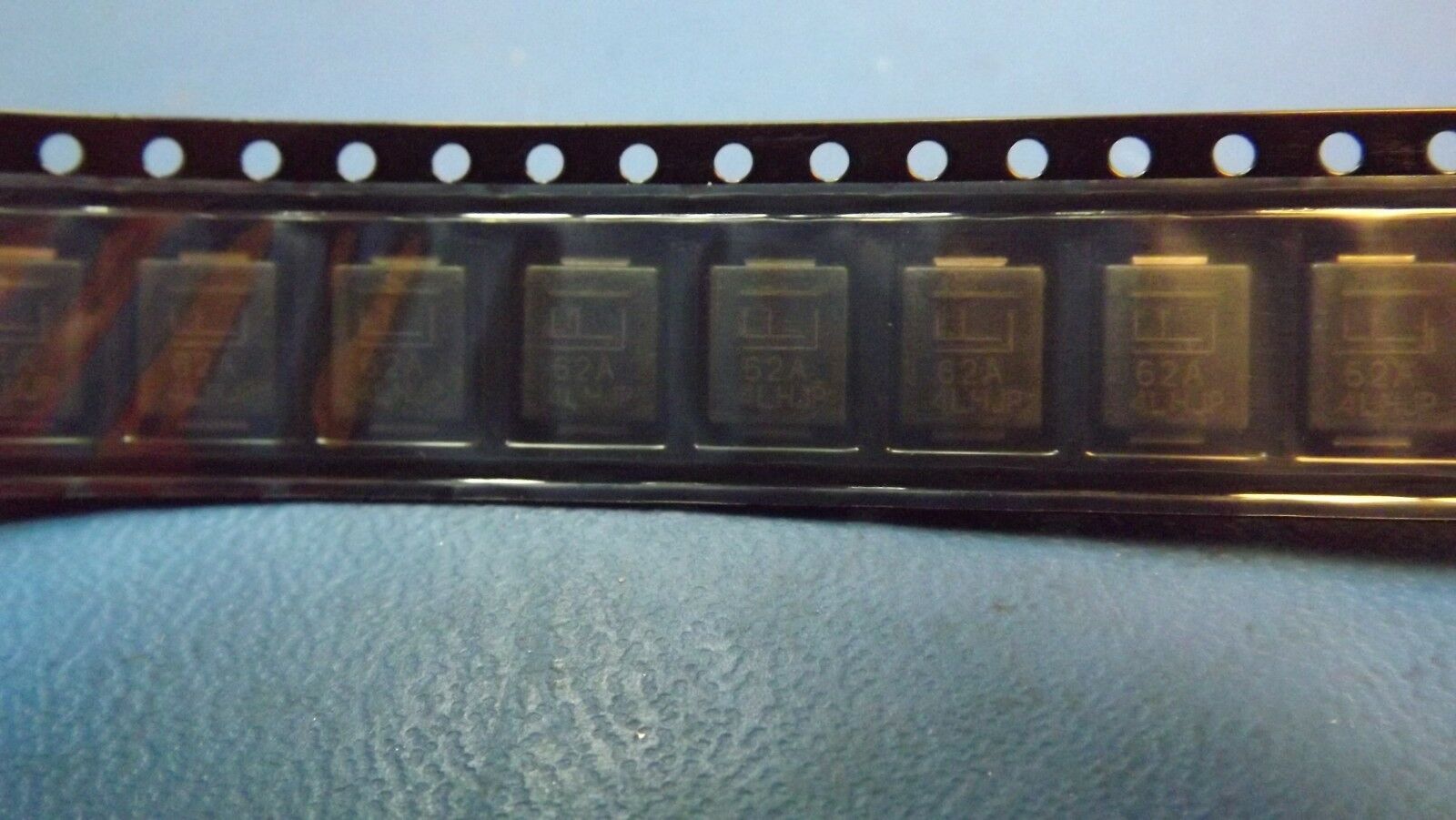

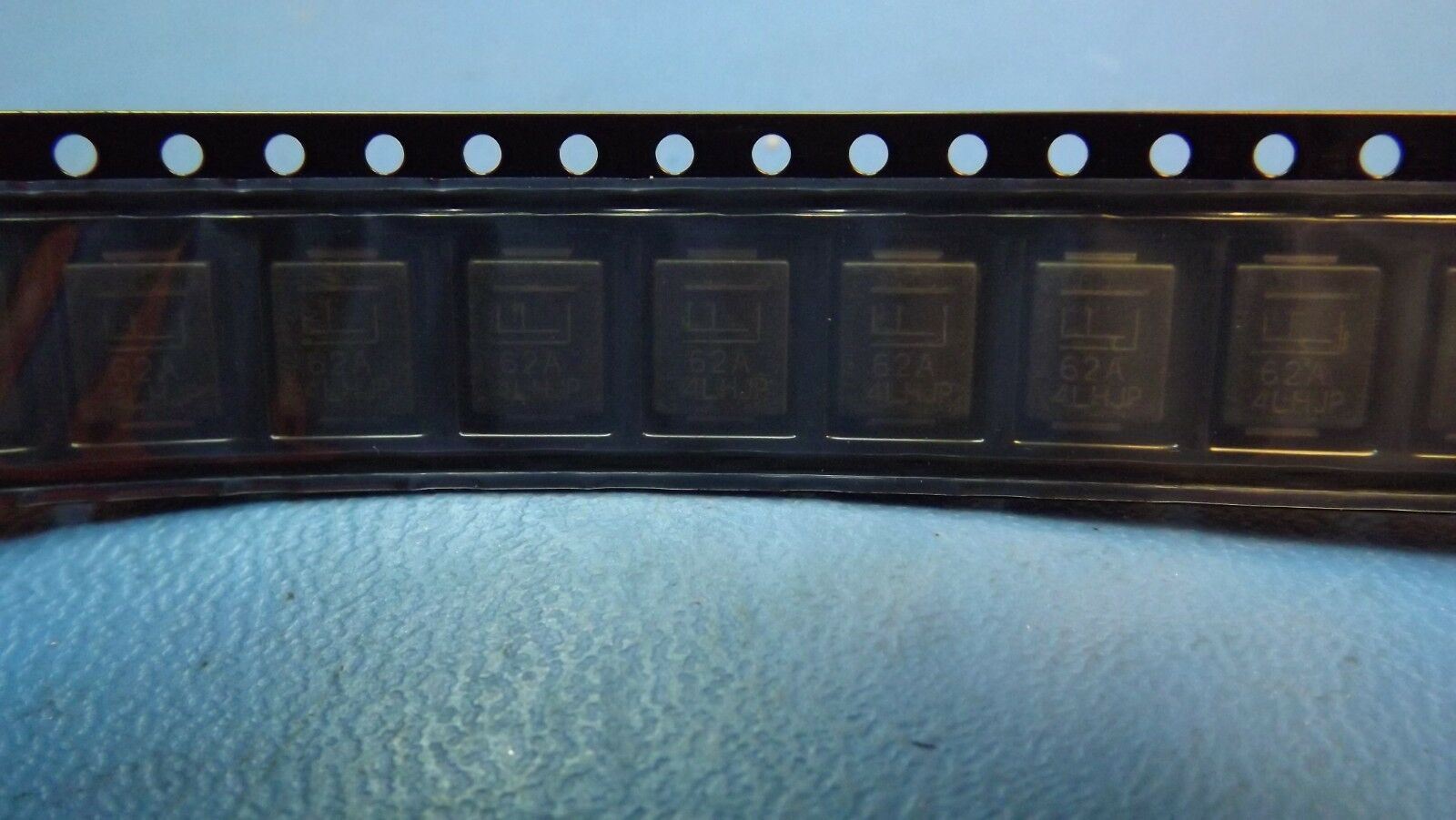

THIS LISTING IS FOR (10 PCS) OF 1.5SMC62A BY LITTELFUSE
SPECIFICATIONS
| Mfr Package Description | HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMC, 2 PIN |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | Active |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE |
| Breakdown Voltage-Nom | 62.0 V |
| Breakdown Voltage-Min | 58.9 V |
| Breakdown Voltage-Max | 65.1 V |
| Clamping Voltage-Max | 85.0 V |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| JEDEC-95 Code | DO-214AB |
| JESD-30 Code | R-PDSO-J2 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | 1 |
| Non-rep Peak Rev Power Dis-Max | 1500.0 W |
| Number of Elements | 1.0 |
| Number of Terminals | 2 |
| Operating Temperature-Min | -65.0 Cel |
| Operating Temperature-Max | 150.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Polarity | UNIDIRECTIONAL |
| Power Dissipation-Max | 6.5 W |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 53.0 V |
| Sub Category | Transient Suppressors |
| Surface Mount | YES |
| Technology | AVALANCHE |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | J BEND |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY, UL RECOGNIZED |
