(10 PC) MCM67Q909ZP12 Motorola Standard SRAM, 512KX9, 5ns, MOS, PBGA86
Tax included.

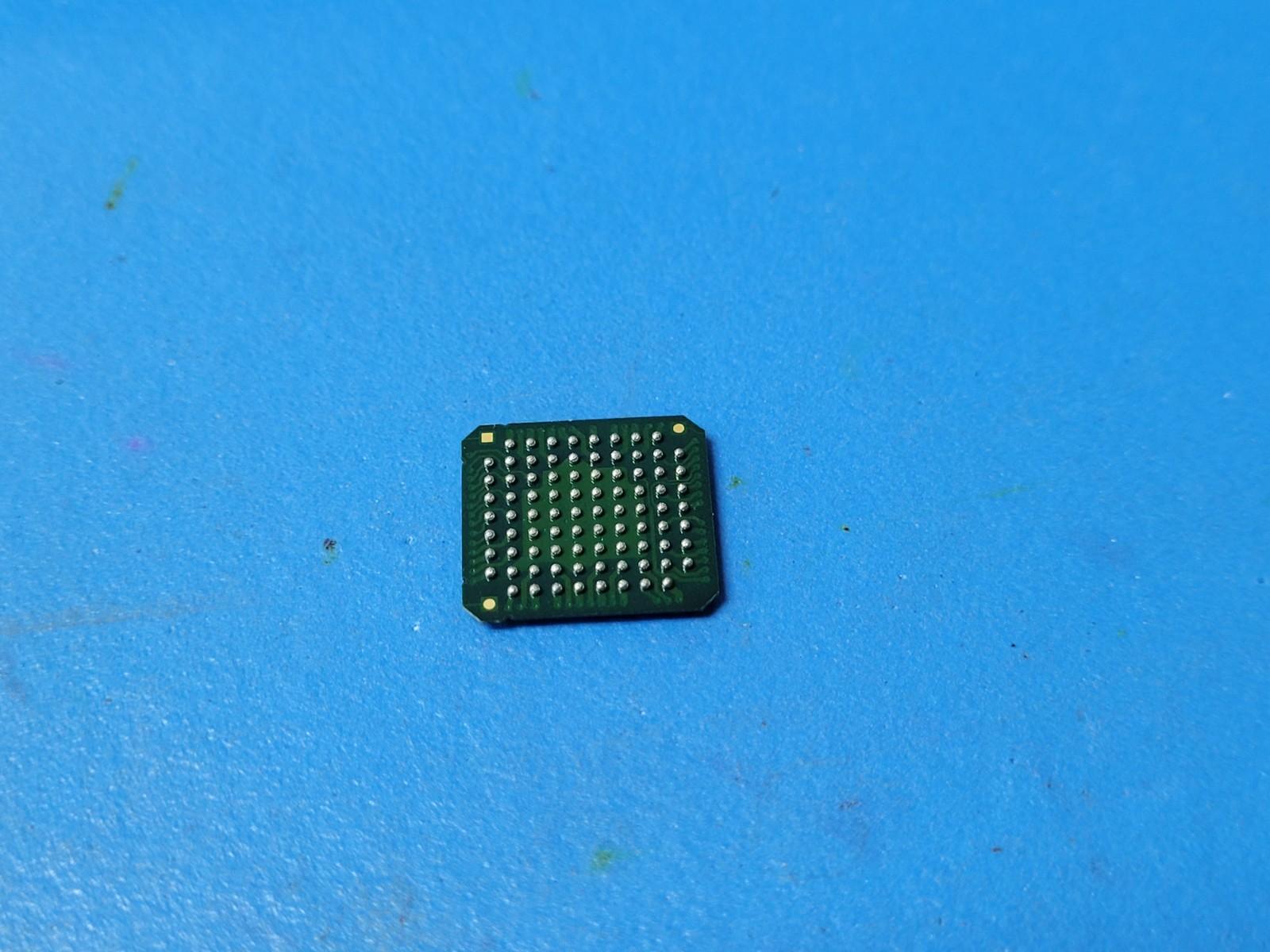

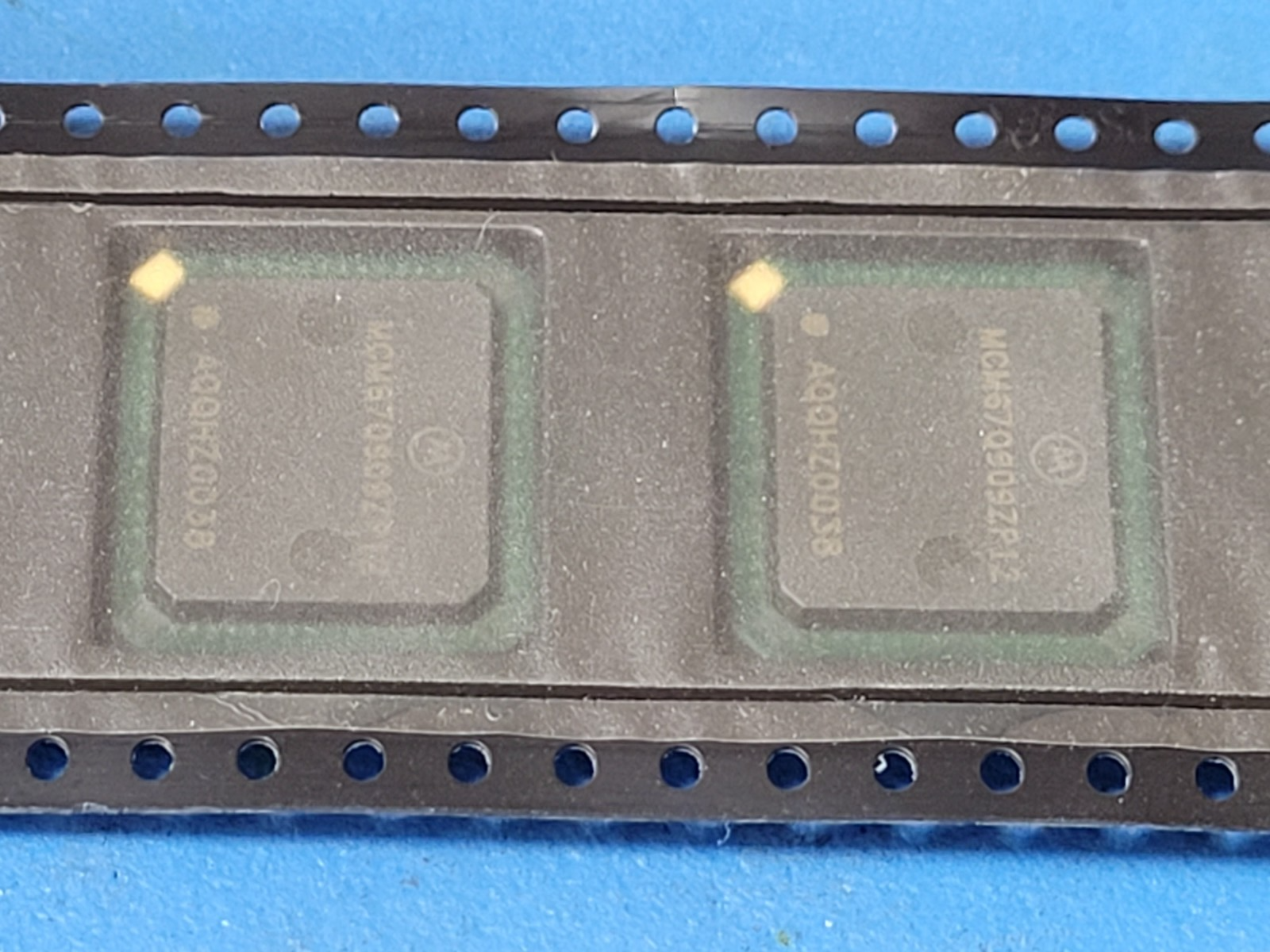

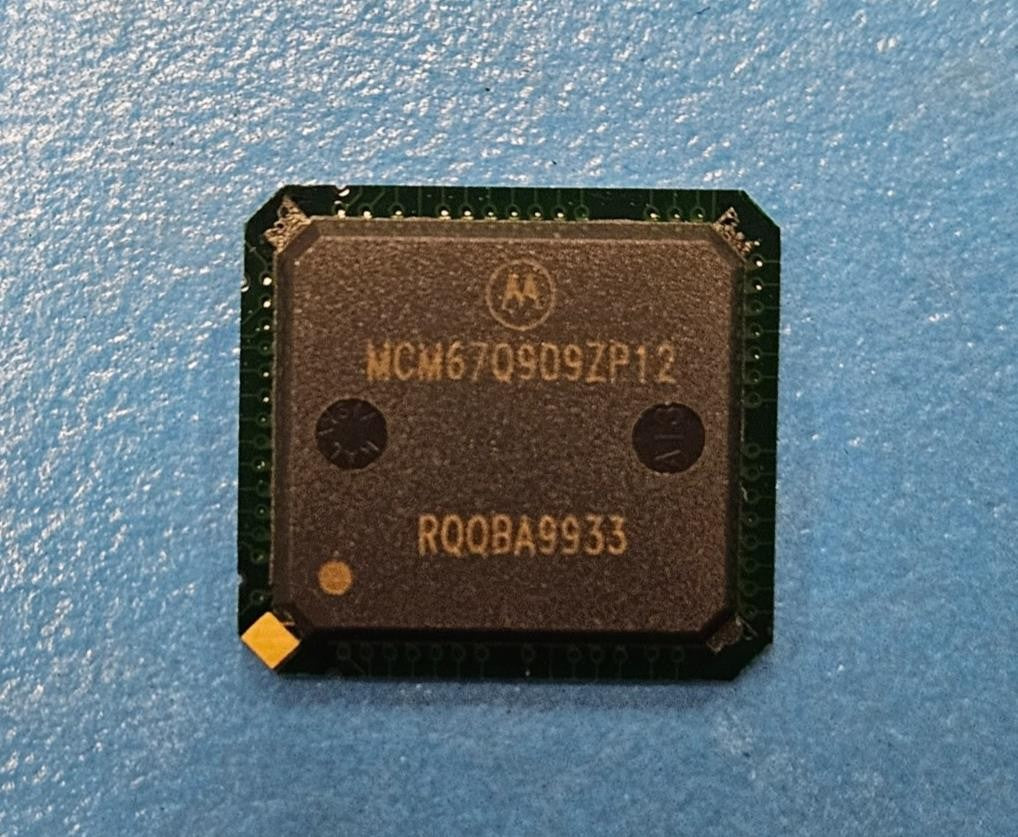

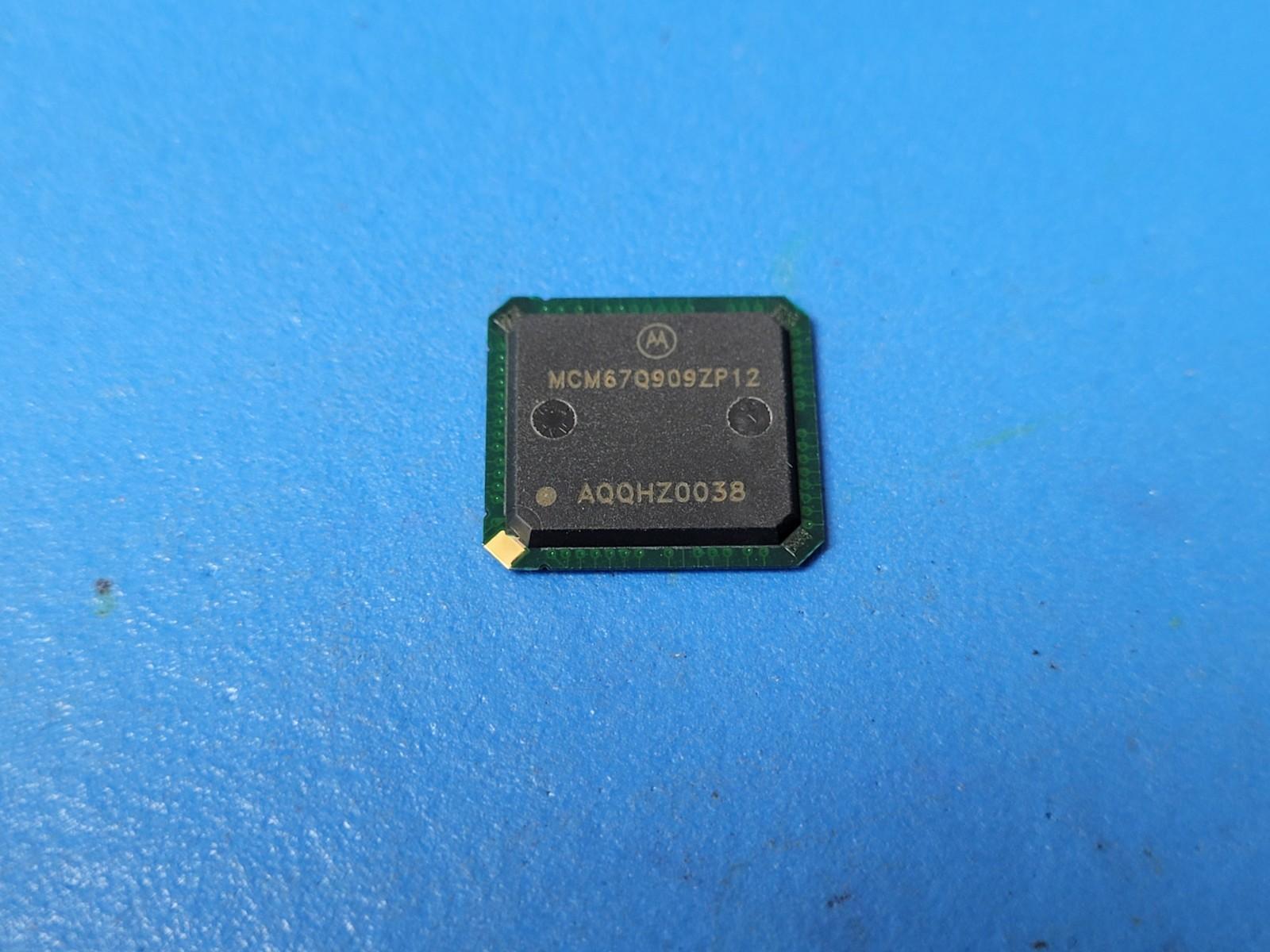

This listing is for (1PC) of MCM67Q909ZP12 by Motorola
Status Discontinued
Access Time-Max (ns) 5.0000000000000000
Clock Frequency-Max (MHz) 83.00000
I/O Type SEPARATE
JESD-30 Code R-PBGA-B86
J-STD-609 Code e0
Length (mm) 17.7800
Memory Density (bits) 4718592.0000000000000000
Memory IC Type STANDARD SRAM
Memory Width 9
Number of Functions 1
Number of Ports 1
Number of Terminals 86
Number of Words (words) 524288.0000000000000000
Number of Words Code 512K
Operating Mode SYNCHRONOUS
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 512KX9
Output Characteristics 3-STATE
Output Enable YES
Package Body Material PLASTIC/EPOXY
Package Code BGA
Package Equivalence Code BGA86,9X10
Package Shape RECTANGULAR
Package Style GRID ARRAY
Parallel/Serial PARALLEL
DLA Qualification Not Qualified
Seated Height-Max (mm) 2.4400
Supply Current-Max (mA) 230.000000000000000
Supply Voltage-Max (V) 5.25000
Supply Voltage-Min (V) 4.75000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology MOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form BALL
