(10 PC) G28F640J5-150 INTEL Flash Memory, 4MX16, 150ns, CMOS, PBGA56
Tax included.

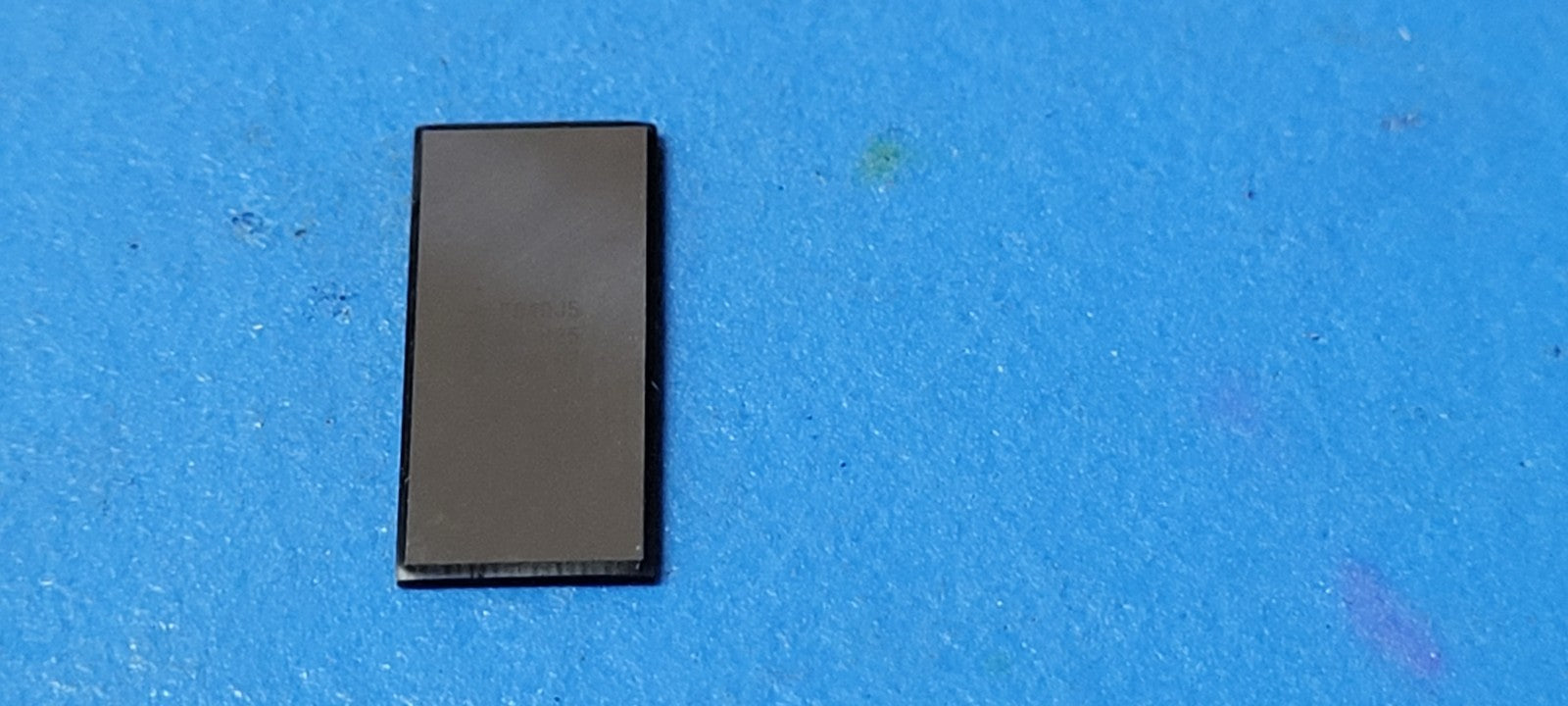

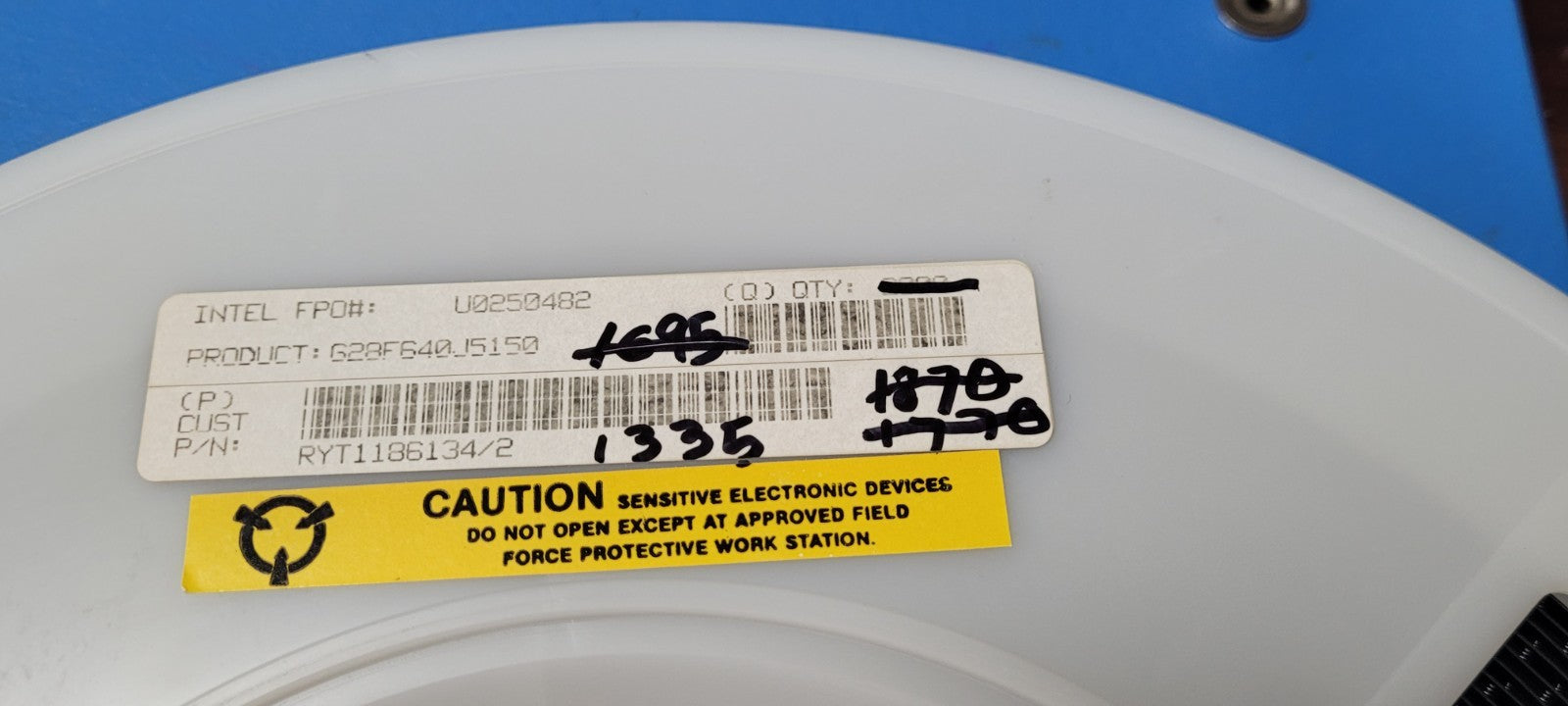

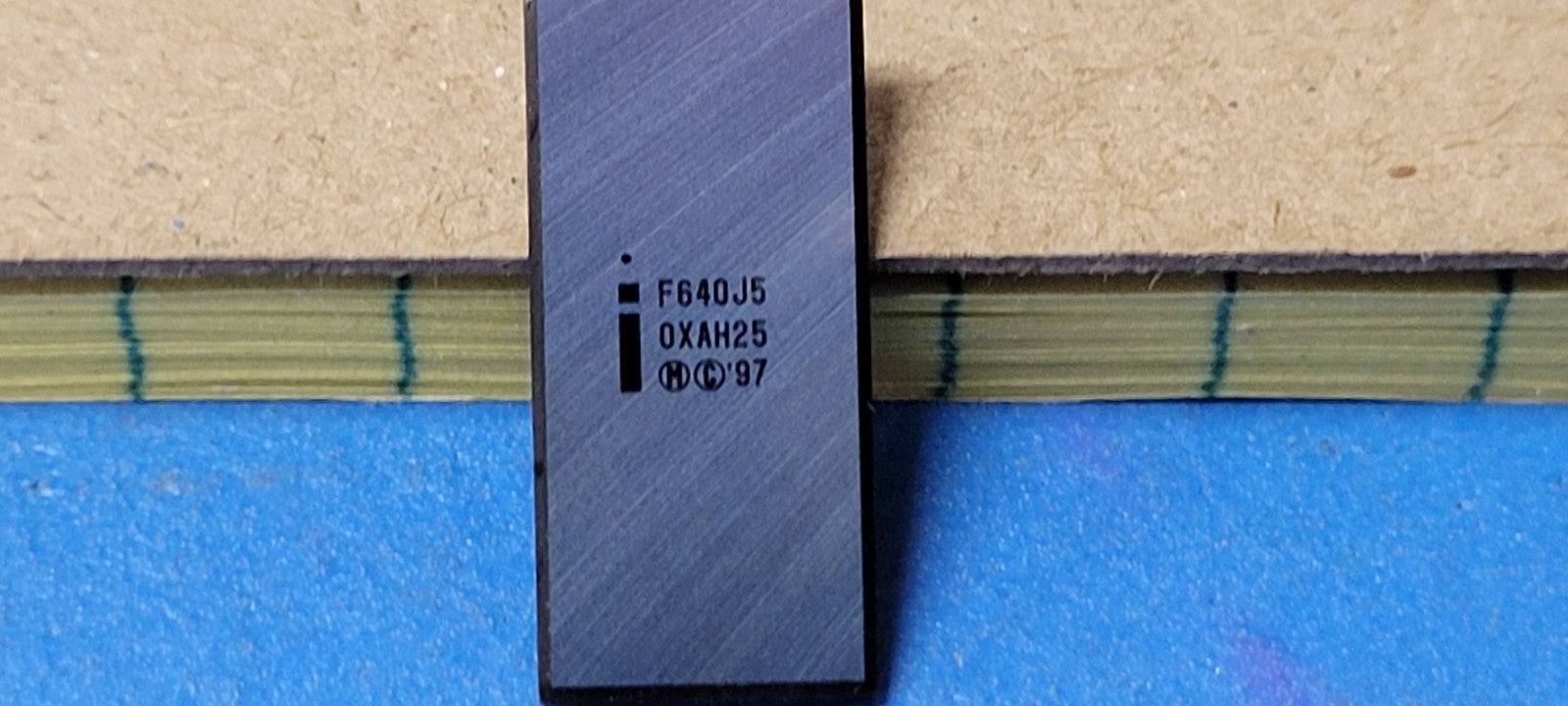

THIS IS FOR (10 PC) OF G28F640J5-150 BY INTEL
Flash Memory, 4MX16, 150ns, CMOS, PBGA56
Part #: G28F640J5-150
Obsolete
Part Category: Flash Memories
Manufacturer: INTEL CORP
Description: Flash, 4MX16, 150ns, PBGA56
Status Discontinued
Access Time-Max (ns) 150.0000000000000000
Additional Feature CONFIGURABLE AS 4M X 16; BLOCK ERASE
Alternate Memory Width 8
Command User Interface YES
Common Flash Interface YES
Data Polling NO
JESD-30 Code R-PBGA-B56
Length (mm) 9.0000
Memory Density (bits) 67108864.0000000000000000
Memory IC Type FLASH
Memory Width 16
Number of Functions 1
Number of Sectors/Size 64
Number of Terminals 56
Number of Words (words) 4194304.0000000000000000
Number of Words Code 4M
Operating Mode ASYNCHRONOUS
Operating Temperature-Max (Cel) 85.0
Operating Temperature-Min (Cel) -20.0
Memory Organization 4MX16
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code VFBGA
Package Equivalence Code BGA52,8X9,.30
Package Shape RECTANGULAR
Package Style GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Parallel/Serial PARALLEL
Programming Voltage (V) 5
DLA Qualification Not Qualified
Ready/Busy YES
Seated Height-Max (mm) 1.0000
Sector Size (words) 128K
Standby Current-Max (A) 0.000125000000000
Supply Current-Max (mA) 80.000000000000000
Supply Voltage-Max (V) 5.50000
Supply Voltage-Min (V) 4.50000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology CMOS
Temperature Grade OTHER

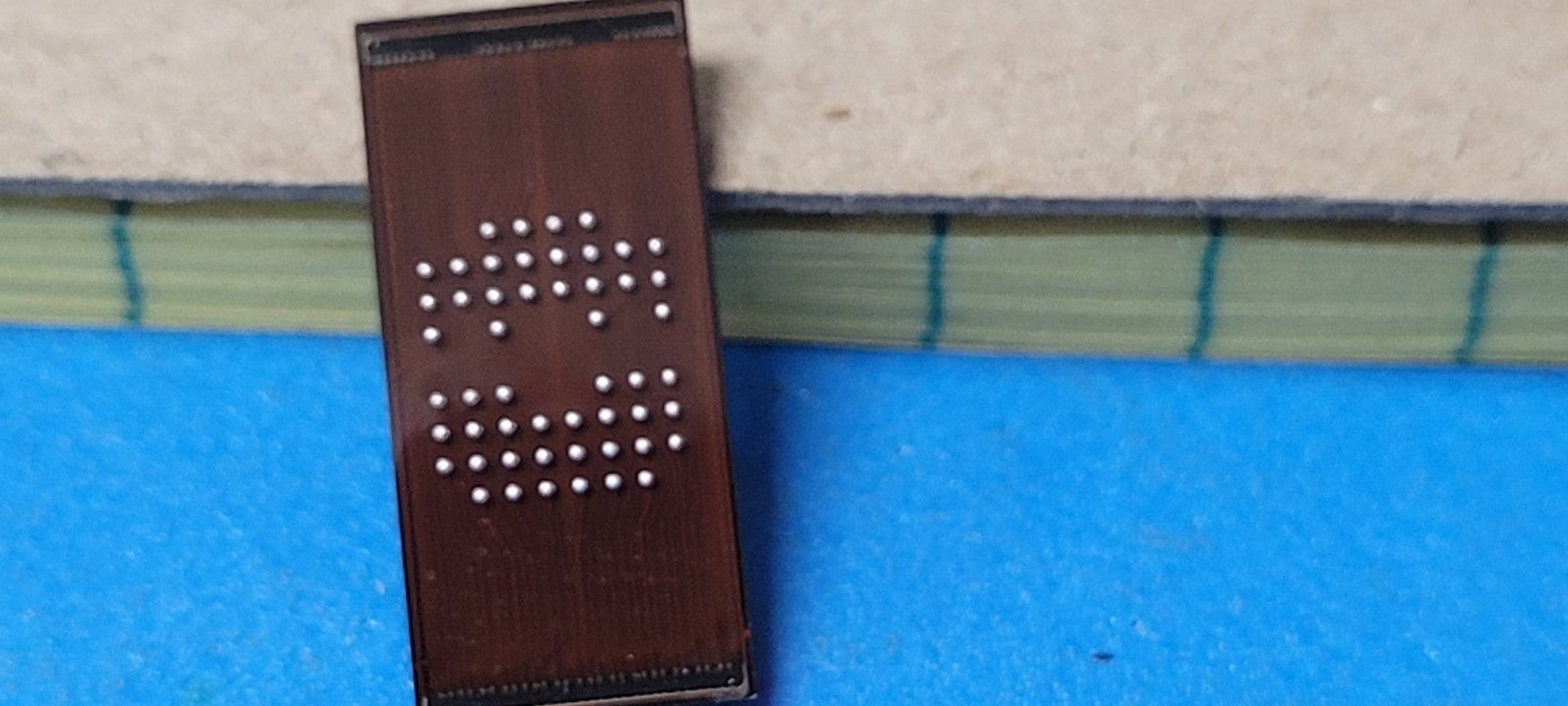

Terminal Form BALL
Terminal Pitch (mm) 0.750
Terminal Position BOTTOM
Toggle Bit NO
Type NOR TYPE
Width (mm) 7.7000
