(10) NL453232T-101J TDK Inductor RF Chip Unshielded Wirewound 100uH 5% 110mA 8Oh
Tax included.

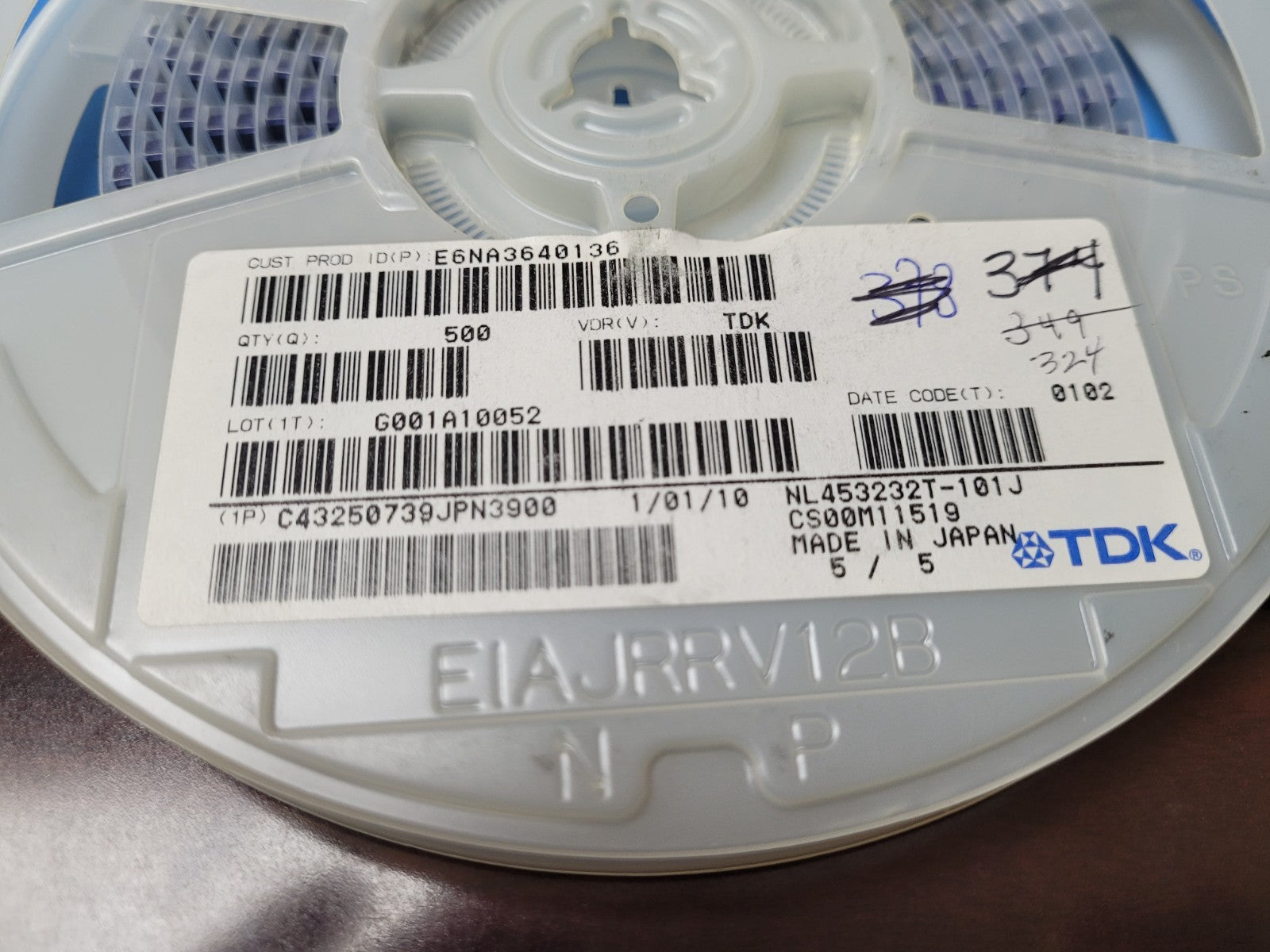

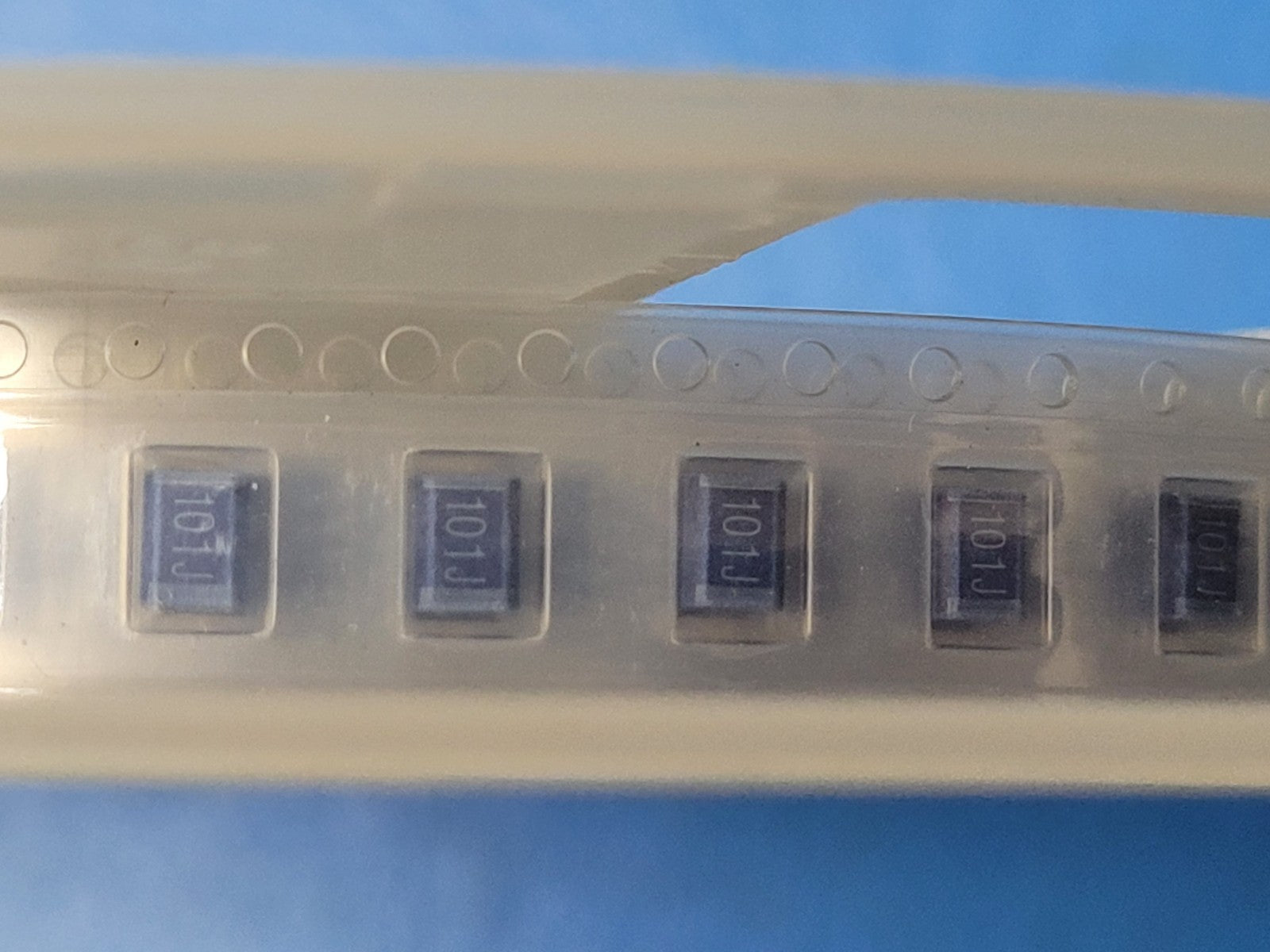

THIS LISTING IS FOR (25 PCS) OF NL453232T-101J BY TDK
Inductor RF Chip Unshielded Wirewound 100uH 5% 110mA 8Ohm
Inductor RF Chip Unshielded Wirewound 100uH 5% 110mA 8Ohm
NL453232T-101J Part Details & Parametric
| Type | RF Chip |
| Technology | Wirewound |
| Protection Style | Unshielded |
| Core Material | Ferrite |
| Inductance (H) | 100u |
| Tolerance | 5% |
| Test Frequency (Hz) | 796K |
| Maximum DC Current (A) | 110m |
| Maximum DC Resistance (Ohm) | 8 |
| Minimum Quality Factor | 40@796KHz |
| Minimum Self Resonant Frequency (Hz) | 8M |
| Case Size | 1812 |
| Product Length (mm) | 4.8 |
| Product Depth (mm) | 3.4 |
| Product Height (mm) | 3.4 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Packaging | Blister Tape and Reel |
