(10) MBM29LV004T-12PNS FUJITSU 3.0 V FLASH MEMORY 4M (512K -8) BIT 120ns 40P SON
Tax included.

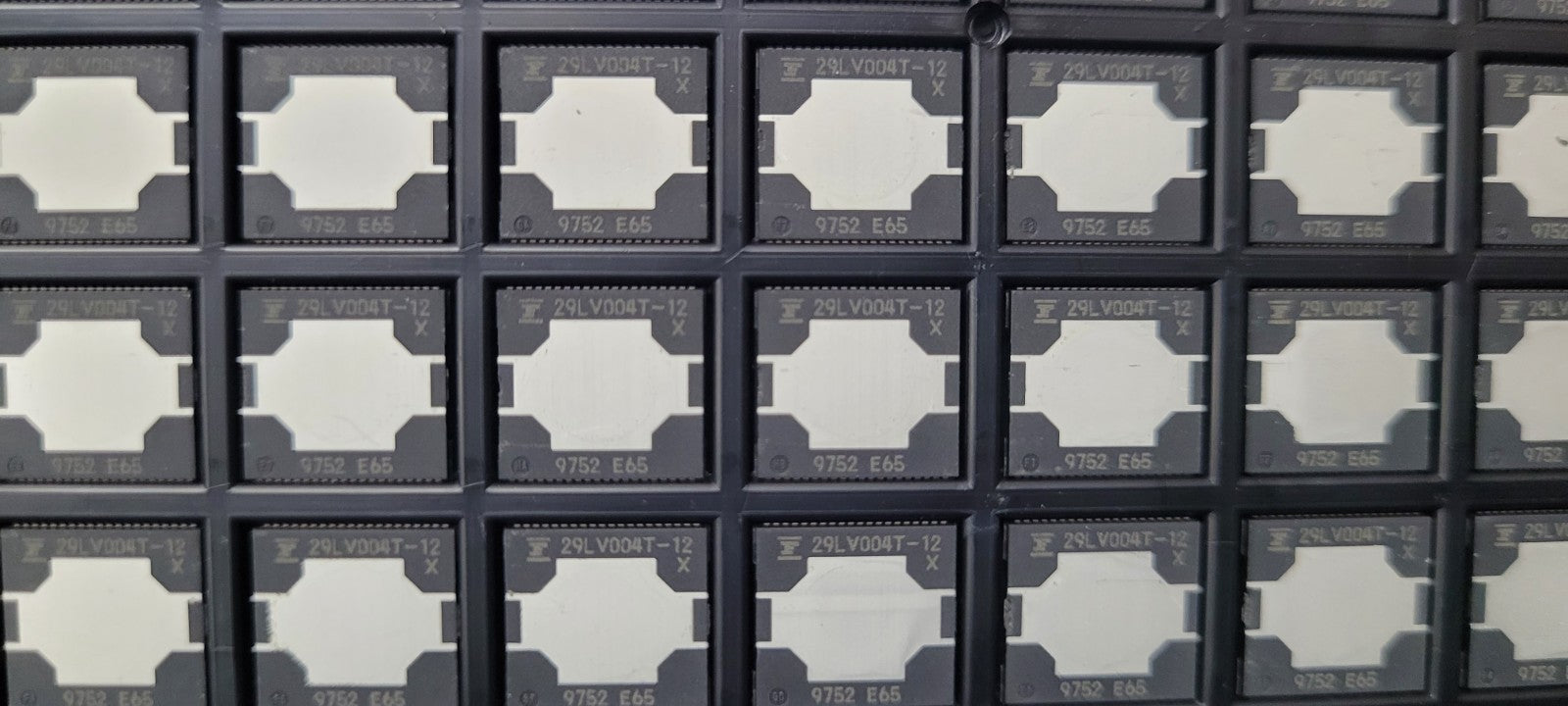

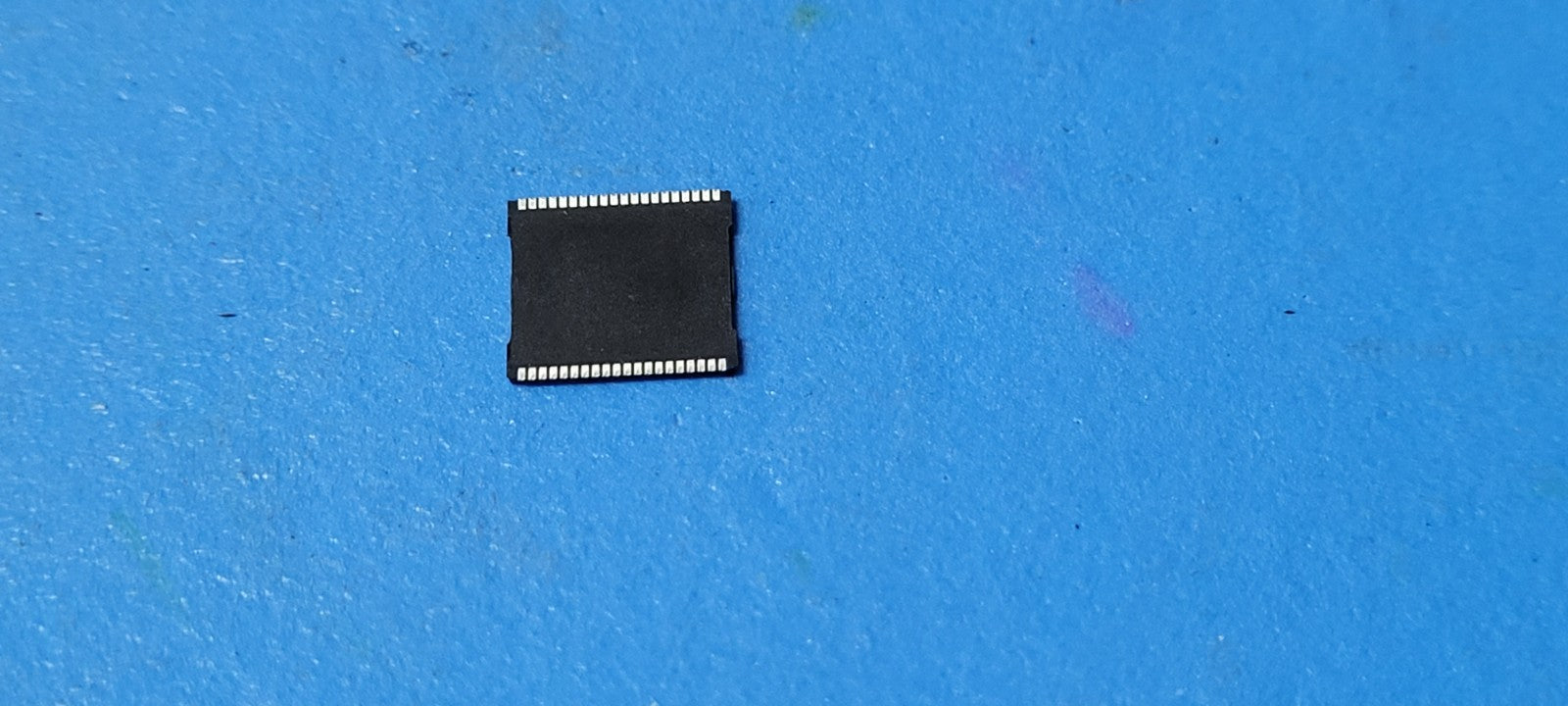

THIS IS FOR (10PC) OF MBM29LV004T-12PNS BY FUJITSU
3.0 V FLASH MEMORY 4M (512K -8) BIT 120ns 40 PIN SON

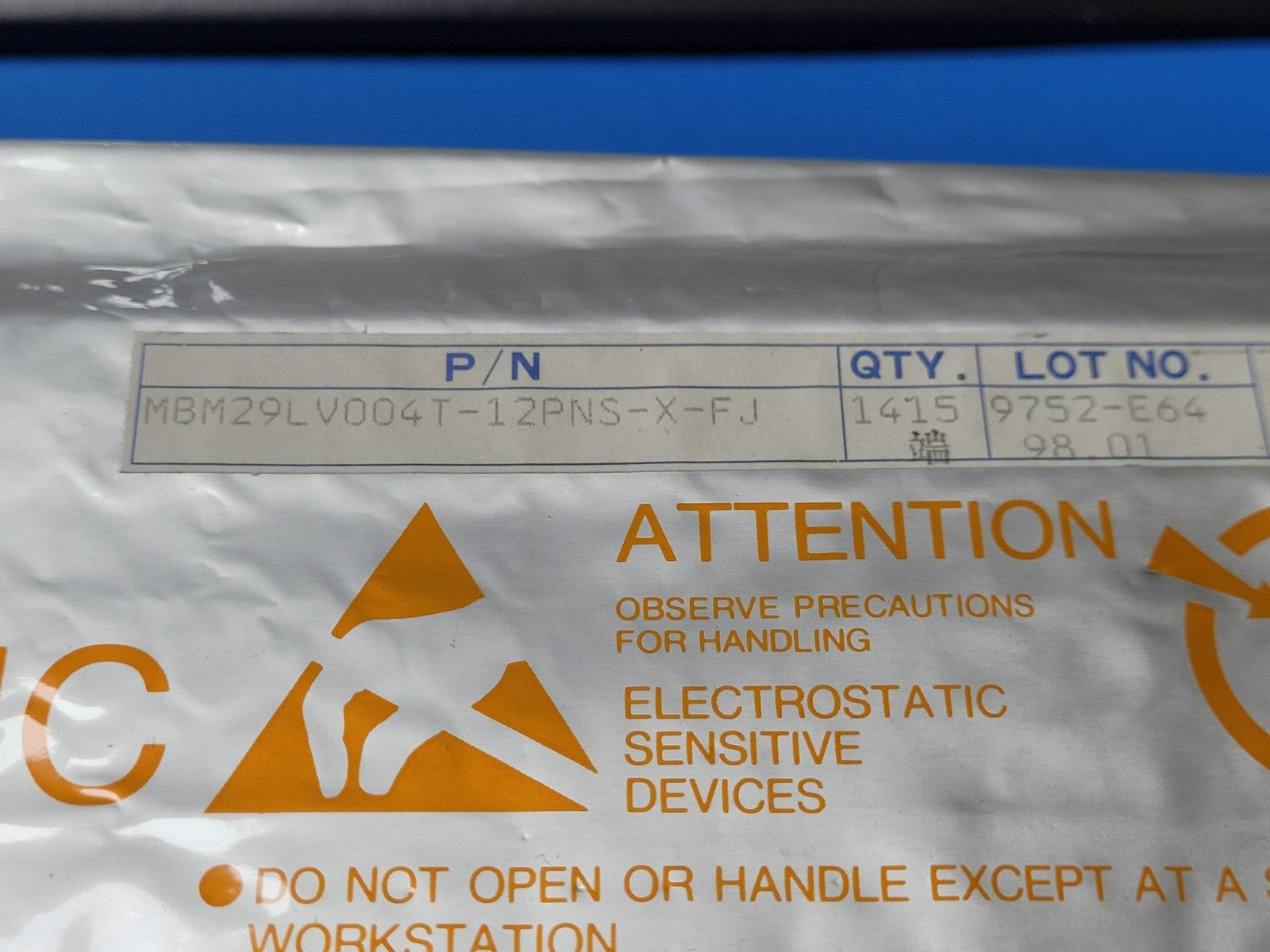

Part #: MBM29LV004T-12PNS
Obsolete
Part Category: Flash Memories
Manufacturer: FUJITSU LTD
Description:
Flash, 512KX8, 120ns, PDSO40
Status Discontinued
Access Time-Max (ns) 120.0000000000000000
Additional Feature MINIMUM 100000 WRITE/ERASE CYCLES; AUTOMATIC WRITE
Boot Block TOP
JESD-30 Code R-PDSO-N40
Length (mm) 10.7500
Memory Density (bits) 4194304.0000000000000000
Memory IC Type FLASH
Memory Width 8
Number of Functions 1
Number of Terminals 40
Number of Words (words) 524288.0000000000000000
Number of Words Code 512K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 512KX8
Package Body Material PLASTIC/EPOXY
Package Code VSON
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, VERY THIN PROFILE
Parallel/Serial PARALLEL
Programming Voltage (V) 3
DLA Qualification Not Qualified
Seated Height-Max (mm) 0.7500
Supply Voltage-Max (V) 3.60000
Supply Voltage-Min (V) 3.00000
Supply Voltage-Nom (V) 3.3
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form NO LEAD
Terminal Pitch (mm) 0.500
Terminal Position DUAL
Type NOR TYPE
Width (mm) 10.0000
