(10) JM38510/00903BCA Serial In Parallel Out, 8-Bit, Right Direction, TTL CDIP14
Tax included.

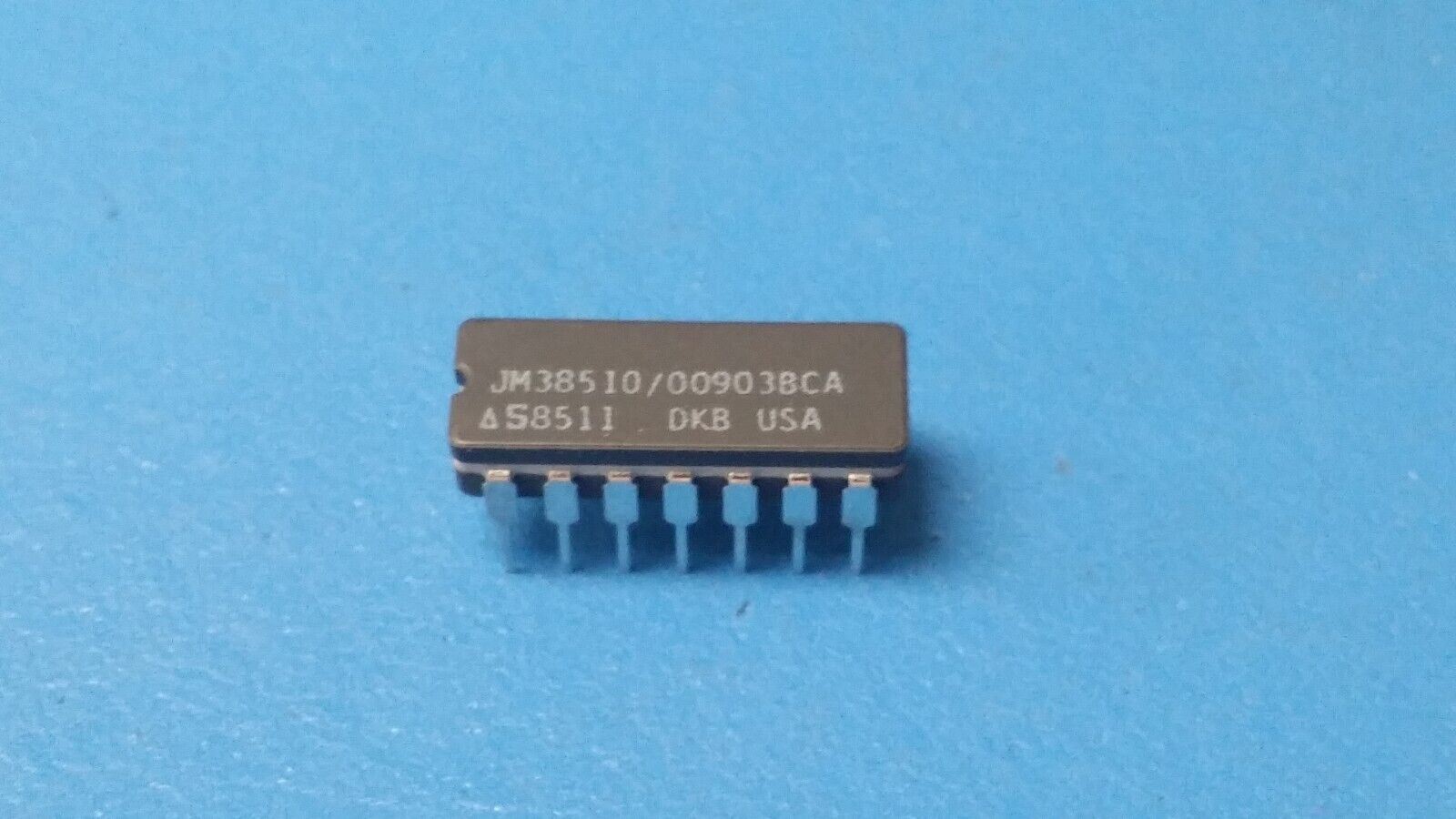

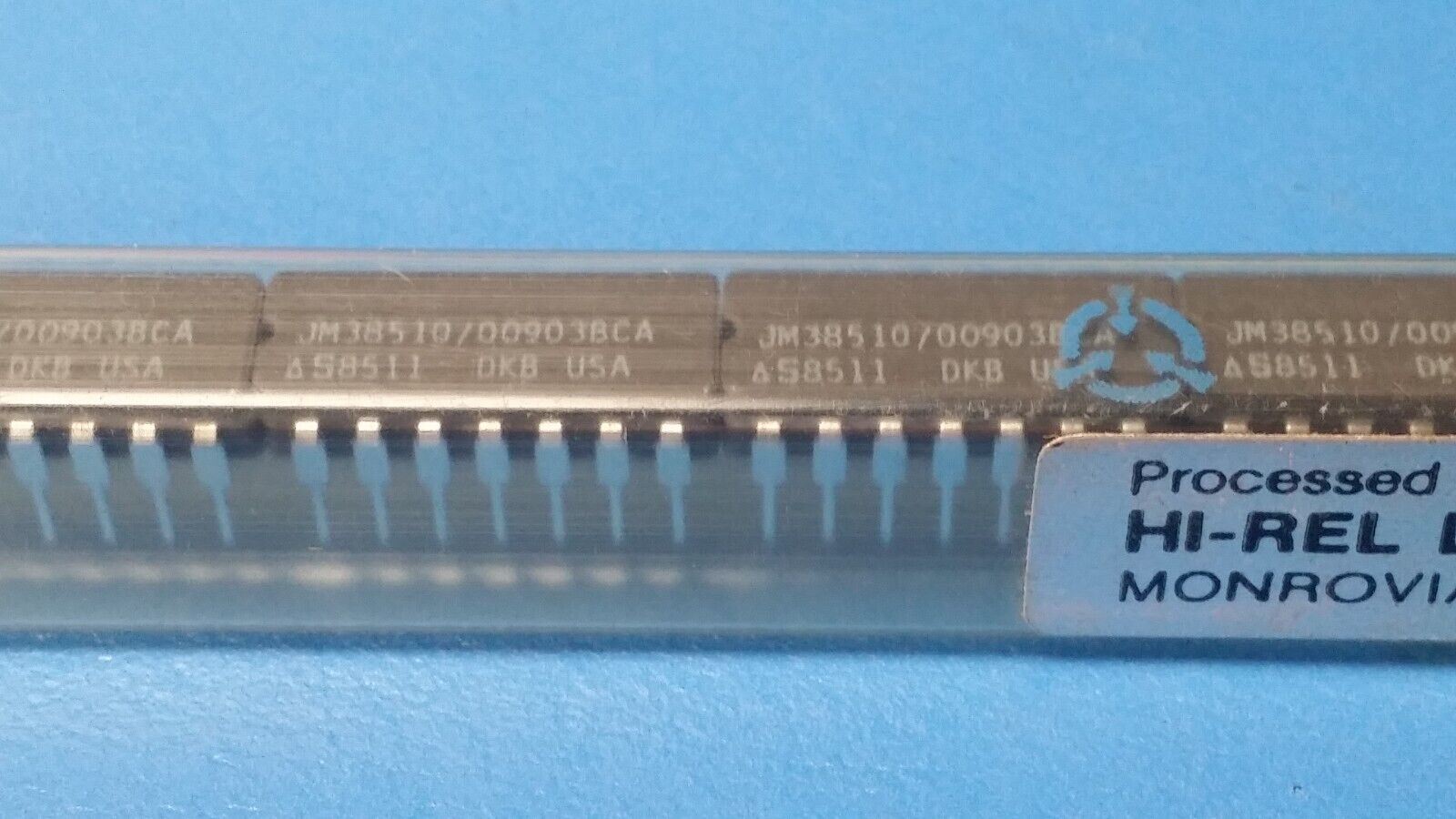

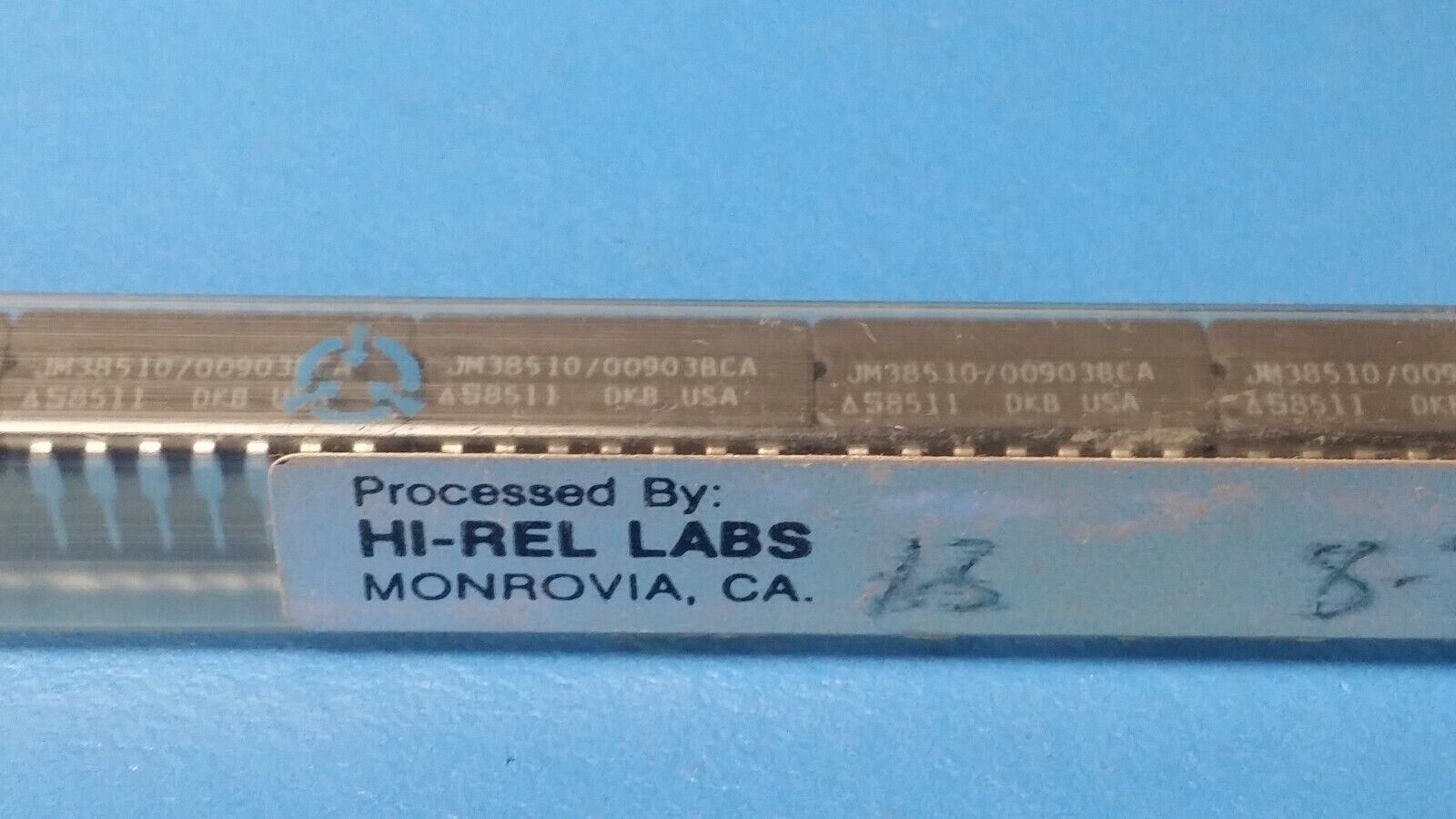

THIS IS FOR (10 PCS) OF JM38510/00903BCA BY SIGNETICS
Serial In Parallel Out, 8-Bit, Right Direction, TTL CDIP14
Mfr Package Description CERAMIC, DIP-14
REACH Compliant Yes
Status Discontinued
Logic IC Type SERIAL IN PARALLEL OUT
Count Direction RIGHT
Family TTL/H/L
fmax-Min 25.0 MHz
JESD-30 Code R-GDIP-T14
Number of Bits 8
Number of Functions 1
Number of Terminals 14
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Output Polarity TRUE
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Propagation Delay (tpd) 32.0 ns
Qualification Status Not Qualified
Screening Level MIL-M-38510
Seated Height-Max 5.08 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount NO
Technology TTL
Temperature Grade MILITARY
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Trigger Type POSITIVE EDGE
Length 19.56 mm
Width 7.62 mm
Additional Feature GATED SERIAL INPUTS (A AND B)
