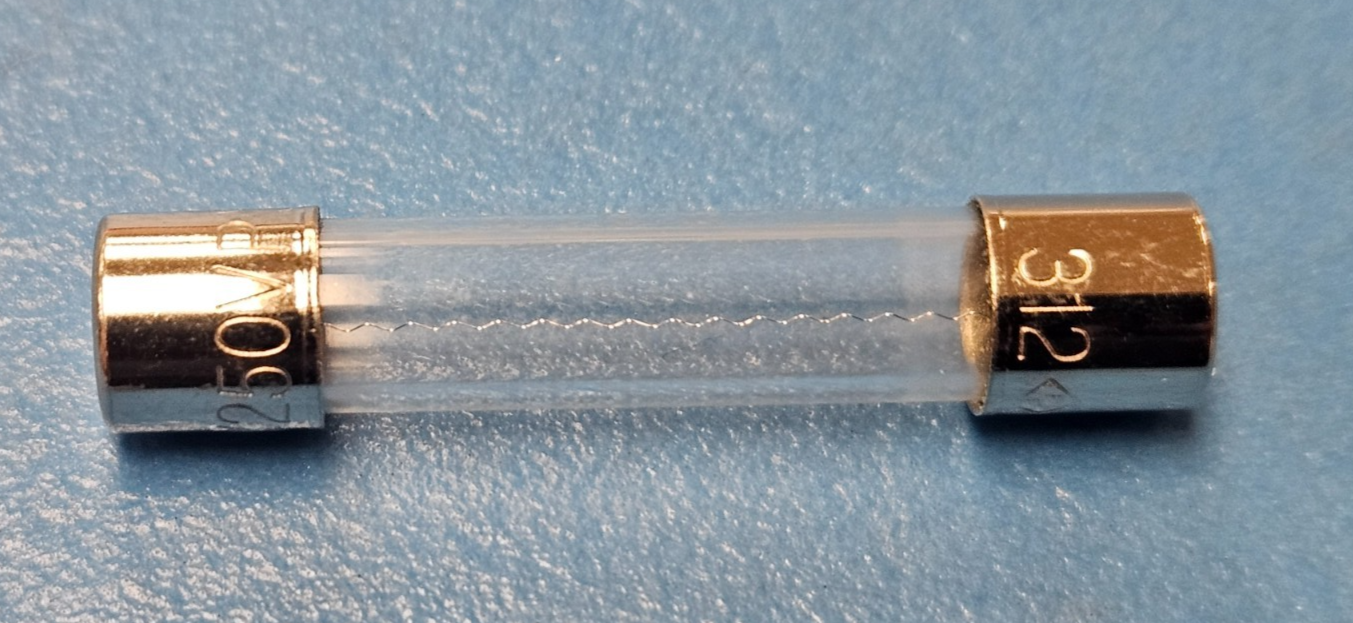

(10 Fuses) 0312001.HXP Fuse Cartridge Fast Acting 1A 250V 6.3 X 32mm Glass
Tax included.

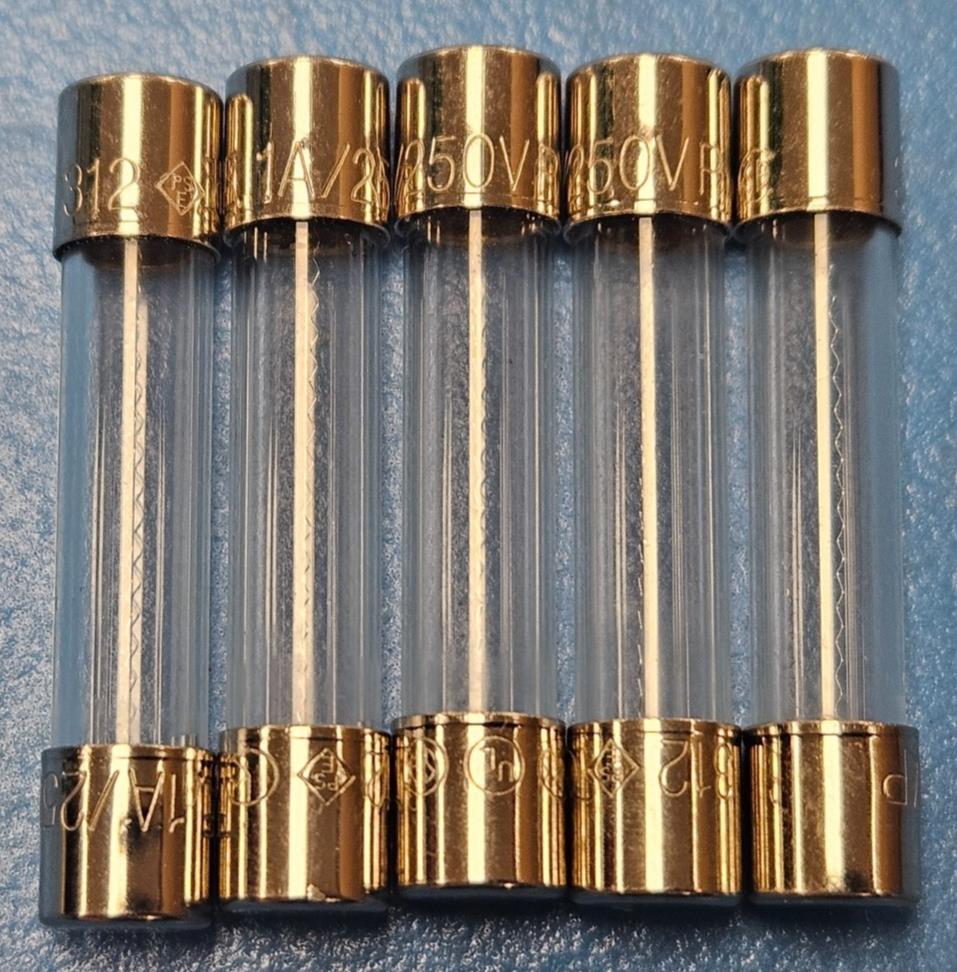

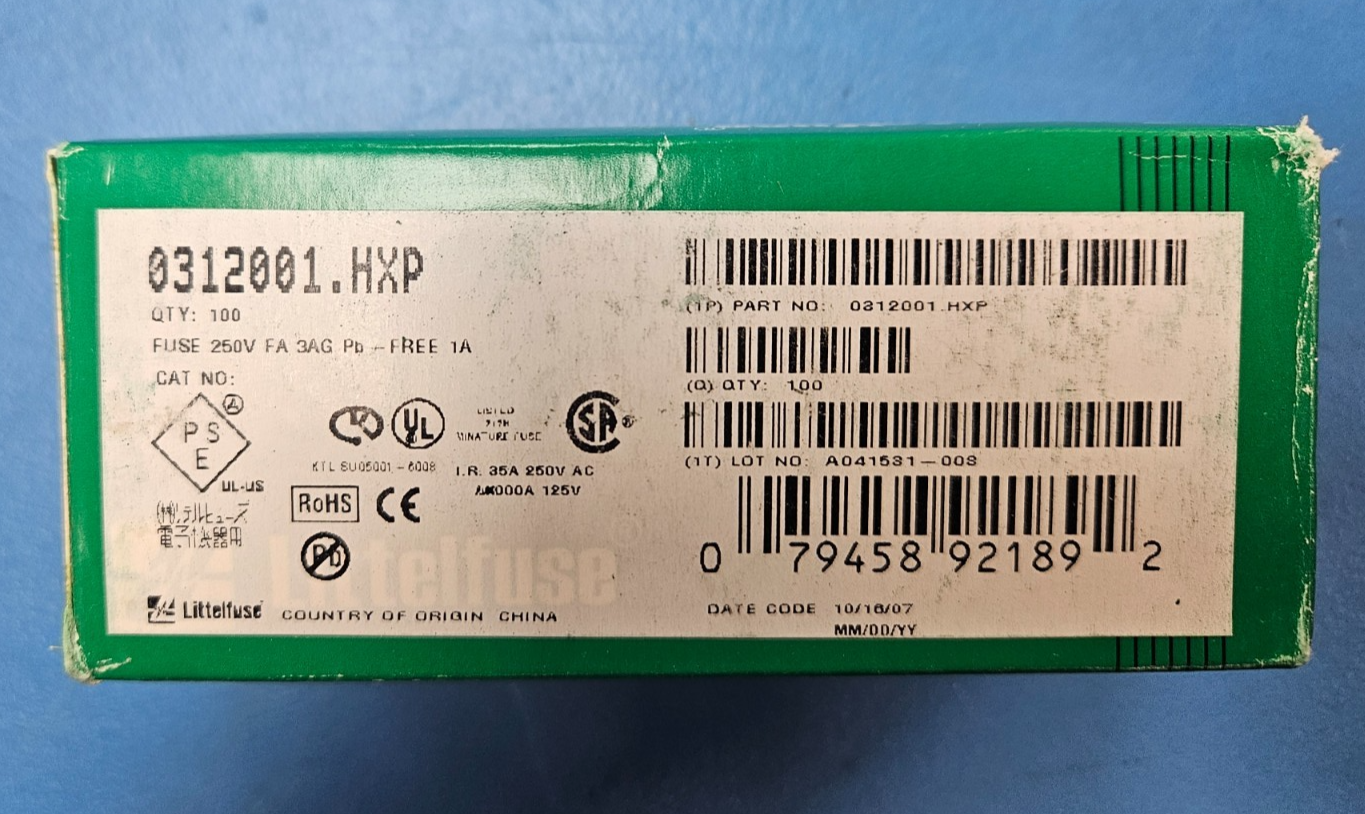

This listing is for 10 Fuses 0312001.HXP by Littelfuse
Status Active
Blow Characteristic FAST
Body Height (mm) 31.7500
Body Length or Diameter (mm) 6.3500
Circuit Protection Type ELECTRIC FUSE
Fuse Size 3AG
Joule-integral-Nom (J) 0.76000000
Mounting Feature INLINE/HOLDER
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -55
Packing Method BULK
Rated Breaking Capacity (A) 35.00000000
Rated Current (A) 1.00000000
Rated Voltage (AC) (V) 250.00000000
Screening Level / Reference Standard CE; CSA; KC; PSE; UL
Terminal Finish Nickel (Ni)
Terminal Shape END CAP
Trip Time or Delay (Seconds) 5.000000000000000
