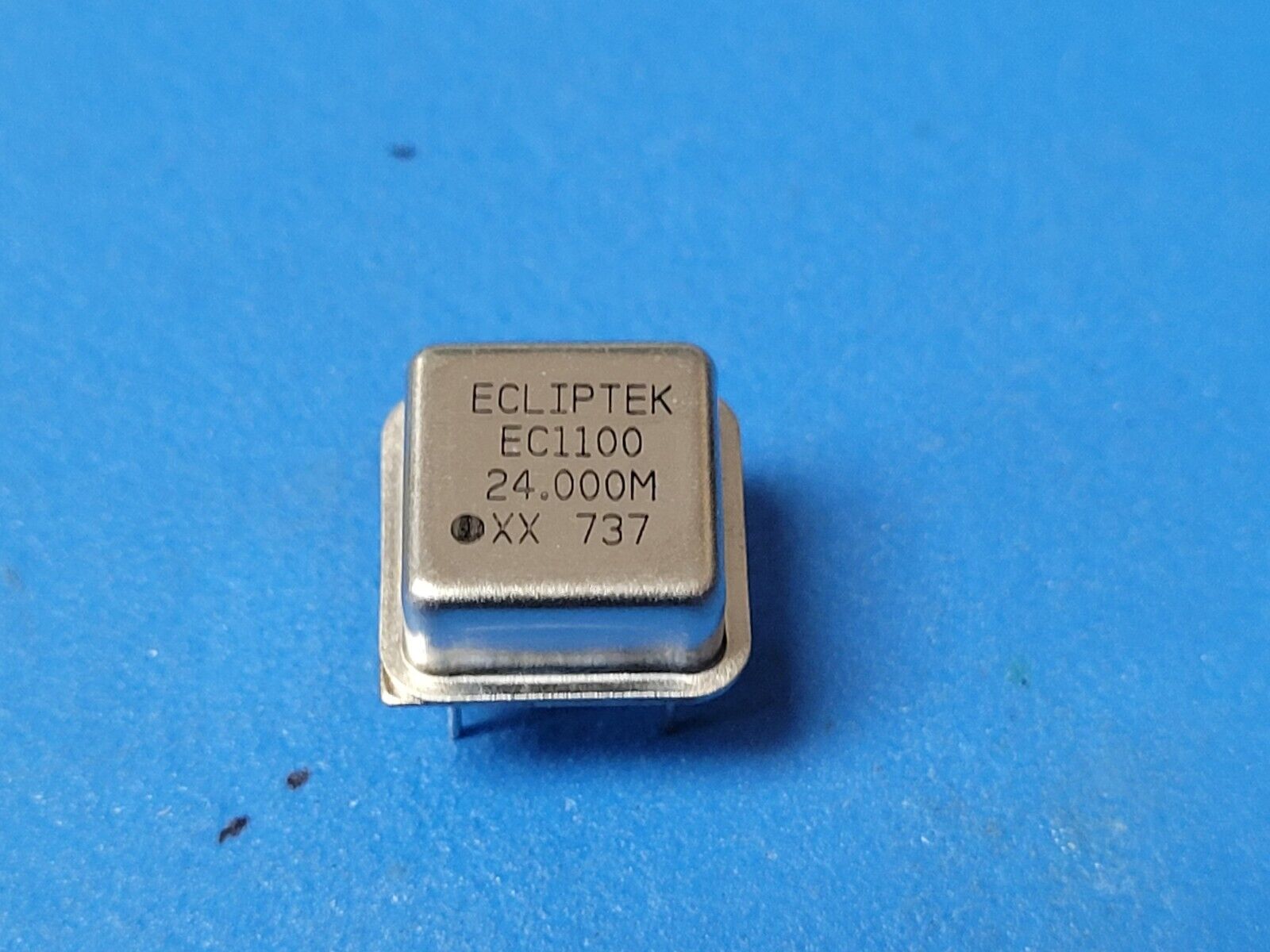

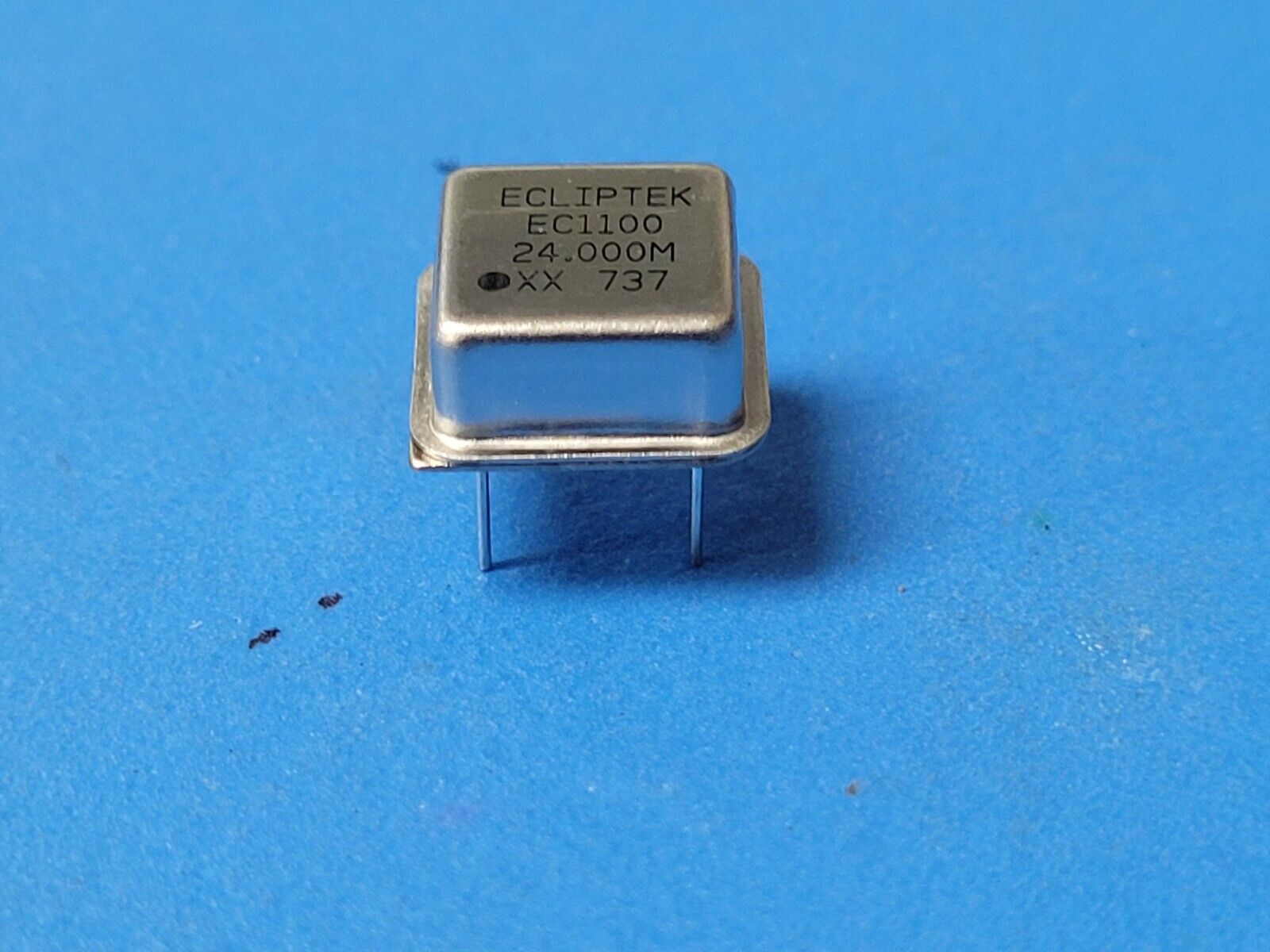

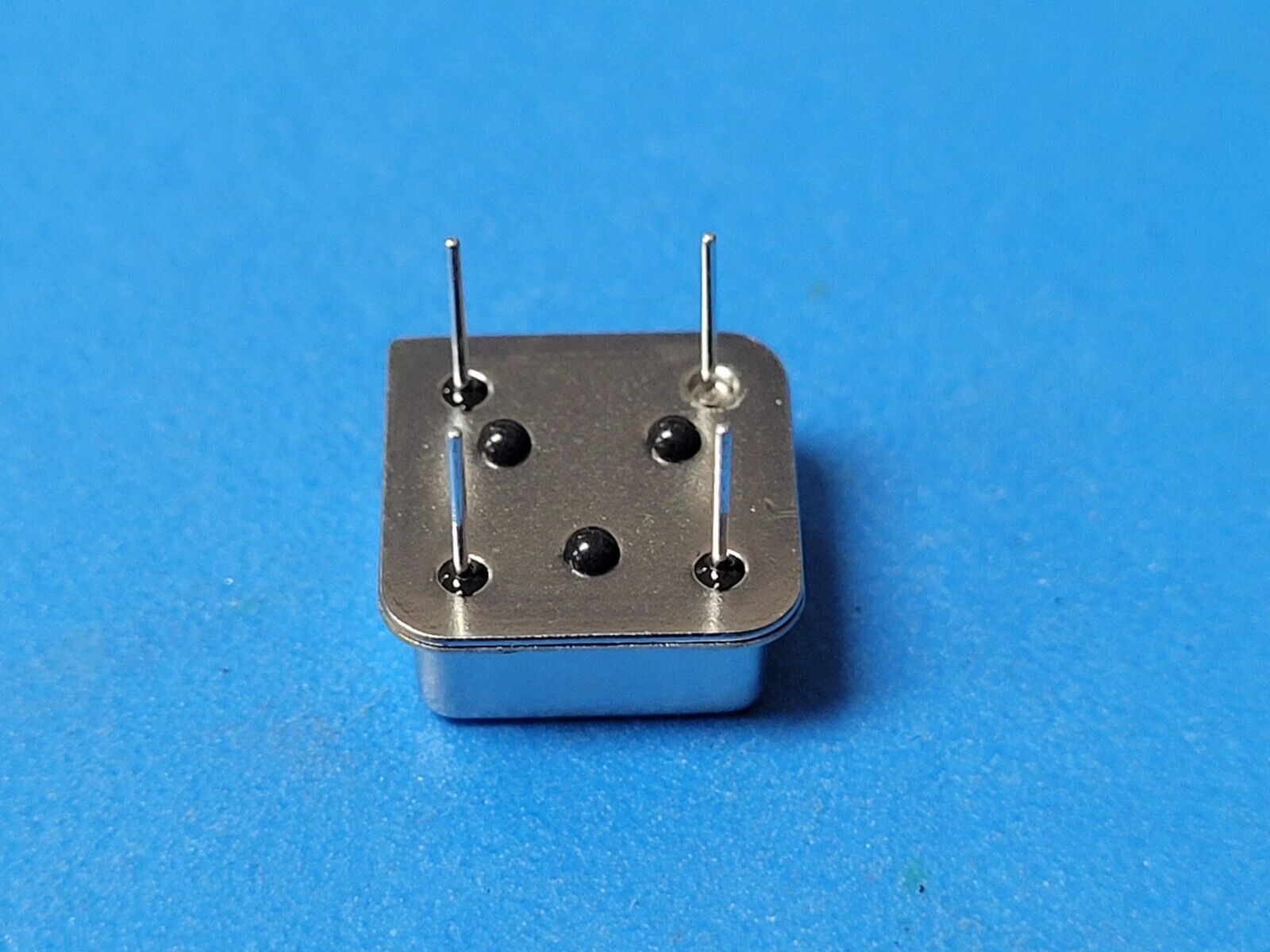

(10) EC1100-24.000M Ecliptek Clock Oscillator, 24MHz Nom 20.8mm x 13.2mm x 5.0mm

$14.95
Unit price per

Tax included.

THIS IS FOR (10 PCS) OF EC1100-24.000M BY Ecliptek

Clock Oscillator, 24MHz Nom 20.8mm x 13.2mm x 5.0mm

Part #: EC1100-24.000M

Part Category: Oscillators

Manufacturer: Ecliptek Corporation

Description: HCMOS/TTL Output Clock Oscillator, 24MHz Nom

Mfr Package Description ROHS COMPLIANT, DIP-14/4

REACH Compliant Yes

EU RoHS Compliant Yes

Status Discontinued

Oscillator Type HCMOS/TTL

Fall Time-Max 6.0 ns

Frequency Adjustment-Mechanical NO

Frequency Stability 100.0 ppm

JESD-609 Code e3

Mounting Feature THROUGH HOLE MOUNT

Number of Terminals 14

Operating Frequency-Nom 24.0 MHz

Operating Temperature-Min 0.0 Cel

Operating Temperature-Max 70.0 Cel

Output Load 10 TTL, 50 pF

Physical Dimension 20.8mm x 13.2mm x 5.08mm

Rise Time-Max 6.0 ns

Supply Voltage-Nom 5.0 V

Supply Voltage-Min 4.5 V

Supply Voltage-Max 5.5 V

Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
