(10) AT-51CD2-4.000M NIHON DEMPA Quartz SMD T3 Crystal, 4MHZ 25/50ppm 10pF ROHS
Tax included.
THIS IS FOR (10 PCS) OF AT-51CD2-4.000M BY NIHON DEMPA

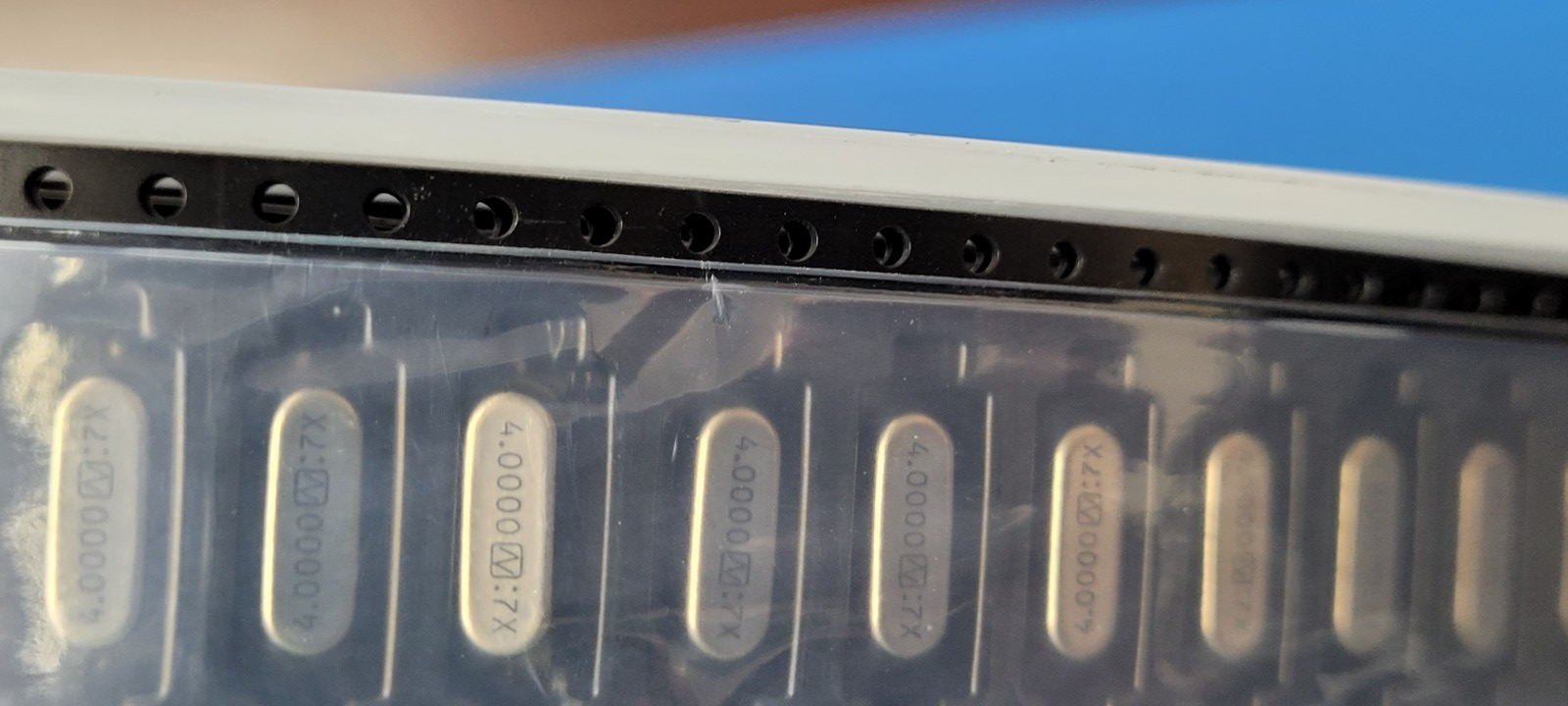

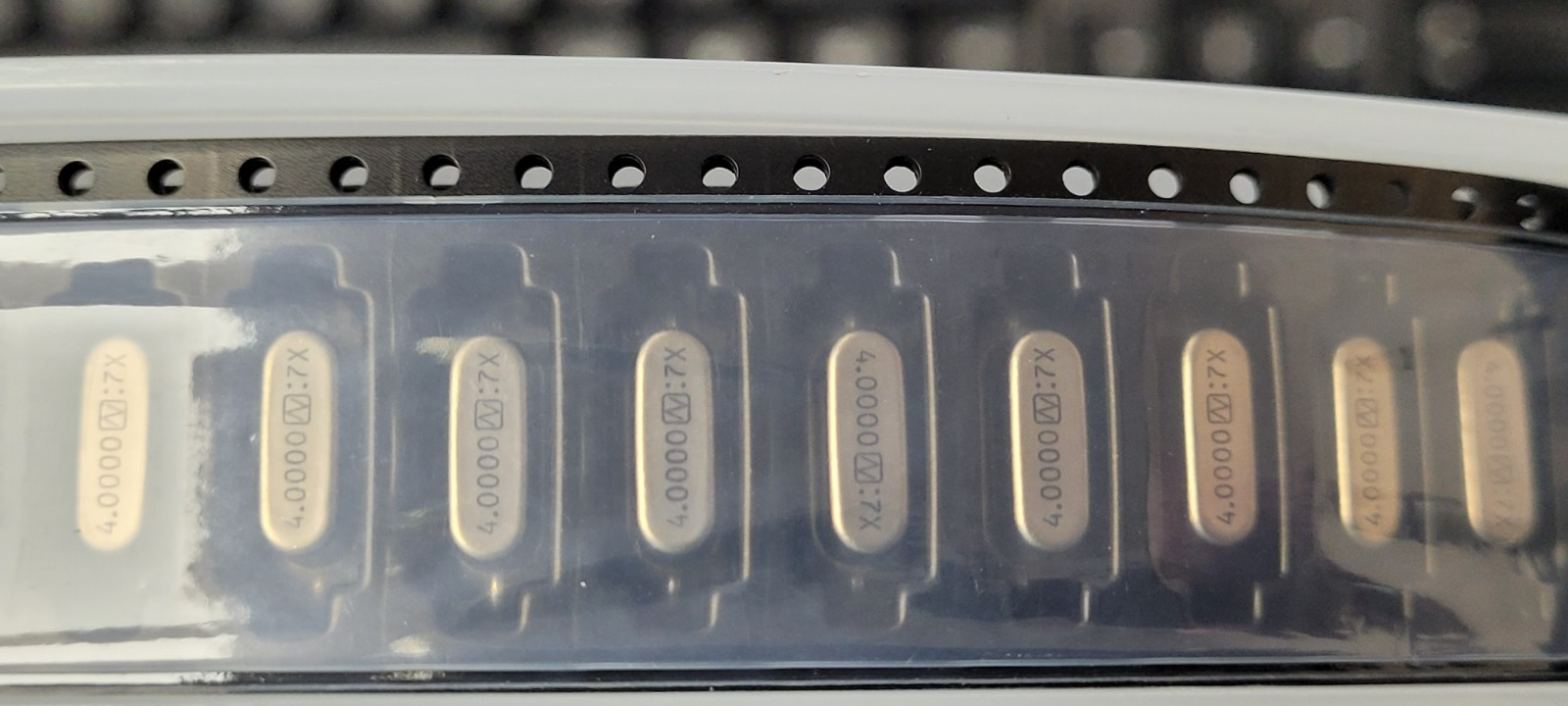

Quartz SMD T3 Crystal, 4MHZ 25/50ppm 10pF ROHS
Part #: AT-51CD2-4.000M-STD-PFV-2
Obsolete
Part Category: Quartz Crystals
Manufacturer: NIHON DEMPA KOGYO CO LTD
Description: Parallel - Fundamental Quartz Crystal, 4MHz Nom
Status Discontinued
Crystal/Resonator Type PARALLEL - FUNDAMENTAL
Drive Level (uW) 50.0000
Frequency Stability (ppm) 30.0000
Frequency Tolerance (ppm) 20.00000000
Load Capacitance (pF) 16.0000
Mounting Feature SURFACE MOUNT
Operating Frequency-Nom (MHz) 4.00000000
Operating Temperature-Max (Cel) 70
Operating Temperature-Min (Cel) -10
Physical Dimension 11.4mm x 4.7mm x 5.5mm
Series Resistance (ohm) 120
