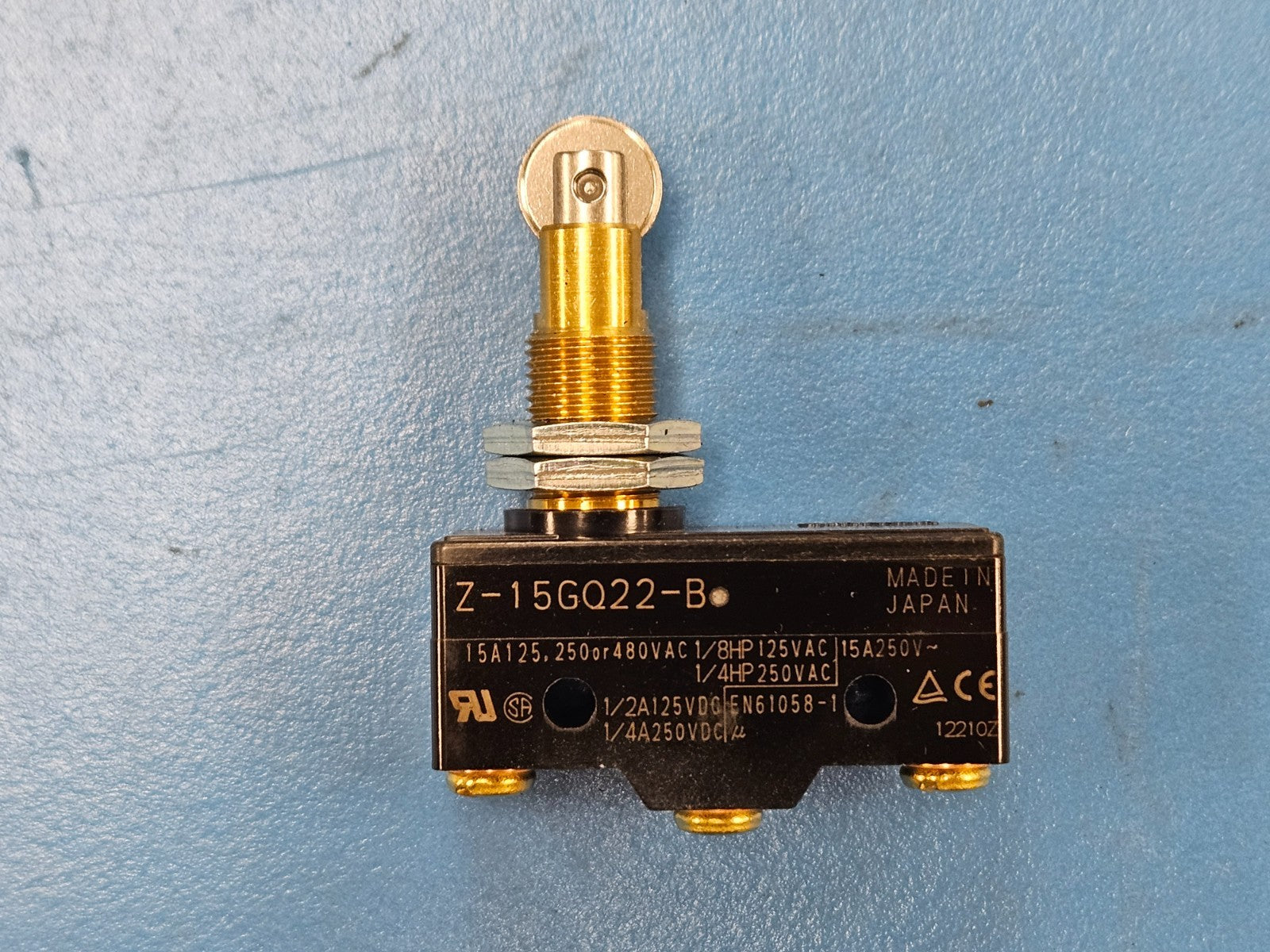

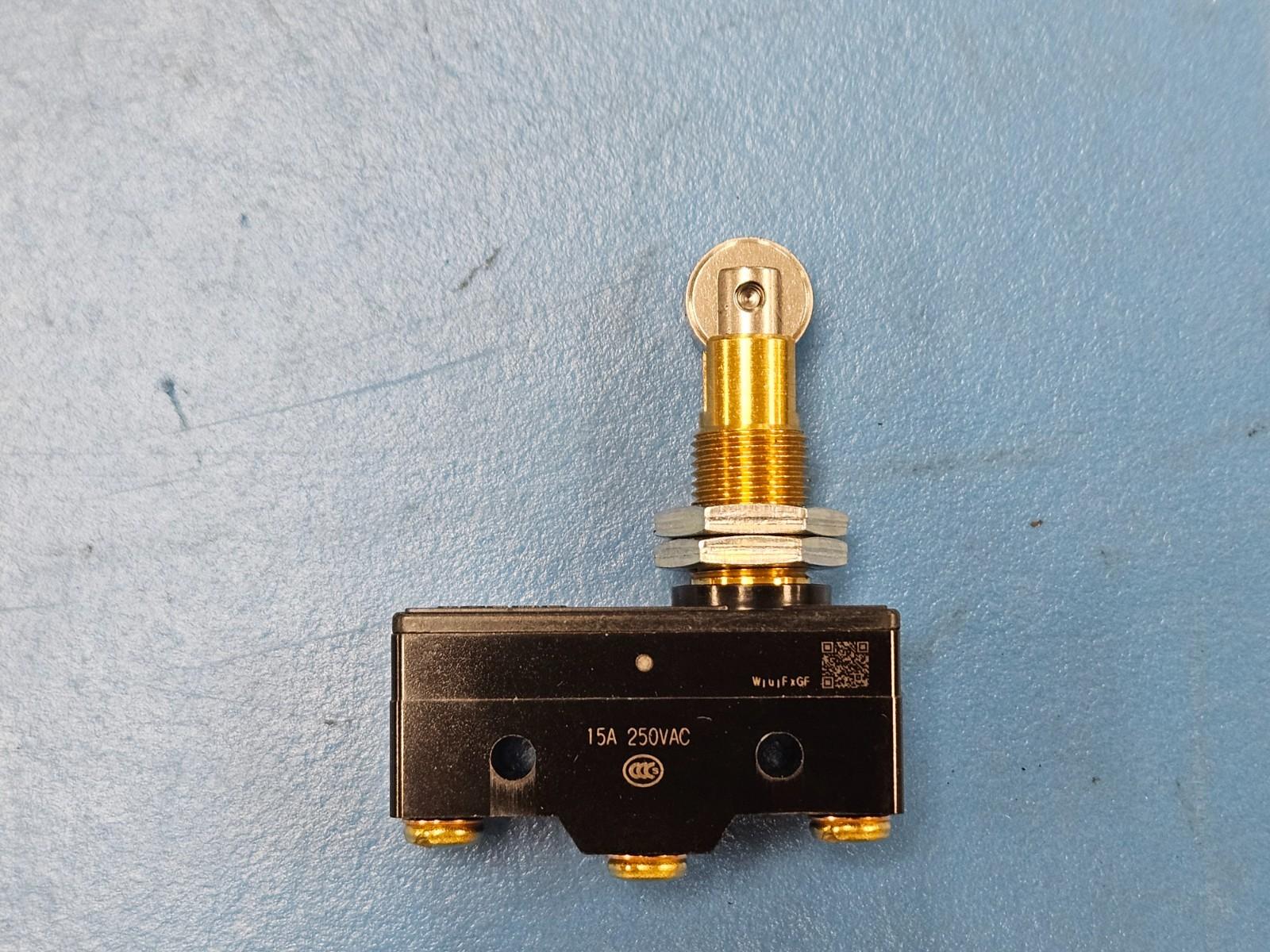

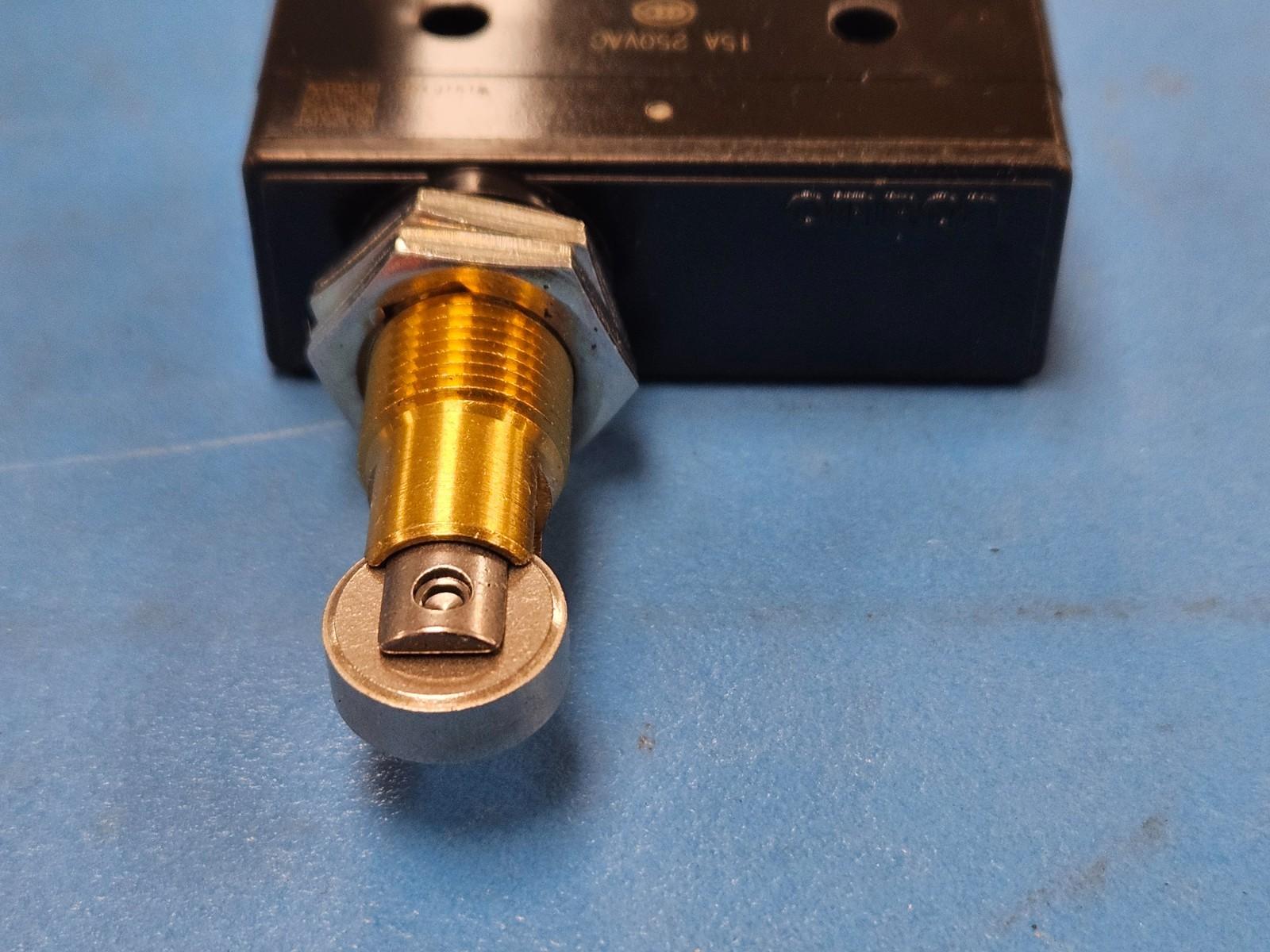

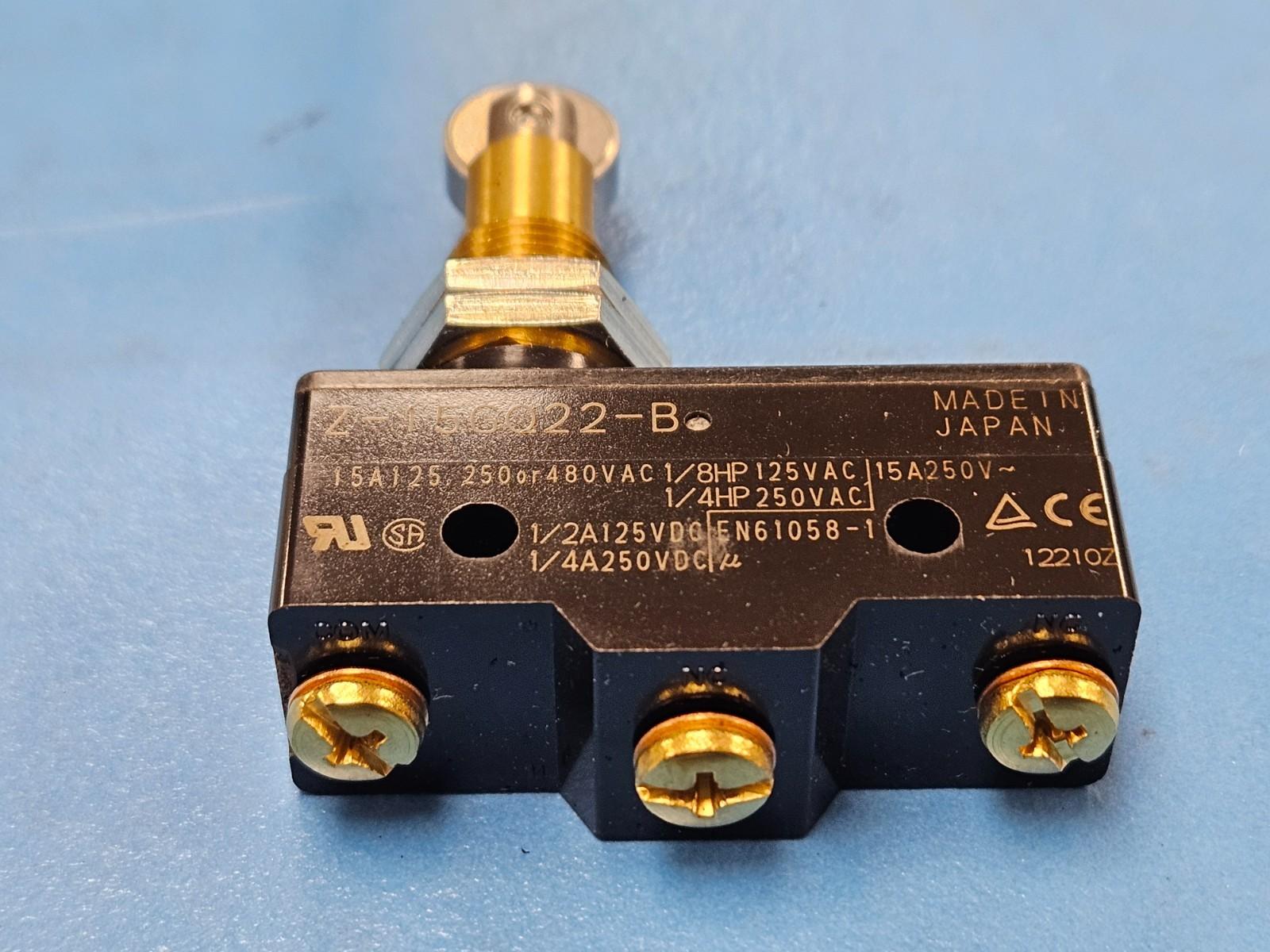

(1) Z-15GQ22-B OMRON Snap Acting/Limit Switch, SPDT, 15A, 14VDC, Roller Plunger
Tax included.

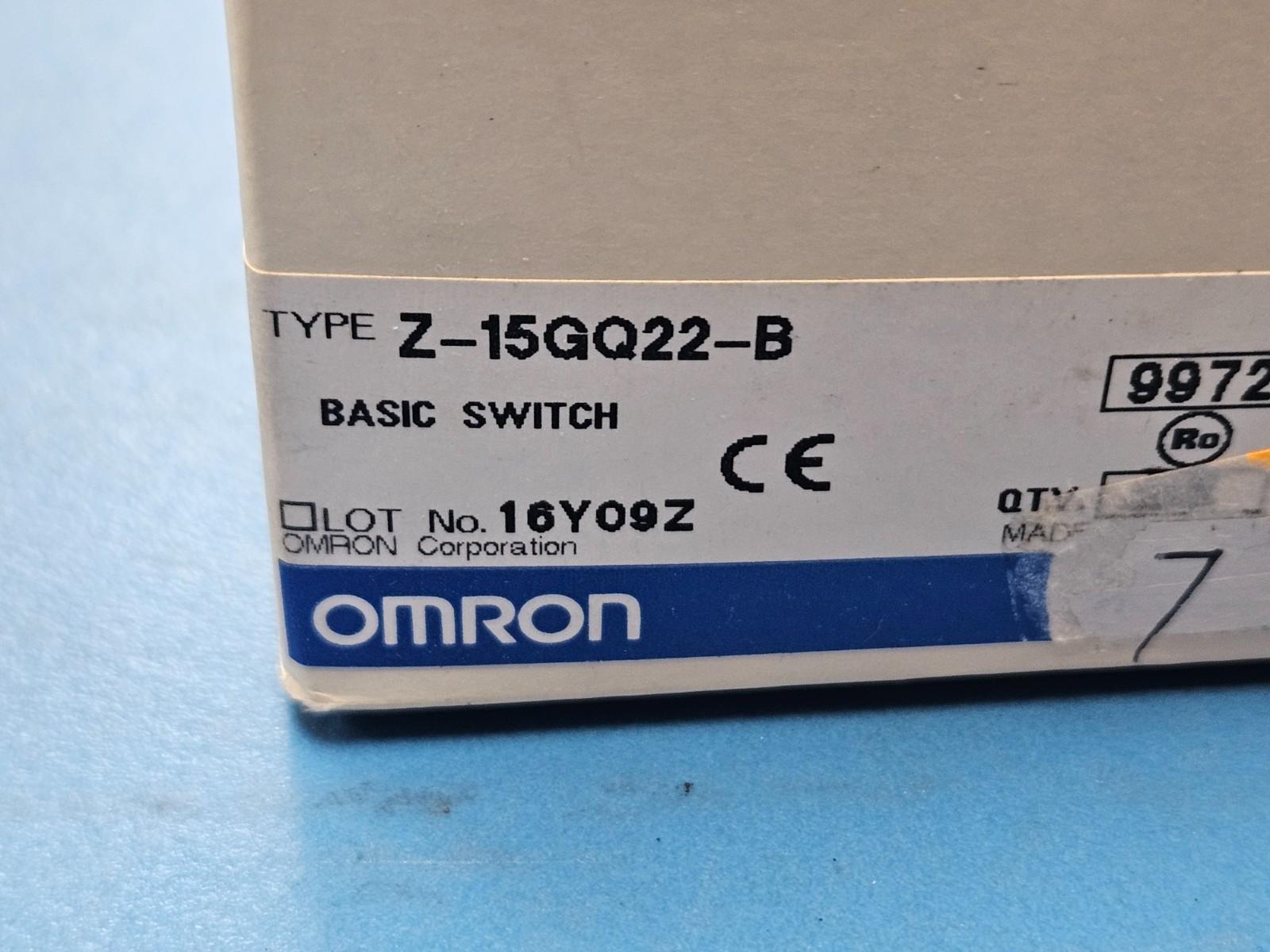

This listing is for (1PC) of Z-15GQ22-B by OMRON
Status Discontinued
Actuator Travel (mm) 3.62
Actuator Type PLUNGER
Body Breadth (mm) 17.4500
Body Height (mm) 25.5000
Body Length or Diameter (mm) 49.2000
Contact AC Max Rating R Load 15A@250VAC
Contact Current(AC)-Max (A) 15.00000000
Contact Current(DC)-Max (A) 15.00000000
Contact DC Max Rating R Load 15A@14VDC
Contact Voltage(AC)-Max (V) 250.00000000
Contact Voltage(DC)-Max (V) 14.00000000
Electrical Life (Cycle(s)) 500000
Mounting Feature PANEL MOUNT
Operating Force-Max (N) 3.4300
Operating Temperature-Max (Cel) 80
Operating Temperature-Min (Cel) -25
Pre-Travel-Max (mm) 0.4000
Sealing IP00
Switch Action MOMENTARY
Switch Function SPDT
Switch Type SNAP ACTING/LIMIT SWITCH
Termination Type SCREW
