(1) XC4005-6PG156C XILINX FPGA 196 CLBs 4000 Gates 90.9MHz 196-Cell CMOS CPGA156
(1) XC4005-6PG156C XILINX FPGA 196 CLBs 4000 Gates 90.9MHz 196-Cell CMOS CPGA156

(1) XC4005-6PG156C XILINX FPGA 196 CLBs 4000 Gates 90.9MHz 196-Cell CMOS CPGA156

Tax included.
Only 14 left!

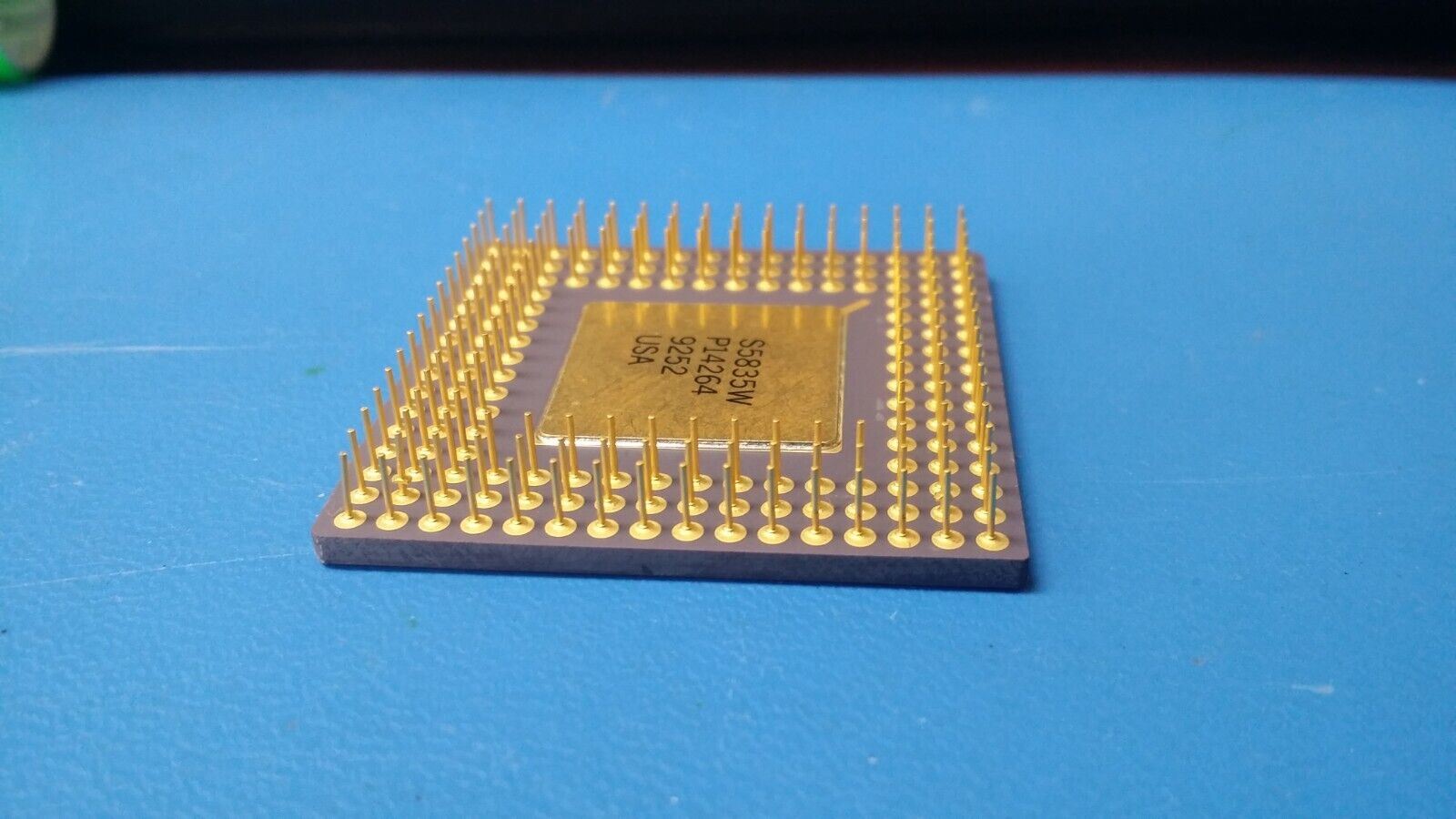

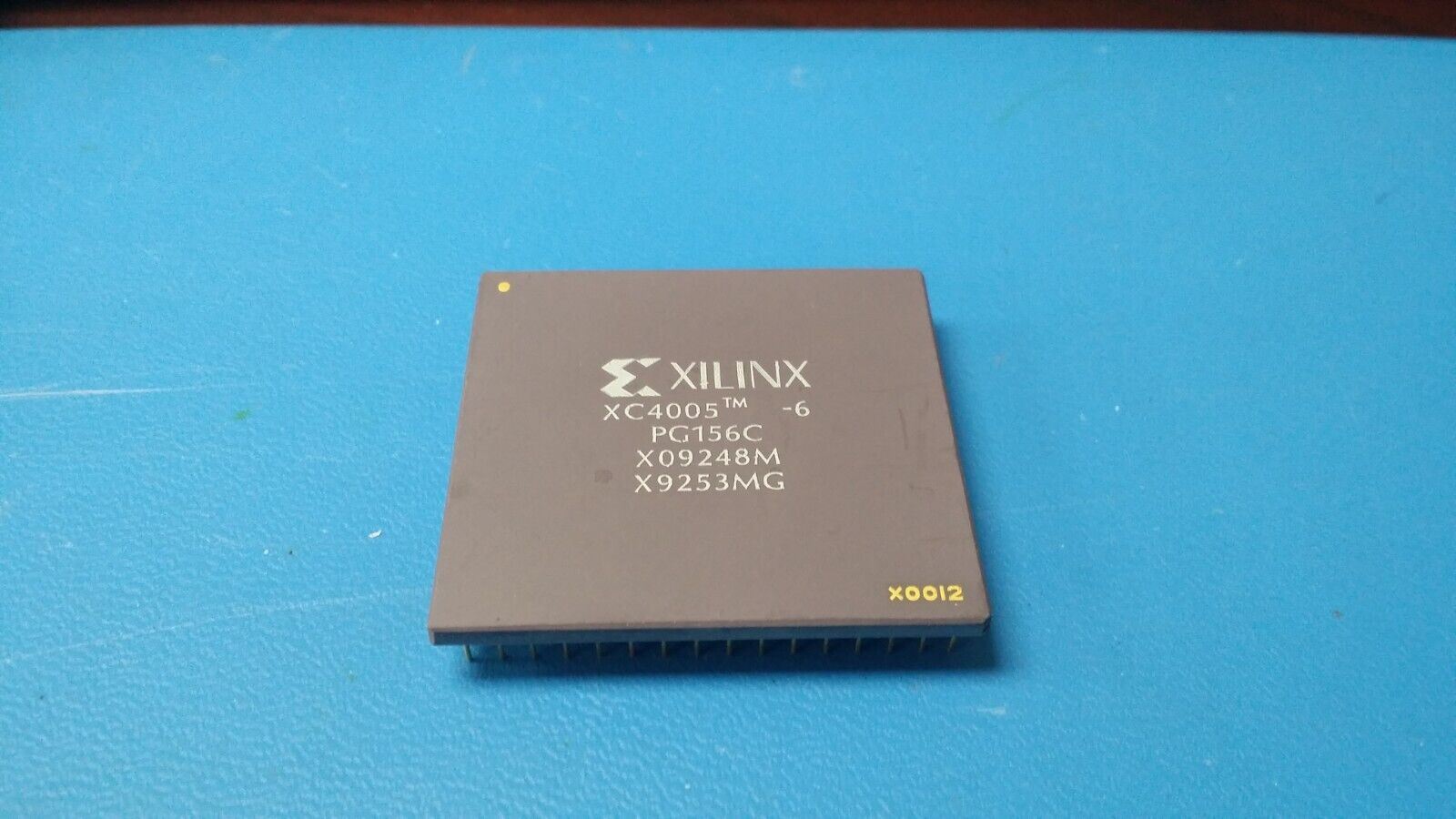

THIS IS FOR (1 PC) OF XC4005-6PG156C BY XILINX
Field Programmable Gate Array, 196 CLBs, 4000 Gates, 90.9MHz, 196-Cell, CMOS, CPGA156

Part #: XC4005-6PG156C
Part Category: Programmable Logic ICs
Manufacturer: Xilinx, Inc.
Description: Field Programmable Gate Array, 196 CLBs, 4000 Gates, 90.9MHz, 196-Cell, CMOS, CPGA156

Mfr Package Description CERAMIC, PGA-156
EU RoHS Compliant Yes
Status Discontinued
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Clock Frequency-Max 90.9  MHz
Combinatorial Delay of a CLB-Max 6.0  ns
JESD-30 Code S-CPGA-P156
JESD-609 Code e3
Number of CLBs 196.0
Number of Equivalent Gates 4000.0
Number of Inputs 112.0
Number of Logic Cells 196.0
Number of Outputs 112.0
Number of Terminals 156
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 85.0  Cel
Organization 196 CLBS, 4000 GATES
Package Body Material CERAMIC, METAL-SEALED COFIRED
Package Code PGA
Package Equivalence Code PGA156,16X16
Package Shape SQUARE
Package Style GRID ARRAY
Power Supplies 5
Qualification Status Not Qualified
Seated Height-Max 3.683  mm
Sub Category Field Programmable Gate Arrays
Supply Voltage-Nom 5.0  V
Supply Voltage-Min 4.75  V
Supply Voltage-Max 5.25  V
Surface Mount NO
Technology CMOS
Temperature Grade OTHER
Terminal Finish MATTE TIN
Terminal Form PIN/PEG
Terminal Pitch 2.54  mm
Terminal Position PERPENDICULAR
Length 42.164  mm
Width 42.164  mm
Additional Feature 616 FLIP-FLOPS; TYP. GATES 4000-5000
