(1) V23826-K305-C353-D3 Transceiver Module Ethernet 1.3Gbps 850nm 3.1V~3.5V
Tax included.

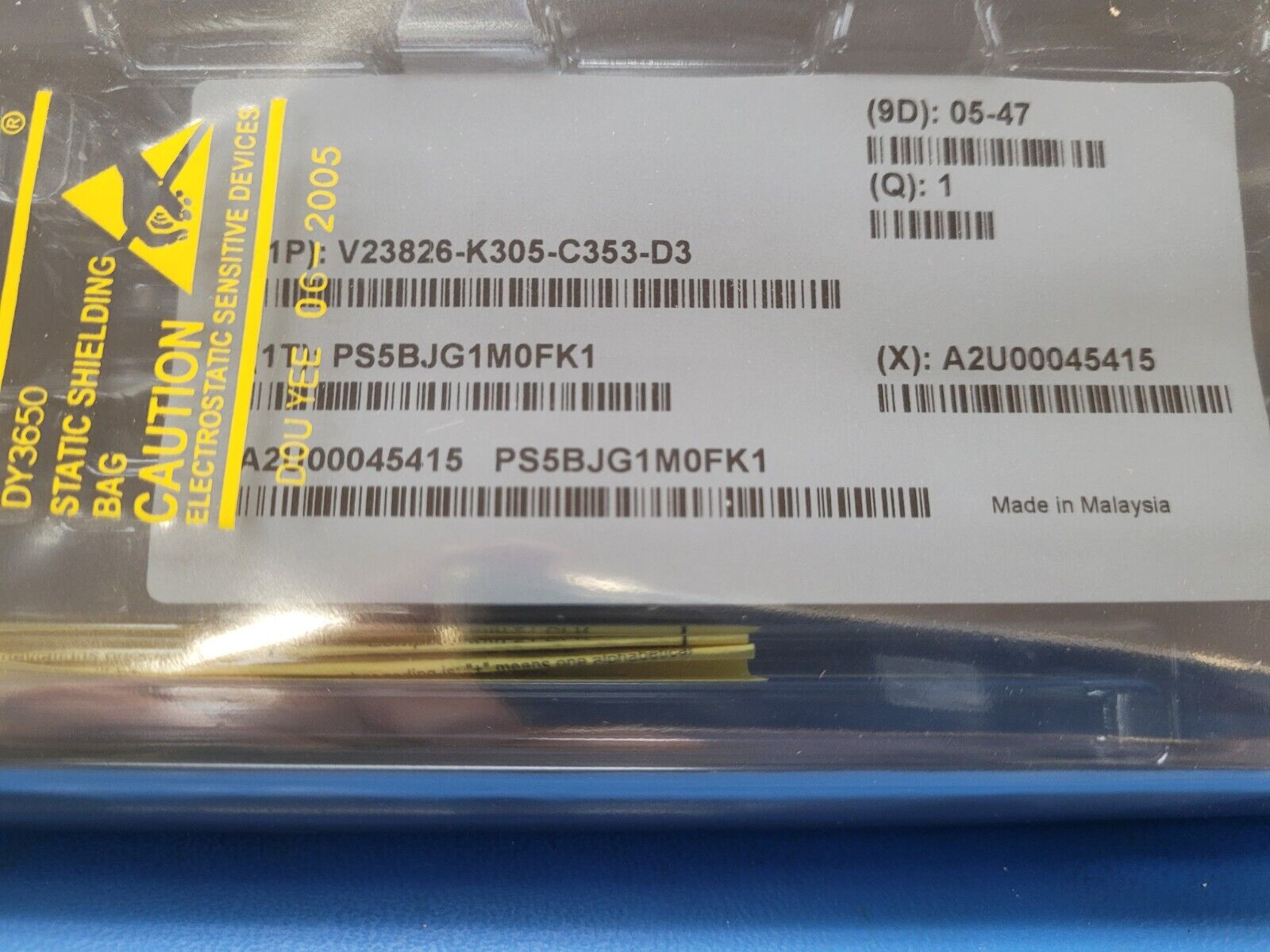

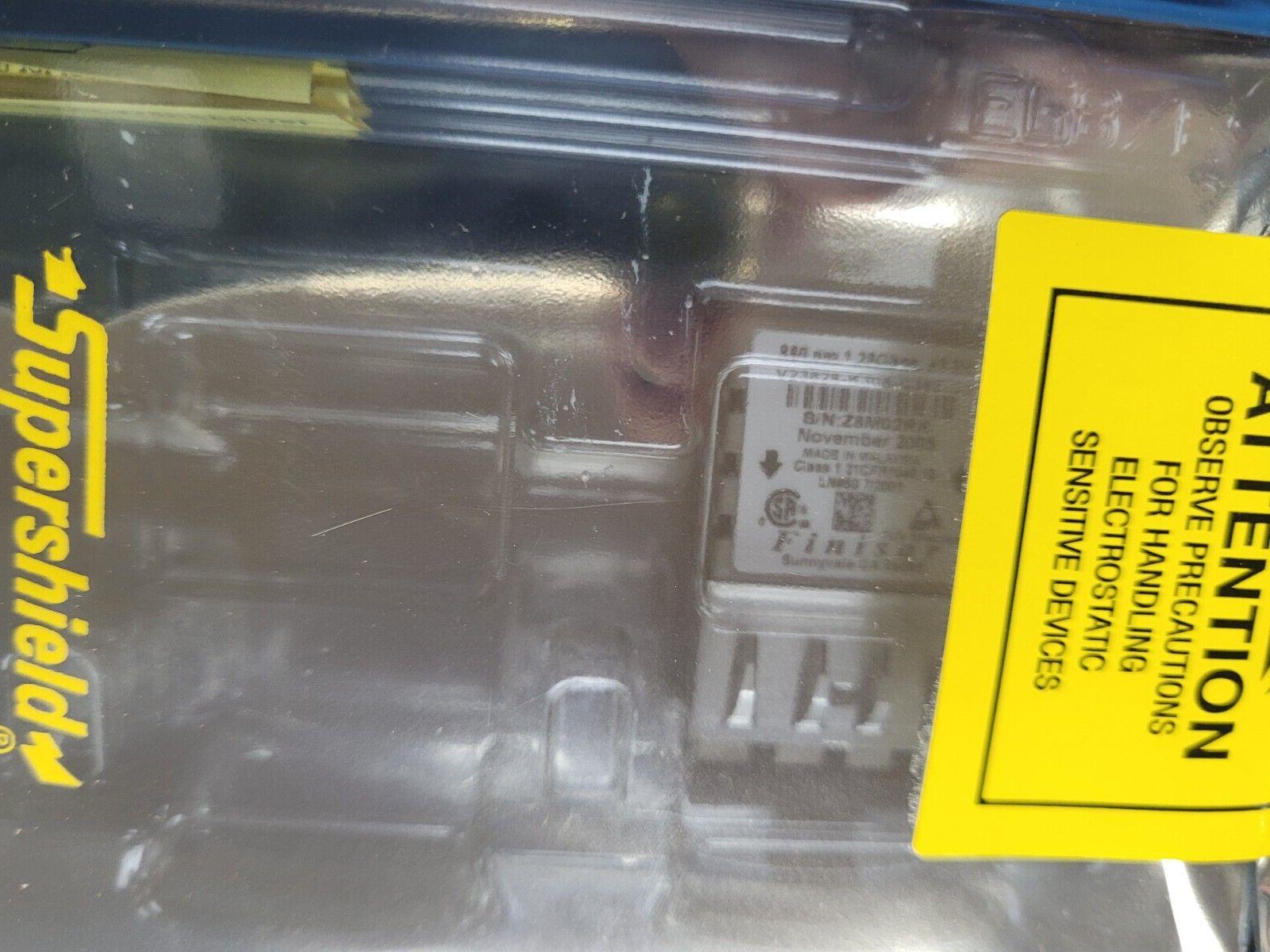

THIS LISTING IS FOR (1) V23826-K305-C353-D3 BY FINISAIR
Mfr Package Description 9.80 MM HEIGHT MODULE
Status Discontinued
Fiber Optic Device Type TRANSCEIVER
Emitter/Detector Type LASER
Fiber Type 50, 62.5, MMF
Body Breadth 25.4 mm
Body Height 9.8 mm
Body Length or Diameter 38.6 mm
Built-in Feature AMPLIFIER
Communication Standard GBE
Connection Type SC CONNECTOR
Data Rate (Rx) 1300.0 Mbps
Data Rate (Tx) 1300.0 Mbps
Mounting Feature THROUGH HOLE MOUNT
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Operating Wavelength-Nom 850.0 nm
Operating Wavelength-Min 830.0 nm
Operating Wavelength-Max 860.0 nm
Optical Power Output-Nom 0.211 mW
Return Loss-Min 12.0 dB
Sensitivity -20.0 dBm
Sub Category Fiber Optic Transceivers
Supply Voltage-Nom 3.3 V
Supply Voltage-Min 3.1 V
Supply Voltage-Max 3.5 V
Additional Feature IT ALSO HAS WAVELENGTH 770 TO 860 NM AND REFERENCE STD-FCC, FDA
