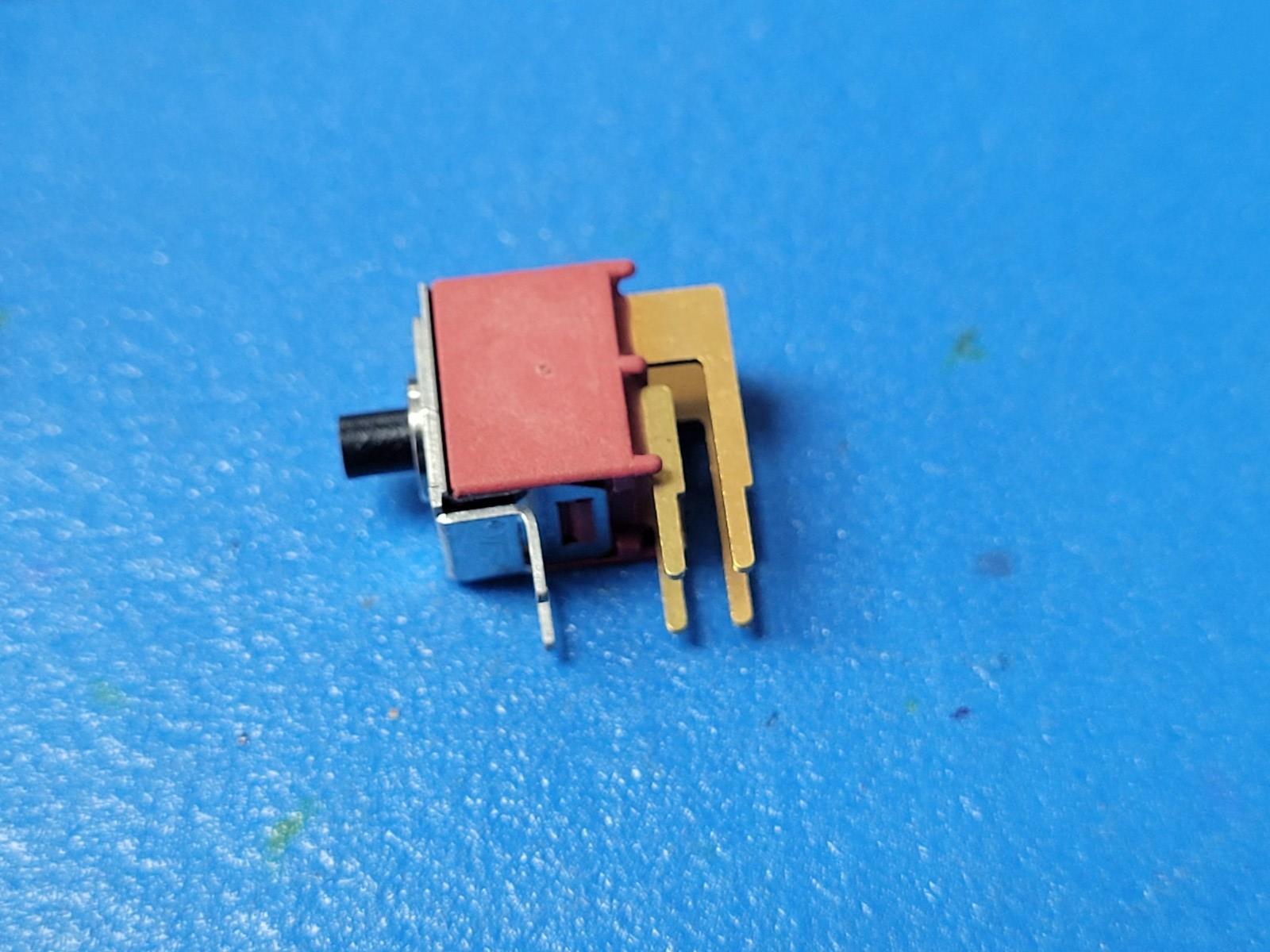

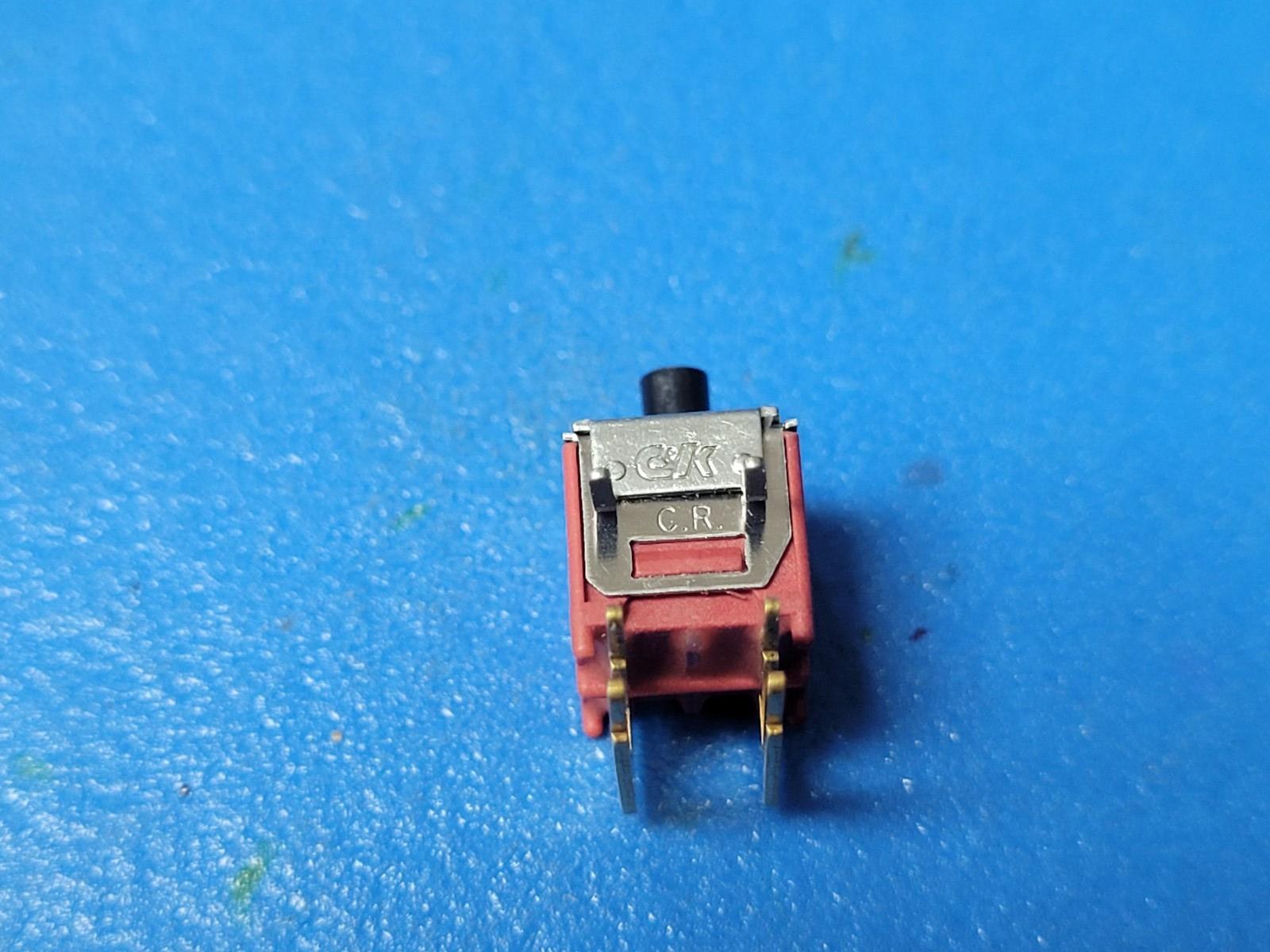

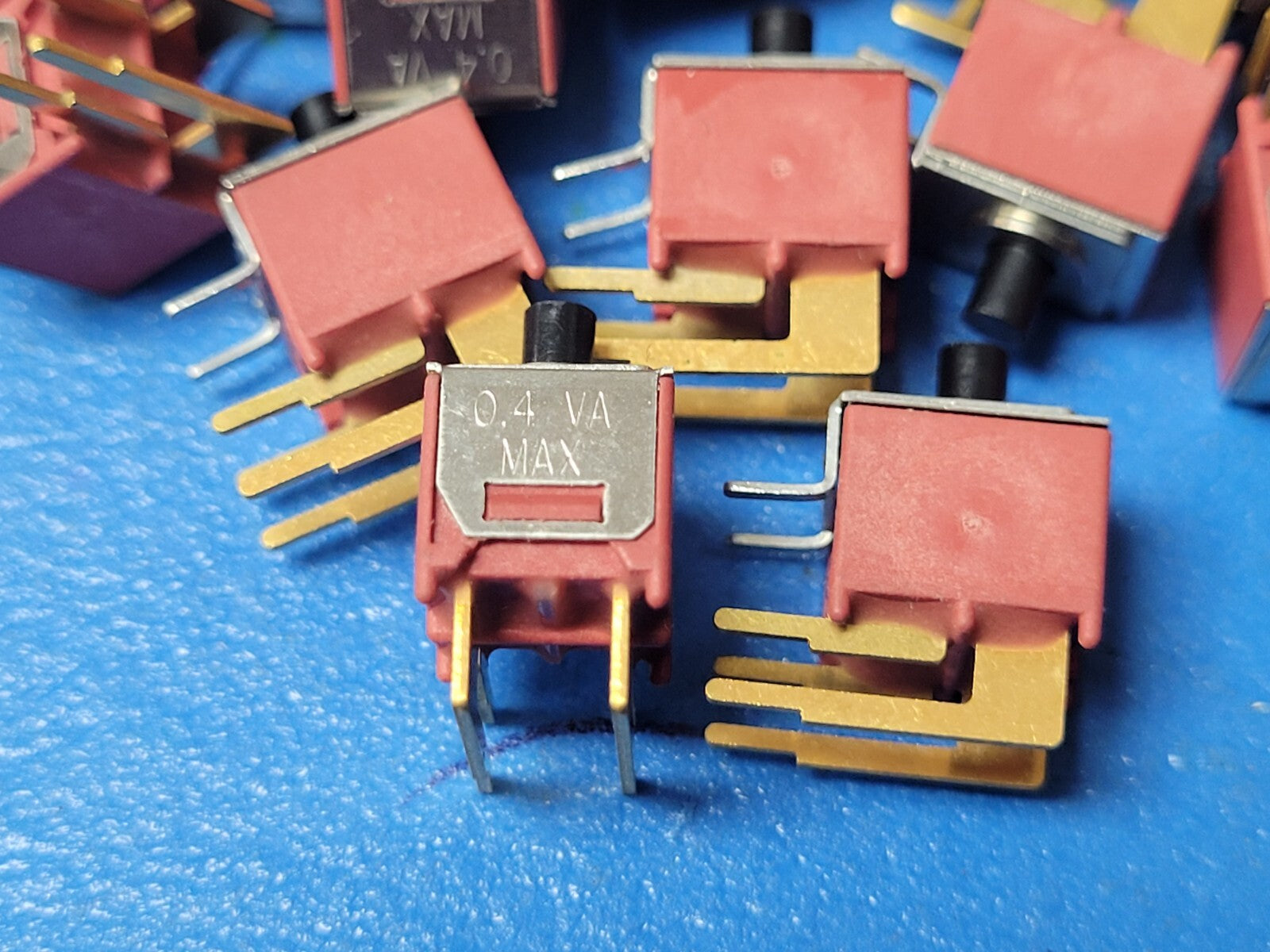

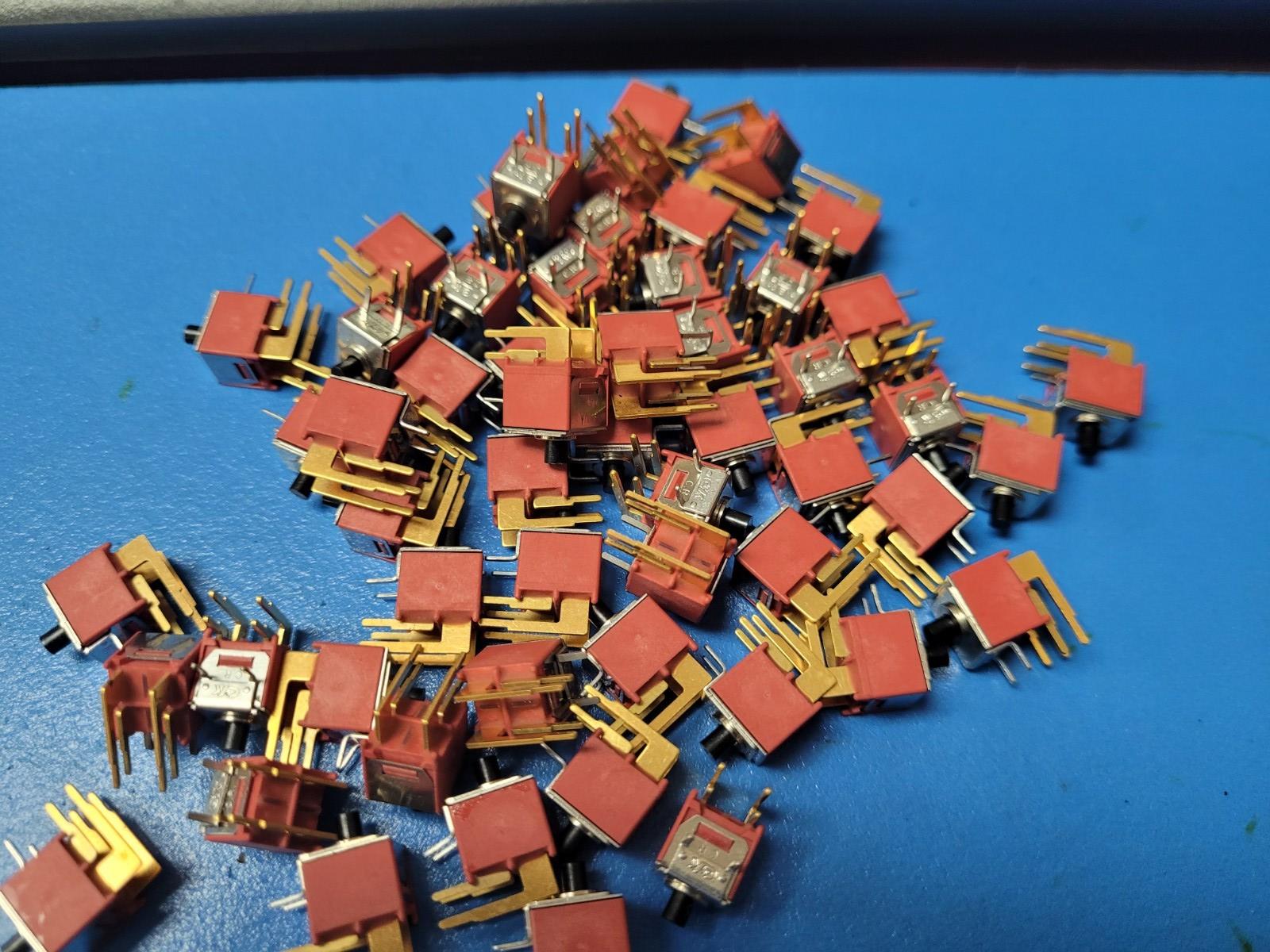

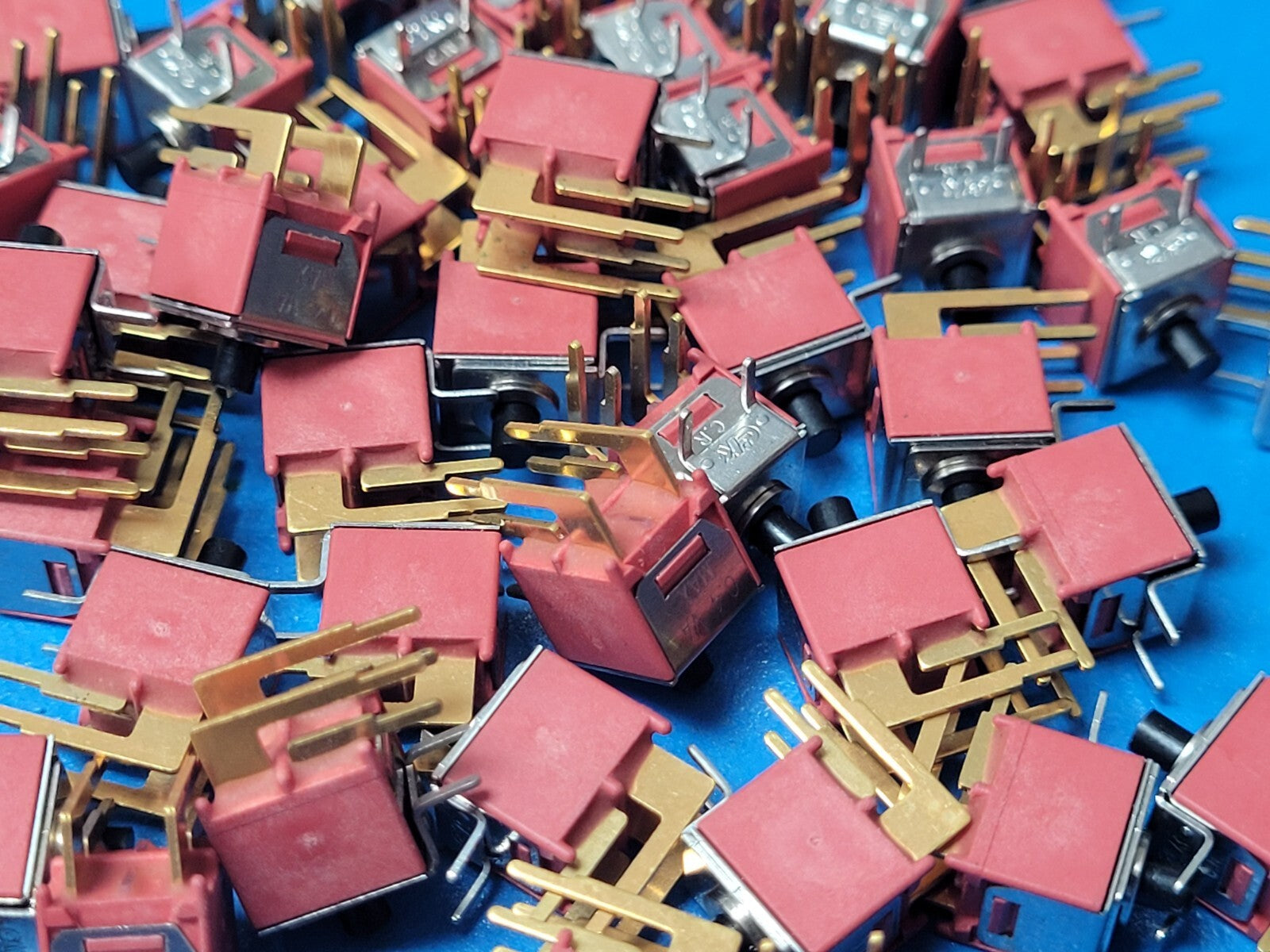

(1) TP21MS9ABE C&K Pushbutton Switch DPST Momentary 0.02A 20VDC Solder Term R/A
Tax included.

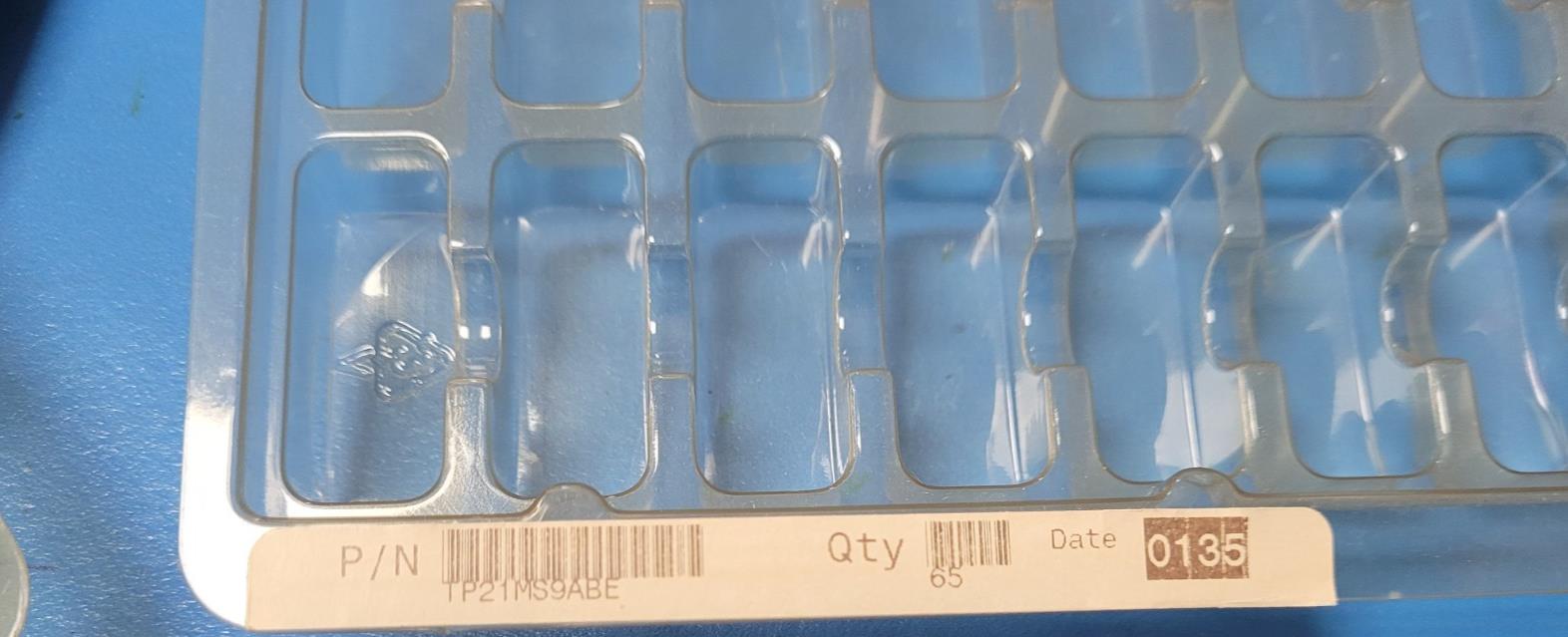

THIS IS FOR (1 PC) OF TP21MS9ABE BY C&K
Pushbutton Switch DPST Momentary 0.02A 20VDC Solder Term R/A
Mfr Package Description ROHS COMPLIANT
EU RoHS Compliant Yes
Status Active
Switch Type PUSHBUTTON SWITCH
Actuator Length 0.13 inch
Actuator Type ROUND PLUNGER
Body Breadth 8.13 mm
Body Height 9.14 mm
Body Length or Diameter 9.09 mm
Bushing Length 0.02 inch
Center Contact Material COPPER ALLOY
Center Contact Plating GOLD OVER NICKEL
Contact AC Max Power Rating R Load 0.4VA@20VAC
Contact AC Max Rating R Load .02A@20VAC
Contact Current(AC)-Max 0.02 A
Contact Current(DC)-Max 0.02 A
Contact DC Max Rating R Load .02A@20VDC
Contact Resistance 0.02 ohm
Contact Voltage(AC)-Max 20.0 V
Contact Voltage(DC)-Max 20.0 V
Electrical Life 60000.0 Cycle(s)
End Contact Material COPPER ALLOY
End Contact Plating GOLD OVER NICKEL
Housing Material STAINLESS STEEL
Insulation Resistance 1.0E9 ohm
JESD-609 Code e4
Mounting Feature THROUGH HOLE-RIGHT ANGLE
Operating Temperature-Min -30.0 Cel
Operating Temperature-Max 85.0 Cel
Sealing EPOXY TERMINAL SEALED
Solderability MIL-STD
Switch Action MOMENTARY
Switch Function DPST
Terminal Finish GOLD OVER NICKEL
Terminal Length 0.13 inch
Terminal Material COPPER ALLOY
Termination Type SOLDER
