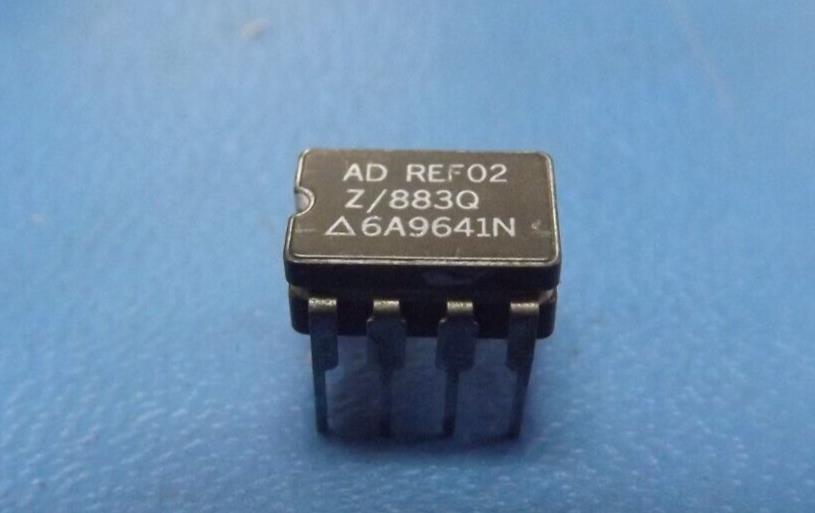

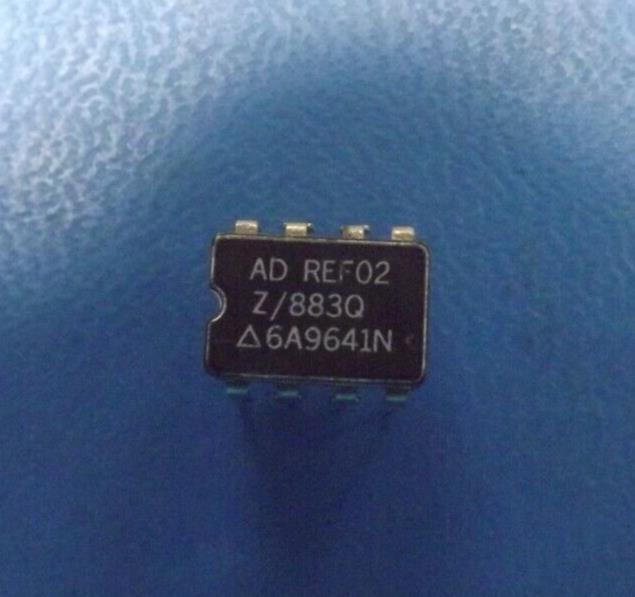

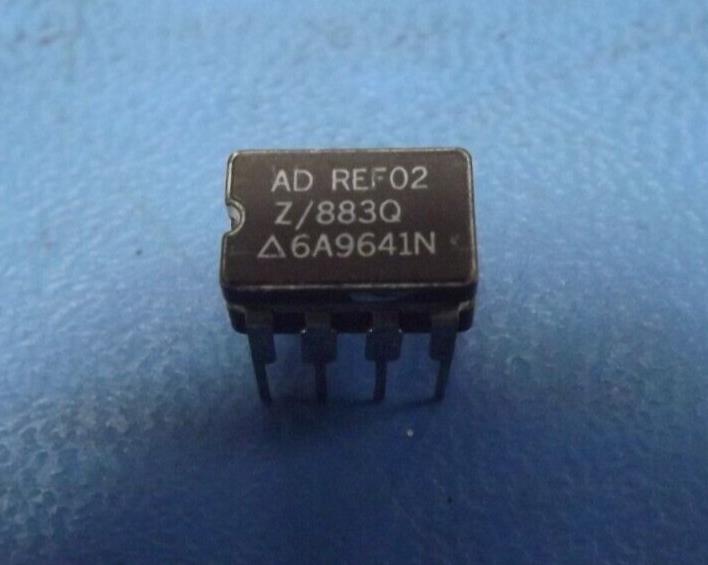

(1) REF02Z Voltage Reference, 1 Output, 5V, Trim/Adjustable, BIPolar, CDIP8
Tax included.
This listing is for (1pc) of REF02Z by Analog Devices
Mfr Package Description CERAMIC, DIP-8
Status Contact Mfr
Analog IC - Other Type THREE TERMINAL VOLTAGE REFERENCE
JESD-30 Code R-CDIP-T8
JESD-609 Code e0
Number of Functions 1
Number of Outputs 1.0
Number of Terminals 8
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Output Voltage-Nom 5.0 V
Output Voltage-Min 4.975 V
Output Voltage-Max 5.025 V
Package Body Material CERAMIC, METAL-SEALED COFIRED
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Screening Level MIL-STD-883
Seated Height-Max 5.08 mm
Sub Category Voltage References
Supply Voltage-Nom (Vsup) 15.0 V
Supply Voltage-Min (Vsup) 7.0 V
Supply Voltage-Max (Vsup) 33.0 V
Surface Mount NO
Technology BIPOLAR
Temp Coef of Voltage-Max 25.0 ppm/Cel
Temperature Grade N/A
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Voltage Tolerance-Max 0.5 %
Width 7.62 mm
Additional Feature OUTPUT VOLTAGE ADJUSTABLE 6 PERCENT
