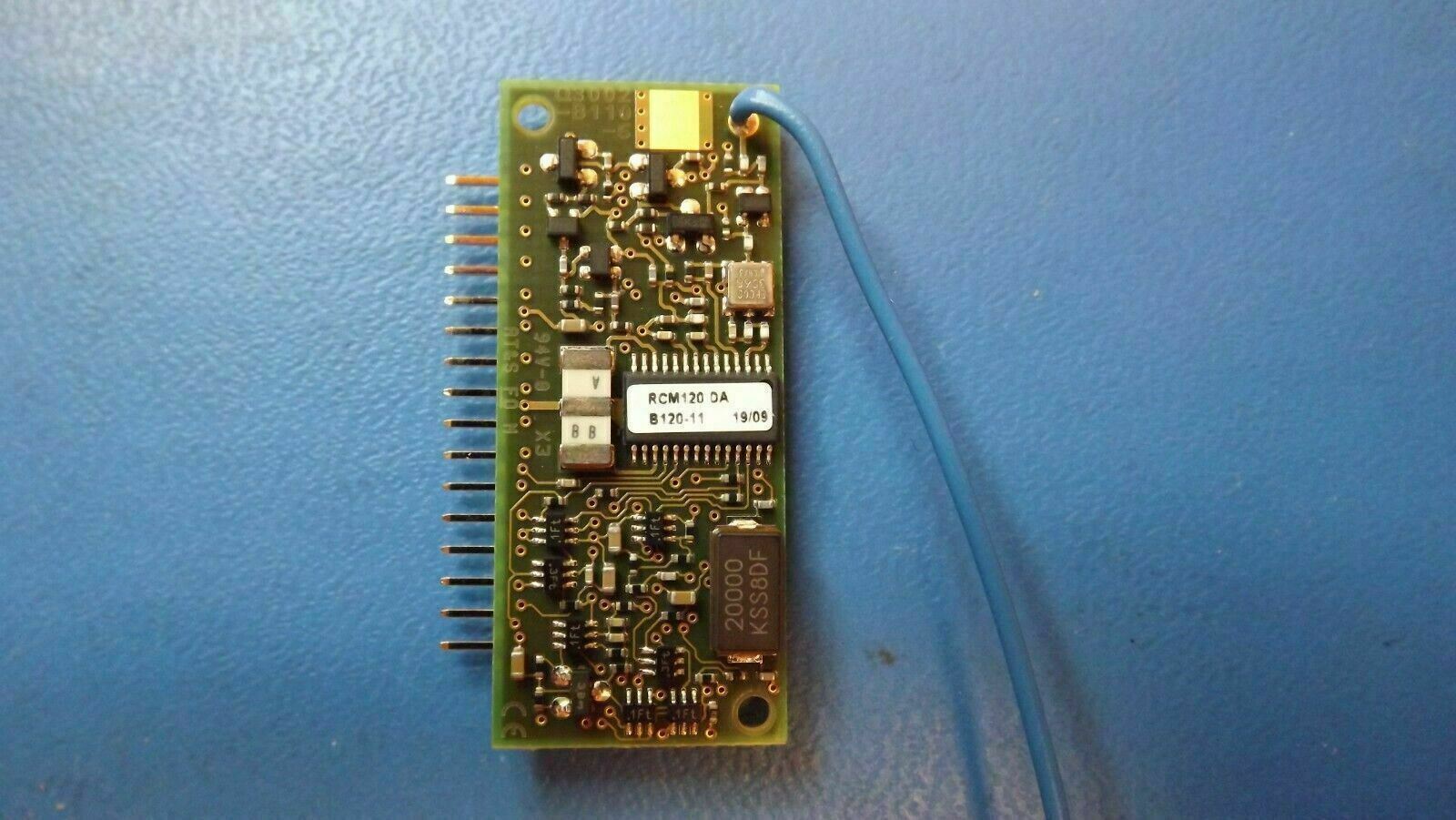

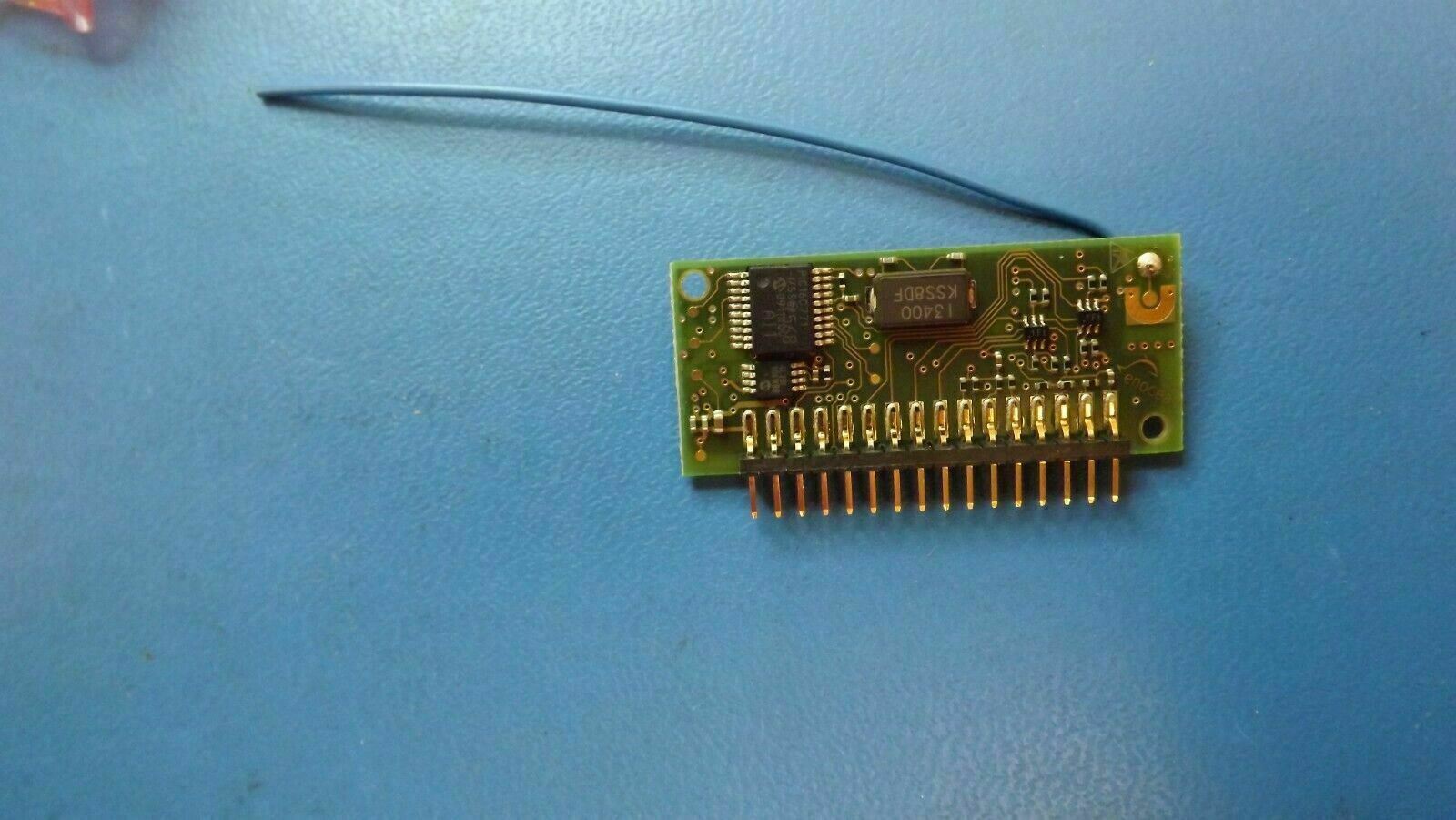

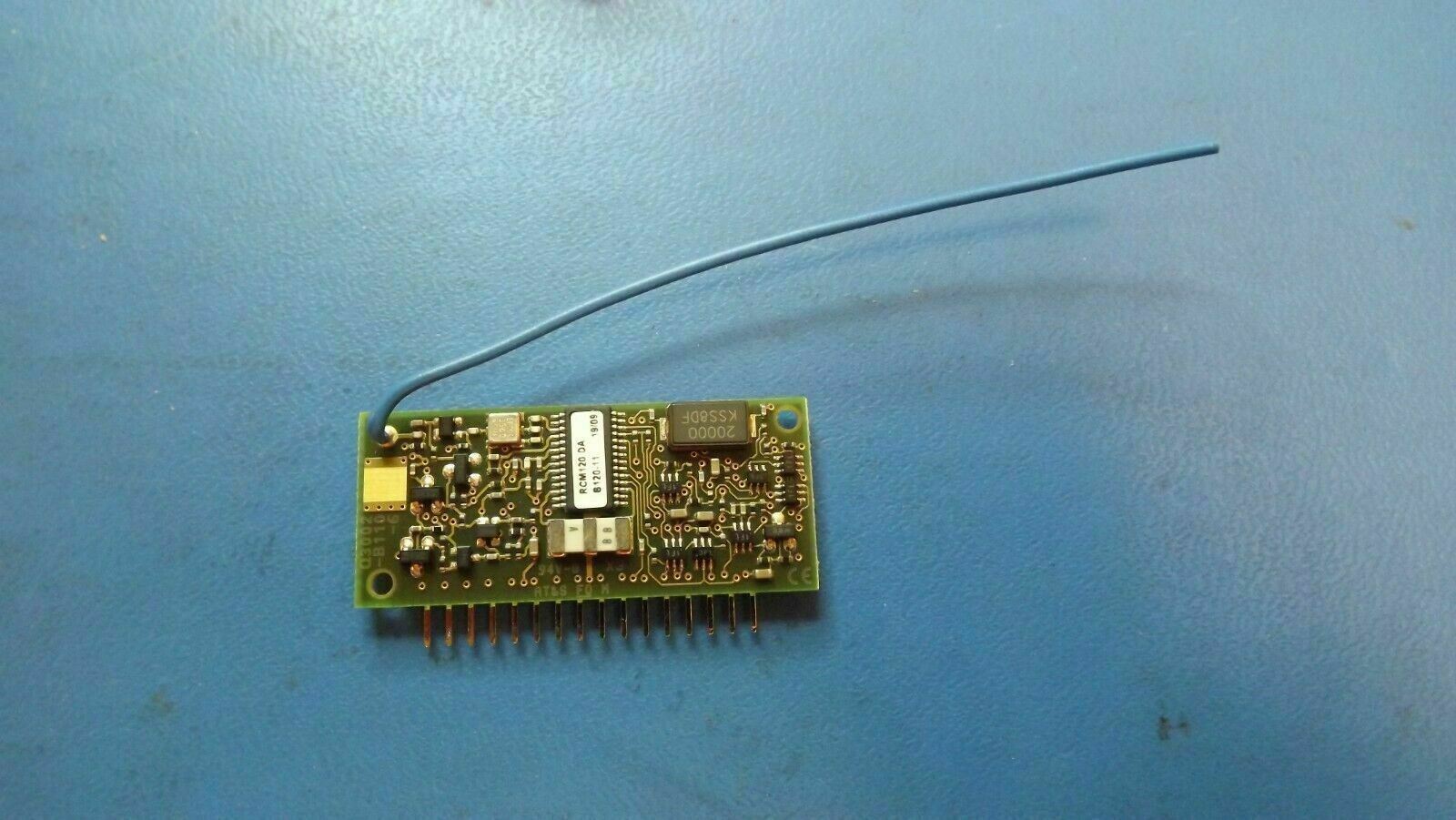

(1) RCM120 ENOCEAN RF Receiver Module - 868 MHz
Tax included.
THIS LISTING IS FOR (1) RCM120 BY ENOCEAN
Power supply / Current input: 5V DC ± 5% / 29 mA max. w/ out output load
Antenna: 9 cm whip antenna or external antenna mountable
Functional Outputs: 4 outputs, their function depends on the selected operation mode
Number of RF transmitters learnable: up to 30 EnOcean transmitters
Frequency / Channel bandwith: 868.3 MHz / 280 kHz
RSSI Output: indicates received peak signal strength
Sensitivity: -95 dBm
Control Inputs: 6 inputs, set up operating and learn modes
Learn Mode Output: indicates learning of transmitters
PCB dimensions: 18.0 x 42.0 x 5.5 mm (without wiring pins)
Operating temperature: -25 to +65°C
