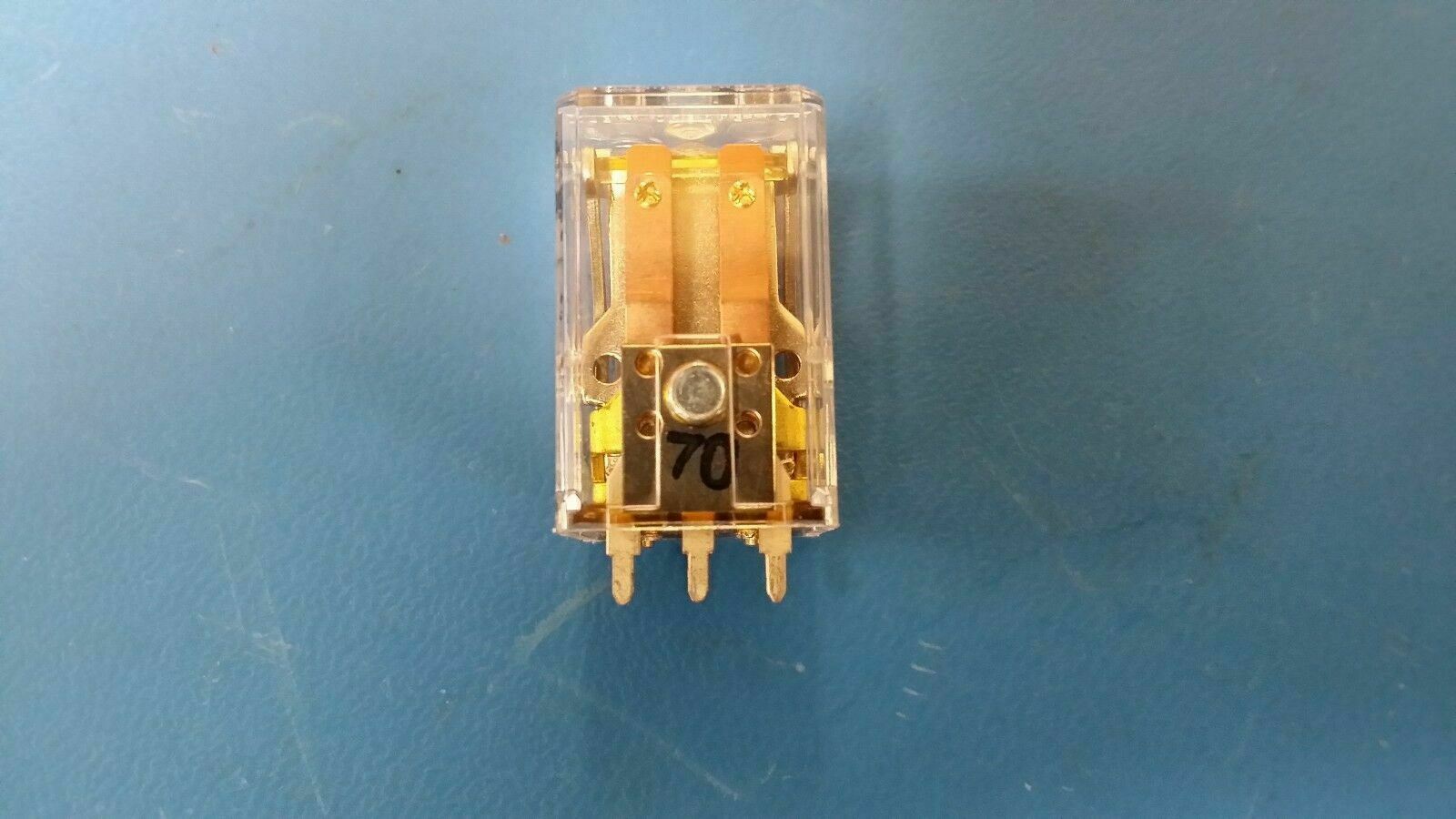

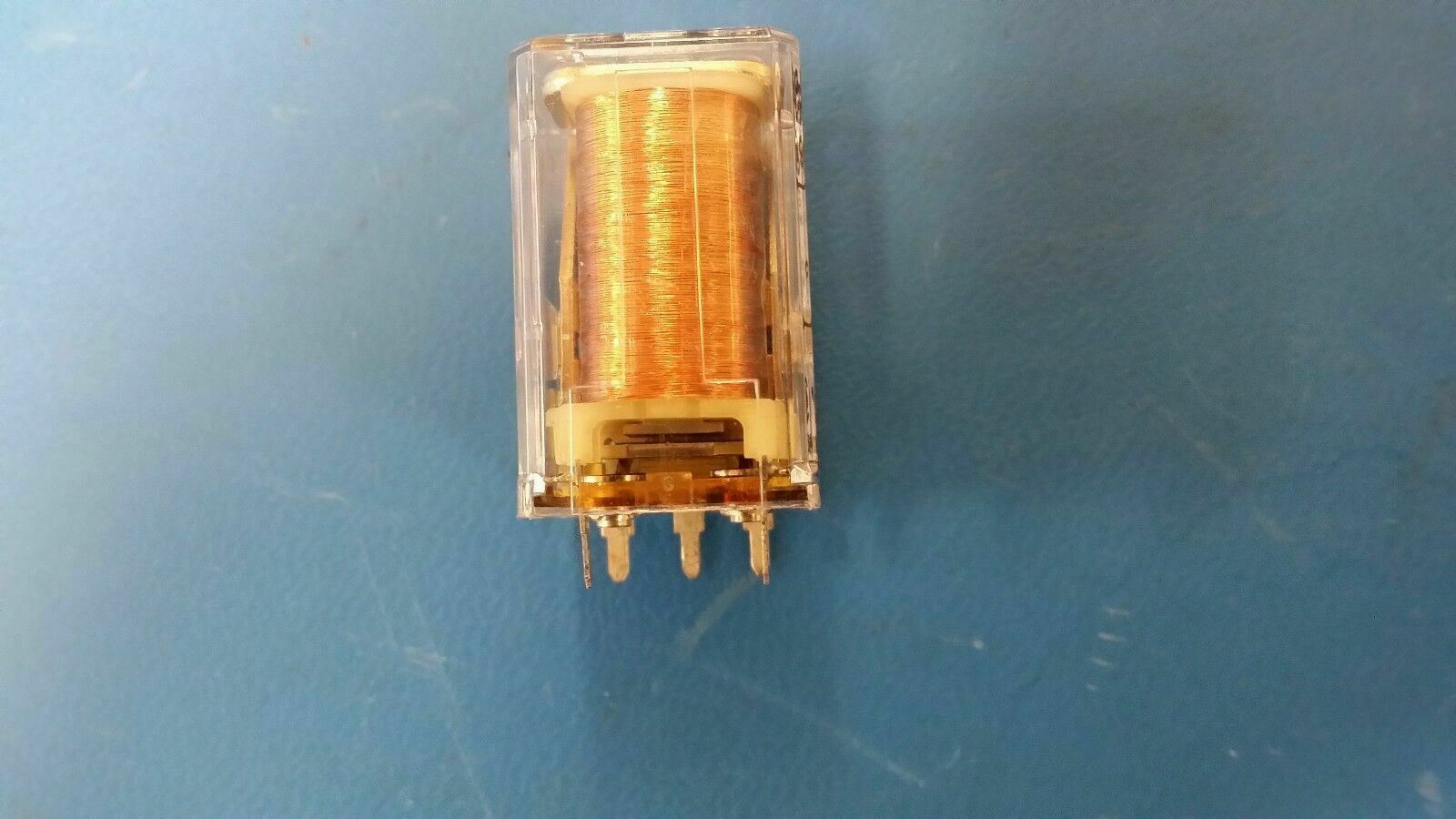

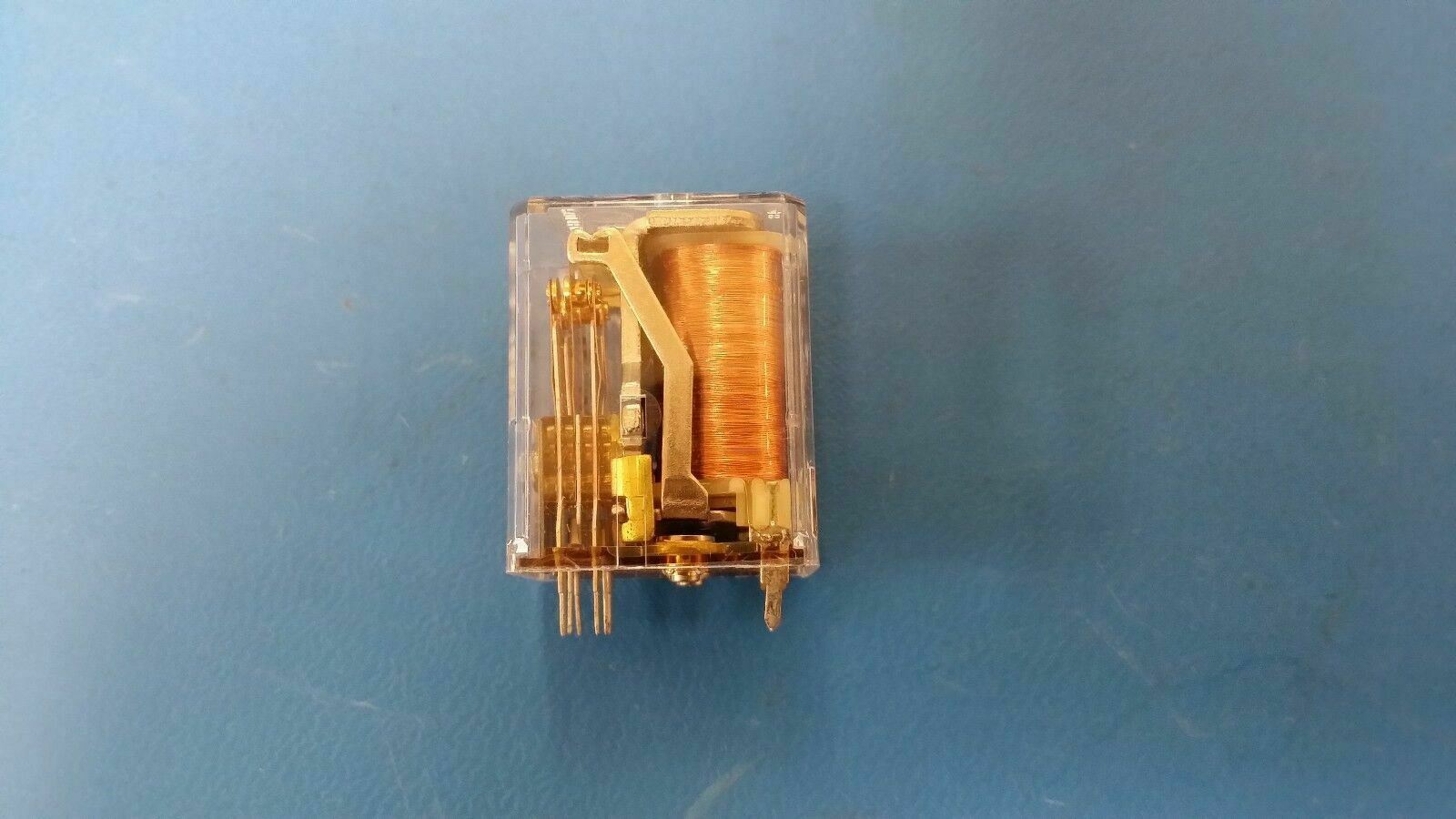

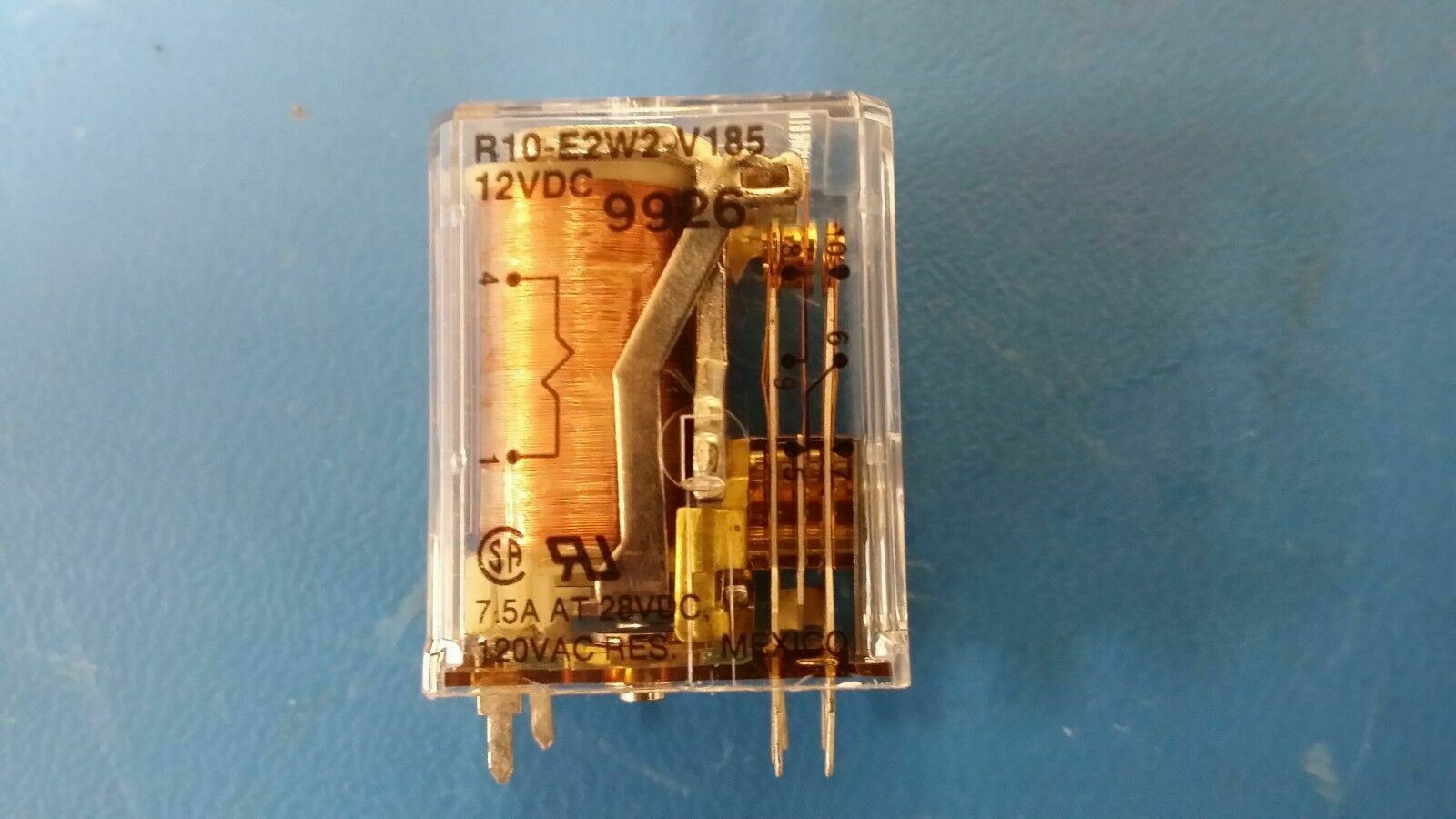

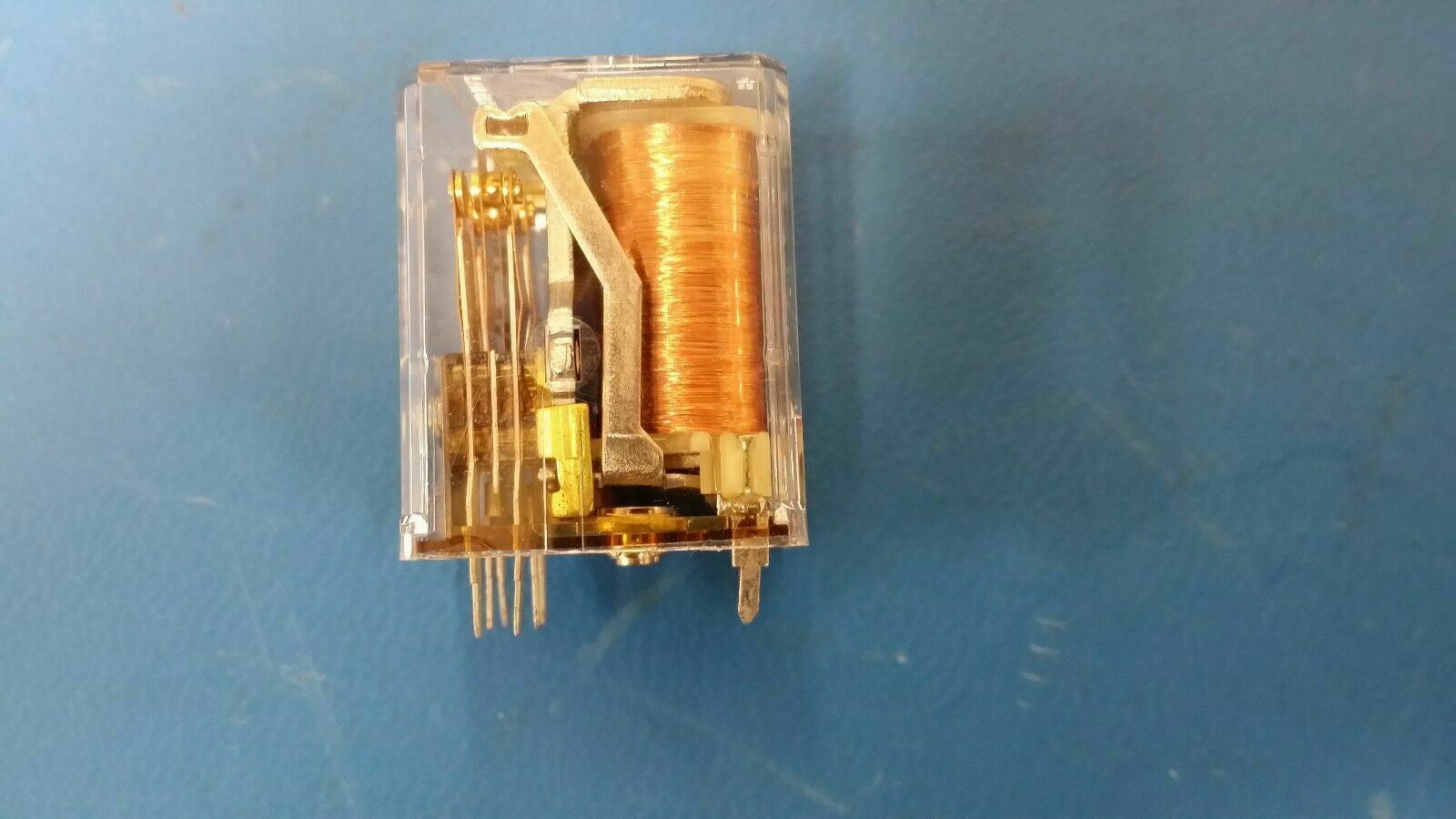

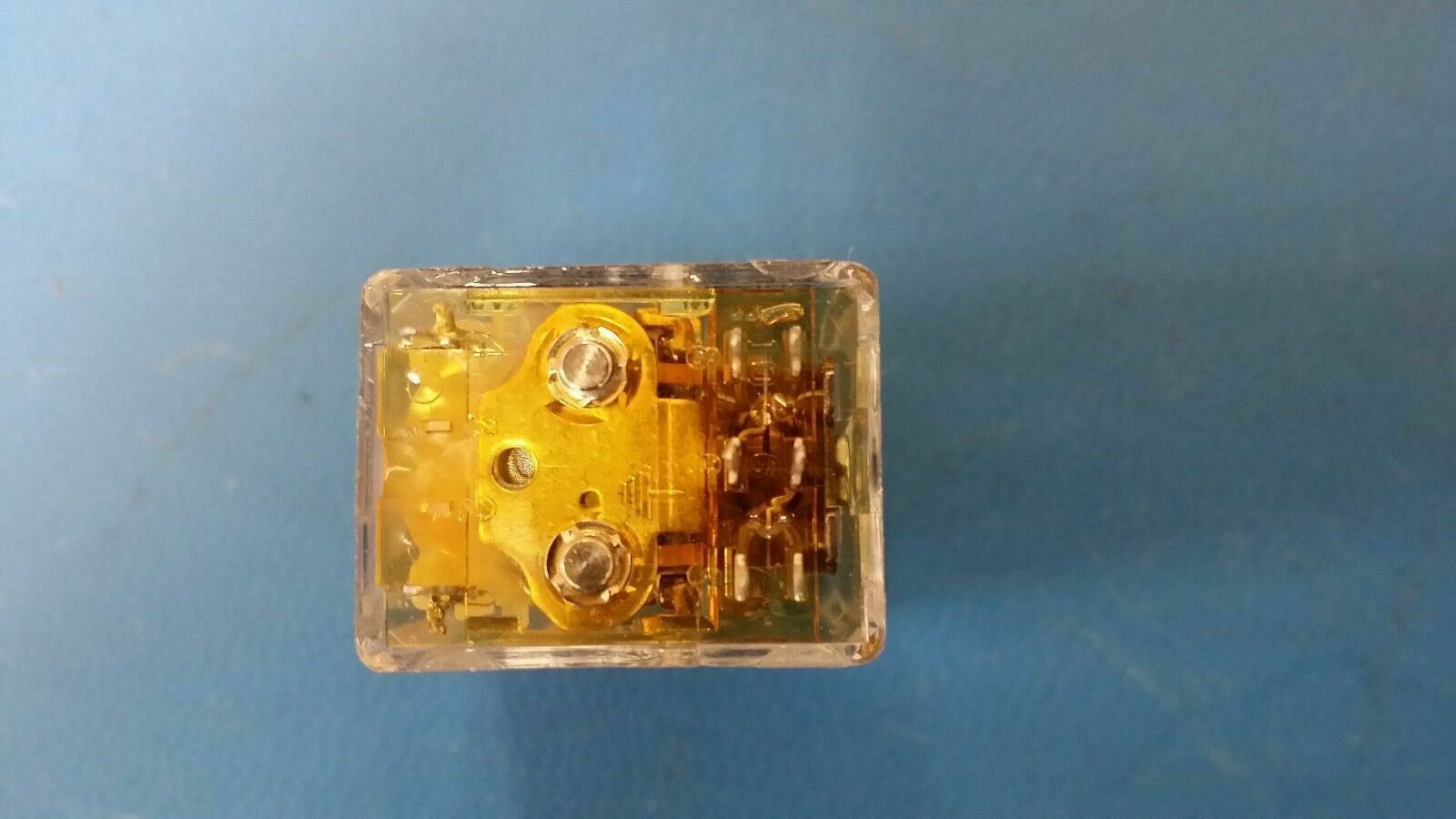

(1) R10-E2W2-V185 or 1393767-7, Potter & Brumfield/TE, Relay, DPDT, 7.5A, 12V
Tax included.
This listing is for 1 relay.
| Relay Type | General Purpose |
|---|---|
| Coil Type | Non Latching |
| Coil Current | 64.86mA |
| Coil Voltage | 12VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 7.5A |
| Switching Voltage | 120VAC, 30VDC - Max |
| Turn On Voltage (Max) | 9 VDC |
| Turn Off Voltage (Min) | - |
| Operate Time | - |
| Release Time | - |
| Features | - |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Coil Power | 900 mW |
| Coil Resistance | 185 Ohms |
| Operating Temperature | -55°C ~ 75°C |
