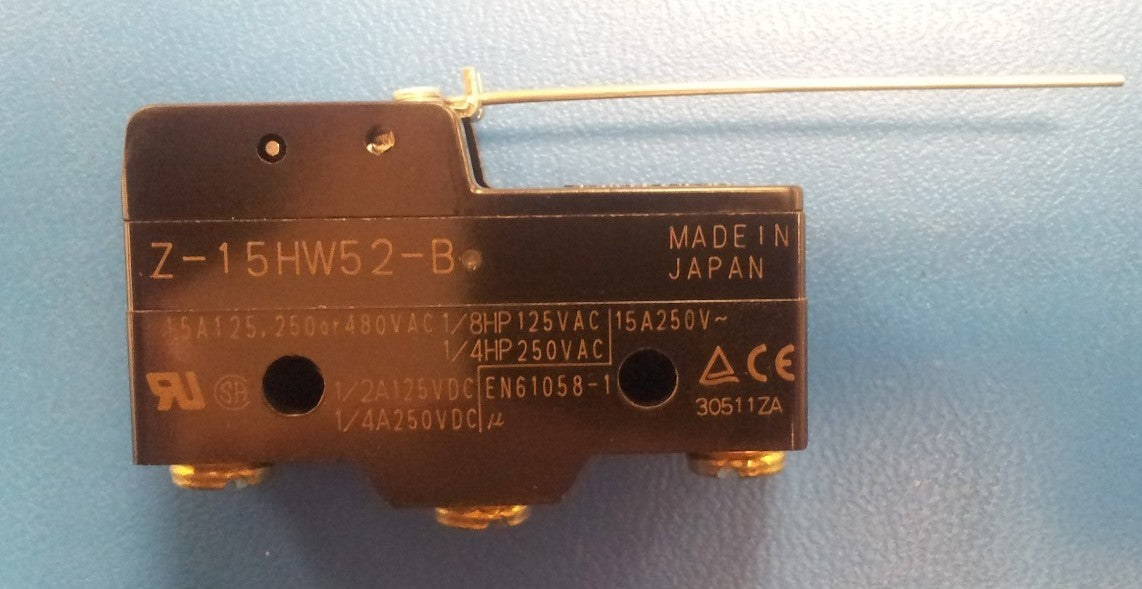

(1 PCS) Z-15HW52-B OMRON SWITCH SNAP ACTION SPDT 10A 125V ROHS
Tax included.
THIS LISTING IS FOR (1 PCS) OF Z-15HW52-B BY OMRON
SWITCH SNAP ACTION SPDT 10A 125V ROHS
Manufacturer Omron Automation and Safety
Series Z
Packaging Bulk
Part Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 10A (AC/DC)
Voltage Rating - AC 125V
Voltage Rating - DC 30V
Actuator Type Wire Lever
Mounting Type Chassis Mount
Termination Style Screw Terminal
Ingress Protection IP00
Features -
Operating Force 6.000gf
Release Force 0.500gf
Pretravel 0.328" (8.3mm)
Differential Travel 0.026" (0.65mm)
Overtravel 0.219" (5.6mm)
Operating Temperature -25°C ~ 80°C
Operating Position 0.748" (19.0mm)
Electrical Life 500,000 Cycles
Mechanical Life 20,000,000 Cycles
