(1 PCS) LT1172HVIQ#PBF DC-DC 3V to 60V Single-Out 1.244V to 60V 3.5A 100W ROHS
Tax included.

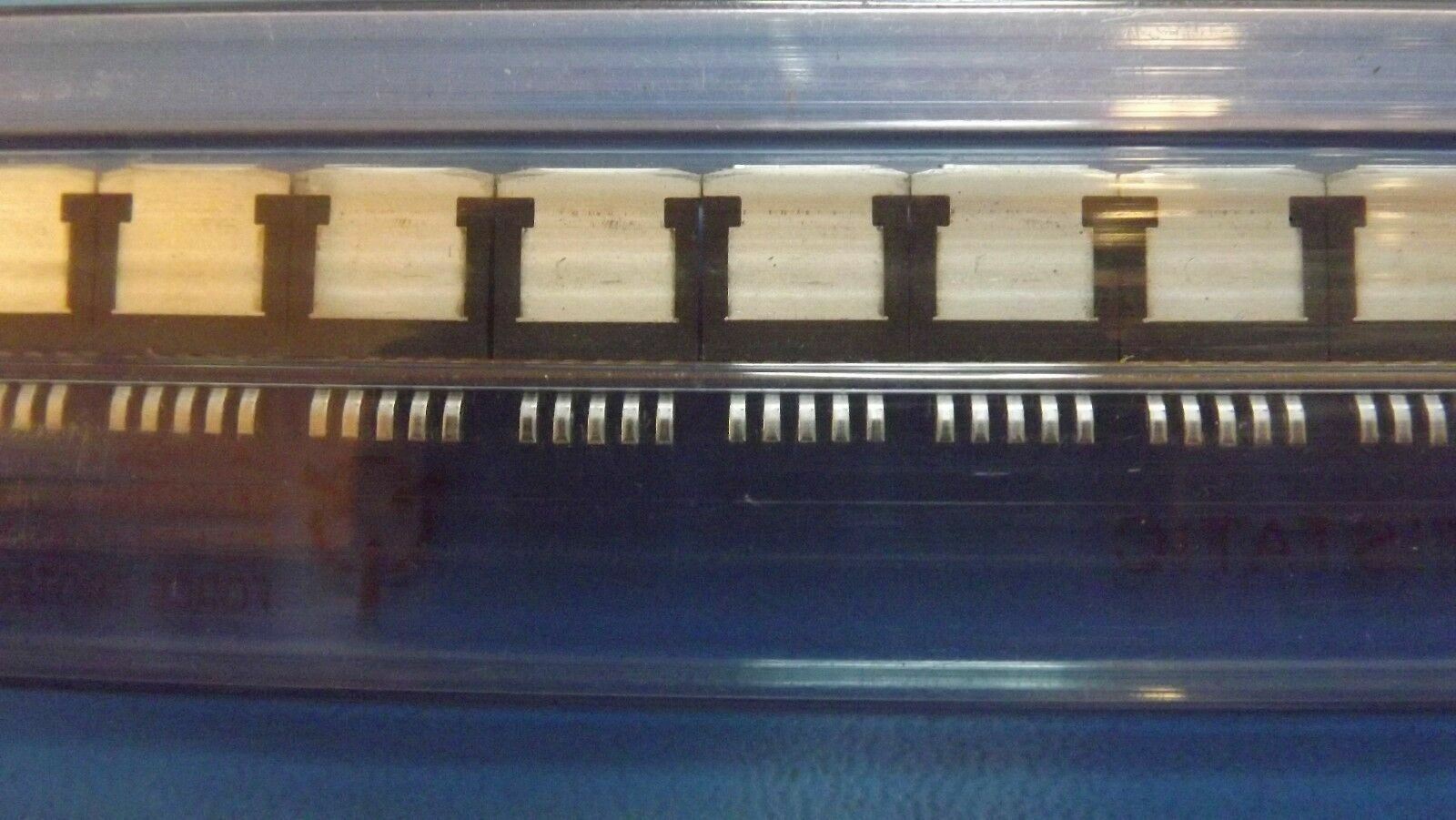

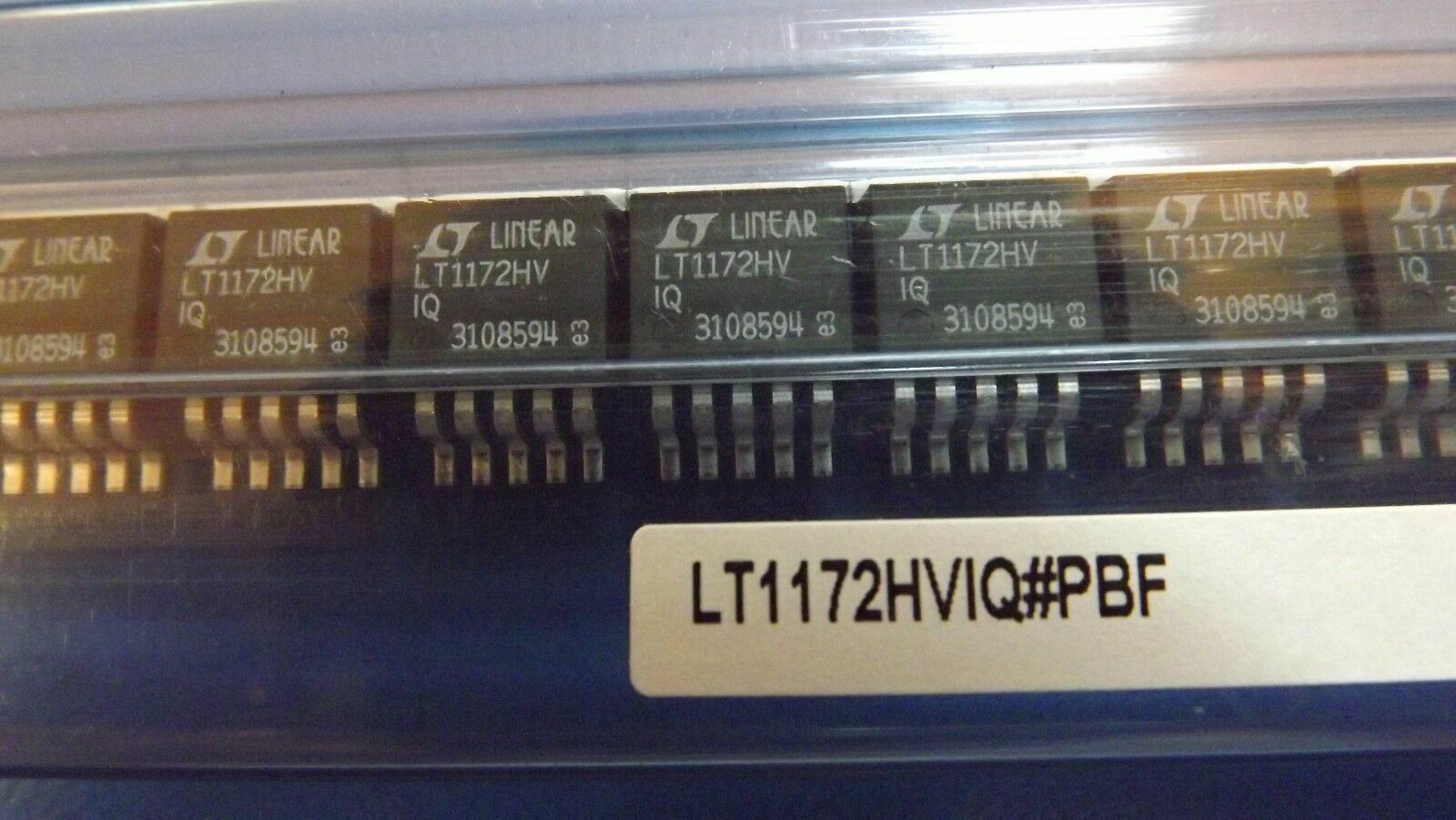

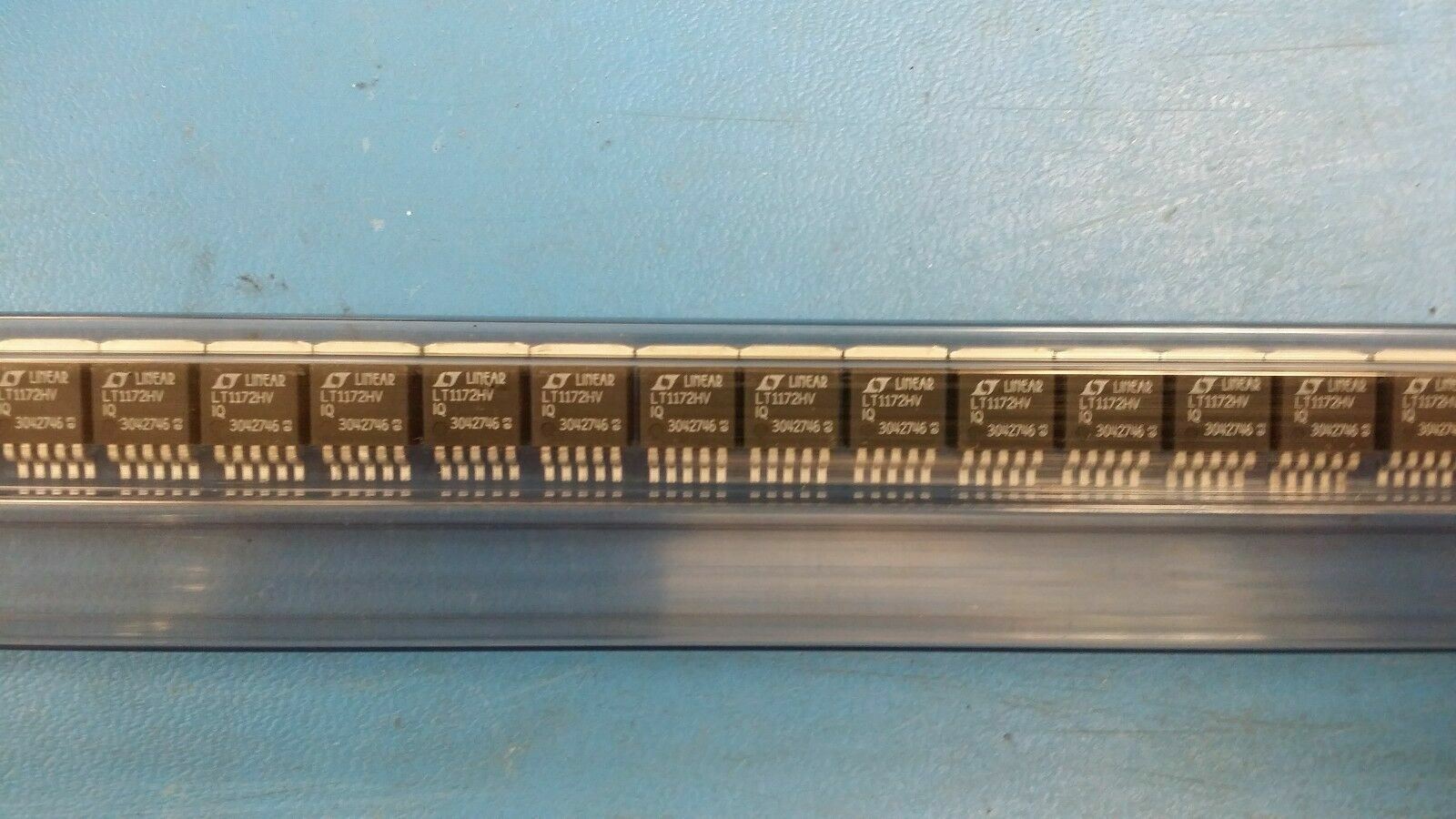

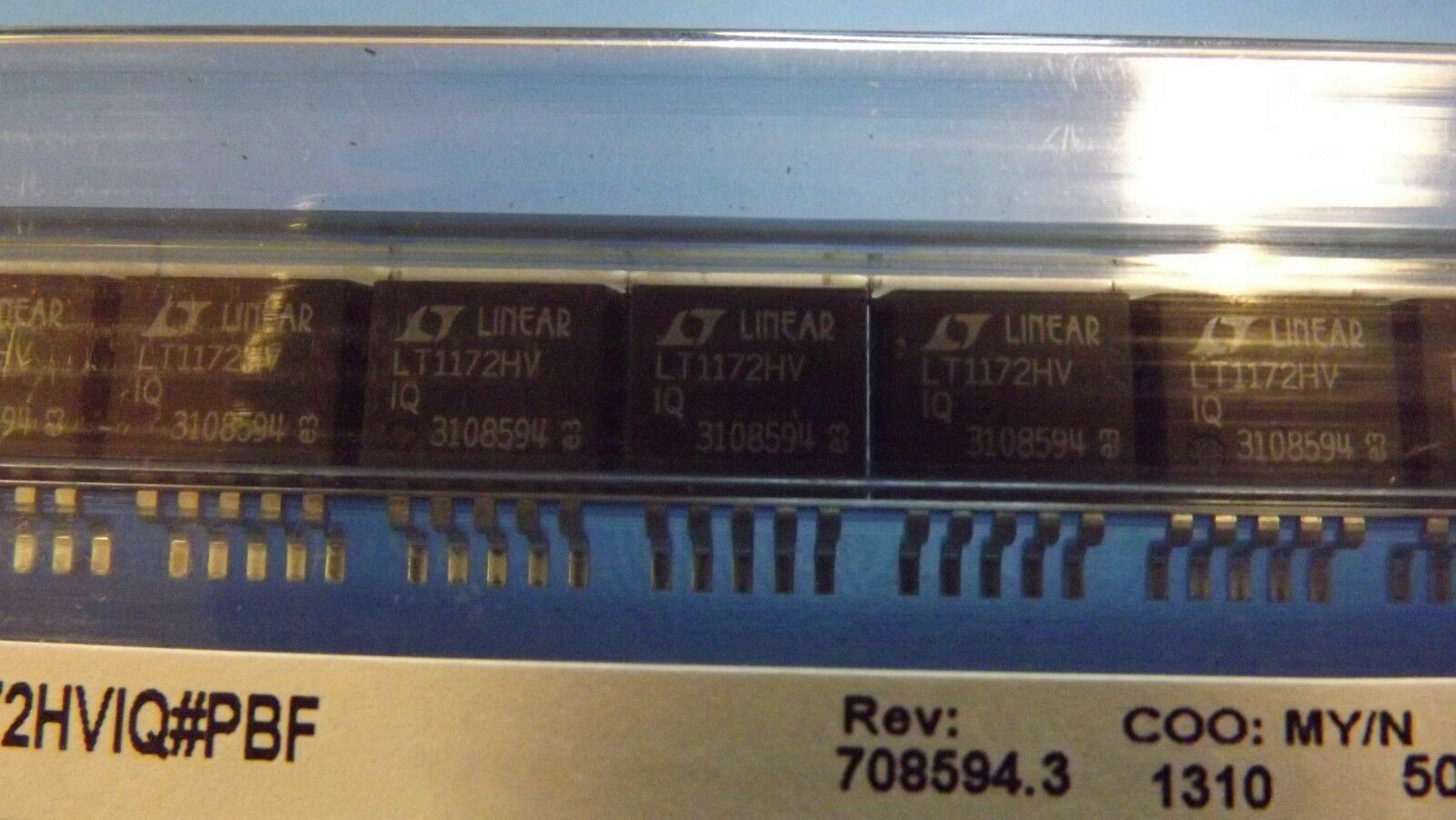

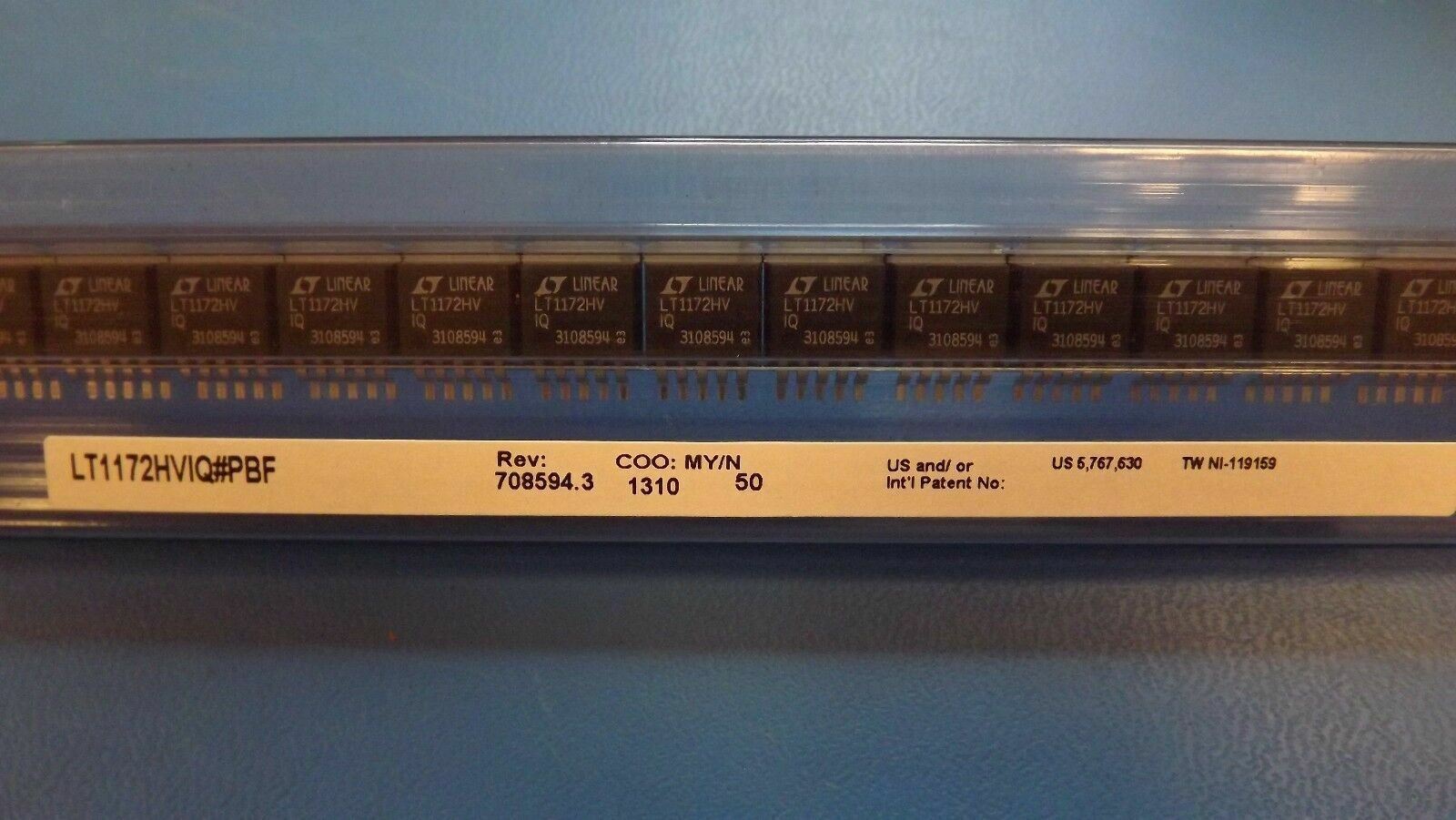

THIS LISTING IS FOR (1PC) OF LT1172HVIQ#PBF BY LINEAR TECHNOLOGY
DC-DC 3V to 60V Single-Out 1.244V to 60V 3.5A 100W ROHS
SPECIFICATIONS
| Mfr Package Description | PLASTIC, D2PAK-5 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | Active |
| Analog IC - Other Type | SWITCHING REGULATOR |
| Control Mode | CURRENT-MODE |
| Control Technique | PULSE WIDTH MODULATION |
| Input Voltage-Nom | 15.0 V |
| Input Voltage-Min | 3.0 V |
| Input Voltage-Max | 60.0 V |
| JESD-30 Code | R-PSSO-G5 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Terminals | 5 |
| Output Current-Max | 3.5 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | TO-263 |
| Package Equivalence Code | SMSIP5H,.6,67TB |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.572 mm |
| Sub Category | Switching Regulator or Controllers |
| Surface Mount | YES |
| Switcher Configuration | BOOST |
| Switching Frequency-Max | 115.0 kHz |
| Technology | BIPOLAR |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.7 mm |
| Terminal Position | SINGLE |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Length | 10.2235 mm |
| Width | 8.89 mm |
