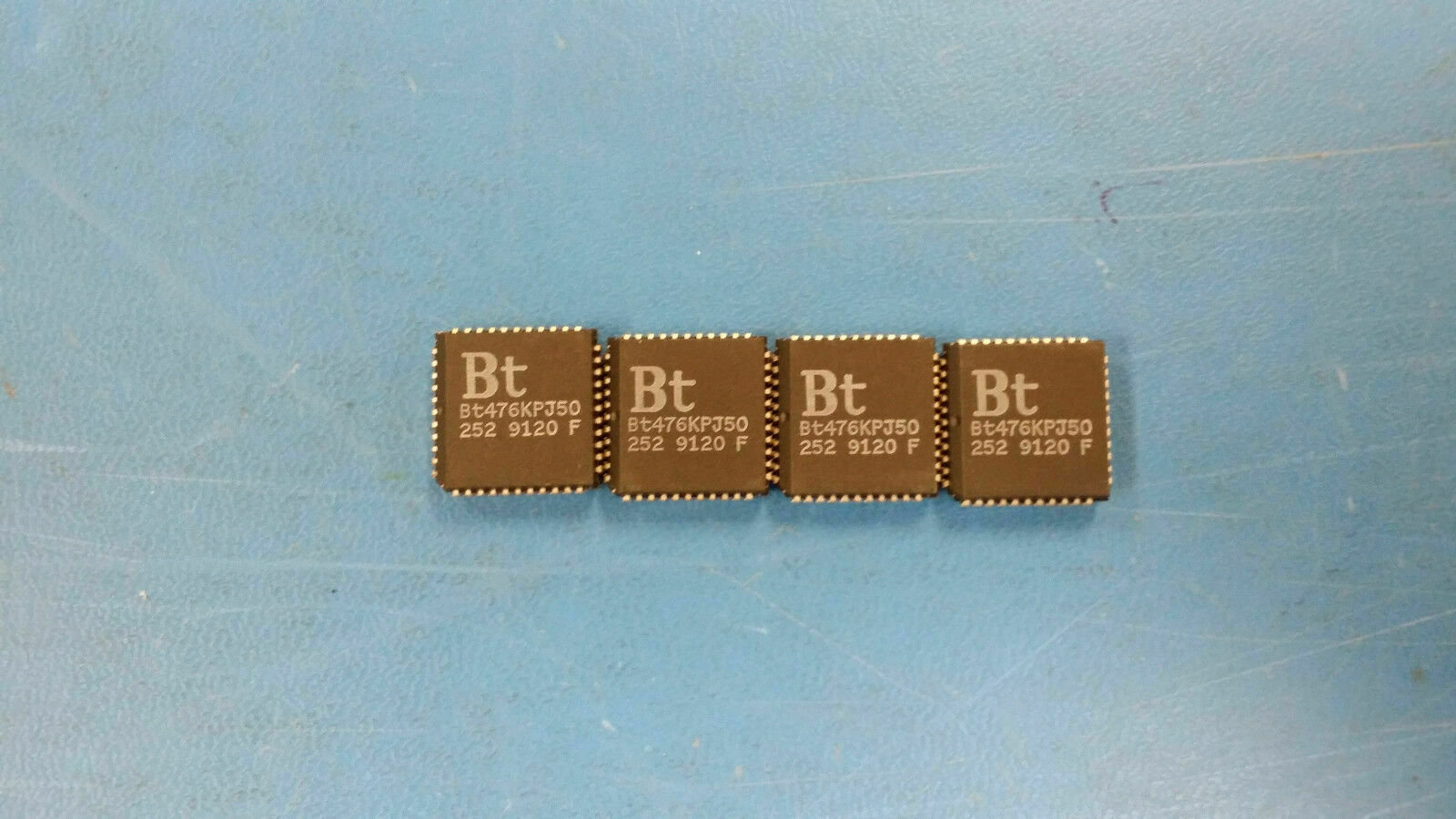

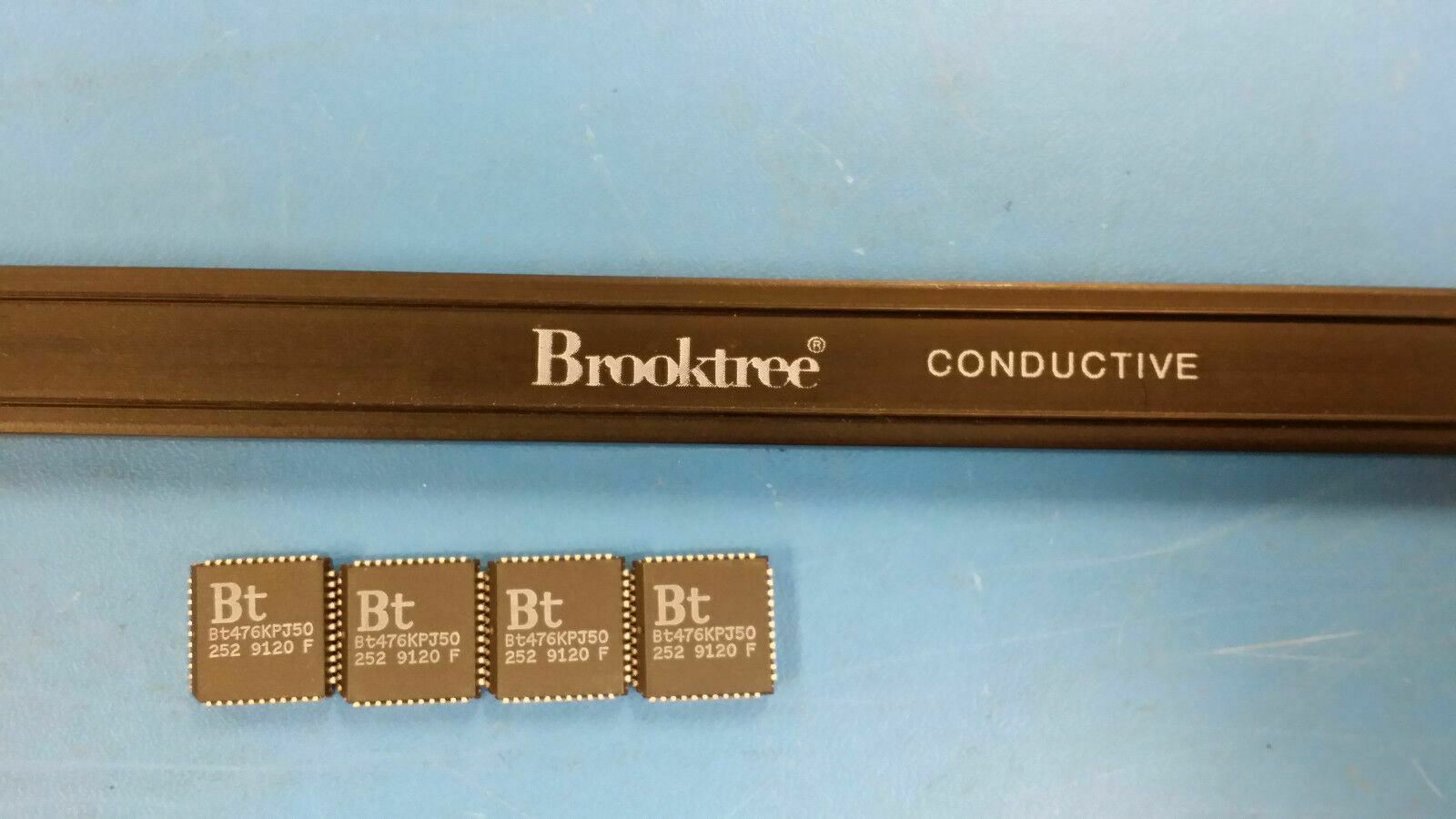

(5 PCS) BT476KPJ50 Brooktree D/A Converter, 1 Func, Parallel, 8 Bits, PLCC44
Tax included.
THIS LISTING IS FOR (5 PCS) OF BT476KPJ50 BY BROOKTREE/CONEXANT
8 BITS INPUT LOADING 0.02us SETTLING TIME 6-BIT DAC PLCC44
Part #: BT476KPJ50
Part Category: Converters
Manufacturer: Brooktree/Conexant Systems, Inc.
Description: PARALLEL, 8 BITS INPUT LOADING, 0.02us SETTLING TIME, 6-BIT DAC, PLCC44
Status Discontinued
Converter Type D/A CONVERTER
Input Bit Code BINARY
Input Format PARALLEL, 8 BITS
JESD-30 Code S-PQCC-J44
JESD-609 Code e0
Linearity Error-Max (EL) 0.781 %
Number of Bits 6
Number of Functions 1
Number of Terminals 44
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC44,.7SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Settling Time-Nom (tstl) 0.02 µs
Sub Category Other Converters
Supply Current-Max 240.0 mA
Supply Voltage-Nom 5.0 V
Surface Mount YES
Technology CMOS
Temperature Grade MILITARY
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
