(1 PCS) 54F191DMQB Binary Counter,Synchronous, 4-Bit, Bidirectional, TTL, CDIP16
Tax included.

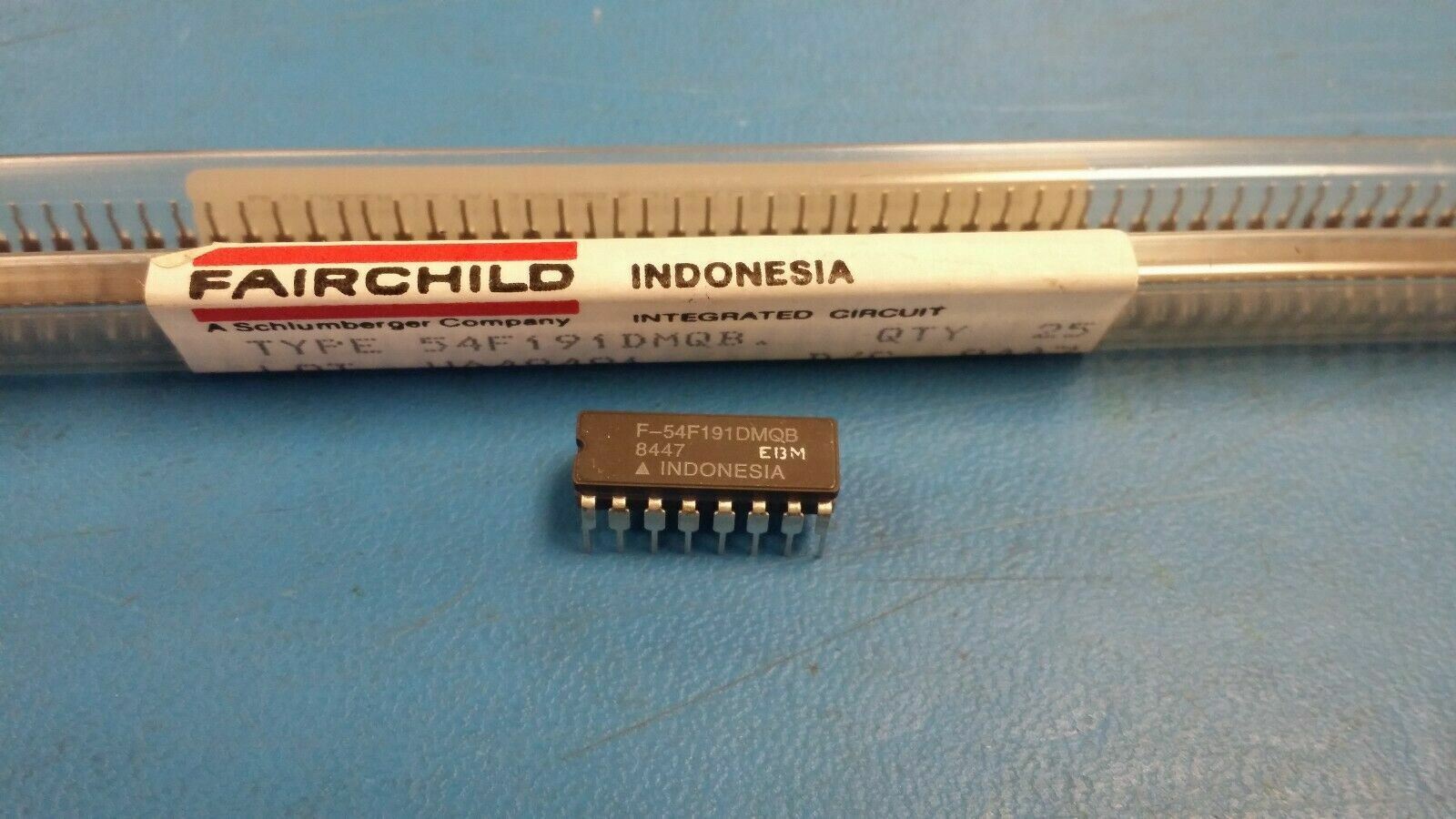

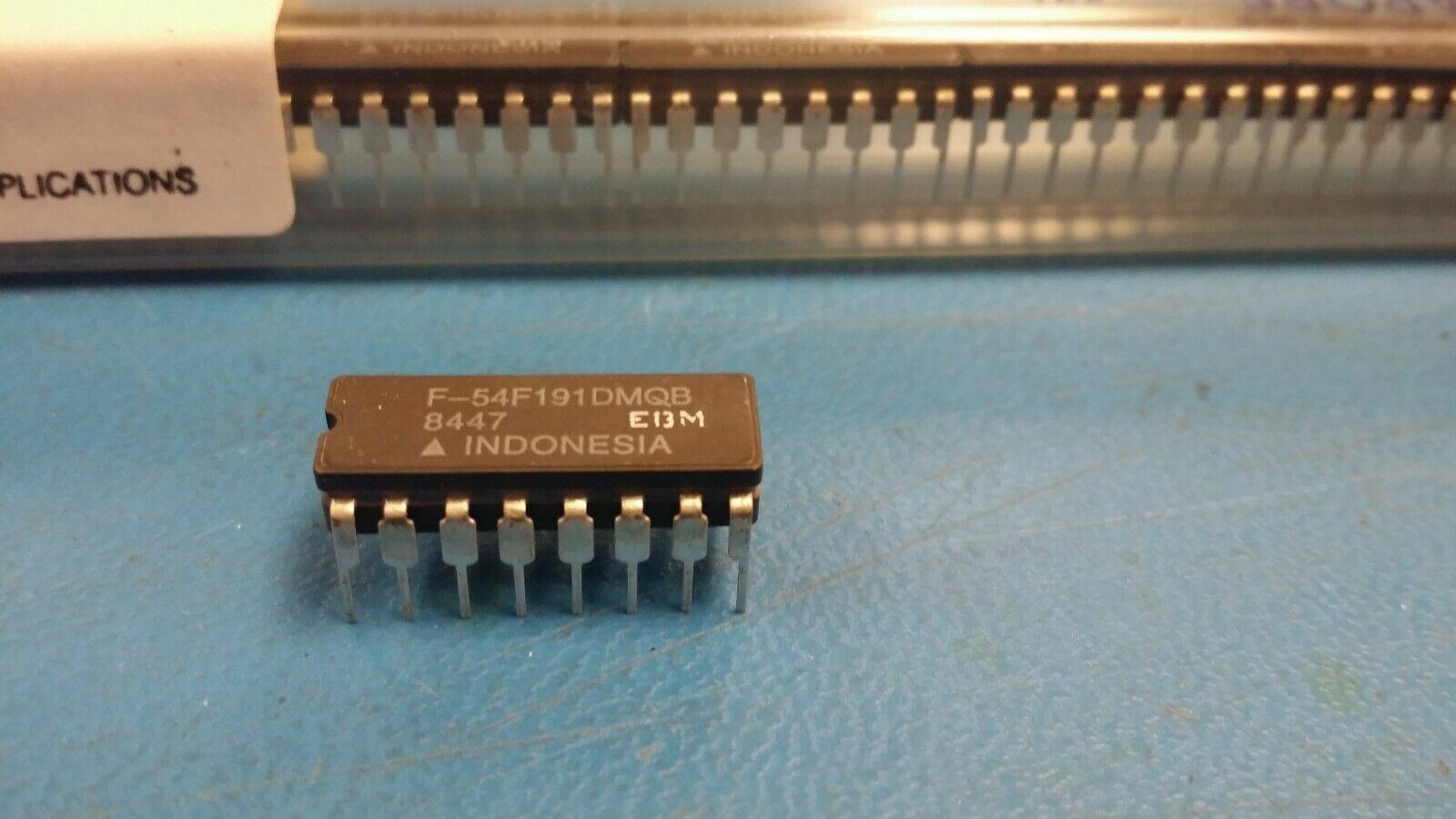

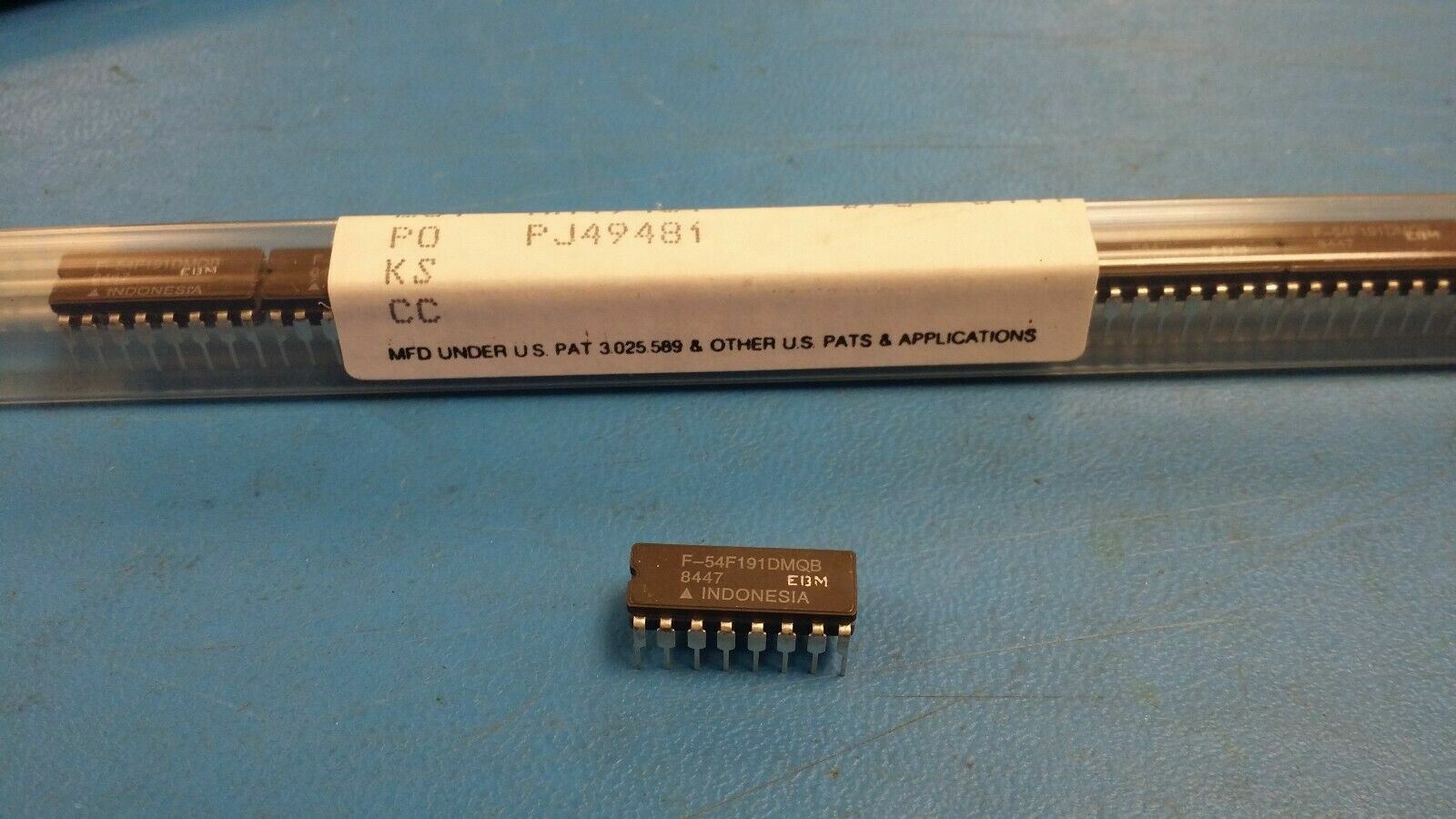

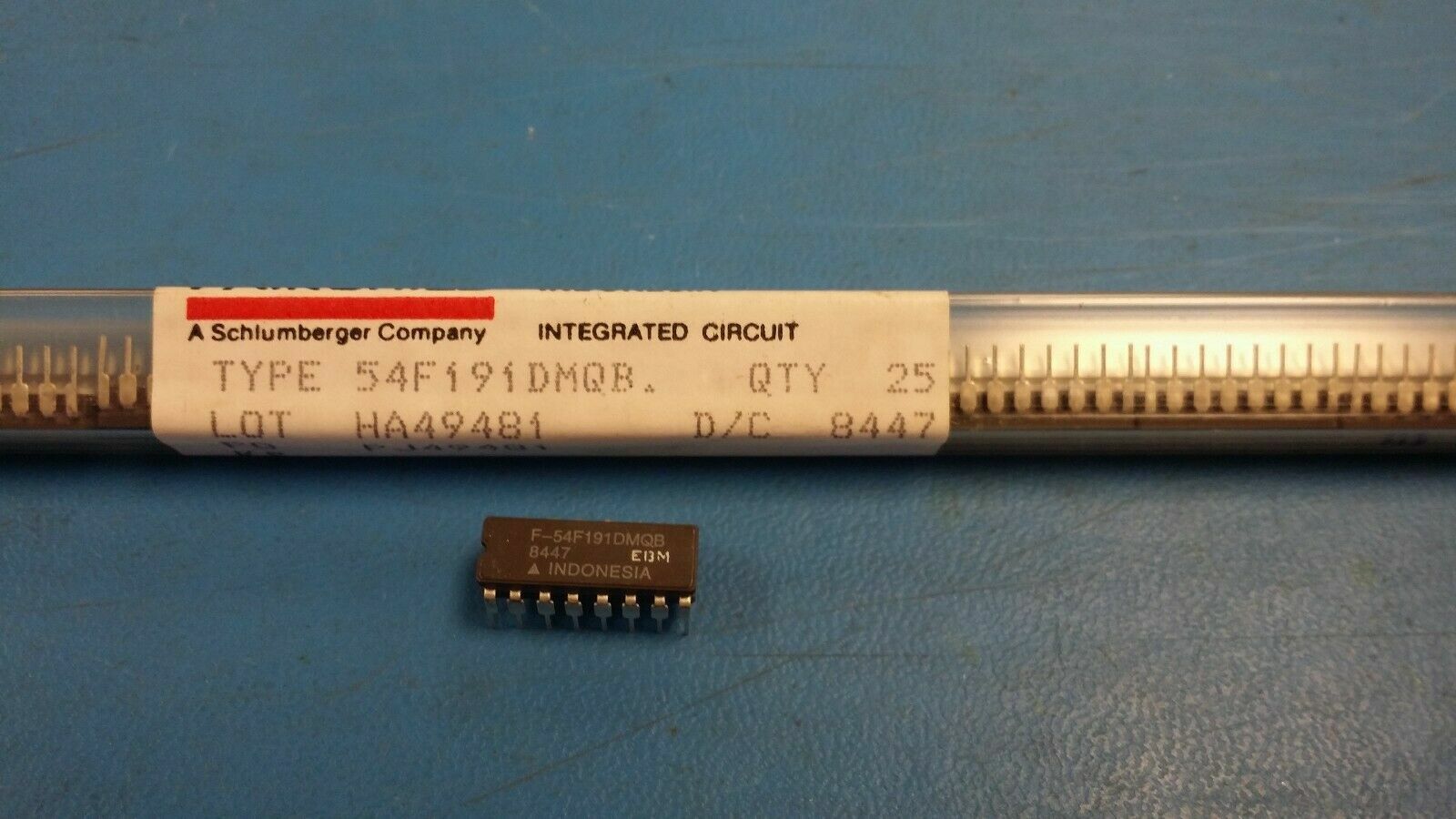

THIS LISTING IS FOR (1 PCS) OF 54F191DMQB BY FSC
Binary Counter,Synchronous, 4-Bit, Bidirectional, TTL, CDIP16
Part #: 54F191DMQB
Part Category: Logic ICs
Manufacturer: Fairchild Semiconductor
Description: Binary Counter, F/FAST Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, TTL, CDIP16
Mfr Package Description CERAMIC, DIP-16
Status Discontinued
Logic IC Type BINARY COUNTER
Sub Category Counters
Count Direction BIDIRECTIONAL
Family F/FAST
fmax-Min 75.0 MHz
JESD-30 Code R-GDIP-T16
JESD-609 Code e0
Load Capacitance (CL) 50.0 pF
Load/Preset Input YES
Max Frequency@Nom-Sup 7.5E7 Hz
Max I(ol) 0.02 Amp
Mode of Operation SYNCHRONOUS
Number of Bits 4
Number of Functions 1
Number of Terminals 16
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supply Current-Max (ICC) 55.0 mA
Propagation Delay (tpd) 13.5 ns
Qualification Status Not Qualified
Screening Level 38535Q/M;38534H;883B
Seated Height-Max 5.08 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount NO
Technology TTL
Temperature Grade MILITARY
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Trigger Type POSITIVE EDGE
Length 19.43 mm
Width 7.62 mm
Additional Feature TCO OUTPUT
