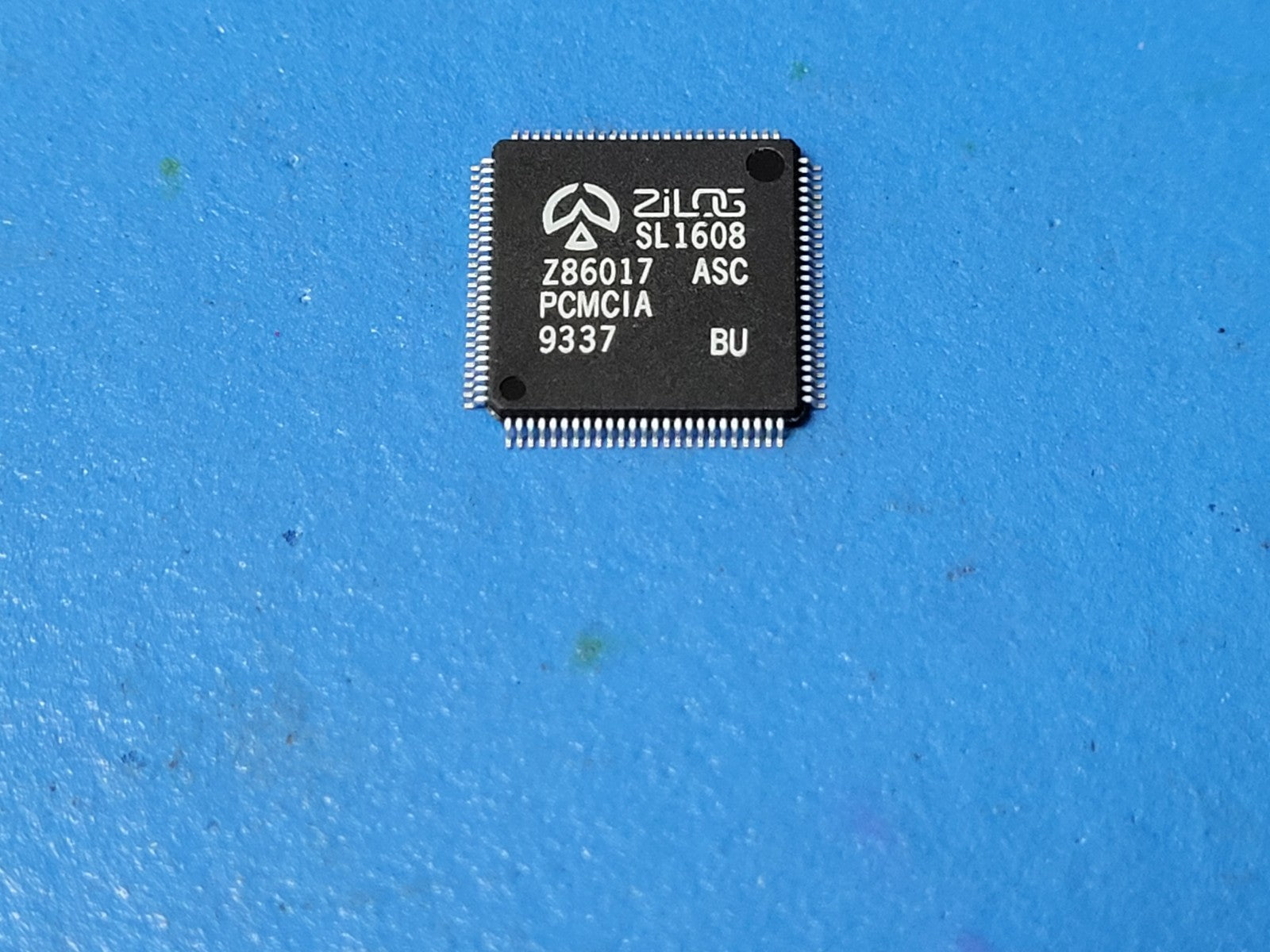

(1 PC) Z8601720ASC ZILOG PCMCIA Bus Controller, CMOS, PQFP100
Tax included.
THIS IS FOR (1 PC) OF Z8601720ASC BY ZILOG
PCMCIA Bus Controller, CMOS, PQFP100
Status Discontinued
Additional Feature OPERATES AT 5V SUPPLY
Address Bus Width 11
Bus Compatibility ATA; IDE
Clock Frequency-Max (MHz) 20.0000000000000000
External Data Bus Width 16
JESD-30 Code S-PQFP-G100
J-STD-609 Code e0
Length (mm) 14.0000
Number of Terminals 100
Operating Temperature-Max (Cel) 70.0000
Operating Temperature-Min (Cel) 0.0000
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP100,.63SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
DLA Qualification Not Qualified
Seated Height-Max (mm) 1.6000
Supply Current-Max (mA) 5.00000000
Supply Voltage-Max (V) 3.6300
Supply Voltage-Min (V) 2.9700
Supply Voltage-Nom (V) 3.3000
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch (mm) 0.500
Terminal Position QUAD
Width (mm) 14.0000
uPs/uCs/Peripheral ICs Type BUS CONTROLLER, PCMCIA
