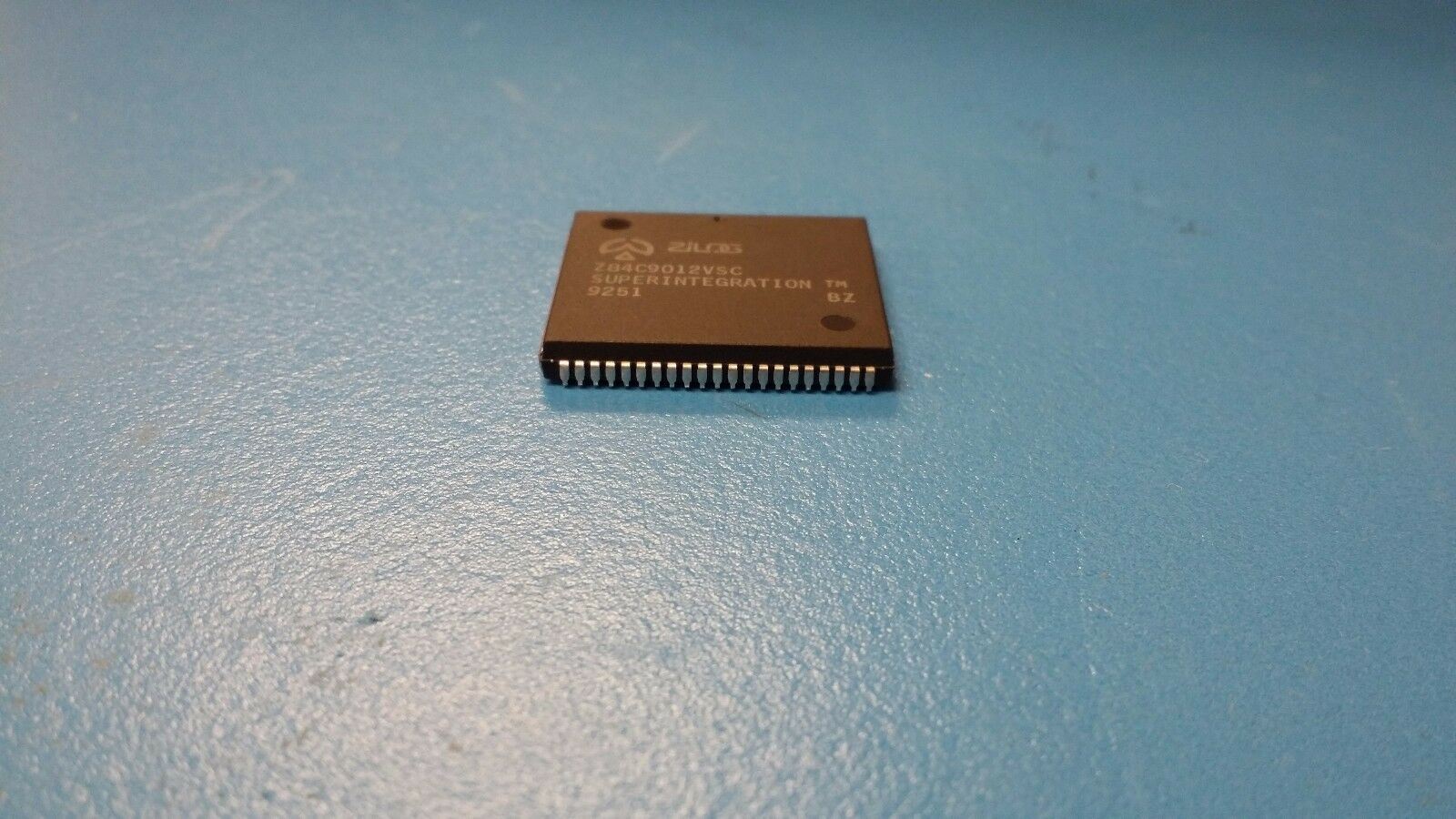

(1 PC) Z84C9012VSC ZILOG MULTIFUNCTION PERIPHERAL, PLCC84
Tax included.
THIS LISTING IS FOR (1 PC) OF Z84C9012VSC BY ZILOG MULTIFUNCTION PERIPHERAL, PLCC84
Mfr Package Description PLASTIC, LCC-84
Status Discontinued
Address Bus Width 4.0
Boundary Scan NO
Clock Frequency-Max 12.5 MHz
External Data Bus Width 8.0
JESD-30 Code S-PQCC-J84
JESD-609 Code e0
Number of I/O Lines 24.0
Number of Terminals 84
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC84,1.2SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Peak Reflow Temperature (Cel) 240
Power Supplies 5
Qualification Status Not Qualified
Seated Height-Max 4.57 mm
Sub Category Parallel IO Port
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.5 V
Supply Voltage-Max 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Length 29.3116 mm
Width 29.3116 mm
